RUIJIE · RG-AP880-L
Ruijie RG-AP880-L Wi-Fi 6E Üç Bant Tavan Tipi Access Point
Model
RG-AP880-LRuijie RG-AP880-L access point: Wi-Fi 6E technology, higher speed and wider channels, Intelligent roaming with 802.11k/v/r, superior roaming experience, Ruijie Cloud management, intelligent optimization.
- Kablosuz standart
- Wi-Fi 6E
- Wi-Fi 6E technology, higher speed and wider channels
- Intelligent roaming with 802.11k/v/r, superior roaming experience
- Ruijie Cloud management, intelligent optimization
Genel bakış
Ruijie RG-AP880-L özellikleri ve kullanım alanları.
Recommended for indoor scenarios covering higher education, government, general education, finance, and business

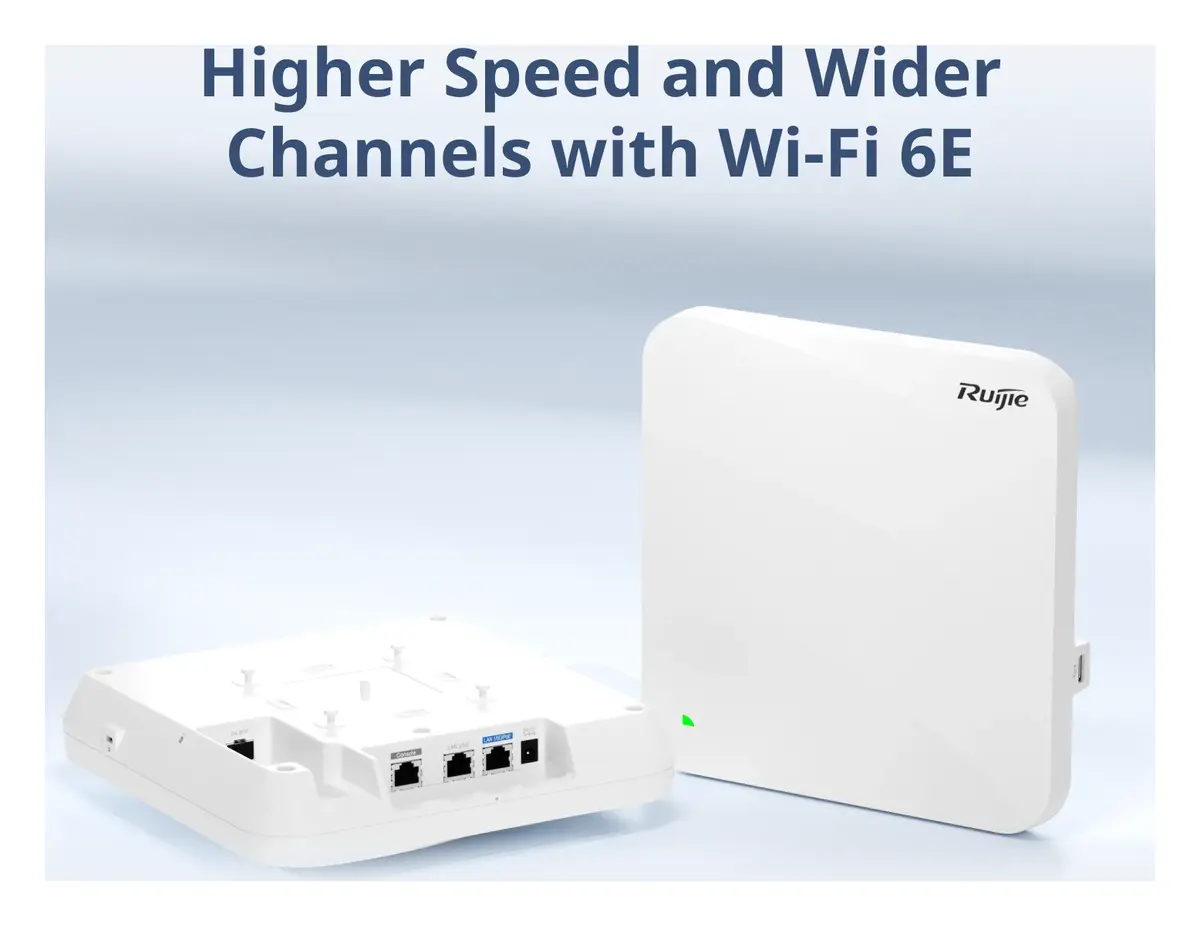

Higher Speed and Wider Channels with Wi-Fi 6E
Indoor Access Point RG-AP880-L
Max. Data Rate: 7.780 Gbps
PoE/DC Power Supply
Free cloud management
Wi-Fi 6E technology, supporting 6 GHz frequency band with wider spectrum resources and achieving fast and stable data transmission of up to 7.780 Gbps.
OFDMA and MU-MIMO technologies, supporting up to 100 concurrent clients
OFDMA and BSS Coloring technologies, reducing latency to 10 ms
WPA3 encryption, greatly improving wireless connection security
Target Wake Time (TWT) for reducing the service period (SP) of clients, saving 30% of energy.

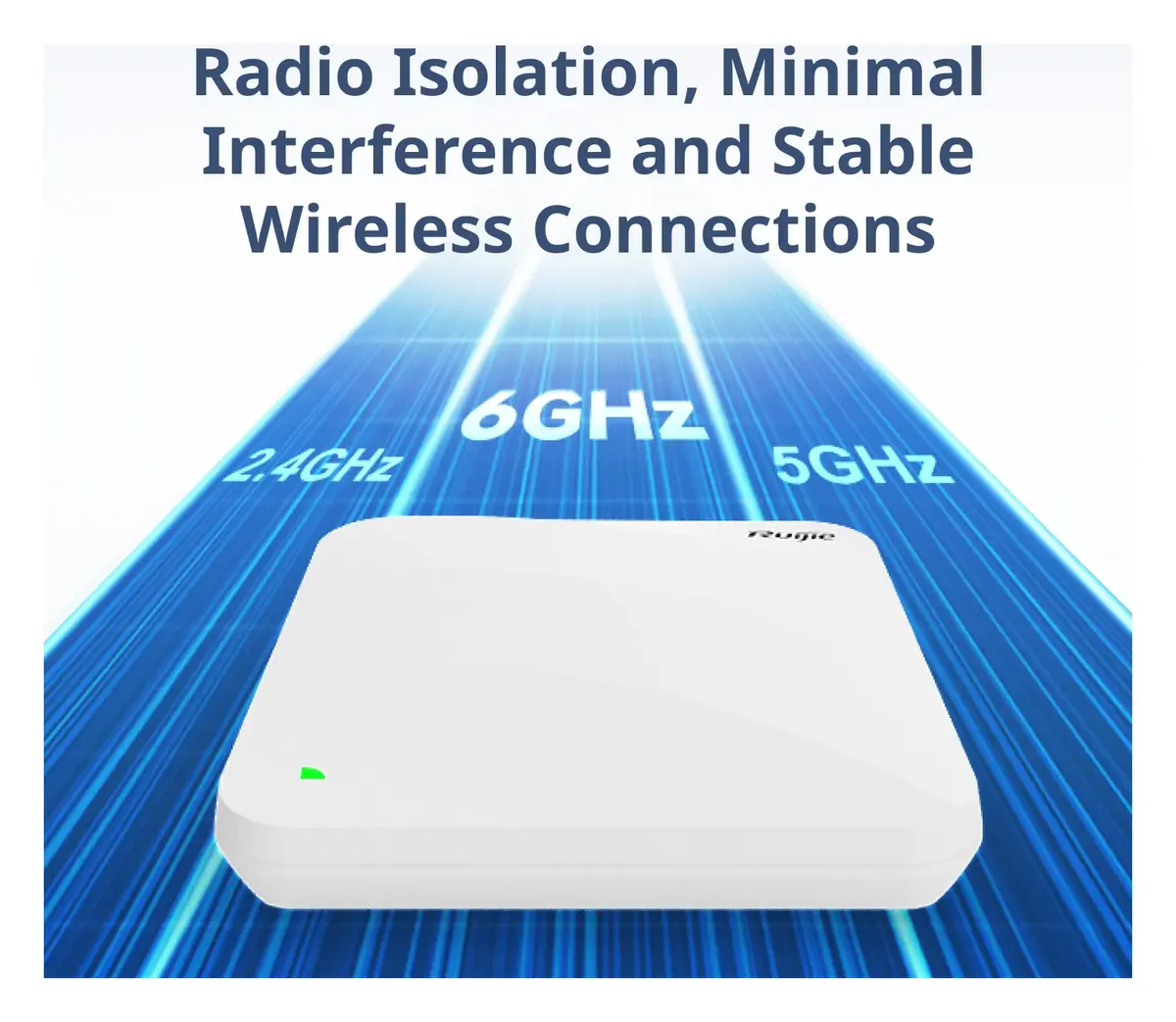

Radio Isolation, Minimal Interference and Stable Wireless Connections
Tri-radio design, enabling independent operation in 2.4 GHz, 5 GHz, and 6 GHz bands while ensuring no interference between them. Intelligent channel optimization and precise radio isolation, ensuring pure and stable signal transmission. Intelligent optimization, enabling balanced connections, efficient bandwidth allocation, and superior network performance for each client.
6 GHz Band, Delivering Greater Capacity
6 GHz frequency band and smart antennas, providing uninterrupted signals upon client movement and intelligent signal strength adjustment, and achieving optimal signal coverage. OFDMA technology, allowing for efficient network connections even in high-density scenarios. Plug-and-play, enabling efficient and stable connections.
Cloud, Make Your Business Easy
- Cloud portal authentication
- Remote Wi-Fi management
- Wireless intelligent optimization
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Unit dimensions; (W x D x H) | 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) |
|---|---|
| Shipping dimensions; (W x D x H) | 535 mm x 406 mm x 269 mm (21.06 in. x 15.98 in. x 10.59 in.) |
| Cihaz Ağırlığı | Main unit: 1.0 kg (2.20 lbs); Mounting bracket: 0.1 kg (0.22 lbs) |
| Kutulu Ağırlık | 13.67 kg (30.14 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Radyo Tasarımı | Tri-radio and up to eight spatial streams:; Radio 1: 2.4GHz: Two spatial streams, 2x2 MU-MIMO; Radio 2: 5GHz: Two spatial streams, 2x2 MU-MIMO; Radio 3: 6GHz: Four spatial streams, 4x4 MU-MIMO |
|---|---|
| Çalışma Frekansları | Radio 1: 802.11b/g/n/ax; 2.400 GHz to 2.483 GHz, channels 1 to 13; Radio 2: 802.11a/n/ac/ax; 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48; 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64; 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140; 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165; Radio 3: 802.11ax; 5.925 GHz to 7.125 GHz, U-NII-4, channels 1 to 233; Note: Available frequency bands ma |
| Data rates | Combined peak data rate: 7.780 Gbps; Radio 1: 2.4 GHz, 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to 2SS HE20 802.11ax client devices (typical); Radio 2: 5 GHz, 2.402 Gbps; Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (maximum); Two spatial str |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MVC31, HT20 to HT40); 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160); 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Anten Tipi | Built-in omnidirectional antennas (two 2.4 GHz antennas, two 5 GHz antennas and four 6 GHz antennas) |
| Anten Kazancı | 2.4 GHz: 5 dBi; 5 GHz: 5 dBi; 6 GHz: 5 dBi |
| Maks. Yayın Gücü | 2.4 GHz: 27 dBm (24dBm per chain); 5 GHz: 26 dBm (23dBm per chain); 6 GHz: 26 dBm (23dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; 5.945 GHz to 6.425 GHz, EIRP ≤ 23 dBm; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA) |
| Modulation types | 802.11b: BPSK, QPSK, and CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5GHz 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5GHz 802.11n (HT20) | MCS0; MCS7 |
| 5GHz 802.11n (HT40) | MCS0; MCS7 |
| 5GHz 802.11ac (VHT20) | MCS0; MCS9 |
| 5GHz 802.11ac (VHT40) | MCS0; MCS9 |
| 5GHz 802.11ac (VHT80) | MCS0; MCS9 |
| 5GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5GHz 802.11ax (HE80) | MCS0; MCS11 |
| 5GHz 802.11ax (HE160) | MCS0; MCS11 |
| 6GHz 802.11ax (HE20) | MCS0; MCS11 |
| 6GHz 802.11ax (HE40) | MCS0; MCS11 |
| 6GHz 802.11ax (HE80) | MCS0; MCS11 |
| 6GHz 802.11ax (HE160) | MCS0; MCS11 |
| Bluetooth | Bluetooth 5.1 |
|---|---|
| Anten Tipi | Integrated vertically polarized omnidirectional antenna |
| Maks. Anten Kazancı | 4.6 dBi, with roughly 30 degrees downtilt |
| Maks. Yayın Gücü | 10 dBm (Class 1) |
| Alıcı Hassasiyeti | –98 dBm |
| Sabit Servis Portları | 1 x 100/1000/2.5G/5GBASE-T port; Auto MDI/MDIX crossover; NBASE-T/IEEE802.3bz-compliant 5 Gbps; PoE-PD: 54 V DC (nominal) 802.3af/at/bt（Class 3 or higher）; 802.3az EEE; 1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules; 1 x 10/100/1000BASE-T port; Supplying 48 V/12.95 W power to an IoT unit |
|---|---|
| Sabit Yönetim Portu | 1 x RJ45 console port (serial console port) |
| USB | USB 3.0 (Type-A connector) |
| Status LED | 1 x multi-color system status LED |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Input power supply | The AP supports the following two power supply modes:; 54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter is delivered with the main unit.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).; Note:; If both DC power and PoE are available, DC power is preferred.; When powered by 802.3bt (PoE++), the AP operates with the optimal performance.; When power |
|---|---|
| PoE Portu | When powered by 802.3bt (PoE++), the LAN 2 port can source 48 V/12.95 W power to an IoT unit. |
| USB Portu | When powered by 802.3bt (PoE++), the USB port can source 1 A/5 W power to an attached device. |
| Overall power consumption | Maximum power consumption: 40 W; DC powered: 40 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 23 W; PoE++ powered (802.3bt): 40 W; Idle mode: 10.3 W |
| Sıcaklık | Operating temperature: –10°C to 50°C (14°F to 122°F); Storage temperature: –40°C to 70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Nem | Operating humidity: 5% to 95% (non-condensing); Storage humidity: 5% to 95% (non-condensing) |
| MTBF | 394,941 hours (45 years) at the operating temperature of 25°C (77°F) |
| Security standards | IEC 62368-1; EN 62368-1 |
|---|---|
| Cyber security standards | EN 18031-1; EN 18031-2 |
| EMC Standartları | EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17 |
| Radio frequency standards | EN 300 328; EN 301 893; EN 300 440; ETSI EN 303 687; EN IEC 62311; FCC Part 15 |
| Applicable software version | RGOS11.9(6)W3B4 or higher |
|---|
| Recommended maximum number of active devices per AP | 300 |
|---|---|
| Maximum number of associated clients | 1536; Note; The number of associated clients varies according to the environment. |
| Maximum number of BSSIDs | 45 (up to 15 BSSIDs per radio) |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-Enterprise (GCMP), WPA3-OWE, WPA3-OWE transition mode |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Destekleniyor |
| NFPP | Destekleniyor |
| IP Servisleri | Static IPv4 address and DHCP-assigned IPv4 address; NAT, FTP ALG, DNS ALG |
|---|---|
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping; IPv6 DHCP Client |
| IP Yönlendirme | IPv4/IPv6 static routing |
| VPN | PPPoE Client; IPsec VPN |
| Ağ Yönetimi | Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client |
|---|---|
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| User access management | Console, Telnet, SSH, SNMP and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz + 6 GHz, 7.780 Gbps |
| Maks. Güç Tüketimi | 40 W |
| External Power Supply | Evet |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to +122°F) |
| IP Koruma Sınıfı | - |
| Boyutlar (G x D x Y) | 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) |
| Garanti | 3 Years |
