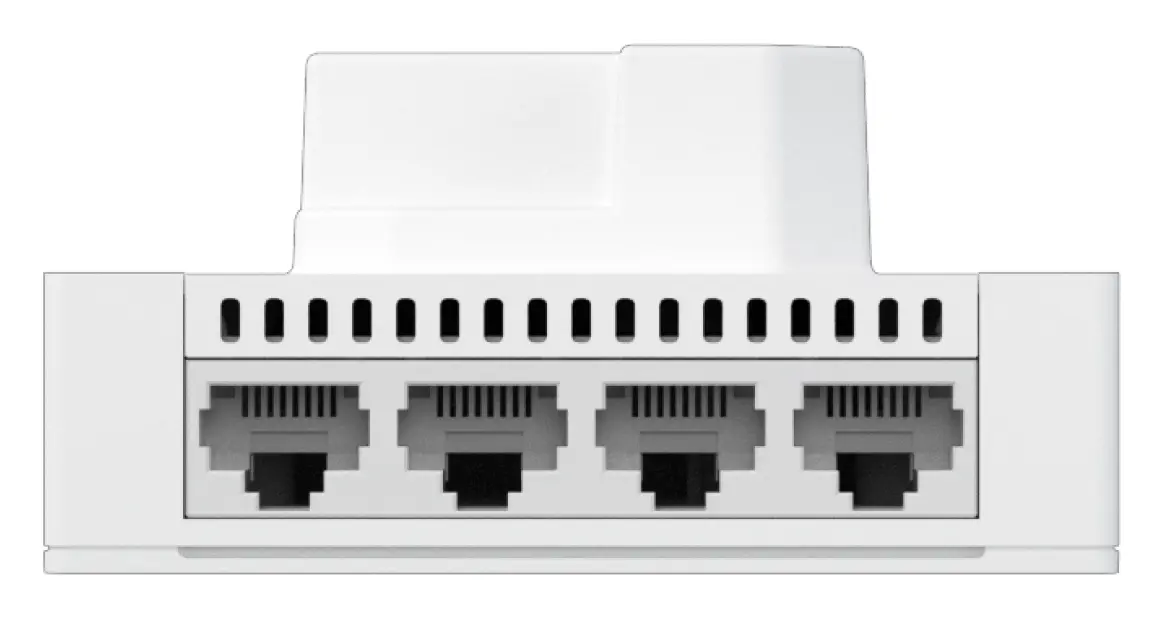

Ruijie RG-AP180 Wi-Fi 6 Çift Bant Duvar Tipi Access Point — görsel 6

1 / 6

Kablosuz Access Point Cloud-managed wall-plate APs

Ruijie RG-AP180 Wi-Fi 6 Çift Bant Duvar Tipi Access Point

ModelRG-AP180

Ruijie RG-AP180 access point: Multi-service Linkage, All-in-One for Office Scenarios, 1.775 Gbps Ultra-Fast Speed with Wi-Fi 6, Full-Scenario Enterprise-class Authentication for Enhanced Security, Ruijie Cloud Management, Intelligent Optimization, and Easy O&M.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Multi-service Linkage, All-in-One for Office Scenarios
1.775 Gbps Ultra-Fast Speed with Wi-Fi 6
Full-Scenario Enterprise-class Authentication for Enhanced Security
Ruijie Cloud Management, Intelligent Optimization, and Easy O&M

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 17 satır

Unit dimensions; (W x H x D)	In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.); Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
Shipping dimensions; (W x H x D)	375 mm x 499 mm x 160 mm (14.76 in. x 19.65 in. x 6.30 in.)
Cihaz Ağırlığı	0.19 kg (0.42 lbs)
Kutulu Ağırlık	9.67 kg (21.32 lbs)
Montaj	Wall-mount; Junction box-mount (86 mm/European-standard junction box); Note: If you want to use an American-standard junction box, purchase an RG-AP180-MNT mounting bracket separately.
Renk	Elegant white
Radyo Tasarımı	Dual-radio and up to four spatial streams:; Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MU-MIMO
Çalışma Frekansları	Radio 1: 802.11b/g/n/ax; 2.400 GHz to 2.4835 GHz, ISM, channels 1 to 13; Radio 2: 802.11a/n/ac/ax; 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48; 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64; 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140; 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165; Note: Available frequency bands may vary with countries or regions. To use the above-mentioned freq
Data rates	Combined peak data rate: 1.775 Gbps; Radio 1: 2.4 GHz, 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); Radio 2: 5 GHz, 1.201 Gbps; Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (maxi
Data rate set	The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 802.11ax: 8.6 to 1,201 (MCS0 to MCS11,
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Anten Tipi	Built-in intelligent antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Anten Kazancı	2.4 GHz: 2.5 dBi; 5 GHz: 5.5 dBi
Maks. Yayın Gücü	2.4 GHz radio: 20 dBm (17 dBm per chain); 5 GHz radio: 20 dBm (17 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz. EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; Egypt; Vietnam; 2.400 GHz to 2.4835 GHz, EIRP ≤ 23 dBm; 5.725 GHz to 5.850 GHz, EIRP ≤ 30 dBm
Power increment	Configurable in increments of 1 dBm
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance 16 satır

Frequency Band and Protocol	Data Rate
2.4 GHz, 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz, 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz, 802.11n (HT20)	MCS0; MCS7
2.4 GHz, 802.11n (HT40)	MCS0; MCS7
2.4 GHz, 802.11ax (HE20)	MCS0; MCS11
2.4 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz, 802.11n (HT20)	MCS0; MCS7
5 GHz, 802.11n (HT40)	MCS0; MCS7
5 GHz, 802.11ac (VHT20)	MCS0; MCS9
5 GHz, 802.11ac (VHT40)	MCS0; MCS9
5 GHz, 802.11ac (VHT80)	MCS0; MCS9
5 GHz, 802.11ax (HE20)	MCS0; MCS11
5 GHz, 802.11ax (HE40)	MCS0; MCS11
5 GHz, 802.11ax (HE80)	MCS0; MCS11

Bluetooth Radio 5 satır

Bluetooth	Bluetooth 5.0
Anten Tipi	Onboard omnidirectional antenna
Maks. Anten Kazancı	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maks. Yayın Gücü	10 dBm
Alıcı Hassasiyeti	–88 dBm (@BLE)

Ports Specifications 4 satır

Sabit Servis Portları	Uplink:; 1 x 10/100/1000BASE-T port, in compliance with IEEE 802.3af/802.3at standard (PoE/PoE+).; Downlink:; 4 x 10/100/1000BASE-T ports
Sabit Yönetim Portu	1 x Micro USB console port (under the decorative cover)
Status LED	1 x multi-color system status LED
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 3 seconds. Then the device restores to factory settings.

Güç Kaynağı ve Tüketim 2 satır

Input power supply	The AP supports the following two power supply modes:; 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.; PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard.; Note:; When powered by 802.3at (PoE+), the AP operates with the optimal perfo
Overall power consumption	Maximum power consumption: 10 W; DC powered: 10 W; PoE powered (802.3af): 10 W; Idle mode: 3.3 W

Input power supply

The AP supports the following two power supply modes:; 12 V DC/1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.; PoE input over the PoE-in port: The power source equipment (PSE) complies with the IEEE 802.3af standard. The IEEE 802.3at (PoE+) standard is backward compatible with the IEEE 802.3af (PoE) standard.; Note:; When powered by 802.3at (PoE+), the AP operates with the optimal perfo

Overall power consumption

Maximum power consumption: 10 W; DC powered: 10 W; PoE powered (802.3af): 10 W; Idle mode: 3.3 W

Ortam ve Güvenilirlik 3 satır

Sıcaklık	Operating temperature: –10°C to +50°C (14°F to 122°F); Storage temperature: –40°C to+ 70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 5% RH to 95% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Uyumluluk 4 satır

Security standards	IEC 62368-1; EN 62368-1
Cyber security standards	EN 18031-1; EN 18031-2
EMC Standartları	EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radio frequency standards	EN 300 328; EN 301 893; EN 300 440; EN IEC 62311; FCC Part 15

Yazılım Özellikleri 13 satır

Applicable software version	RGOS11.9(6)W1B9 or later
Recommended maximum number of active devices per AP	120
Maximum number of associated clients	256; Note; The number of associated clients varies according to the environment.
Maximum number of BSSIDs	16 (up to 8 BSSIDs per radio)
STA management	SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment; ACL assignment based on time spans; ACL assignment (complete entry) based on MAC addresses; Execution of pre-configured ACLs (entry index) based on MAC addresses
CPP	Destekleniyor
NFPP	Destekleniyor

Routing and Switching 5 satır

IP Servisleri	Static IPv4 address and DHCP-assigned IPv4 address; NAT ALG FTP and NAT ALG DNS
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client
IP Yönlendirme	IPv4/IPv6 static routing
VPN	PPPoE client; IPsec VPN, up to four IPsec tunnels

Yönetim 4 satır

Ağ Yönetimi	Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client
Network management platform	Ruijie Cloud; Web-based management (Eweb)
User access management	Console, Telnet, SSH, SNMP and TFTP-based management
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Temel Özellikler 8 satır

Wireless Protocols	802.11a/b/g/n/ac/ax
Veri Hızı	Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps
Maks. Güç Tüketimi	10 W
External Power Supply	Hayır
Çalışma Sıcaklığı	–10°C to +50°C (14°F to +122°F)
IP Koruma Sınıfı	-
Boyutlar (G x Y x D)	In-wall: 86 mm x 116 mm x 19 mm (3.39 in. x 4.57 in. x 0.75 in.) Above-wall: 86 mm x 116 x mm x 24 mm (3.39 in. x 4.57 in. x 0.94 in.)
Garanti	3 Years

Genel bakış

Ruijie RG-AP180 kullanım alanları ve özellikleri.

Recommended for indoor scenarios such as dormitories, offices, hotels, stores, and classrooms

RG-AP180 Indoor Wall Plate Wireless Access Point

2.4 GHz and 5 GHz Dual Radios

Four Spatial Streams

PoE and DC Power Input

Combined Rate Up to 1.775 Gbps

Max. Power Consumption of 10 W

1.775 Gbps Ultra-Fast Speed with Wi-Fi 6

High speed

With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.

High concurrency

OFDMA and MU-MIMO are introduced to ensure stable access of multiple STAs

High security

The next-generation wireless encryption protocol WPA3 greatly improves the

Low latency

OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.

Cloud, Make Your Business Easy

Cloud portal authentication
Remote Wi-Fi management
Wireless intelligent optimization

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP180 Compliance DocumentPDF · RG-AP180
