RUIJIE · RG-AP1920(V2)

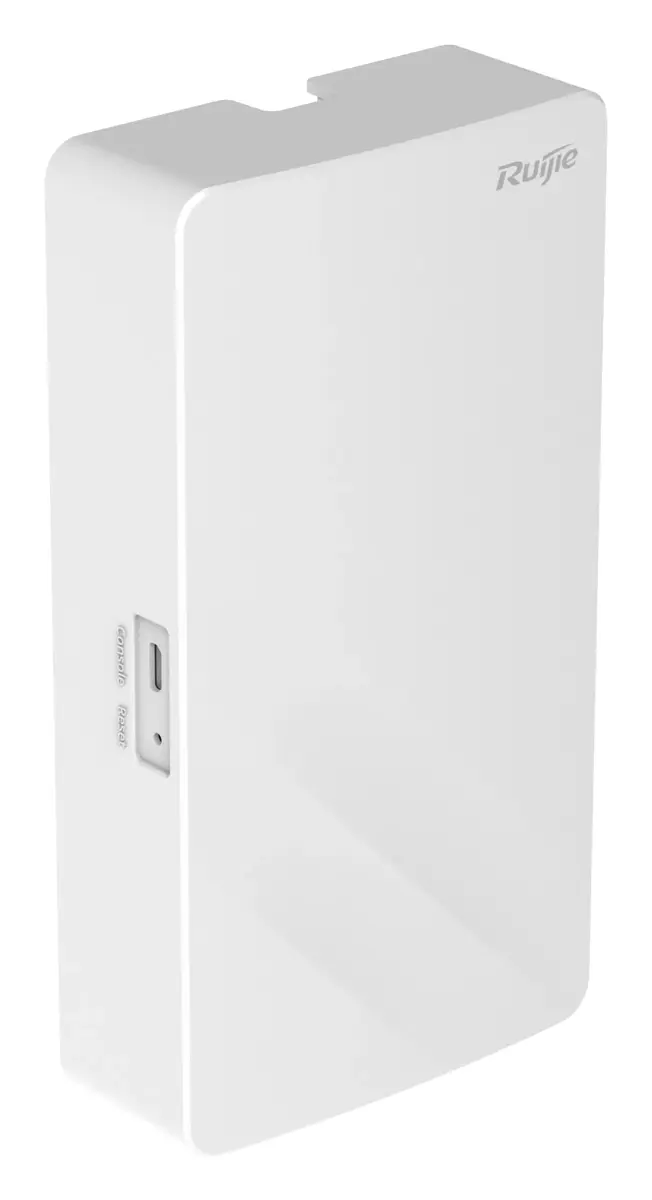

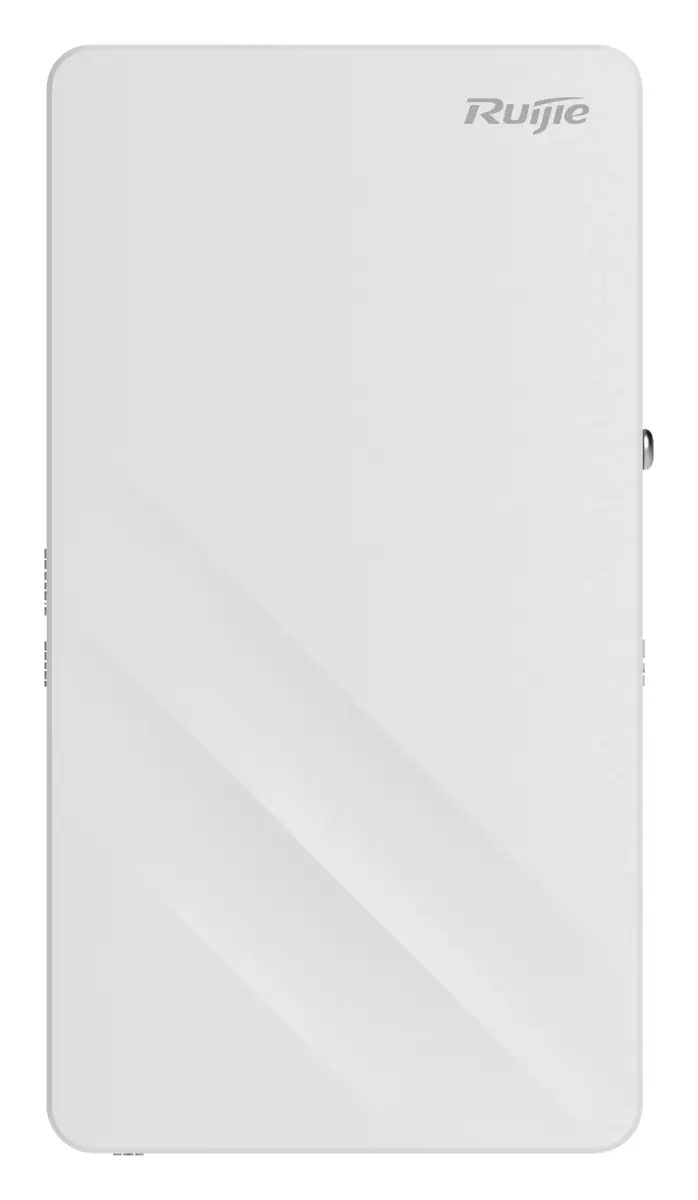

Ruijie RG-AP1920(V2) Wi-Fi 7 Çift Bant Duvar Tipi Access Point
Model
RG-AP1920(V2)Ruijie RG-AP1920(V2) access point: Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps, Rich port design for integrated wired and wireless coverage, PoE and DC power supply modes for flexible deployment, WIS digital twin network for superior network O&M efficiency.
- Kablosuz standart
- Wi-Fi 7
- Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps
- Rich port design for integrated wired and wireless coverage
- PoE and DC power supply modes for flexible deployment
- WIS digital twin network for superior network O&M efficiency
Genel bakış
Ruijie RG-AP1920(V2) özellikleri ve kullanım alanları.
Suitable for indoor scenarios such as dormitories, small offices, and guest rooms across higher education, government, K12 education, finance, and commercial sectors.
RG-AP1920(V2), Wi-Fi 7 Wall-Plate Access Point
The RG-AP1920(V2) is Ruijie's next-generation Wi-Fi 7 (802.11be) wall-plate access point. It supports four spatial streams and a combined peak data rate of 3.570 Gbps. With its clean and elegant appearance, it blends easily into indoor scenarios and is fit for wireless coverage scenarios such as dormitories, small offices, and guest rooms.
Enterprise-Class Wi-Fi 7 Delivering a Data Rate of Up to 3.570 Gbps
Empowering seamless high-bandwidth applications with next-generation wireless performance.
Rich Port Design for Integrated Wired and Wireless Coverage
The uplink 2.5GBASE-T port fully unleashes bandwidth performance, enabling high-speed transmission between wireless and wired networks. With four downlink ports, it meets access needs of clients such as PCs and printers, delivering integrated wired and wireless coverage.
PoE and DC Power Supply Modes for Flexible Deployment
The device supports PoE, allowing both power supply and data transmission via a single network cable connected to a PoE switch, eliminating the need for an external power adapter. It also supports DC power supply, removing the requirement for a PoE switch and helping reduce deployment costs.
WIS Digital Twin Network for Superior Network O&M Efficiency
WIS integrates intelligent O&M functions, including visualized fault locating, along with local, service and key area network optimization. These capabilities aim to improve operational efficiency and enhance the user experience for wireless networks. Go to WIS >
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | 4 spatial streams; Radio 1 -- 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 MIMO, two spatial streams; Channel:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 -- 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio 2 -- 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, and 64-QAM; Packet aggregation:; Aggr |
|---|---|
| 802.11ac | 2 spatial streams; Radio 2 -- 5 GHz: 2x2 downlink MU-MIMO, two spatial streams; Channel:; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 -- 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: OFDM; Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM; Packet aggregation:; A-MPDU; A-MSDU; DFS; CDD/CSD; MRC; STBC; LDPC; TxBF |
| 802.11ax | 4 spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channel:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 -- 5 GHz: 7.3 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: Uplink/Downlink Orthogonal Frequency-Division Multiple Access (O |
| 802.11be | 4 spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channel:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 3.570 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 0.688 Gbps (MCS0 to MCS13); Radio 2 -- 5 GHz: 7.3 Mbps to 2.882 Gbps (MCS0 to MCS13); Radio technologies: Uplink/Downlink OFDMA; Modulation types: BPSK, QPSK, 16-QAM, 64- |
| Anten | Wi-Fi; 2.4 GHz: Two built-in omnidirectional antennas, with the peak antenna gain of 3 dBi; 5 GHz: Four built-in omnidirectional antennas, with the peak antenna gain of 3.8 dBi; Bluetooth; One built-in vertically polarized omnidirectional antenna, with the peak antenna gain of 4.3 dBi |

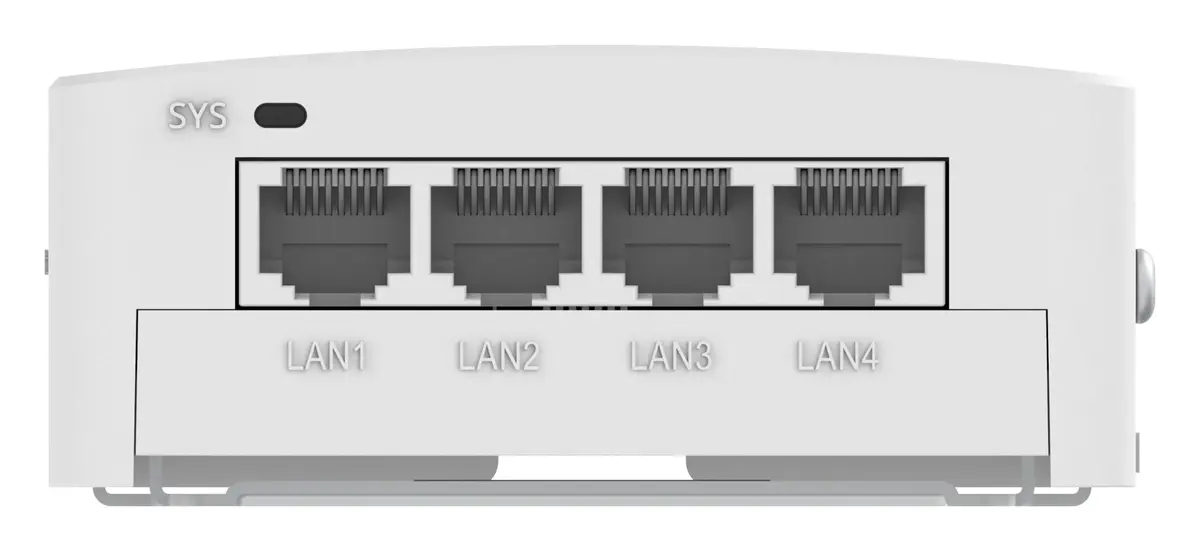

| Port | 1 x 10/100/1000/2.5GBASE-T port; 4 x 10/100/1000BASE-T ports; 1 x RJ45 console port (serial console port); 1 x USB 3.0 (Type A connector); 1 x Bluetooth 5.1 |
| Status LED | 1 x system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating |
| Buton | 1 x Reset button; Press the button for shorter than 2s. Then the device restarts.; Press the button for longer than 5s. Then the device restores to factory settings. |
| Boyutlar (G x Y x D) | Main unit: 86 mm x 160 mm x 35 mm (3.39 in. x 6.30 in. x 1.38 in.); Shipping:113 mm x 177.5 mm x 63 mm (4.45 in. x 6.99 in. x 2.48 in.) |
| Ağırlık | Main unit: 0.3 kg (0.66 lbs); Mounting bracket: 0.05 kg (0.11 lbs); Shipping:0.43 kg (0.95 lbs) |

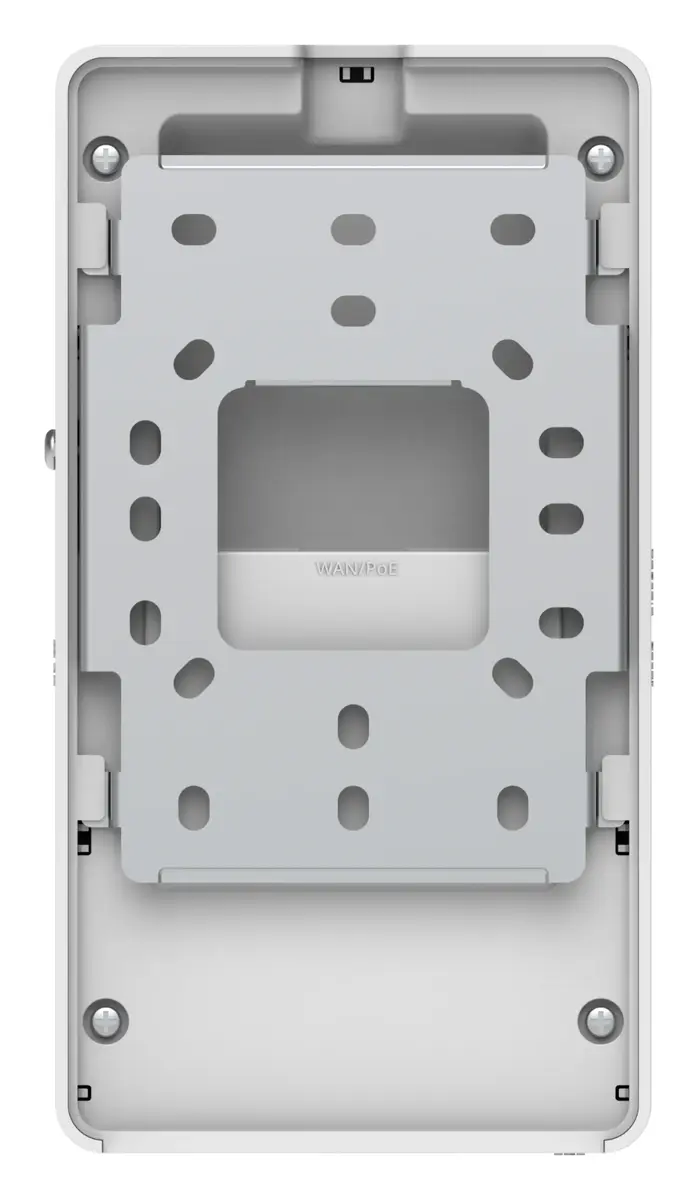

| Montaj | Mounting in the 86 mm (3.39 in.) junction box or wall-mounting |
| Lock option | Kensington lock |
| Input power supply | The AP supports the following power supply modes:; 48 V DC/0.3 A power input over the DC connector; IEEE 802.3af-compliant PoE power input; Note: If both DC power and PoE are available, DC power is preferred. |
| Maks. Güç Tüketimi | Maximum power consumption: 11.63 W; DC power: 11.63 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2; 802.3af (PoE): 11.63 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2; Idle mode: 5.7 W |
| Ortam Koşulları | Storage temperature: -40°C to +70°C (-40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.); Operating temperature: -10°C to +40°C (14°F to 104°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: -500 m to +5,000 m (-1640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 1,800-5,000 m (5,905.51-16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the ma |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 512 MB DRAM, 256 MB flash |
| Yayın Gücü | 2.4 GHz; Maximum transmit power: 20 dBm (100 mW); Minimum transmit power: 0 dBm (1 mW); 5 GHz; Note:; You can adjust the transmit power by percentage (recommended) or in 1 dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE160) | MCS0; MCS11 |
| Applicable software version | RGOS11.9(6)W8 or later |
|---|
| Maximum number of associated STAs | 256 (up to 128 STAs per radio) |
|---|---|
| Recommended number of STAs | 64 |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Maximum number of WLAN IDs | 16 |
| STA management | SSID hiding; Band steering (preferential access to the 5 GHz radio); Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent STA identification; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through Network Address Translation (NAT); MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data tunnels; Encryption over CAPWAP control tunnels |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | Mobile unit (MU) location |
| Application management | Application identification |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server; PSK, web-based, 802.1X, WPA, WPA2, and WPA3 authentication; MAB; Data encryption: WEP (64/128 bits), WPA (TKIP), WPA-PSK, WPA2 (AES), WPA3 |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless Intrusion Detection System (WIDS); User isolation; Rogue AP detection and containment |
| Dynamic policy | IP standard ACL, MAC extended ACL, IP extended ACL, expert ACL, and IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with an AC) |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP); ARP attack defense, ICMP attack defense, and DHCP attack defense |
| MAC | Static MAC address, MAC address filtering, and MAC address limiting; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; Optical transceiver information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
| VLAN | Interface-based VLAN assignment; Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1--4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; ARP check |
| IPv4 services | Static IPv4 address and DHCP-assigned IPv4 address; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG, and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping; IPv6 DHCP client; Maximum number of IPv6 addresses configured on each Layer 3 interface: 400 |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarms; Information statistics collection and logging |
|---|---|
| Network management platform | Web management (eWeb) |
| User access management | Console, Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis such as device stability and signal coverage; Measuring user network experience based on indicators including latency, packet loss, RSSI, and channel utilization, with visualized network experience results; Statistics on the number of online and offline failures of STAs associated with different APs, average RSSI, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience coverage evaluation based on the time r |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and optimization solution setting based on different scenarios; Sticky client roam steering and experience indicator comparison; Remote association steering and experience indicator comparison; One-click diagnosis for analyzing problems and providing suggestions |
| Big data | Baseline analysis, recording changes in configuration, software version, and other parameters, and tracking changes in network KPIs; Time capsule for analyzing the history of device version and configuration changes |
| Cloud site survey | Batch generation of building floor information, floor plan upload, and drag-and-drop AP placement |
| One-click report | One-click health check report and generation of reports on the overall network operating status |
| Security radar | Unauthorized Wi-Fi signal locating and classified display, as well as countermeasure capabilities |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices; Batch device configuration and upgrade; ZTP deployment, creating configuration templates, and automatically applying configured templates; Discovering wired and wireless network topology with one click and generating the topology |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Portal authentication page | Customizing Portal authentication pages for PCs and mobile phones |
| SMS gateway | Interworking with Guodu and Alibaba Cloud SMS gateways |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, data model conversion, and integration |
|---|---|
| Hierarchical and role-based access control | Authorizing different applications for different users to meet service needs of different departments; Administrators at different sites have different operation permissions. |
| System management | System management functions including account operations, authorization configuration, email configuration, configuration backup, and exception alarms |
| Uyumluluk | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN IEC 62311, IEC 62368-1, and EN 62368-1 |
|---|
| Wireless protocol | 802.11a/b/g/n/ac/ax/be |
|---|---|
| Radyo Tasarımı | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2), up to 4 spatial streams |
| Max. data transmission rate | 3.570Gbps |
| Wi-Fi antenna | Built-in omnidirectional smart antennas |
| Sabit Servis Portları | 1 x 10/100/1000/2.5GBASE-T port 4 x 10/100/1000BASE-T ports |
| Bluetooth | Bluetooth 5.3 |
| Max. number of associated STAs | 256 (up to 128 STAs per radio) |
| Maks. Güç Tüketimi | 11.63 W |
| Çalışma Sıcaklığı | –10°C to +40°C (14°F to 104°F) |
