RUIJIE · RG-AP820-L(V3) Ruijie RG-AP820-L(V3) Wi-Fi 6 AX3000 Çift Bant Tavan Tipi Access Point

Ruijie RG-AP820-L(V3) Wi-Fi 6 AX3000 Çift Bant Tavan Tipi Access Point

ModelRG-AP820-L(V3)

Ruijie RG-AP820-L(V3) access point: 2.5 Gbps SFP Port, Multi-Gigabit Networking, Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps, Next-generation Wi-Fi 6 technology, higher concurrency, lower latency, Unified cloud management, intelligent tuning, easy O&M.

Kablosuz standart: Wi-Fi 6

2.5 Gbps SFP Port, Multi-Gigabit Networking
Next-generation AX3000 chip, supporting 160 MHz 2.976 Gbps
Next-generation Wi-Fi 6 technology, higher concurrency, lower latency
Unified cloud management, intelligent tuning, easy O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-AP820-L(V3) özellikleri ve kullanım alanları.

Indoor scenarios for higher education, government, general education, finance, and business sectors.

Ruijie Wi-Fi 6 High Performance Indoor AP

2.5 Gbps SFP Port

Next-Generation AX3000 Chip

Max. Rate of 2.976 Gbps

Bluetooth 5.1

PoE

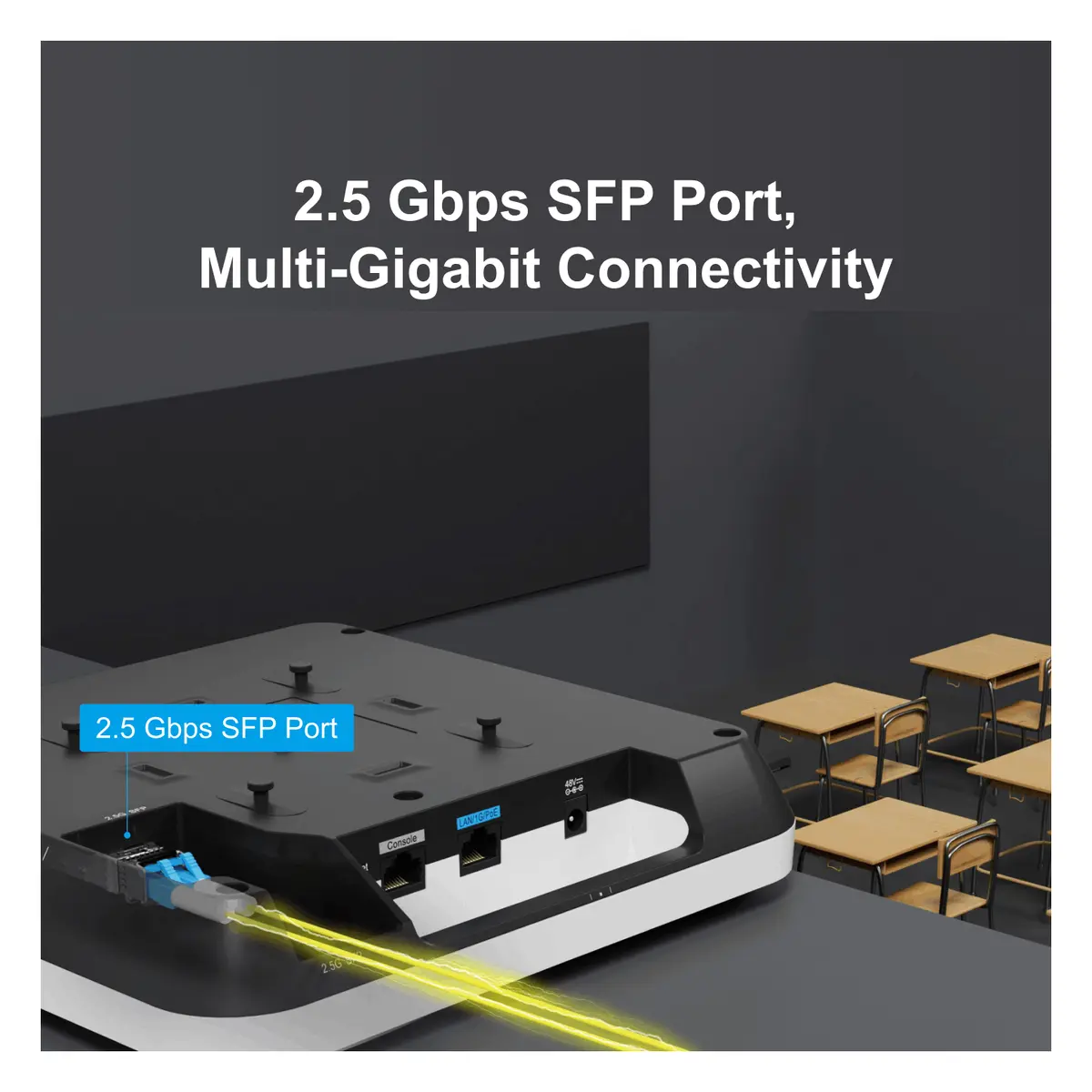

2.5 Gbps SFP Port, Multi-Gigabit Connectivity

The 2.5 Gbps SFP port unleashes the performance of bandwidth for multi-gigabit connectivity.

2.976 Gbps Ultra-Fast Speed with 160 MHz Band

The next-generation AX3000 chip supports 160 MHz band, doubling the Wi-Fi speed. Wi-Fi 6 dual radios enable a combined rate of 2.976 Gbps, delivering smooth video streaming, instant audio messaging, and file download in seconds.

Ultimate Speed and Capacity with Wi-Fi 6, Up To 2.976 Gbpss

High Concurrency OFDMA is introduced to ensure stable access of multiple STAs

Low Latency OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.

High Security The next-generation wireless encryption protocol WPA3 greatly improves the security of wireless connection.

High Speed With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.

Signals Never Drop with Seamless Roaming

The built-in smart antenna can identify the direction of STAs relative to the AP. With Ruijie's proprietary roaming algorithm, this AP also supports 802.11k/v/r. Intelligent channel planning and accurate wireless positioning enable STAs to associate to the best AP nearby.

Cloud, Make Your Business Easy

Cloud portal authentication
Remote Wi-Fi management
Wireless intelligent optimization

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Unit dimensions; (W x D x H)	220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)
Shipping dimensions; (W x D x H)	514 mm x 326 mm x 292 mm (20.24 in. x 12.83 in. x 11.50 in.)
Cihaz Ağırlığı	Main unit: 0.6 kg (1.32 lbs); Mounting bracket: 0.2 kg (0.44 lbs)
Kutulu Ağırlık	8.46 kg (18.65 lbs)
Montaj	Wall/Ceiling-mount (a mounting bracket is delivered with the main unit)
Lock option	Kensington lock and securing latch
Radyo Tasarımı	Dual-radio and up to four spatial streams:; Radio 1: 2.4 GHz, two spatial streams, 2x2 MIMO; Radio 2: 5 GHz, two spatial streams, 2x2 MIMO
Çalışma Frekansları	Radio 1, 802.11b/g/n/ax:; 2.400 GHz to 2.4835 GHz, ISM; Radio 2, 802.11a/n/ac/ax:; 5.150 GHz to 5.250 GHz, U-NII-1; 5.250 GHz to 5.350 GHz, U-NII-2A; 5.470 GHz to 5.725 GHz, U-NII-2C; 5.725 GHz to 5.850 GHz, U-NII-3/ISM; Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance.; Country-specific restrictions apply:;
Data rates	Combined peak data rate: 2.976 Gbps; 2.4 GHz radio; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); 5 GHz radio; Two spatial stream Single User (SU) MIMO for up to 2.402 Gbps wireless data rate to individual 2SS HE160 802.11ax client devices (maximum); Two spatial stream Si
Data rate set	The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160); 802.11ax: 8.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE160)
Packet aggregation	802.11n/ac/ax: A-MPDU and A-MSDU
Anten Tipi	Built-in omnidirectional antennas (two 2.4 GHz antennas and two 5 GHz antennas)
Anten Kazancı	2.4 GHz: 5 dBi; 5 GHz: 5 dBi
Maks. Yayın Gücü	2.4 GHz radio: 26 dBm (23 dBm per chain); 5 GHz radio: 26 dBm (23 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; Egypt; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm;
Power increment	Configurable in increments of 1 dBm
Radio technologies	802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
Modulation types	802.11b: BPSK, QPSK, CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM

Wi-Fi Radio Frequency Performance
Frequency Band and Protocol	Data Rate
2.4 GHz 802.11b	1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps
2.4 GHz 802.11g	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
2.4 GHz 802.11n (HT20)	MCS0; MCS7
2.4 GHz 802.11n (HT40)	MCS0; MCS7
2.4 GHz 802.11ax (HE20)	MCS0; MCS11
2.4 GHz 802.11ax (HE40)	MCS0; MCS11
5 GHz 802.11a	6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps
5 GHz 802.11n (HT20)	MCS0; MCS7
5 GHz 802.11n (HT40)	MCS0; MCS7
5 GHz 802.11ac (VHT20)	MCS0; MCS9
5 GHz 802.11ac (VHT40)	MCS0; MCS9
5 GHz 802.11ac (VHT80)	MCS0; MCS9
5 GHz 802.11ax (HE20)	MCS0; MCS11
5 GHz 802.11ax (HE40)	MCS0; MCS11
5 GHz 802.11ax (HE80)	MCS0; MCS11
5 GHz 802.11ax (HE160)	MCS0; MCS11

Bluetooth Radio
Bluetooth	Bluetooth 5.1
Anten Tipi	Onboard omnidirectional antenna
Maks. Anten Kazancı	2.4 dBi, with a downtilt angle of roughly 30 degrees
Maks. Yayın Gücü	17 dBm (GFSK); 14 dBm (π/4-DQPSK, 8-DPSK)
Alıcı Hassasiyeti	–95.5 dBm (DH5); –95 dBm (π/4-DQPSK); –87.5 dBm (8-DPSK)

Ports Specifications
Sabit Servis Portları	1 x 10/100/1000BASE-T port; In compliance with IEEE 802.3af standard (PoE); Auto MDI/MDIX crossover; PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher); 802.3az EEE; 1 x 2.5GE SFP port, compatibility with 1GE module
Sabit Yönetim Portu	1 x RJ45 console port (serial console port)
Status LED	1 x multi-color system status LED
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.

Güç Kaynağı ve Tüketim
Input power supply	The AP supports the following two power supply modes:; 48 V DC/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased separately.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).; Note:; If both DC power and PoE are available, DC power is preferred.
Overall power consumption	Maximum power consumption: 12.95 W; DC powered: 12.95 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 12.95 W; PoE++ powered (802.3bt): 12.95 W; Idle mode: 6 W

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: –10°C to +50°C (14°F to +122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F).
IP Koruma Sınıfı	IP41
Nem	Operating humidity: 0% RH to 95% RH (non-condensing); Storage humidity: 0% RH to 95% RH (non-condensing)
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)

Uyumluluk
Security standards	IEC 62368-1; EN 62368-1
Cyber security standards	EN 18031-1; EN 18031-2
EMC Standartları	EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17
Radio frequency standards	EN 300 328; EN 301 893; EN 300 440; EN IEC 62311; FCC Part 15

Yazılım Özellikleri
Applicable software version	RGOS11.9(6)W1B4 or higher
Recommended maximum number of active devices per AP	120
Maximum number of associated clients	256; Note; The number of associated clients varies according to the environment.
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
STA management	SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
Wireless roaming	Layer 2 and Layer 3 roaming
Bridge Vlan	Destekleniyor
Wireless Distribution System (WDS)	Destekleniyor
Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2/WPA3(AES), WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE, WPA3-OWE transition mode
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
ACL	Dynamic ACL assignment
CPP	Destekleniyor
NFPP	Destekleniyor

Routing and Switching
IP Servisleri	Static IPv4 address; IPv4 DHCP Client; FTP ALG and DNS ALG
Multicast	Multicast-to-unicast conversion
IPv6 basics	IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping; IPv6 DHCP Client
IP Yönlendirme	IPv4/IPv6 static routing
VPN	PPPoE Client; IPsec VPN
LLDP	LLDP; LLDP-MED; LLDP-PoE

Yönetim
Ağ Yönetimi	Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client
Network management platform	Ruijie Cloud; Web-based management (Eweb)
User access management	Console, Telnet, SSH, SNMP and TFTP-based management
Fat/Fit/Cloud mode switchover	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud.

Temel Özellikler
Wireless protocol	802.11a/b/g/n/ac/ax
Max.data transmission rate	2.976 Gbps
Wi-Fi antenna	Built-in omnidirectional antennas
Max. number of associated STAs	256
Maks. Güç Tüketimi	12.95 W
Çalışma Sıcaklığı	–10°C to +50°C (14°F to +122°F)
Boyutlar (G x D x Y)	220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-AP820-L(V3) hakkında kısa yanıtlar.

RG-AP820-L(V3) fiyatı ne kadar?

RG-AP820-L(V3) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
