RUIJIE · RG-AP820-L(V2)
Ruijie RG-AP820-L(V2) Wi-Fi 6 Çift Bant Tavan Tipi Access Point
Model
RG-AP820-L(V2)Ruijie RG-AP820-L(V2) access point: Upgraded to Wi-Fi 6, up to 2.402 Gbps data rate, Superior roaming experience and service continuity, Automatic provisioning, simplified deployment, Unified cloud management, intelligent tuning, easy O&M.
- Kablosuz standart
- Wi-Fi 6
- Upgraded to Wi-Fi 6, up to 2.402 Gbps data rate
- Superior roaming experience and service continuity
- Automatic provisioning, simplified deployment
- Unified cloud management, intelligent tuning, easy O&M
Genel bakış
Ruijie RG-AP820-L(V2) özellikleri ve kullanım alanları.
Ideal for indoor scenarios including hotels, offices, retail stores, and schools
Ideal for Various Scenarios
RG-AP820-L(V2) adopts a slim design to blend seamlessly into the environment, which is ideal for various scenarios covering hotels, offices, and retail stores.
Wi-Fi 6 AX2400
Free cloud management
Upgraded to Wi-Fi 6, Up to 2.402 Gbps Data Rate
OFDMA and MU-MIMO technologies, ensuring concurrent robust connections for multiple clients
1024-QAM modulation, 25% higher data transmission rate than 802.11ac
OFDMA technology, reducing latency to 20 ms when data is transmitted to multiple clients simultaneously
WPA3 encryption protocol, greatly enhancing wireless security

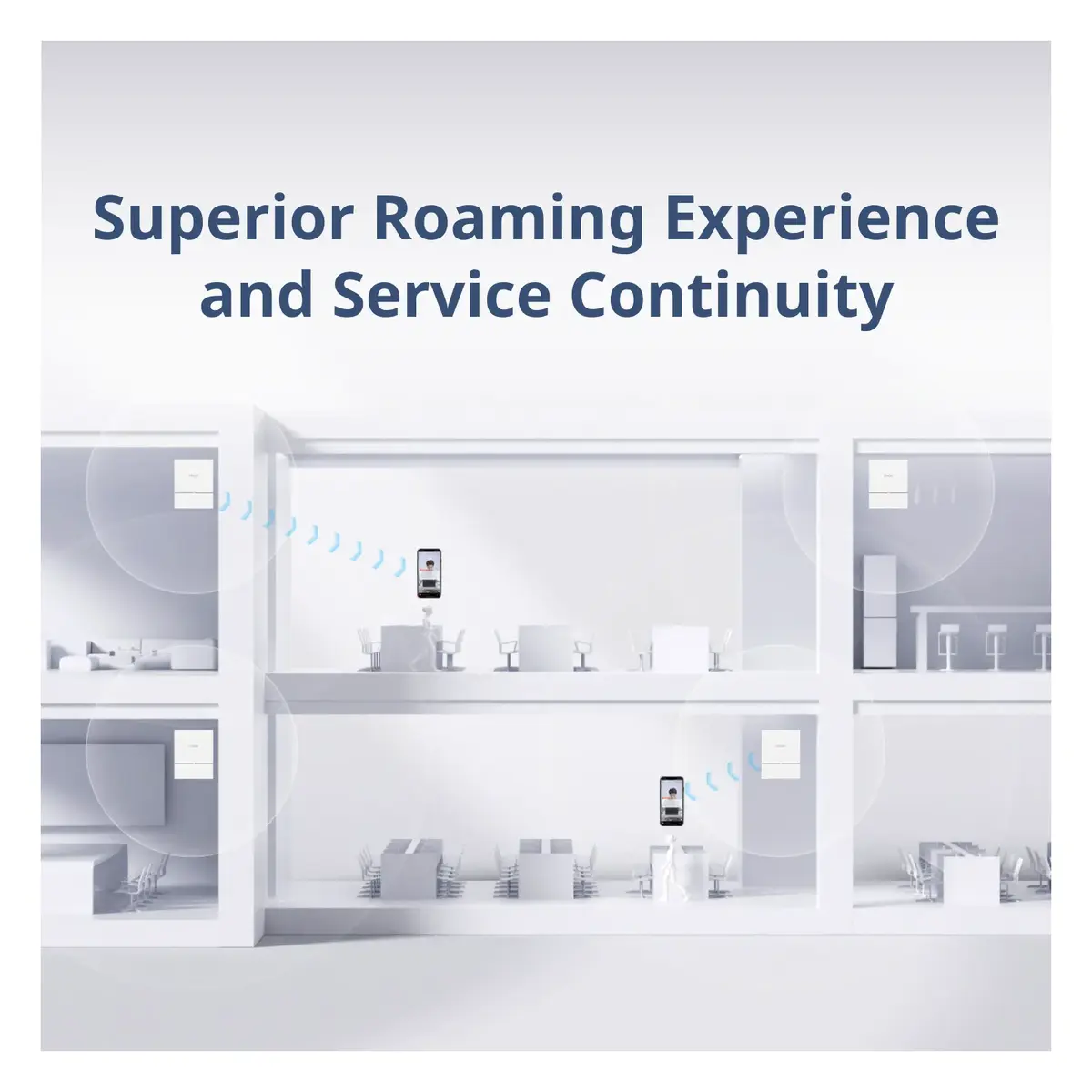

Superior Roaming Experience and Service Continuity
The built-in smart antennas can identify the directions of clients around the AP. Integrated with Ruijie's proprietary roaming algorithm, the AP also supports 802.11k/v/r. Intelligent channel planning and accurate wireless positioning enable clients to associate with the optimal AP.

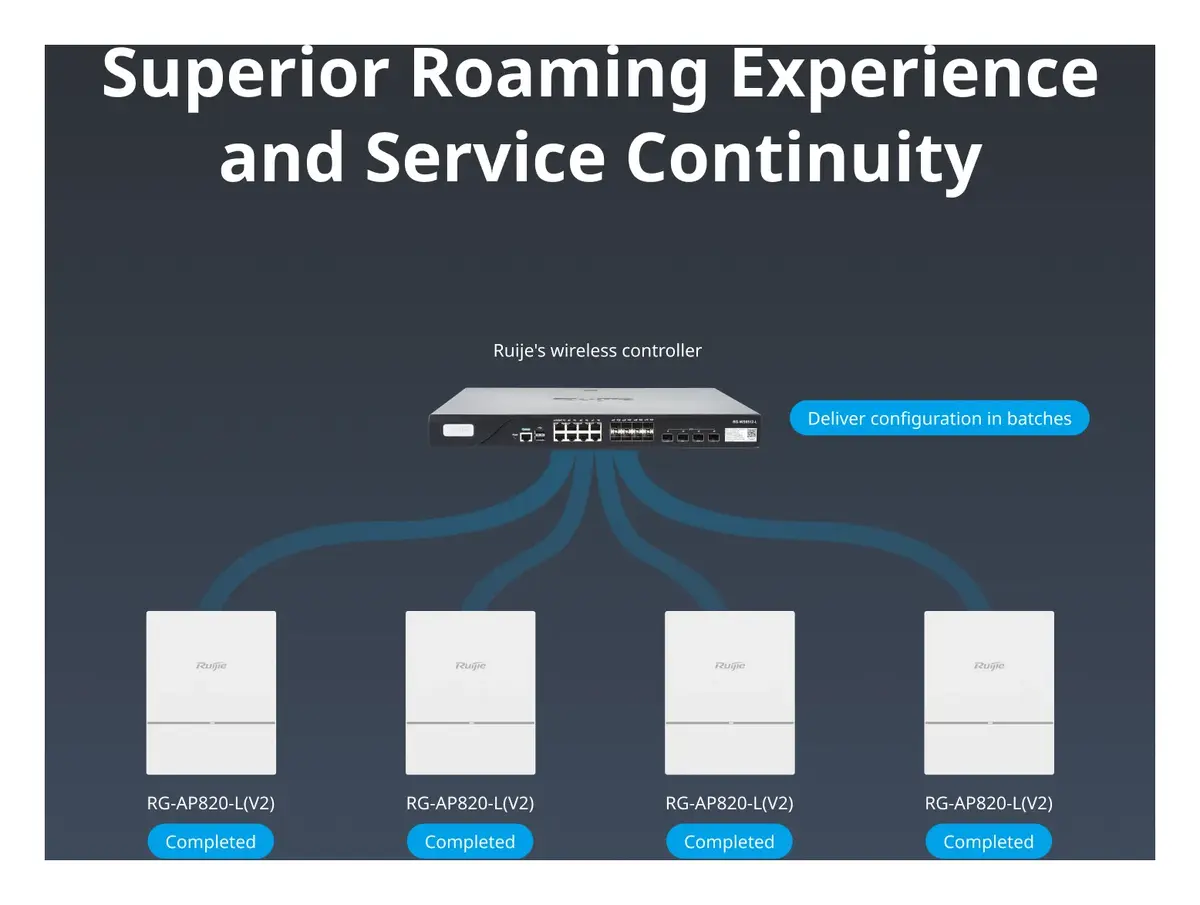

Automatic Provisioning, Simplified Deployment
Ruijie's wireless controller delivers the configuration in batches, eliminating the need to pre-configure the AP before installation. This enables automatic provisioning and simplified deployment, reducing implementation and maintenance complexity.

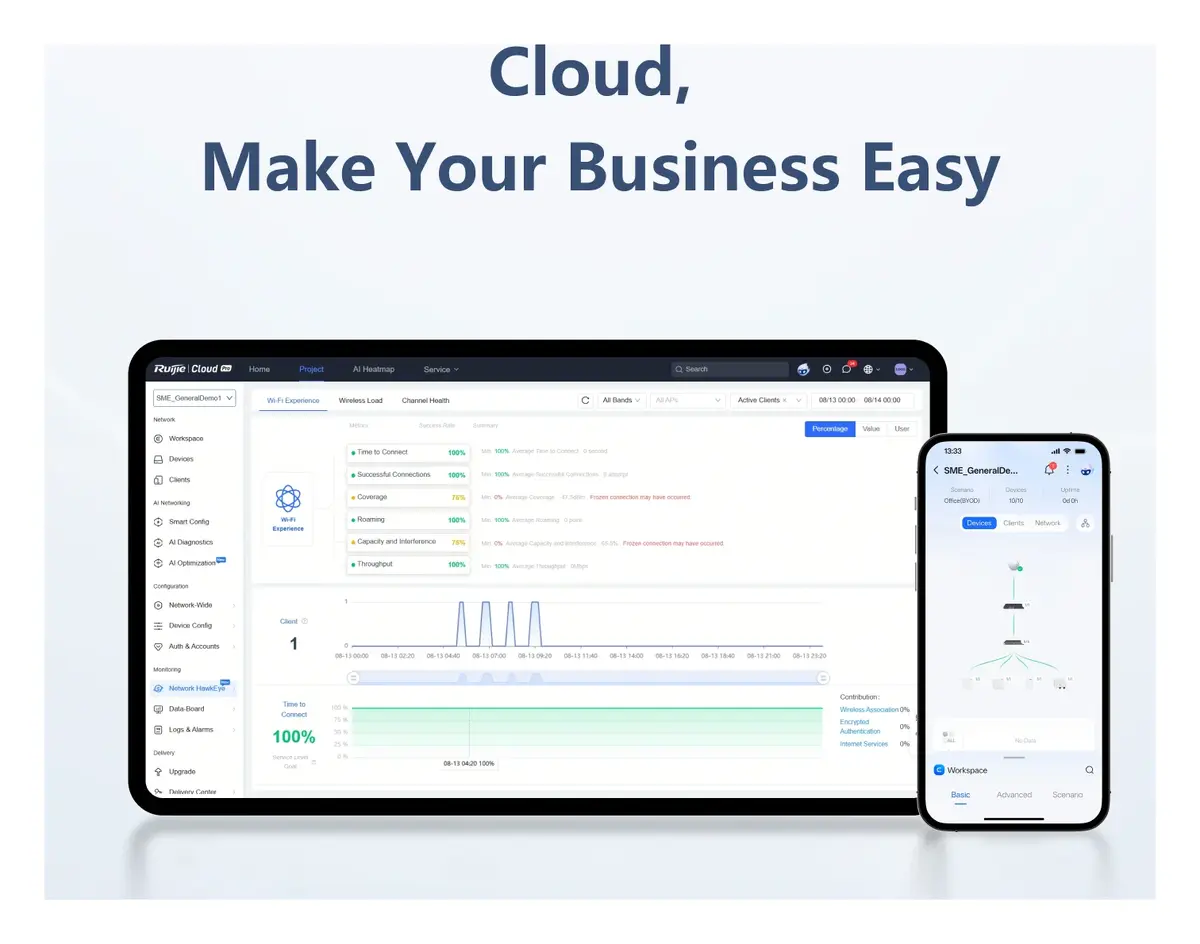

Cloud, Make Your Business Easy
- Cloud portal authentication
- Remote Wi-Fi management
- Wireless intelligent optimization
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Cihaz Boyutları (G x D x Y) | 153 mm x 193 mm x 26 mm (6.02 in. x 7.60 in. x 1.02 in.) |
|---|---|
| Kutu Boyutları (G x D x Y) | 377 mm x 322 mm x 228 mm (14.84 in. x 12.68 in. x 8.98 in.) |
| Cihaz Ağırlığı | Main unit: 0.42 kg (0.93 lbs); Mounting bracket: 0.07 kg (0.15 lbs) |
| Kutulu Ağırlık | 5.75 kg (12.68 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit.) |
| Renk | Beyaz |
| Lock option | Securing latch and Kensington lock |
| Radyo Tasarımı | Dual-radio design and four spatial streams; Radio 1: 2.4 GHz/5 GHz, two spatial streams, 2x2, MU-MIMO; Radio 2: 5 GHz, two spatial streams, 2x2, MU-MIMO |
| Operating frequency bands | Radio 1:; 802.11b/g/n/ax:; 2.400 GHz to 2.4835 GHz ISM, channels 1 to 13; 802.11a/n/ac/ax:; 5.150 GHz to 5.250 GHz, U-NII-1, channels 36, 40, 44, and 48; 5.250 GHz to 5.350 GHz, U-NII-2A, channels 52, 56, 60, and 64; 5.470 GHz to 5.725 GHz, U-NII-2C, channels 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, and 140; 5.725 GHz to 5.850 GHz, U-NII-3/ISM, channels 149, 153, 157, 161, and 165; Radio 2, 802.11a/n/ac/ax:; Note: Available frequency bands may vary with countries or regions. To use the |
| Data rates | Combined peak data rate:; 2.4 GHz + 5 GHz, 1.775 Gbps; 5 GHz + 5 GHz, 2.402 Gbps; Radio 1:; 2.4 GHz, 574 Mbps; Two spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate to individual 2SS HE40 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 287 Mbps wireless data rate to individual 2SS HE20 802.11ax client devices (typical); 5 GHz, 1.201 Gbps; Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2 |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ac: 6.5 to 400 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80); 802.11ax: 8.6 to 1,201 (MCS0 to MCS11, |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Anten Tipi | Built-in omnidirectional antennas; 2 x 2.4 GHz antennas (Radio 1); 4 x 5 GHz antennas (Radio 1 & Radio 2) |
| Anten Kazancı | 2.4 GHz: 5 dBi; 5 GHz: 5 dBi |
| Maks. Yayın Gücü | 2.4 GHz radio: 20 dBm (17 dBm per chain); 5 GHz radio: 20 dBm (17 dBm per chain); Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm; 5725-5850 MHz, EIRP ≤ 30 dBm; Note: The transmit power is limited by local regulatory requirements. For details, see For details, see WLAN Country or Region Codes and Channel Compliance. |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: OFDMA |
| Modulation types | 802.11b: BPSK, QPSK, and CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz, 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE80) | MCS0; MCS11 |
| Bluetooth | Bluetooth 5.0 |
|---|---|
| Anten Tipi | Integrated omnidirectional antenna |
| Maks. Anten Kazancı | 4.5 dBi, with a downtilt angle of roughly 30 degrees |
| Maks. Yayın Gücü | 10 dBm |
| Alıcı Hassasiyeti | –88 dBm (@BLE) |
| Sabit Servis Portları | 1 x 10/100/1000BASE-T port; In compliance with IEEE 802.3af standard (PoE); Auto MDI/MDIX crossover; PoE-PD: 54 V DC (nominal) 802.3af/at/bt (Class 3 or higher); 802.3az Energy Efficient Ethernet (EEE) |
|---|---|
| Sabit Yönetim Portu | 1 x RJ45 console port (serial console port) |
| Status LED | 1 x multi-color system status LED |
| Buton | 1 x Reset button; Press the button for less than two seconds to restart the device.; Press the button for more than five seconds to restore the device to factory settings. |
| Input power supply | The AP supports the following two power supply modes:; 48 V DC/0.3 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased independently.; PoE input over LAN/PoE: The power sourcing equipment (PSE) complies with IEEE 802.3af standard (PoE).; Note:; If both DC power and PoE are available, DC power is preferred. |
|---|---|
| Overall power consumption | Maximum power consumption: 12.95 W; DC powered: 12.95 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 12.95 W; PoE++ powered (802.3bt): 12.95 W; Idle mode: < 8 W |
| Sıcaklık | Operating temperature: –10°C to +50°C (14°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 166 m (544.62 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Nem | Operating humidity: 5% RH to 95% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing) |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Applicable software version | RGOS 11.9(6)W3B1 or later |
|---|---|
| Recommended maximum number of active devices per AP | 120 |
| Maximum number of associated clients | 1,024; Note; The number of associated clients varies according to the environment. |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming (supported only in Fit mode) |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, PPSK, Web, 802.1X, PEAP, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-OWE; Note: The availability of PPSK is subject to networking constraints. If |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless intrusion detection system (WIDS); User isolation; Rogue AP detection and containment |
| ACL | Dynamic ACL assignment based on 802.1X authentication (The AP needs to work with an AC.) |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| IP Servisleri | Static IPv4 address; IPv4 DHCP client; FTP ALG and DNS ALG |
|---|---|
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, and IPv6 ping; IPv6 DHCP client |
| IP Yönlendirme | IPv4/IPv6 static routing; Multicast-to-unicast conversion; DHCP snooping, DHCP Option 82, DHCP server, and DHCP client |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN, up to four IPsec tunnels |
| LLDP | Link Layer Discovery Protocol (LLDP); LLDP-MED; LLDP-PoE |
| Ağ Yönetimi | Fault detection and alarm; Information statistics collection and logging; SNMP v1/v2c/v3; NTP Server and NTP Client |
|---|---|
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| User access management | Console, Telnet, SSH, SNMP, and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz, 1.775 Gbps 5 GHz + 5 GHz, 2.402 Gbps |
| Maks. Güç Tüketimi | 12.95 W |
| External Power Supply | Hayır |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to 122°F) |
| IP Koruma Sınıfı | - |
| Boyutlar (G x D x Y) | 153 mm x 193 mm x 26 mm (6.02 in. x 7.60 in. x 1.02 in.) |
| Garanti | 3 Years |
