RUIJIE · RG-AP840-L

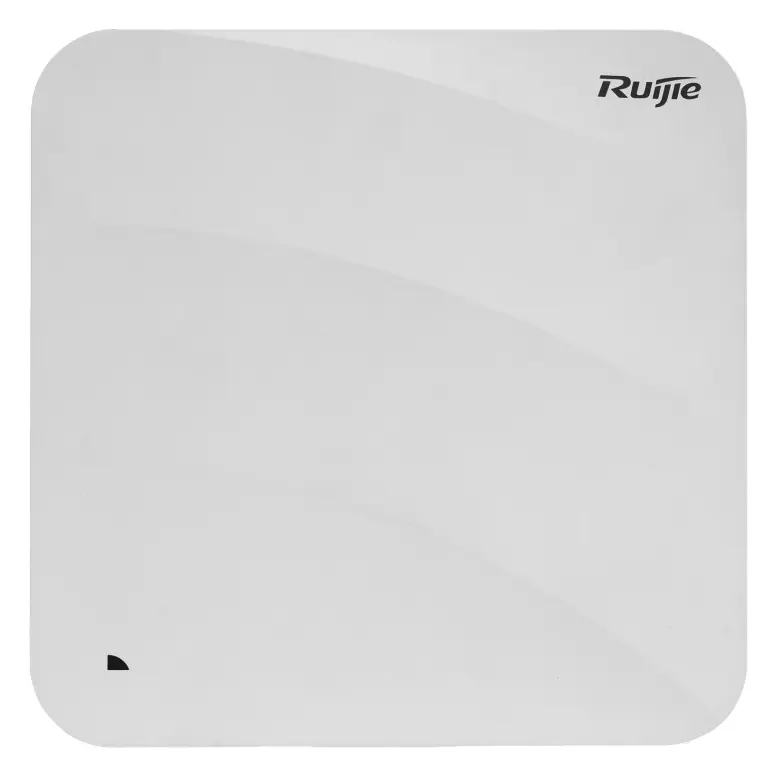

Ruijie RG-AP840-L Wi-Fi 6 Çift Bant Tavan Tipi Access Point
Model
RG-AP840-LRuijie RG-AP840-L access point: 5G optical port and 5G electrical port for flexible networking, Upgraded to Wi-Fi 6, a combined data rate of up to 5.378 Gbps, 160 MHz and 6 spatial streams for smoother wireless experiences, Ruijie cloud management, intelligent optimization.
- Kablosuz standart
- Wi-Fi 6
- 5G optical port and 5G electrical port for flexible networking
- Upgraded to Wi-Fi 6, a combined data rate of up to 5.378 Gbps
- 160 MHz and 6 spatial streams for smoother wireless experiences
- Ruijie cloud management, intelligent optimization
Genel bakış
Ruijie RG-AP840-L özellikleri ve kullanım alanları.
Indoor scenarios in higher education, government, general education, finance, and business sectors
Ruijie Cloud Managed Series Indoor AP RG-AP840-L
5 Gbps SFP & RJ45 Combo Port
PoE/DC Power Supply
Ceiling/Wall Mounting
Free Cloud Management
5 Gbps SFP and 5 Gbps Ethernet Combo Port
One 5G optical port supports an all-optical network, this port helps achieve fiber access in rooms. One 5G electrical port is also provided to meet existing networking requirements.

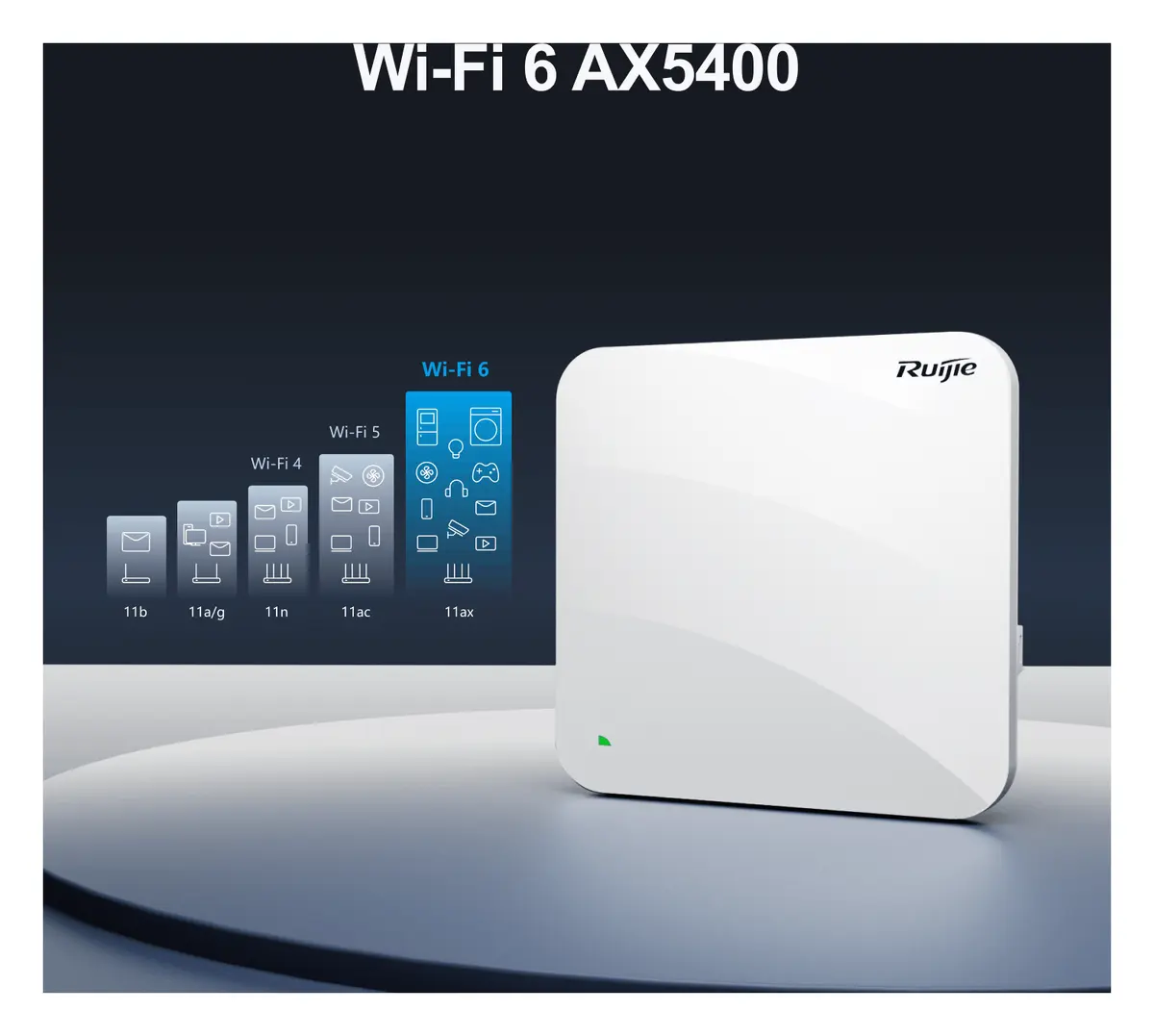

Wi-Fi 6 AX5400
Achieving a Combined Data Rate of Up to 5.378 Gbps
High Concurrency OFDMA and MU-MIMO are introduced to ensure stable access of multiple STAs
Low Latency OFDMA is applied to transmit data to multiple STAs simultaneously. The latency is as low as 20 ms.
High Security The next-generation wireless encryption protocol WPA3 greatly improves the security of wireless connection.
High Speed With 1024-QAM modulation, the data transmission rate is 25% higher than 802.11ac.
160 MHz and 6 Spatial Streams Delivering Smoother Wireless Experiences
Compared with traditional 80 MHz, 160 MHz allows larger traffic per unit time. With dual radios and 6 spatial streams, the AP has stronger data sending and receiving capability.
Cloud, Make Your Business Easy
- Cloud portal authentication
- Remote Wi-Fi management
- Wireless intelligent optimization
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Unit dimensions(W x D x H) | 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) |
|---|---|
| Shipping dimensions(W x D x H) | 535 mm x 406 mm x 269 mm (21.06 in. x 15.98 in. x 10.59 in.) |
| Cihaz Ağırlığı | Main unit: 1.0 kg (2.20 lbs); Mounting bracket: 0.1 kg (0.22 lbs) |
| Kutulu Ağırlık | 13.67 kg (30.14 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Radyo Tasarımı | Dual-radio and up to six spatial streams:; Radio 1: 2.4 GHz, two spatial streams, 2x2 MU-MIMO; Radio 2: 5 GHz, four spatial streams, 4x4 MU-MIMO |
| Çalışma Frekansları | 802.11b/g/n/ax:; 2.400 GHz to 2.4835 GHz, ISM; 802.11a/n/ac/ax:; 5.150 GHz to 5.250 GHz, U-NII-1; 5.250 GHz to 5.350 GHz, U-NII-2A; 5.470 GHz to 5.725 GHz, U-NII-2C; 5.725 GHz to 5.850 GHz, U-NII-3/ISM; Note: Available frequency bands may vary with countries or regions. To use the above-mentioned frequency bands, ensure that they are supported in your country or region. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Data rates | Combined peak data rate: 5.378 Gbps; 5 GHz radio:; Four spatial stream Single User (SU) MIMO for up to 4.804 Gbps wireless data rate to individual 4SS HE160 802.11ax client devices (maximum); Two spatial stream Single User (SU) MIMO for up to 1.201 Gbps wireless data rate to individual 2SS HE80 802.11ax client devices (typical); Four spatial stream Multi User (MU) MIMO for up to 4.804 Gbps wireless data rate to up to four 1SS or two 2SS HE160 802.11ax DL-MU-MIMO capable client devices simultaneo |
| Data rate set | The following 802.11-compliant data rates in Mbps are supported:; 2.4 GHz radio; 802.11b: 1, 2, 5.5, 11; 802.11g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40); 802.11ax: 8.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40); 5 GHz radio; 802.11a: 6, 9, 12, 18, 24, 36, 48, 54; 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40); 802.11ac: 6.5 to 3,467 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160); 802.11ax: 8.6 to 4,804 (MCS0 to MCS11, NSS = 1 to 4 |
| Packet aggregation | 802.11n/ac/ax: A-MPDU and A-MSDU |
| Anten Tipi | Built-in omnidirectional antennas (two 2.4 GHz antennas and four 5 GHz antennas) |
| Anten Kazancı | 2.4 GHz: 5 dBi; 5 GHz: 6 dBi |
| Maks. Yayın Gücü | 2.4 GHz radio: 27 dBm (24 dBm per chain); 5 GHz radio: 30 dBm (24 dBm per chain); Note: The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.; Thailand; 2.400 GHz to 2.4835 GHz, EIRP ≤ 20 dBm; 5.150 GHz to 5.350 GHz, EIRP ≤ 23 dBm; 5.470 GHz to 5.725 GHz, EIRP ≤ 30 dBm; 5.725 GHz to 5.825 GHz, EIRP ≤ 30 dBm; Vietnam：; 2400-2483.5 MHz, EIRP ≤ 23 dBm; 5150-5350 MHZ, EIRP ≤ 23 dBm; 5470-5725 MHz, EIRP ≤ 30 dBm; 5725-58 |
| Power increment | Configurable in increments of 1 dBm |
| Radio technologies | 802.11b: Direct-Sequence Spread-Spectrum (DSSS); 802.11a/g/n/ac: Orthogonal Frequency-Division Multiplexing (OFDM); 802.11ax: OFDMA with up to 16 resource units (for an 80 MHz channel) |
| Modulation types | 802.11b: BPSK, QPSK, and CCK; 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM; 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM; 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, and 1024-QAM |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz, 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE160) | MCS0; MCS11 |
| Bluetooth | Bluetooth 5.1 |
|---|---|
| Anten Tipi | Integrated vertically polarized omnidirectional antenna |
| Maks. Anten Kazancı | 3.5 dBi, with a downtilt angle of roughly 30 degrees |
| Maks. Yayın Gücü | 10 dBm (Class 1) |
| Alıcı Hassasiyeti | –98 dBm |
| Sabit Servis Portları | 1 x 100/1000/2.5G/5GBASE-T port; Auto MDI/MDIX crossover; NBASE-T/IEEE802.3bz-compliant 5 Gbps; PoE-PD: 54 V DC (nominal value) 802.3af/at/bt (Class 3 or higher); 802.3az EEE; 1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules; 1 x 10/100/1000BASE-T port; Supplying 48 V/12.95 W power to an IoT unit |
|---|---|
| Sabit Yönetim Portu | 1 x RJ45 console port (serial console port) |
| USB | USB 3.0 (Type-A connector) |
| Status LED | 1 x multi-color system status LED |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Input power supply | The AP supports the following two power supply modes:; 54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power adapter needs to be purchased independently.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).; Note:; If both DC power and PoE are available, DC power is preferred.; When powered by 802.3bt (PoE++), the AP operates with the optimal performance.; When p |
|---|---|
| PoE Portu | When powered by 802.3bt (PoE++), the LAN 2 port can source 48 V/12.95 W power to a unit. |
| USB Portu | When powered by 802.3bt (PoE++), the USB port can source 1 A/5 W power to an attached device. |
| Overall power consumption | Maximum power consumption: 40 W; DC powered: 40 W; PoE powered (802.3af): 12.95 W; PoE+ powered (802.3at): 22 W; PoE++ powered (802.3bt): 40 W; Idle mode: 10.3 W |
| Sıcaklık | Operating temperature: –10°C to +50°C (14°F to 122°F); Storage temperature: –40°C to 70°C (–40°F to +158°F); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (722 ft), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Nem | Operating humidity: 5% RH to 95% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing) |
| MTBF | 394,941 hours (45 years) at the operating temperature of 25°C (77°F) |
| Security standards | IEC 62368-1; EN 62368-1 |
|---|---|
| Cyber security standards | EN 18031-1; EN 18031-2 |
| EMC Standartları | EN 55032; EN 55035; EN IEC 61000-3-2; EN 61000-3-3; EN 301 489-1; EN 301 489-3; EN 301 489-17 |
| Radio frequency standards | EN 300 328; EN 301 893; EN 300 440; EN IEC 62311; FCC Part 15 |
| Applicable software version | RGOS11.9(6)W3B3 or higher |
|---|---|
| Recommended maximum number of active devices per AP | 150 |
| Maximum number of associated clients | 1024; Note; The number of associated clients varies according to the environment. |
| Maximumnumber of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent client identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, web, 802.1X, WPA, WPA2, and WPA3 authentication; SMS authentication (used with the RG-WS series wireless access controller); MAB authentication (used with the RG-WS series wireless access controller); WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP), WPA3-Enterprise (GCMP), WPA3-OWE |
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| ACL | Dynamic ACL assignment |
| CPP | Destekleniyor |
| NFPP | Destekleniyor |
| IP Servisleri | Static IPv4 address and DHCP-assigned IPv4 address; NAT, FTP ALG, DNS ALG |
|---|---|
| Multicast | Multicast-to-unicast conversion |
| IPv6 basics | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 Ping; IPv6 DHCP Client |
| IP Yönlendirme | IPv4/IPv6 static routing |
| VPN | PPPoE client; IPsec VPN, up to four IPsec tunnels |
| Ağ Yönetimi | Fault inspection and alarm; Information statistics and logging; SNMPv1/v2c/v3; NTP Server and NTP Client |
|---|---|
| Network management platform | Ruijie Cloud; Web-based management (Eweb) |
| User access management | Console, Telnet, SSH, SNMP, and TFTP-based management |
| Fat/Fit/Cloud mode switchover | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through Ruijie Cloud. |
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz, 5.378 Gbps |
| Maks. Güç Tüketimi | 40 W |
| External Power Supply | Evet |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to +122°F) |
| IP Koruma Sınıfı | - |
| Boyutlar (G x D x Y) | 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.) |
| Garanti | 3 Years |
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-AP840-L hakkında kısa yanıtlar.
RG-AP840-L fiyatı ne kadar?
RG-AP840-L için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
