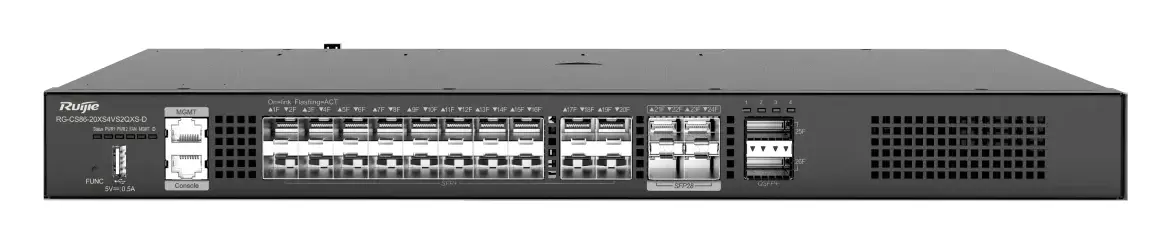

RUIJIE · RG-CS86-20XS4VS2QXS-D Ruijie RG-CS86-20XS4VS2QXS-D 20 Port 10G SFP+ 4×25G SFP28 2×40G QSFP+ L3 Yönetilebilir Switch

Ruijie ·Yönetilebilir Switch

Ruijie RG-CS86-20XS4VS2QXS-D 20 Port 10G SFP+ 4×25G SFP28 2×40G QSFP+ L3 Yönetilebilir Switch

ModelRG-CS86-20XS4VS2QXS-D

Ruijie RG-CS86-20XS4VS2QXS-D, 20 portlu bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: 10G uplink
PoE: PoE yok
Port sayısı: 20 port

20 x 10GE SFP+ ports (Compatible with 2.5GE), 4 x 25GE SFP28 ports, and 2 x 40GE QSFP+ ports for uplink
VSU, realizing flexible networking and high performance
Hardware-level multi-protection, ensuring service continuity
Network security policies and real-time monitoring, enhancing network robustness
Comprehensive QoS policies for flexible network resource allocation and stable services
Diverse network management modes, enabling simple maintenance

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-CS86-20XS4VS2QXS-D özellikleri ve kullanım alanları.

Suitable for small & medium enterprise core, or large-scale campus network aggregation switch

Cost-effective Full 10GE Layer 3 Core/Aggregation Switch RG-CS86-20XS4VS2QXS-D

Suitable for SME network core and large-scale network aggregation, 20 x 10GE ports and 4 x 25GE ports for flexible access, 2 x 40GE ports for high-performance uplink

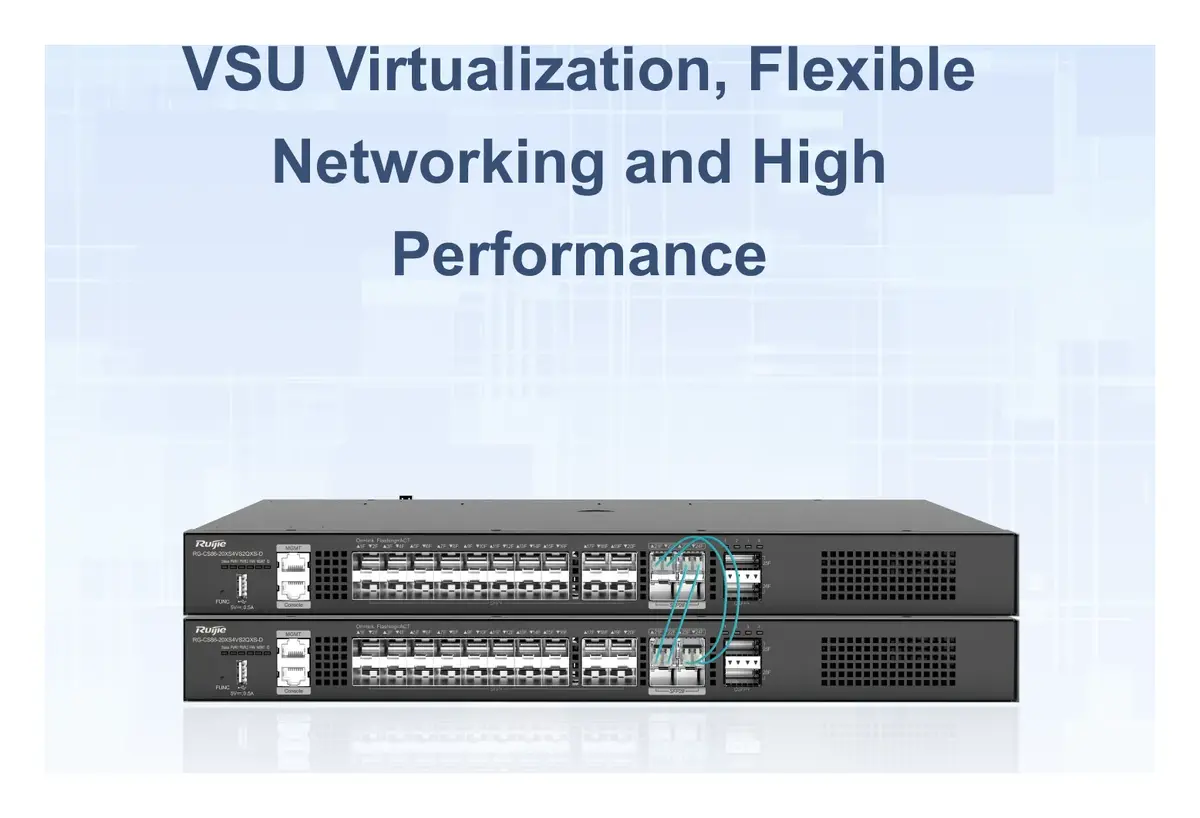

VSU Virtualization, Flexible Networking and High Performance

Millisecond Failover

High Scalability

Simplified Networking

The VSU connects to peripherals through an aggregate link, realizing service switching in milliseconds upon a failure.

VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.

Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.

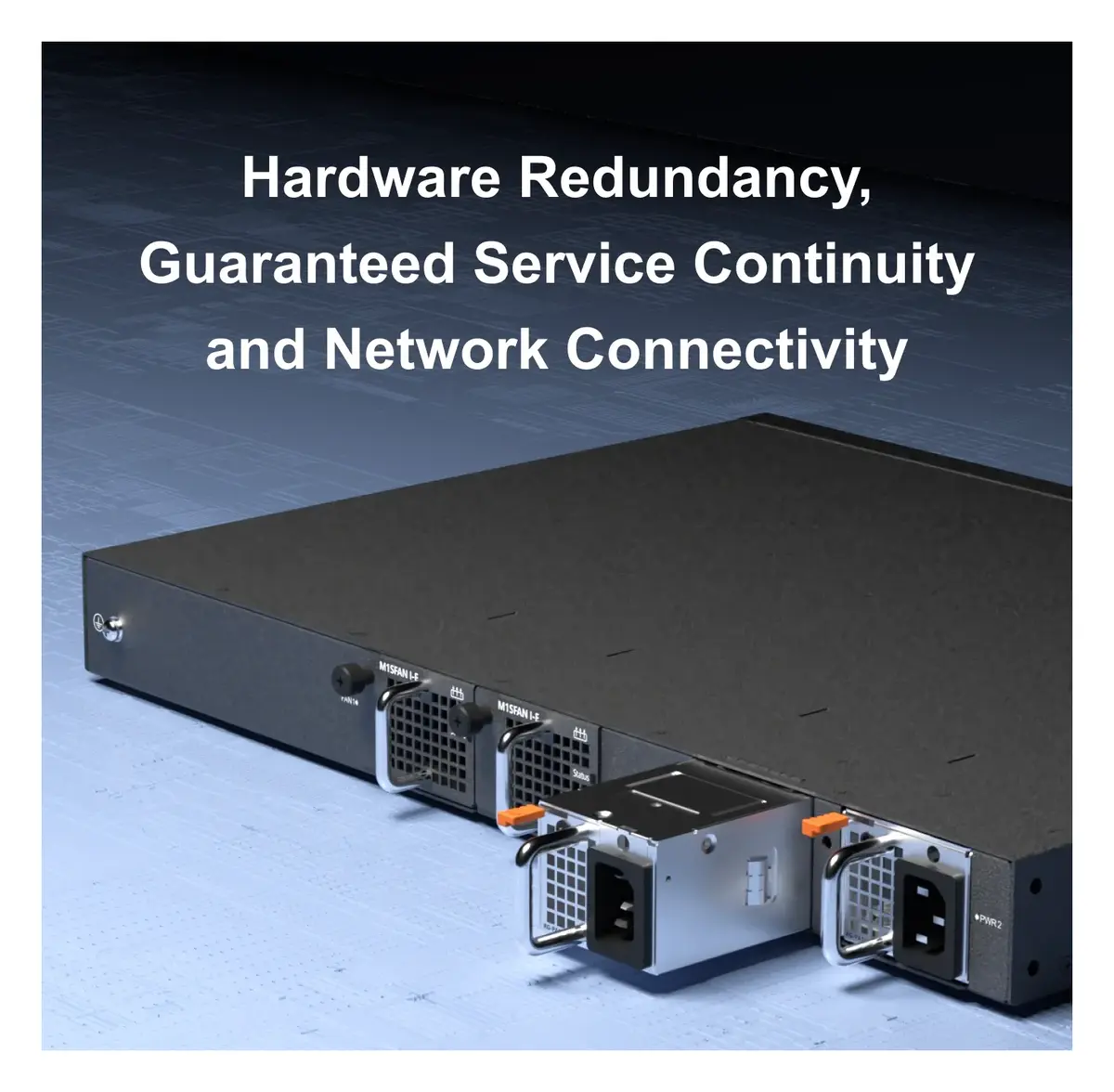

Hardware Redundancy, Guaranteed Service Continuity and Network Connectivity

Hot-Swappable Power Modules + Intelligent Fan Modules

Hardware-Level Boot Redundancy

Optical Port Fault Isolation

Power modules can be replaced without affecting device operation. Intelligent fan speed regulation is supported for efficient cooling, providing dual protection for the network.

Two Flash chips are used to store the system boot program for hardware-level boot redundancy, avoiding device failure caused by a failed Flash chip.

The innovative isolated chip design ensures that short-circuit current cannot reach the power supply chip directly. Failure of one optical module will not affect the normal operation of other optical ports, thus effectively ensuring service stability.

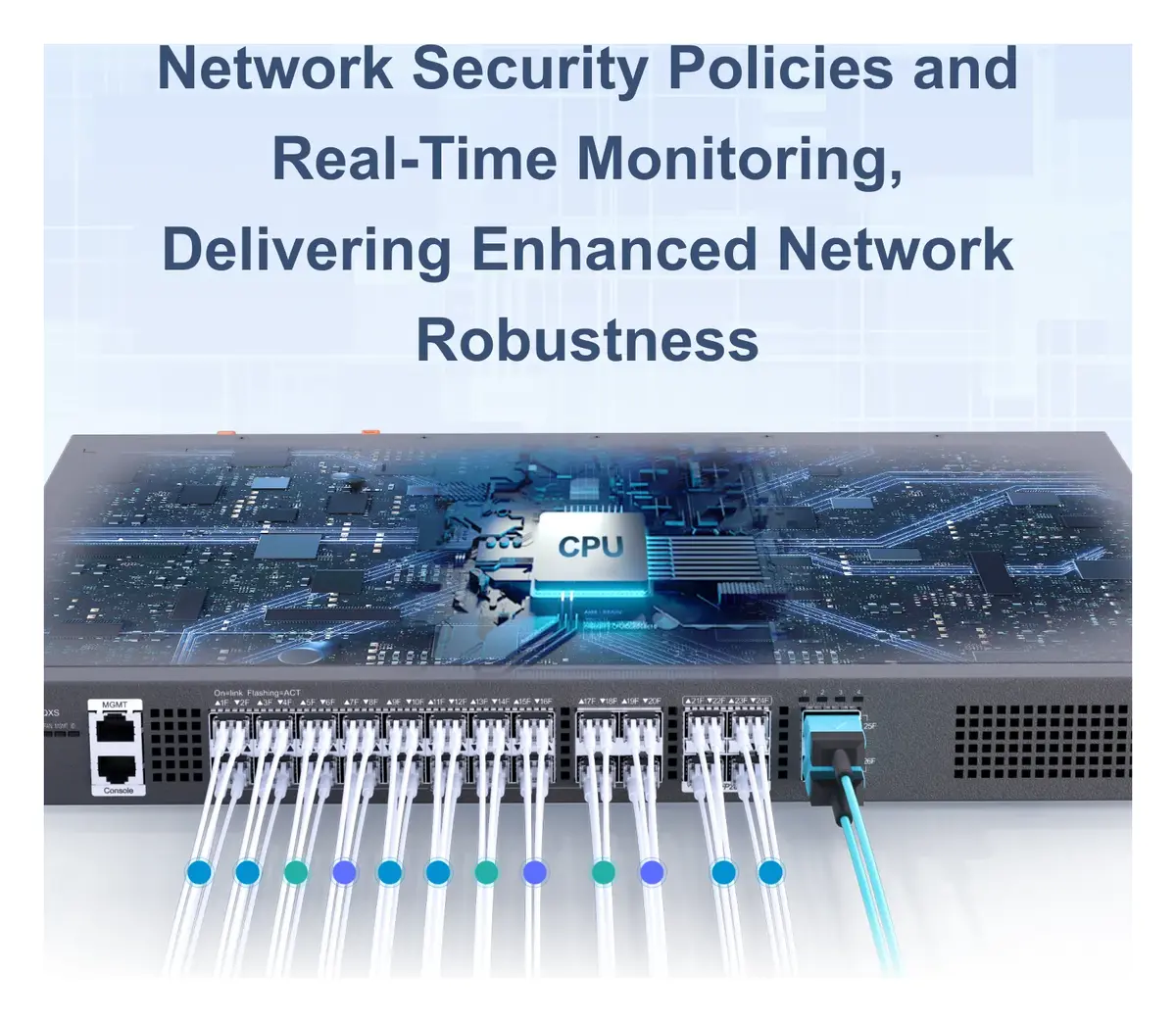

Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness

CPP

NFPP

CPP protects the CPU from data attacks to ensure CPU stability under high usage, achieving significant improvement in the device's security performance.

NFPP protects CPU from high load damage to guarantee device management and operation, thus improving network security and stability.

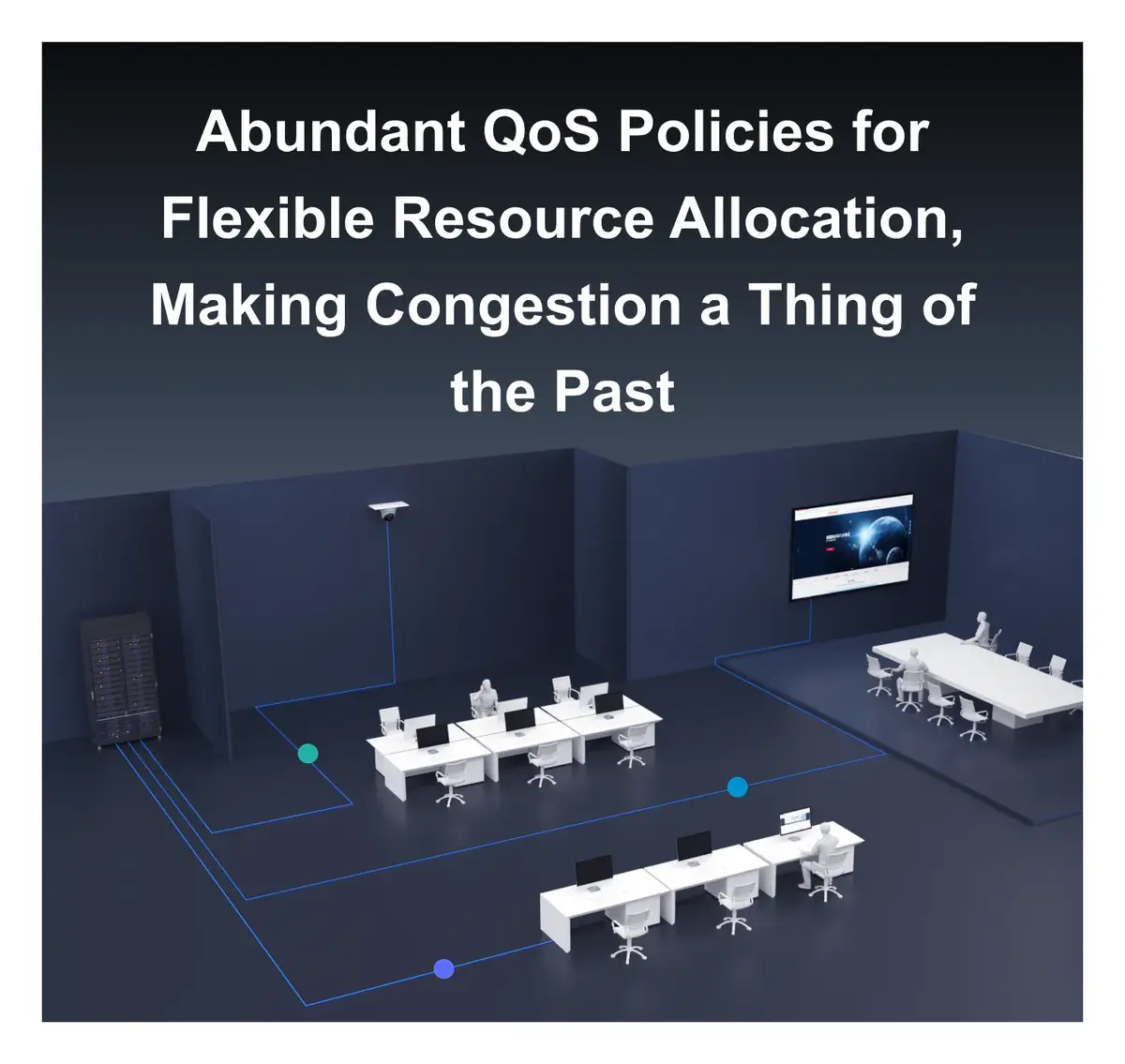

Abundant QoS Policies for Flexible Resource Allocation, Making Congestion a Thing of the Past

multi-plane flow classification and control policy based on MAC flow, IP flow and application flow, accurate resource allocation for multi-service traffic makes congestion a thing of the past, delivering high-quality networks.

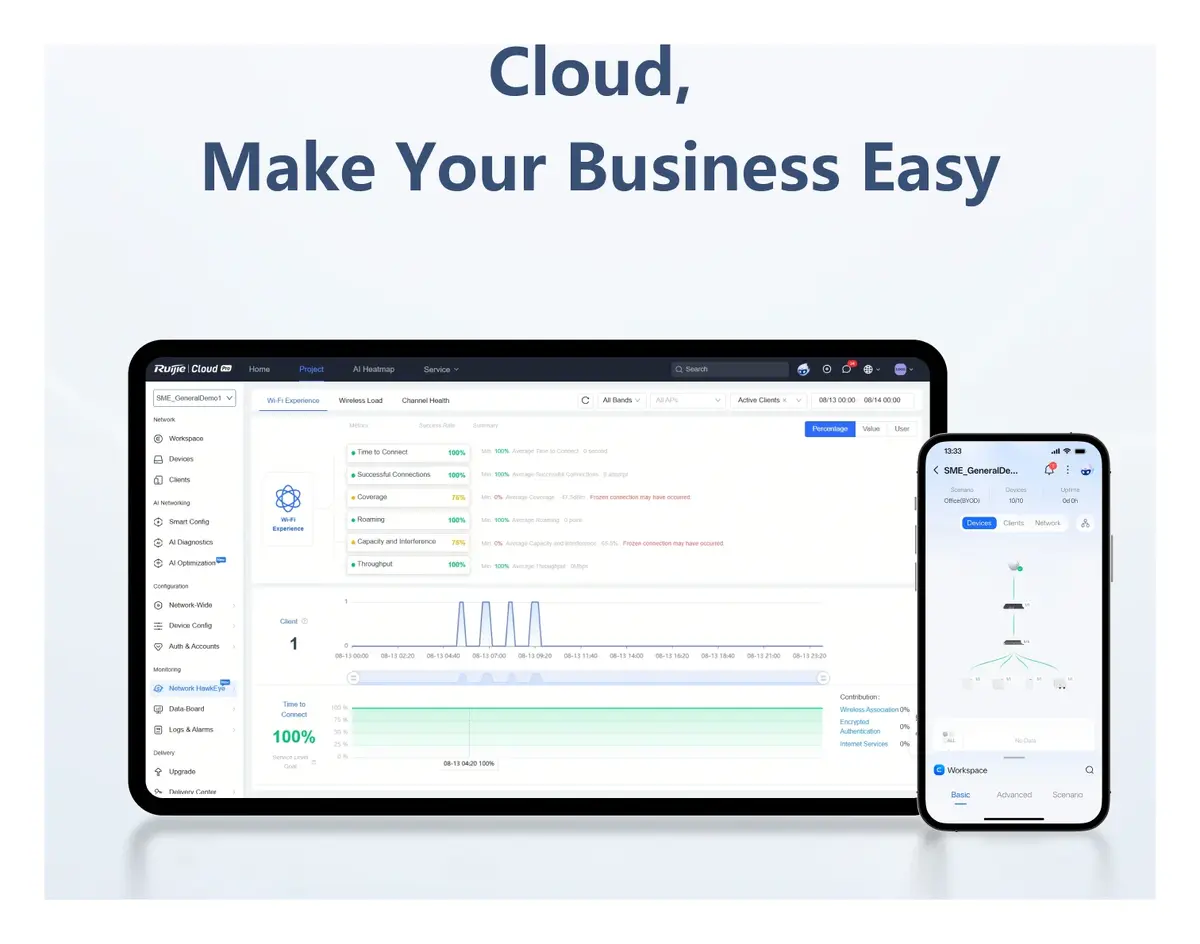

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statisticsat anytime anywhere
Configure VLANs on Ruijie Cloud APP
Ease of maintenance, saving onsite labor and cost

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Sabit Servis Portları	20 x 1GE/2.5GE/10GE SFP+ ports; 4 x 10GE/25GE SFP28 ports; 2 x 40GE QSFP+ ports; Note: One switch provides a maximum of 32 x 10GE ports.
Modül Yuvası	2 x power module slots; 2 x fan power module slots
Güç Modülü	RG-PA150IB-F
Fan Modülü	M1SFAN I-F (pre-installed 2)
Sabit Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB	1 x USB port
Paket İletim Hızı	570 Mpps
Anahtarlama Kapasitesi	760 Gbps
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash Bellek	1 GB (storing boot software for 1+1 boot redundancy)
Bellek	1 GB
MAC Adres Tablosu	32,768
ARP Tablosu Boyutu	16,000
Number of IPv4 unicast routes	16,000
Number of IPv4 multicast routes	4,000
Number of IPv6 unicast routes	16,000
Number of IPv6 multicast routes	2,000
Number of ACEs	In: 2,500; Out: 1,000
Number of VSU members	2

Boyutlar ve Ağırlık
Cihaz Boyutları (G x D x Y)	440 mm x 330 mm x 43.6 mm (17.32 in. x 12.99 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	545 mm x 500 mm x 232 mm (21.46 in. x 19.69 in. x 9.13 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	4.6 kg (10.14 lbs) (empty chassis with 2 fan modules)
Kutulu Ağırlık	6.40 kg (14.11 lbs) (empty chassis with 2 fan modules)

Güç Kaynağı ve Tüketim
Güç Kaynağı	2 x pluggable power modules
Güç Modülü Yedekliliği	1+1 power redundancy
Güç Girişi	RG-PA150IB-F (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 3 A
Maks. Çıkış Gücü	RG-PA150IB-F: 150 W
Maks. Güç Tüketimi	85 W

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
MTBF	200,000 hours (about 22 years)
Fan	2 x pluggable fan modules
Fan Yedekliliği	1+1 redundancy
Isı Dağılımı	Fan cooling, front-to-rear airflow
Gürültü Seviyesi	≤ 78 dB
Güç Modülü Sıcak Takas	Destekleniyor
USB hot swapping	Destekleniyor
Cable hot swapping	Destekleniyor
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply failure alarming
Fan İzleme	Fan speed regulating and alarm function
Sıcaklık İzleme	Temperature alarming
ESD Koruması	ESD Contact/Air Discharge: 6kV/8kV; ESD Susceptibility Contact/Air Discharge: 8 kV/15kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 10 kV; Power port: common mode 6 kV, differential mode 6 kV
Conformal coating	Conformal coating supported (key components only)

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Yazılım Özellikleri
Feature	Description
Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); IEEE 802.1Q (supporting 4K VLANs); Voice VLAN; Super VLAN, private VLAN; MAC VLAN, port-based VLAN, protocol-based VLAN, IP subnet-based VLAN; GVRP; Basic QinQ; STP, RSTP, and MSTP; ERPS (G.8032); LLDP/LLDP-MED; LACP (IEEE 802.3ad)
IP Servisleri	ARP; DHCP client, DHCP relay, and DHCP server; DHCP snooping; DNS; DHCPv6 client and DHCPv6 relay; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6; BGP4 and BGP4+; IPv4 and IPv6 VRF; IPv4 and IPv6 PBR; Equal and Weighted Cost Multi-Path (ECMP)
Multicast	IGMP v1/v2/v3, and IGMP proxy; IGMP v1/v2/v3 snooping; PIM-DM, PIM-SM, and PIM-SSM; MSDP; MLD v1/v2; MLD snooping v1/v2; PIM-SMv6 and PIM-SSM v6; IGMP filtering, IGMP immediate leave
ACL ve QoS	Standard IP ACLs; Extended IP ACLs; Extended MAC ACLs; Time-based ACLs; Expert-level ACLs; ACL80; IPv6 ACL; ACL redirection; Port traffic rate limiting; Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ; Congestion avoidance: tail drop, RED, and WRED; 802.1p/DSCP/ToS traffic classification; Eight priority queues per port
Güvenlik	Multiple AAA modes; RADIUS and TACACS+; Port-based and MAC-based 802.1x authentication; Web authentication; HTTPS; SSHv1, SSHv2; Global IP-MAC binding; Port isolation and port security; IP source guard; SAVI; CPP and NFPP; Strict and loose RPF
Güvenilirlik	REUP, RLDP, DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; BFD; Hot swapping of power modules and cables; 3-level fan speed adjustment; Fan fault alarm
Cihaz Sanallaştırma	VSU
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFlow; NTP and SNTP; FTP and TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); Telnet; NETCONF; CWMP (TR-069) standard protocol; gRPC; Cloud and SON

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-CS86-20XS4VS2QXS-D hakkında kısa yanıtlar.

RG-CS86-20XS4VS2QXS-D kaç portlu?

RG-CS86-20XS4VS2QXS-D 20 porta sahiptir.

RG-CS86-20XS4VS2QXS-D fiyatı ne kadar?

RG-CS86-20XS4VS2QXS-D için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
