RUIJIE · RG-S6990-128QC2XS Ruijie RG-S6990-128QC2XS 128 Port 400G QSFP-DD 2×10G SFP+ Veri Merkezi Switch

Ruijie ·Yönetilebilir Switch

Ruijie RG-S6990-128QC2XS 128 Port 400G QSFP-DD 2×10G SFP+ Veri Merkezi Switch

ModelRG-S6990-128QC2XS

Ruijie RG-S6990-128QC2XS, 28 portlu gigabit bir yönetilebilir switch'tir.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 28 port

High-density 400GE switch with 128 x 100GE/200GE/400GE QSFP112 ports housed in a 4-RU enclosure
Eliminating packet loss during E2E communication through RDMA, building high-performance and low-latency data center networks
Hardware-level redundancy, ensuring service continuity and preventing network downtime
Nanosecond-level hardware failover, mitigating the impact of network faults on services and securing network stability
AI-powered intelligent O&M, making management easy and efficient

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S6990-128QC2XS özellikleri ve kullanım alanları.

128 x 400GE ports and 2 x 10GE ports, RDLB and GDLB of the AI-Fabric solution to improve the bandwidth and shorten the AI training time in AIGC intelligent computing scenarios

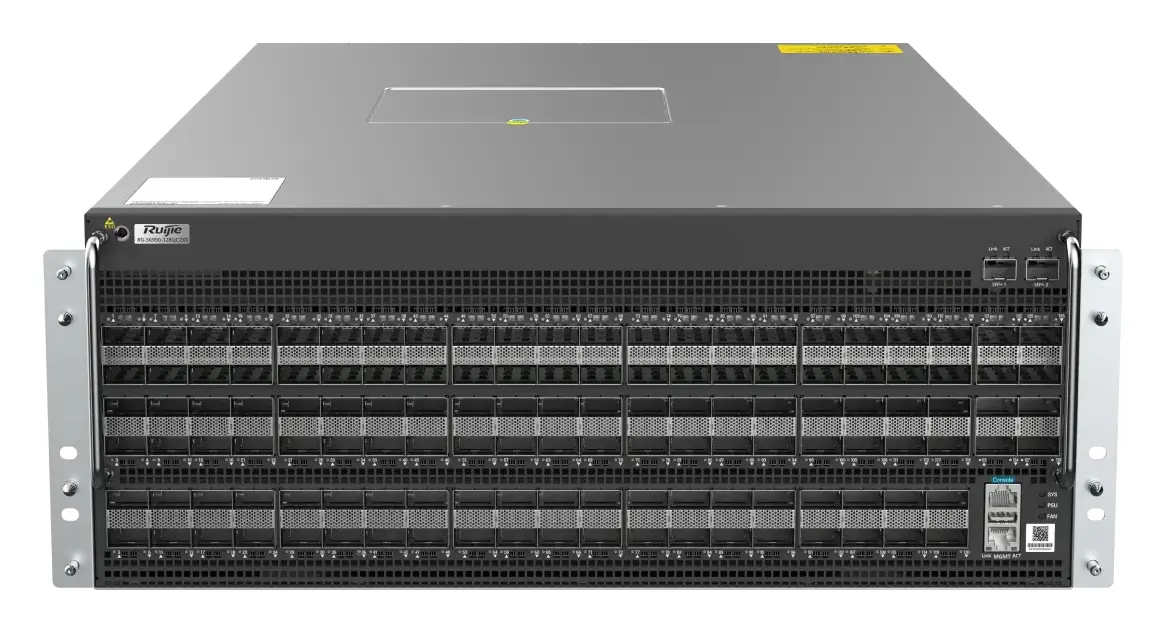

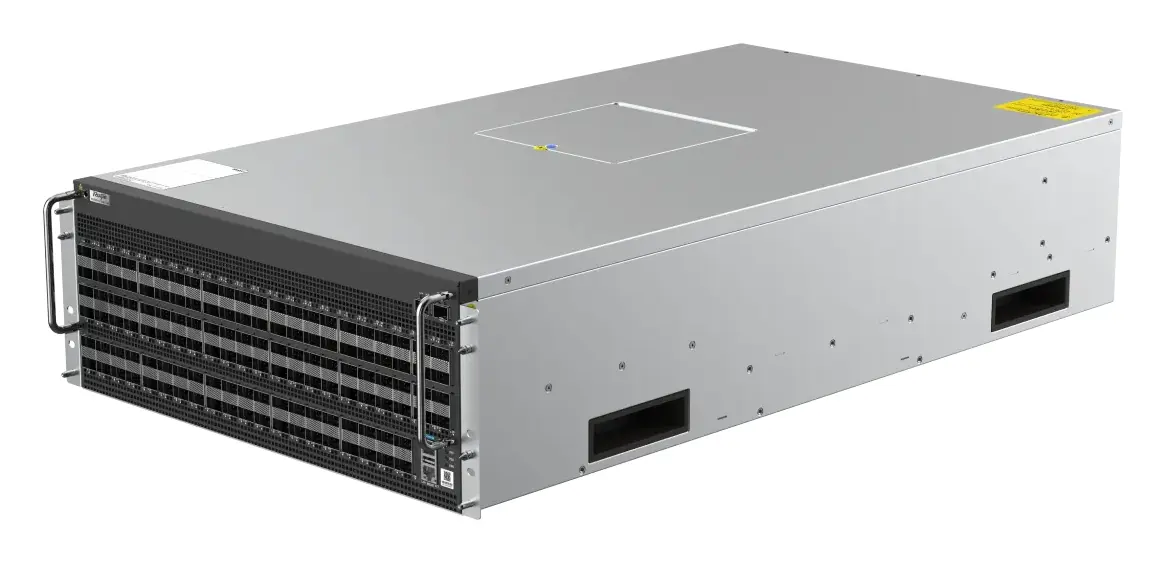

RG-S6990-128QC2XS – 128-Port 400GE Data Center Fixed Switch

The high-speed and high-density core switch provides 128 x 400GE ports housed in a 4-RU enclosure, delivering scalable, high-performance, and high-bandwidth services for large-scale DCI networks.

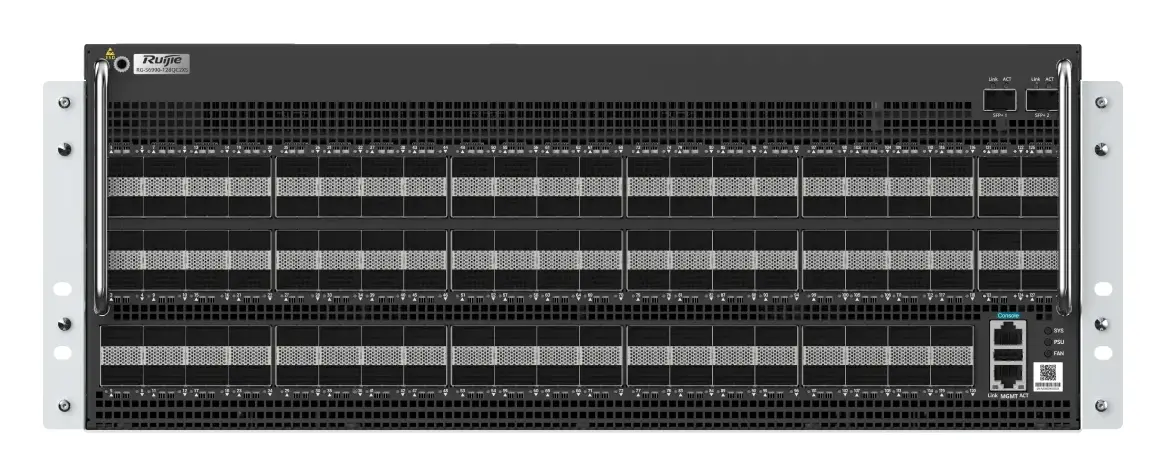

Ports

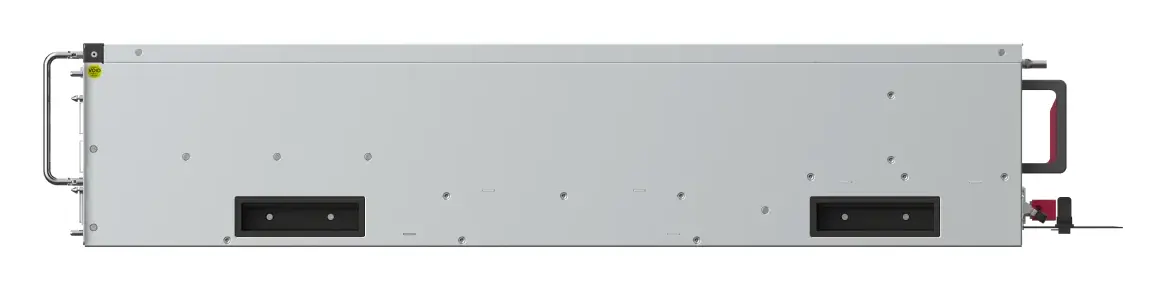

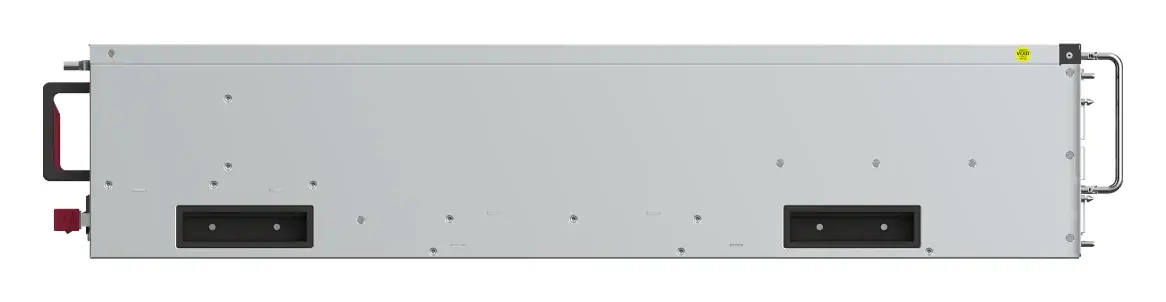

Dimensions

Eliminating Packet Loss During E2E Communication Through RDMA, Building High-Performance and Low-Latency Data Center Networks

PFC and ECN are leveraged to implement intelligent data exchange and eliminate packet loss. With the RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU load and addresses network latency issues, ensuring lossless transmission of data. In addition, Remote Dynamic Load Balancing (RDLB) and Global Dynamic Load Balancing (GDLB) of the AI-Fabric solution solve the ECMP conflict caused by flow-based load balancing, improving the bandwidth and shortening the AI training time in AIGC intelligent computing scenarios.

Hardware-Level Redundancy, Ensuring Service Continuity and Preventing Network Downtime

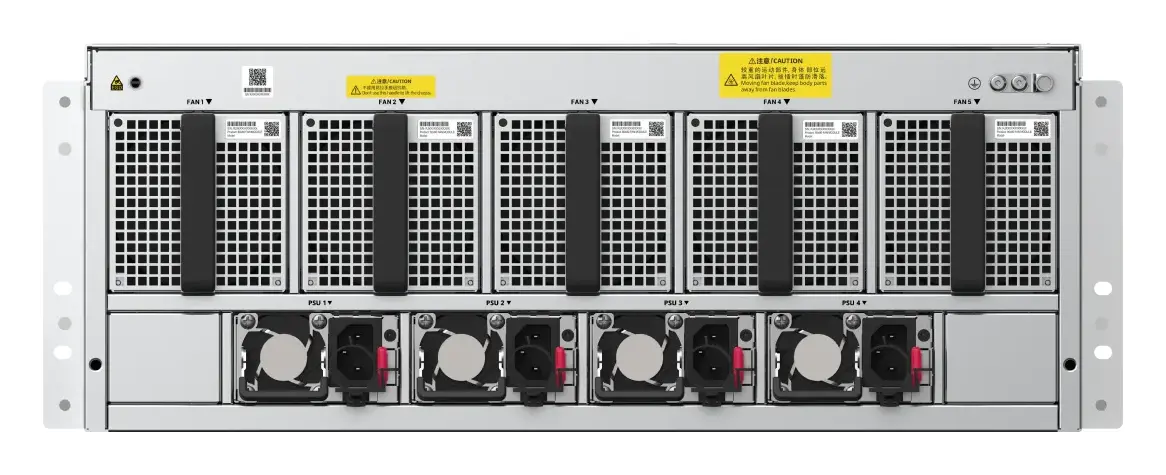

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

The switch supports 2+2 power redundancy, enables failover in seconds, and ensures network connectivity during power replacement. This provides dual protection for links.

The switch supports 4+1 fan redundancy with intelligent speed adjustment and efficient heat dissipation for building low-carbon data centers.

AI-Powered Intelligent O&M Making Management Easy and Efficient

The switch offers AI-powered automatic ECN tuning, real-time telemetry of key RoCE network metrics, visualization of endpoint status and RoCE services, along with congestion and packet loss analytics.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Dimensions; (W x D x H)	446 mm x 800 mm x 173.6 mm (17.56 in. x 31.5 in. x 6.84 in.)
Kabin Yüksekliği	4 RU
Cihaz Ağırlığı	37.6 kg (82.89 lbs., empty chassis); 45 kg (99.21 lbs., a chassis with four power modules and five fan modules)
Anahtarlama Kapasitesi	102.4 Tbps
Paket İletim Hızı	21000 Mpps
Servis Portu	128 x 100G/200G/400G QSFP112 ports; 2 x GE/10GE SFP+ ports
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	4 x power module slots; 5 x fan module slots
Güç Tüketimi	Maximum power consumption: 3160 W; Typical power consumption: 2432 W; Static power consumption: 433 W
Güç Girişi	RG-PA1600II-F (AC input):; Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 12 A (100 V AC to 127 V AC); 9.5 A (200 V AC to 240 V AC); Power port type: C14; RG-PA1600II-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated input current: 9.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1,800 m (5,905.51 ft.) to 5,000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude ≤ 5,000 m (16,404.20 ft.); Storage altitude ≤ 5,000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri
Layer 2 protocols	IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)
Layer 3 protocols (IPv4)	BGP4, OSPFv2, RIPv1, RIPv2, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP
Basic IPv6 protocols	Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, IPv6 TCP/UDP, SNMPv6, IPv6 Ping/Traceroute, IPv6 RADIUS, IPv6 Telnet/SSH, IPv6 FTP/TFTP, NTPv6, IPv6 MIB for SNMP, IPv6 VRRP, IPv6 QoS
IPv6 features	Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+
Data center features	VXLAN, BGP-EVPN; RDMA; PFC, ECN; PFC deadlock prevention; AI ECN; ECN overlay; Global loading balancing, Remote Adaptive Load Balancing (RALB), Artificial Intelligence Scene Load Balancing (AILB), end-to-network load balancing (ENLB), source port-based load balancing (SPLB)
Visualization	Telemetry; sFlow; INT, MOD
QoS	IEEE 802.1p, DSCP, and ToS mapping; ACL-based traffic classification; Priority marking and re-marking; Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, SP+DRR; Congestion avoidance mechanisms such as WRED and tail discarding
High redundancy design	GR for RIP/OSPF/BGP, BFD, DLDP, REUP, Rapid Link Detection Protocol (RLDP), 2 + 2 power redundancy, fan redundancy, and hot swapping of line cards and power modules
Security features	Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), RADIUS/TACACS, IPv4/IPv6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, cleartext and MD5-based authentication for OSPF, RIPv2, and BGPv4 packets, telnet from specified IP addresses, broadcast packet suppression, and hierarchical user management; MLAG
Yönetim Modu	SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, temperature alarm
Other protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, ARP Proxy, and Syslog

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-S6990-128QC2XS hakkında kısa yanıtlar.

RG-S6990-128QC2XS kaç portlu?

RG-S6990-128QC2XS 28 porta sahiptir.

RG-S6990-128QC2XS fiyatı ne kadar?

RG-S6990-128QC2XS için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, RG-S6990-128QC2XS için fiyat ve teslim süresini iletelim.
