PoE Switch RG-CS86

Ruijie RG-CS86-48MG4VS2QXS-UPD 48 Port 5G Multi-Gigabit PoE++ 4×25G SFP28 2×40G QSFP+ Yönetilebilir Switch

ModelRG-CS86-48MG4VS2QXS-UPD

Ruijie RG-CS86-48MG4VS2QXS-UPD, 48 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 90 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

48 x 100/1000/2.5G/5GBASE-T ports for access, 4 x 10GE/ 25GE SFP28 ports and 2 x 40GE QSFP+ ports for uplink, meeting high-bandwidth campus network demands
Hardware-level multi-protection, ensuring service continuity
VSU, realizing flexible networking and high performance
Network security policies and real-time monitoring, enhancing network robustness
Intelligent speed regulation and auto sleeping, reducing energy consumption and noise
Diverse network management modes, enabling simple maintenance

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 6 satır

Sabit Servis Portları	48 x 100/1000/2.5G/5GBASE-T ports; Ports 1 to 48 support PoE/PoE+; Ports 1 to 24 support PoE++; 4 x 10GE/25GE SFP28 ports; 2 x 40GE QSFP+ ports
Modül Yuvası	2 x power module slots; 3 x fan module slots
Güç Modülü	RG-PA600I-P-F; RG-PA1000I-P-F
Fan Modülü	M2SFAN I-F (pre-installed 3)
Sabit Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB	1 x USB port

Sistem Özellikleri 15 satır

Paket İletim Hızı	625 Mpps
Anahtarlama Kapasitesi	840 Gbps
İşlemci (CPU)	Single-core CPU, with a clock speed up to 1.25 GHz
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash Bellek	1 GB (storing boot software for 1+1 boot redundancy)
Bellek	2 GB
Switch Tampon Belleği	4 MB
MAC Adres Tablosu	32,768
ARP Tablosu Boyutu	16,000
Number of IPv4 unicast routes	16,000
Number of IPv4 multicast routes	4,000
Number of IPv6 unicast routes	16,000
Number of IPv6 multicast routes	2,000
Number of ACEs	Ingress: 2,500; Egress:1,000
Number of VSU members	2

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442 mm x 220 mm x 43.6 mm (17.40 in. x 8.66 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	563 mm x 563 mm x 210mm; (22.17 in. x 22.17 in. x 8.27 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	6.11 kg (13.47 lbs)
Kutulu Ağırlık	8.42 kg (18.56 lbs)

Güç Kaynağı ve Tüketim 9 satır

Güç Kaynağı	2 x pluggable power modules
Güç Modülü Yedekliliği	1+1 power redundancy
Güç Modülü Sıcak Takas	Destekleniyor
Güç Girişi	RG-PA600I-P-F (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 8 A; RG-PA1000I-P-F (AC input 1):; Rated input voltage: 100 V AC to 130 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 143 V AC, 47 Hz to 63 Hz; Maximum input current: 12 A; RG-PA1000I-P-F (AC input 2):; Rated input voltage: 200 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 180 V AC to 264 V AC, 47 Hz to 63 Hz
Maks. Çıkış Gücü	RG-PA600I-P-F: 600 W; RG-PA1000I-P-F:; 100 V AC to 130 V AC: 930 W; 200 V AC to 240 V AC: 1000 W
Maks. Güç Tüketimi	200 W (without PoE); 1,800 W (full PoE load)
PoE Portu	Ports 1 to 24 support HPoE power supply (IEEE 802.3bt); Ports 1 to 48 support PoE/PoE+ power supply (IEEE 802.3af/at)
PoE power cable pairs	Four pairs (1-2, 3-6, 4-5, and 7-8 pairs)
PoE Çıkış Gücü	Each port of ports 1 to 24 provides up to 90 W of power; Each port of ports 25 to 48 provides up to 30 W of power; 1 x RG-PA600I-P-F：400 W; 1 x RG-PA1000I-P-F: 710 W (100 V AC to 130 V AC); 1 x RG-PA1000I-P-F: 800 W (200 V AC to 240 V AC); 2 x RG-PA600I-P-F：880 W; 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1150 W (100 V AC to 130 V AC); 1 x RG-PA600I-P-F + 1 x RG-PA1000I-P-F：1240 W (200 V AC to 240 V AC); 2 x RG-PA1000I-P-F: 1420 W (100 V AC to 130 V AC); 2 x RG-PA1000I-P-F: 1600 W (200 V AC to

Ortam ve Güvenilirlik 19 satır

Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
MTBF	237,221 hours (about 27 years)
Fan	3 x pluggable fan modules
Fan Yedekliliği	2+1 redundancy
Fan Modülü Sıcak Takas	Destekleniyor
Isı Dağılımı	Fan cooling, front-to-rear and left-to-rear airflow
Gürültü Seviyesi	27°C (80.6°F): 60 dB; 45°C (113°F): 78 dB
Güç Modülü Sıcak Takas	Destekleniyor
Fan Modülü Sıcak Takas	Destekleniyor
USB hot swapping	Destekleniyor
Cable hot swapping	Destekleniyor
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply failure alarming
Fan İzleme	Fan speed adjustment: 3 levels; Fan failure alarming
Sıcaklık İzleme	Temperature alarming
ESD Koruması	ESD contact discharge/air discharge: 6 kV/8 kV; ESD immunity contact discharge/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 4 kV; Power port: common mode 6 kV, differential mode 6 kV
Conformal coating	Conformal coating supported (key components only)

Sertifikalar ve Uyumluluk 2 satır

Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11

Yazılım Özellikleri 10 satır

Ethernet Anahtarlama	Jumbo frame (maximum length: 9216 bytes); IEEE 802.1Q (supporting 4K VLANs); Voice VLAN; Super VLAN, Private VLAN; MAC VLAN, Port based VLAN, Protocol based VLAN, IP-Subnet based VLAN; GVRP; Basic QinQ; Flexible QinQ; STP, RSTP, and MSTP; ERPS (G.8032); LLDP/LLDP-MED; LACP (IEEE 802.3ad)
IP Servisleri	ARP; DHCP client, DHCP relay, and DHCP server; DHCP snooping; DNS; DHCPv6 client and DHCPv6 relay; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2, OSPFv3, IS-ISv4, ISv4, and IS-ISv6; BGP4 and BGP4+; IPv4 and IPv6 PBR; ECMP
Multicast	IGMP v1/v2/v3, and IGMP proxy; IGMP v1/v2/v3 snooping; PIM-DM, PIM-SM, and PIM-SSM; MSDP; MLD v1/v2; MLD snooping v1/v2; PIM-SMv6 and PIM-SSM v6
ACL ve QoS	Standard IP ACLs; Extended IP ACLs; Extended MAC ACLs; Time-based ACLs; Expert-level ACLs; ACL80; IPv6 ACL; Port traffic rate limiting; Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ; Congestion avoidance: tail drop, RED, and WRED; 802.1p/DSCP/ToS traffic classification; Eight priority queues per port
Güvenlik	Multiple AAA modes; RADIUS and TACACS+; Port-based and MAC-based 802.1x authentication; Web authentication; HTTPS; SSHv1, SSHv2; Global IP-MAC binding; IP source guard; SAVI; CPP and NFPP; Strict and loose RPF; uRPF ignoring default routes
Güvenilirlik	REUP, RLDP, DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; BFD; GR for RIP, OSPF, BGP; 1+1 power redundancy; Hot swapping of power and fan modules
Cihaz Sanallaştırma	Virtual Switching Unit (VSU)
Ağ Yönetimi ve Bakım	SPAN, RSPAN, and ERSPAN; sFLOW; NTP and SNTP; FTP and TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); NETCONF; CWMP (TR-069) standard protocol; gRPC; Cloud and SON
PoE	IEEE 802.3af, 802.3at and 802.3bt; Uninterruptible power supply upon hot start; Port priority

Genel bakış

Ruijie RG-CS86-48MG4VS2QXS-UPD kullanım alanları ve özellikleri.

Delivering fast hardware processing and good operation experience, and satisfying requirements on high speed, security, and intelligence for enterprise campus networks.

RG-CS86-48MG4VS2QXS-UPD, 5GE Multi-rate Access Switch

4 x 25GE SFP28 ports and 2 x 40GE QSFP28 ports for uplink, enabling flexible networking High-power PoE++, offering up to 90 W output and adapting to services in Wi-Fi 6E and Wi-Fi 7 eras

Hardware Redundancy, Guaranteed Service Continuity and Network Connectivity

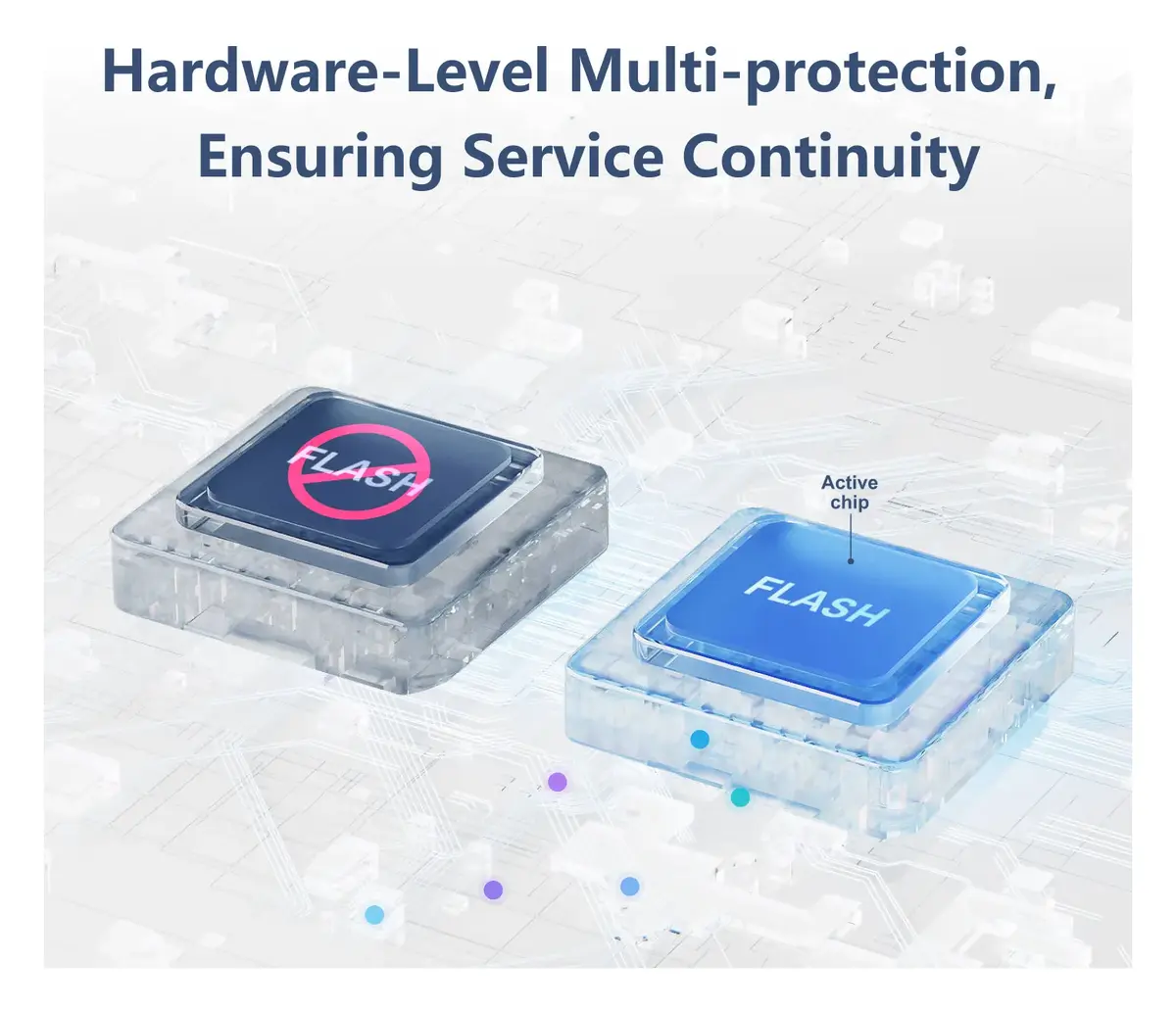

Hardware-Level Boot Redundancy

Optical Port Fault Isolation

Hot-Swappable Power Modules + Intelligent Fan Modules

Two Flash chips are used to store the system Boot program for hardware-level Boot redundancy, avoiding device failure caused by a failed Flash chip.

The innovative isolated chip design ensures that short-circuit current cannot reach the power supply chip directly. Failure of one optical module will not affect the normal operation of other optical ports, thus effectively ensuring service stability.

Power modules can be replaced without affecting device operation. Intelligent fan speed regulation is supported for efficient cooling, providing dual protection for the network.

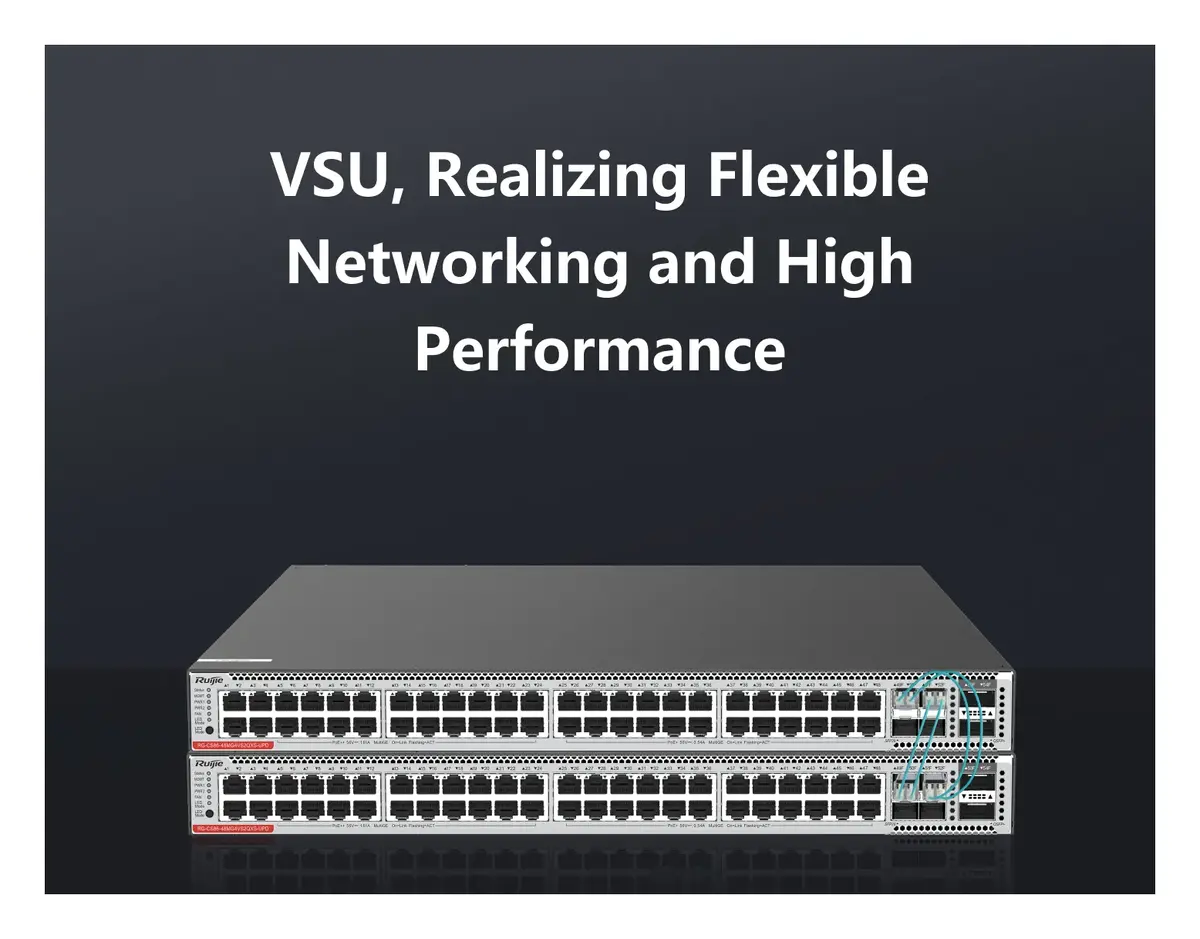

VSU Virtualization, Flexible Networking and High Performance

Millisecond Failover

High Scalability

Simplified Networking

Connected by an aggregate link, the VSU virtual system and peripherals switch links in milliseconds to ensure service continuity in case of a failure.

VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.

Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.

Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness

CPP

NFPP

CPP protects the CPU from data attacks to ensure CPU stability under high usage, achieving significant improvement in the device's security performance.

NFPP protects CPU from high load damage to guarantee device management and operation, thus improving network security and stability.

Intelligent Speed Regulation and Auto Sleeping, Reducing Energy Consumption and Noise

Intelligent fan speed regulation based on monitored component temperatures, saving energy, Auto service port sleeping, reducing device power consumption

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statisticsat anytime anywhere
Configure VLANs on Ruijie Cloud APP
Ease of maintenance, saving onsite labor and cost

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS86-48MG4VS2QXS-UPD Compliance DocumentPDF · RG-CS86-48MG4VS2QXS-UPD

Sık sorulanlar

RG-CS86-48MG4VS2QXS-UPD hakkında kısa yanıtlar.

RG-CS86-48MG4VS2QXS-UPD IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 90 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-CS86-48MG4VS2QXS-UPD kaç portlu?

RG-CS86-48MG4VS2QXS-UPD 48 porta sahiptir.

RG-CS86-48MG4VS2QXS-UPD fiyatı ne kadar?

RG-CS86-48MG4VS2QXS-UPD için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
