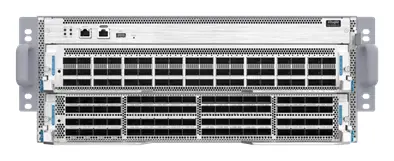

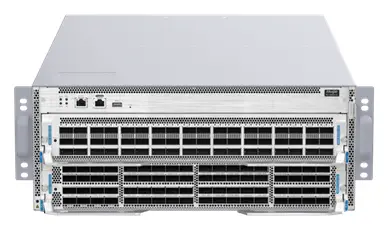

RUIJIE · RG-S6930-2C Ruijie RG-S6930-2C 2 Slot Modüler Veri Merkezi Switch

Ruijie RG-S6930-2C 2 Slot Modüler Veri Merkezi Switch

ModelRG-S6930-2C

Ruijie RG-S6930-2C bir yönetilebilir switch'tir. Öne çıkan özellikleri: 100ge and 200ge line cards, and up to 144 x 100ge or 72 x 200ge ports, hardware-level redundancy, ensuring nonstop services and data center network stability, macsec data encryption and transmission, effectively protecting service data security, telemetry-based network monitoring and automated o&m, making management simple and efficient.

PoE: PoE yok

100GE and 200GE line cards, and up to 144 x 100GE or 72 x 200GE ports
Hardware-level redundancy, ensuring nonstop services and data center network stability
MACsec data encryption and transmission, effectively protecting service data security
Telemetry-based network monitoring and automated O&M, making management simple and efficient
Straight front-to-rear airflow design, enhancing the cooling efficiency

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S6930-2C özellikleri ve kullanım alanları.

Centralized modular core switch with large buffer and high-density ports in the 4-RU space, which is recommended for the data center gateway zone, MAN, and DCI

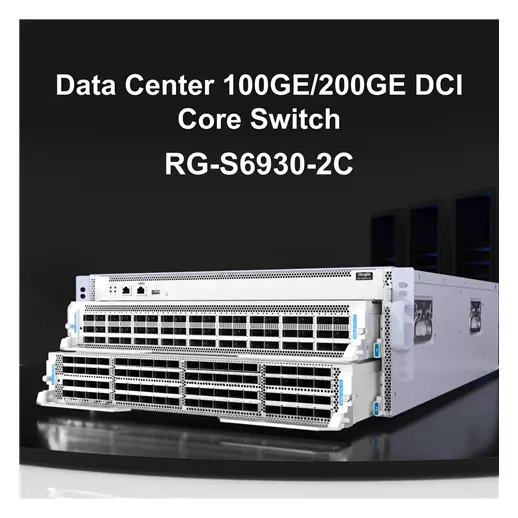

Data Center 100GE/200GE DCI Core Switch RG-S6930-2C

Data center high-density core switch that supports 100GE/200GE line cards and provides 144 x 100GE or 72 x 200GE ports, which can be flexibly configured Buffer of 16 GB and millions of routing connections due to its high performance, adapting to future expansion requirements on a data center network

Ports

Dimensions

Hardware-level Redundancy, Ensuring Nonstop Services and Data Center Network Stability

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

Power modules in 2+2 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links

modules Fan modules in 7+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers

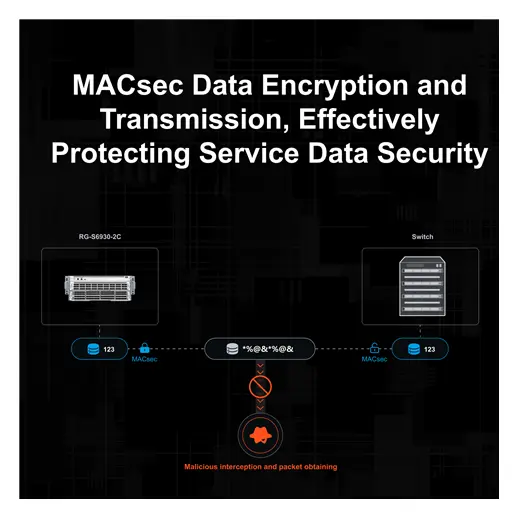

MACsec Data Encryption and Transmission, Effectively Protecting Service Data Security

MACsec provides hardware-level data encryption. With MACsec and 802.1X configured, the switch can strictly identify and verify transmitted data. With MACsec, the switch achieves interface-based secure line-rate transmission, effectively preventing data from being intercepted and obtained maliciously and ensuring service data security.

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient

The switch enabled with telemetry provides clear data status and hierarchy. The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Dimensions (W × D × H)	442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in.)
Kabin Yüksekliği	4 RU
Cihaz Ağırlığı	23.4 kg (51.59 lbs., empty chassis); 33.6 kg (74.08 lbs., a chassis with four power modules and eight fan modules)
Anahtarlama Kapasitesi	28.8 Tbps
Paket İletim Hızı	5400 Mpps
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Modül Yuvası	2 x expansion module slots; 4 x power module slots; 8 x fan module slots
Güç Tüketimi	Maximum power consumption: 2934 W; Typical power consumption: 1338 W; Static power consumption: 600 W
Güç Girişi	RG-PA1600II-F (AC input):; Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 12 A (100 V to 127 V AC); 9.5 A (200 V AC to 240 V AC); Power port type: C14; RG-PA1600II-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated input current: 9.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Software Specification
802.1Q VLAN	4094
Layer 2 Protocols	IEEE802.3ad (Link Aggregation Control Protocol), IEEE802.1p, IEEE802.1Q, IEEE802.1D (STP), IEEE802.1w (RSTP), IEEE802.1s (MSTP), IGMP Snooping, MLD Snooping, Jumbo Frame (9 KB), IEEE802.1ad (basic QinQ and *selective QinQ), and GVRP
Layer 3 Protocols; (IPv4)	BGP4, OSPFv2, IS-IS, RIPv1, RIPv2, MBGP, LPM Routing, Policy-based Routing, Routing Policy, ECMP, WCMP, VRRP, IGMP v1/v2/v3, PIM-SSM/SM/DM, MSDP, and Any-RP
Basic IPv6 Protocols	Neighbor Discovery, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, and IPv6 QoS
IPv6 Features	Static routing, ECMP, PBR, BGP4+, OSPFv3, IS-ISv6, RIPng, MLDv1/v2, PIM-SMv6, manual tunnel, automatic tunnel, IPv4 over IPv6 tunnel, and ISATAP tunnel
Visualization	gRPC; sFlow and IPFIX sampling
QoS	802.1p, DSCP, and ToS priority mapping; ACL-based traffic classification; Priority marking and remarking; Queue scheduling mechanisms, including SP, WFQ, and SP+WFQ
HA Design	GR for RIP/OSPF/BGP, BFD, REUP dual-link fast switching, RLDP unidirectional link detection, 2+2 power redundancy, fan redundancy, and hot swapping for all line cards and power supply modules
Security Features	MACSec, Network foundation protection policy (NFPP), CPU Protection Policy (CPP), DDoS attack defense, unauthorized data packet detection, source IP spoofing prevention, IP scanning prevention, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 authentication for OSPF, RIPv2, and BGPv4 packets, uRPF, broadcast packet suppression, Telnet login and password mechanisms for restricted IP addresses
Yönetim Modları	SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, and SPAN/RSPAN/ERSPAN
Other Protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, UDP Relay, ARP Proxy, and Syslog

Temel Özellikler
Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-S6930-2C hakkında kısa yanıtlar.

RG-S6930-2C fiyatı ne kadar?

RG-S6930-2C için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

Hızlı teklif

Formu doldurun, RG-S6930-2C için fiyat ve teslim süresini iletelim.
