RUIJIE · RG-S6580-24DC8QC

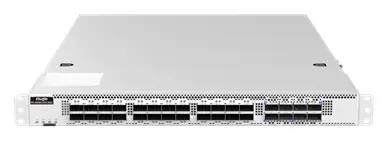

Ruijie RG-S6580-24DC8QC 24 Port 200G QSFP56 8×400G QSFP-DD Veri Merkezi Switch
Model
RG-S6580-24DC8QCRuijie RG-S6580-24DC8QC, 24 portlu bir yönetilebilir switch'tir.
- PoE
- PoE yok
- Port sayısı
- 24 port
- Various ports - 24 x 200GE QSPF56 ports and 8 x 400GE QSPF-DD ports, allowing flexible networking
- Hardware-level redundancy, ensuring service continuity
- Communication at the maximum distance of 120 km and easy DCI
- Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
- Telemetry-based network monitoring and automated O&M, making management simple and efficient
Genel bakış
Ruijie RG-S6580-24DC8QC özellikleri ve kullanım alanları.
200GE access switch (one 200GE port split into two 100GE ports), and 400GE ZR/ZR+ optical modules for interconnection at the maximum distance of 120 km

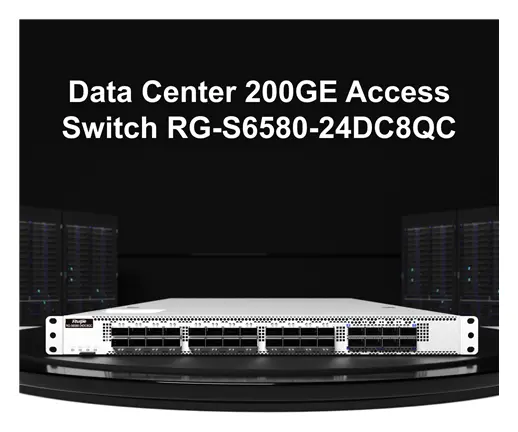

Data Center 200GE Access Switch RG-S6580-24DC8QC
Data center 200GE access switch with 1 RU, various ports, improved data forwarding capability, and flexible scenario deployment200GE/100GE server access and evolution to 100GE/400GE data center networks

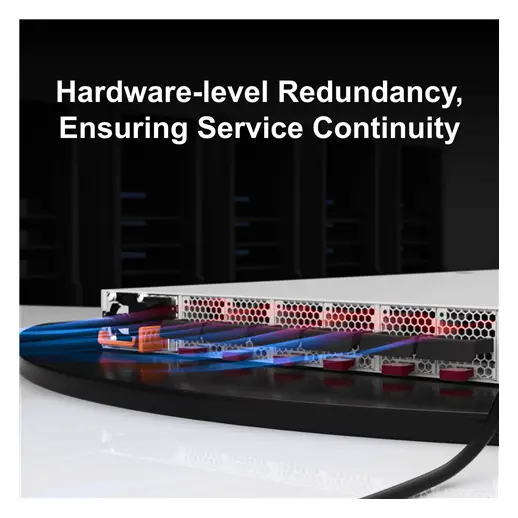

Hardware-level Redundancy, Ensuring Service Continuity
Hot-Swappable Redundant Power Modules
Hot-Swappable Redundant Fan Modules
Power modules in 1+1 redundancy mode, failover in seconds, and power module replacement without network interruption, providing double protection for links
Fan modules in 5+1 redundancy mode, intelligent fan speed adjustment, and highly-efficient heat dissipation, building low-carbon data centers
Communication at the Maximum Distance of 120 km and Easy DCI
400GE ZR/ZR+ optical modules are used for interconnection, reducing Optical Transport Units (OTUs) and helping a cloud or hyper-scale data center network to adapt to growing high-bandwidth services

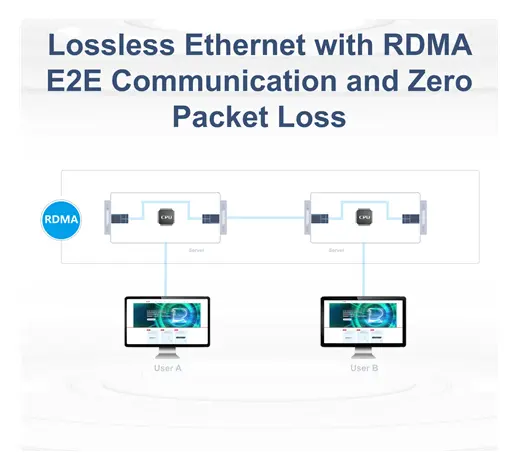

Lossless Ethernet with RDMA E2E Communication and Zero Packet Loss
With RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU burden and effectively solves the network latency problem. PFC+ECN, intelligent data exchange, and packet loss prevention, ensuring lossless data transmission

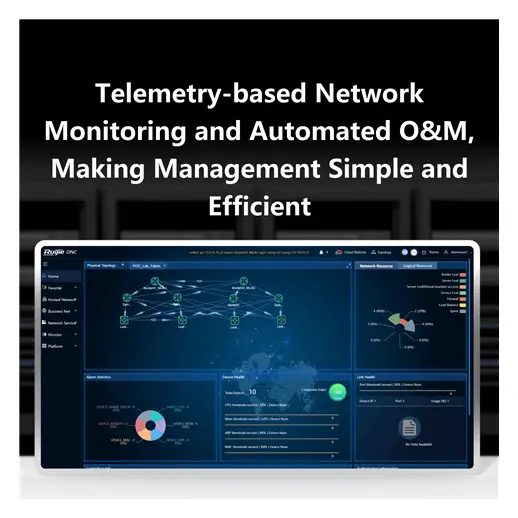

Telemetry-based Network Monitoring and Automated O&M, Making Management Simple and Efficient
The switch enabled with telemetry provides clear data status and hierarchy. The switch uses the push mode to proactively collect and push information and to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.
Nerelerde kullanılır?
Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.
Kurulum ve uyumluluk
Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Boyutlar (G x D x Y) | 442 mm x 670 mm x 43.6 mm (17.40 in. x 26.38 in. x 1.72 in.) |
|---|---|
| Kabin Yüksekliği | 1 RU |
| Cihaz Ağırlığı | 11 kg (24.25 lbs., a chassis with two power modules and six fan modules) |
| Anahtarlama Kapasitesi | 16.0 Tbps |
| Paket İletim Hızı | 2680 Mpps |
| Servis Portu | 24 x 100G/200G QSFP56 ports; 8 x 100G/400G QSFP-DD ports |
| Yönetim Portu | 1 x RJ45 console port; 1 x RJ45 MGMT port |
| USB Portu | 1 x USB 2.0 port (Type A connector) |
| Modül Yuvası | 2 x power module slots; 6 x fan module slots |
| Güç Tüketimi | Maximum power consumption: 850 W; Typical power consumption: 700 W; Static power consumption: 300 W |
| Güç Girişi | RG-PA1200I-F (AC input); Rated input voltage:; 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60Hz; Maximum input voltage:; 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current:; 13.8 A(100 V AC to 127 V AC); 8.5 A (200 V AC to 240 V AC); Power port type: C14; RG-PA1200I-F (HVDC input):; Rated input voltage: 240 V DC; Maximum input voltage: 180 V DC to 300 V DC; Rated current: 6.5 A |
| Sıcaklık | Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation. |
| Nem | Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing) |
| Rakım | Operating altitude: ≤ 5,000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.) |
| Soğutma | Air cooling, front-to-rear airflow (port-side intake) |
| Layer 2 Protocols | IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB) |
|---|---|
| Layer 3 Protocols (IPv4) | BGP4, OSPFv2, RIPv1, RIPv2, LPM routing, Policy-based Routing (PBR), route-policy, Equal-Cost Multi-Path Routing (ECMP), WCMP, VRRP |
| IPv6 Basic Protocols | Neighbor Discovery, ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, TCP/UDP for IPv6, SNMP v6, Ping/Traceroute v6, IPv6 RADIUS, Telnet/SSH v6, FTP/TFTP v6, NTP v6, IPv6 MIB support for SNMP, VRRP for IPv6, IPv6 QoS |
| IPv6 Features | Static routing, ECMP, PBR, OSPFv3, RIPng, BGP4+ |
| Data Center Features | PFC, ECN, and other data center features; RDMA; VXLAN bridge; VXLAN gateway; IPv6 VXLAN over IPv4; IPv4 VXLAN over IPv4; ECN over VXLAN; PFC over VXLAN |
| Visualization | gRPC; sFlow sampling; IPFIX |
| QoS | Mapping of IEEE 802.1p, DSCP, and ToS priorities; ACL-based traffic classification; Priority marking/remarking; Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, and SP+DRR; Congestion avoidance mechanisms such as WRED and tail discarding |
| HA Design | GR for RIP/OSPF/BGP, BFD, DLDP, REUP dual-link fast switching, RLDP unidirectional link detection, 1+1 power redundancy and fan redundancy, and hot swapping for all cards and power supply modules |
| Security Features | Network foundation protection policy (NFPP), CPP, RADIUS/TACACS, IPv4/v6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, plaintext-based and MD5 ciphertext-based authentication for OSPF, and BGPv4 packets, telnet login and password mechanisms for restricted IP addresses, broadcast packet suppression, hierarchical user management |
| Yönetim Modu | SNMP v1/v2c/v3, telnet, console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP, syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm |
| Other Protocols | DHCP client, DHCP relay, DHCP server, DNS client, ARP proxy, and Syslog |
| Çalışma Sıcaklığı | 0°C to 40°C (32°F to 104°F) |
|---|---|
| Çalışma Nemi | 10% RH to 90% RH (non-condensing) |
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-S6580-24DC8QC hakkında kısa yanıtlar.
RG-S6580-24DC8QC kaç portlu?
RG-S6580-24DC8QC 24 porta sahiptir.
RG-S6580-24DC8QC fiyatı ne kadar?
RG-S6580-24DC8QC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
