Ruijie RG-S6980-128DC 128 Port 200G QSFP56 Veri Merkezi Switch

ModelRG-S6980-128DC

Ruijie RG-S6980-128DC, 28 portlu bir yönetilebilir switch'tir.

Port hızı: 10G uplink
PoE: PoE yok
Port sayısı: 28 port

High-density 200GE switch with 128 x 200GE QSFP56 ports housed in a 4-RU enclosure
Hardware-level redundancy, ensuring service continuity and preventing network downtime
Lossless Ethernet, ensuring zero packet loss during RDMA E2E communication
Telemetry-based network monitoring and automated O&M, making management easy and efficient

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S6980-128DC özellikleri ve kullanım alanları.

High-density 200GE fixed switch, support for 200GE optical transceivers

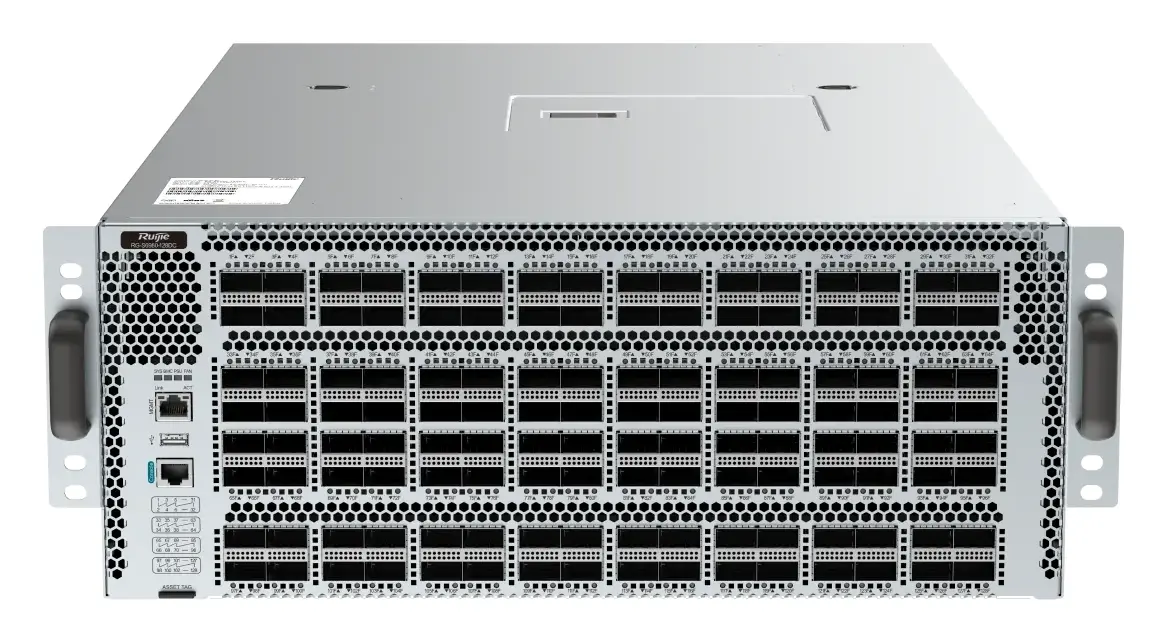

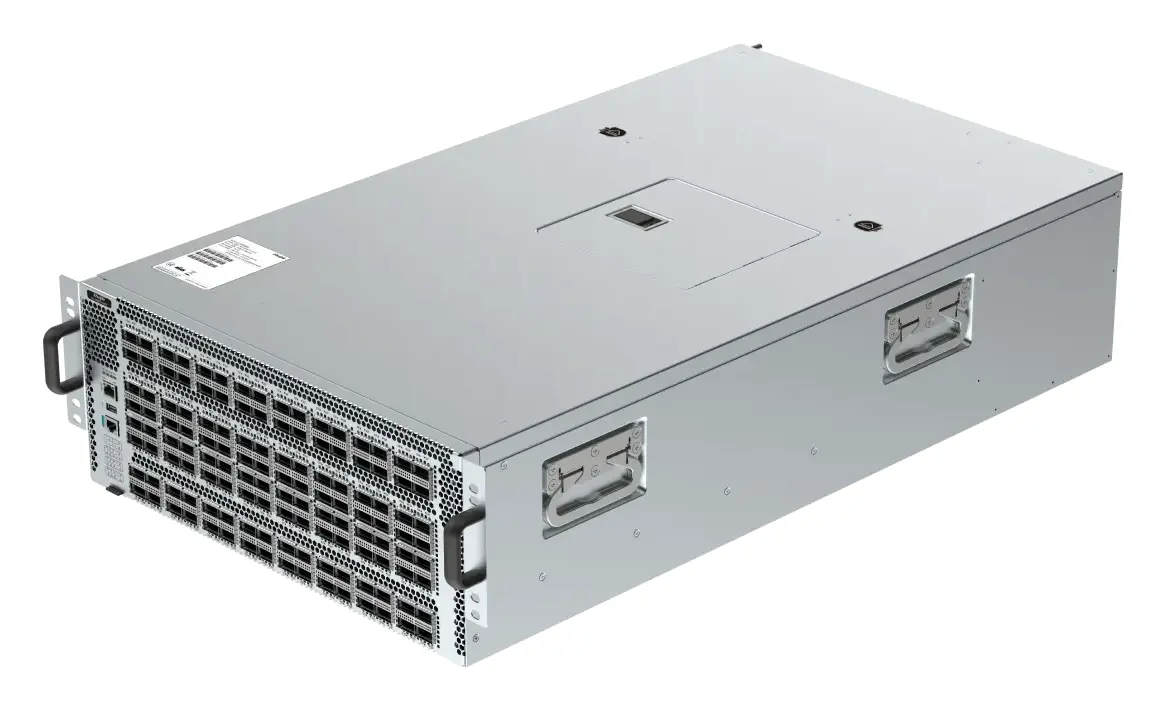

RG-S6980-128DC – 128-Port 200GE Data Center Core Switch

The high-speed and high-density core switch provides 128 x 200GE QSFP56 ports housed in a 4-RU enclosure, delivering scalable, high-performance, and high-bandwidth services for large-scale DCI networks.

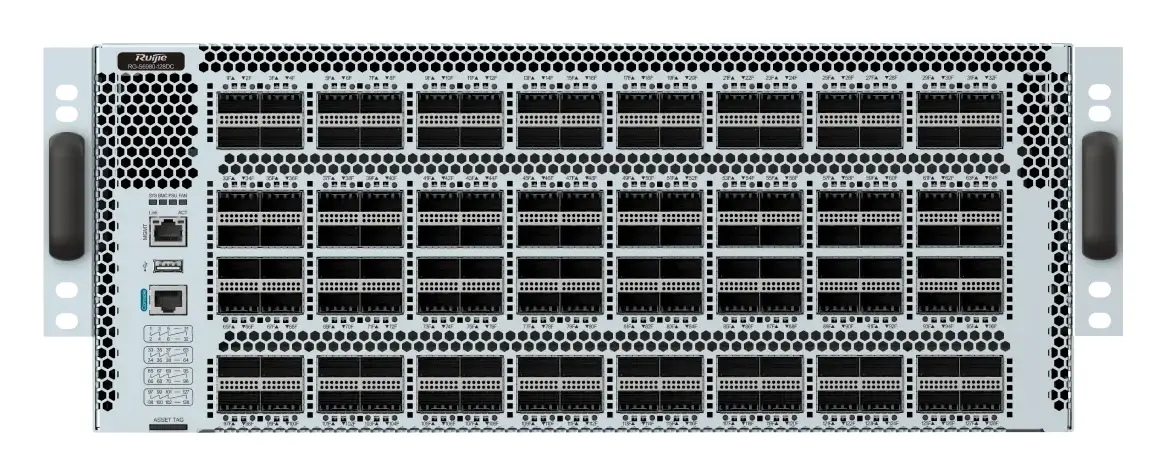

Ports

Dimensions

Hardware-Level Redundancy, Ensuring Service Continuity and Preventing Network Downtime

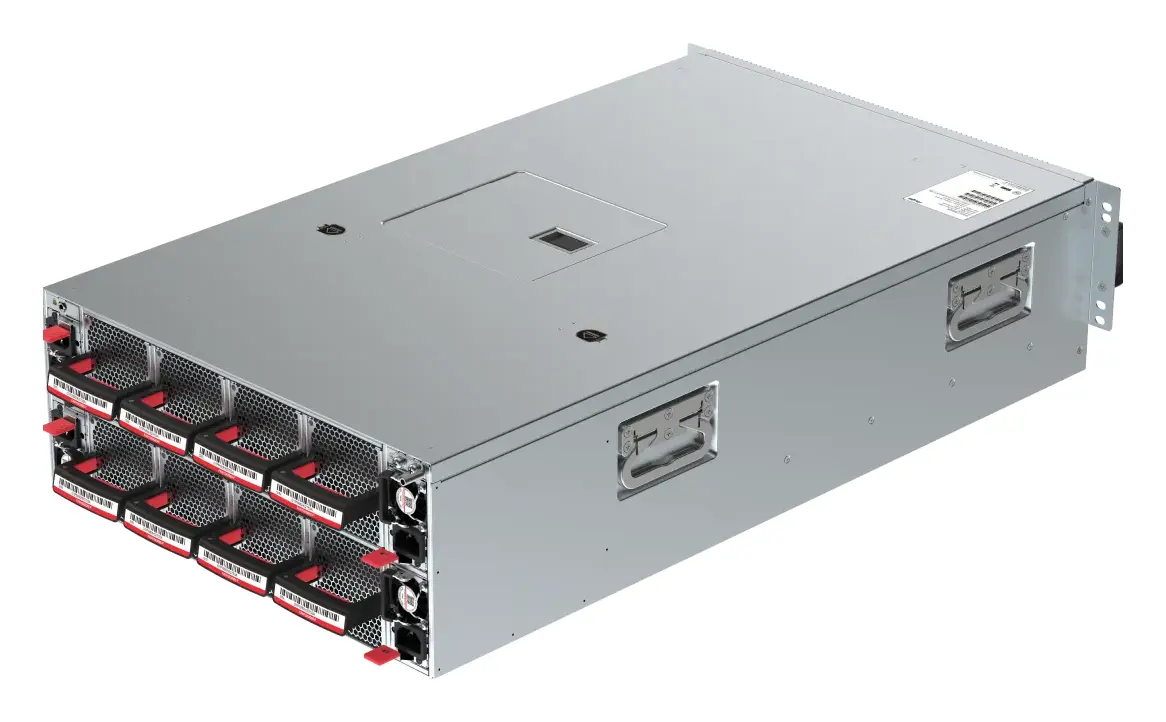

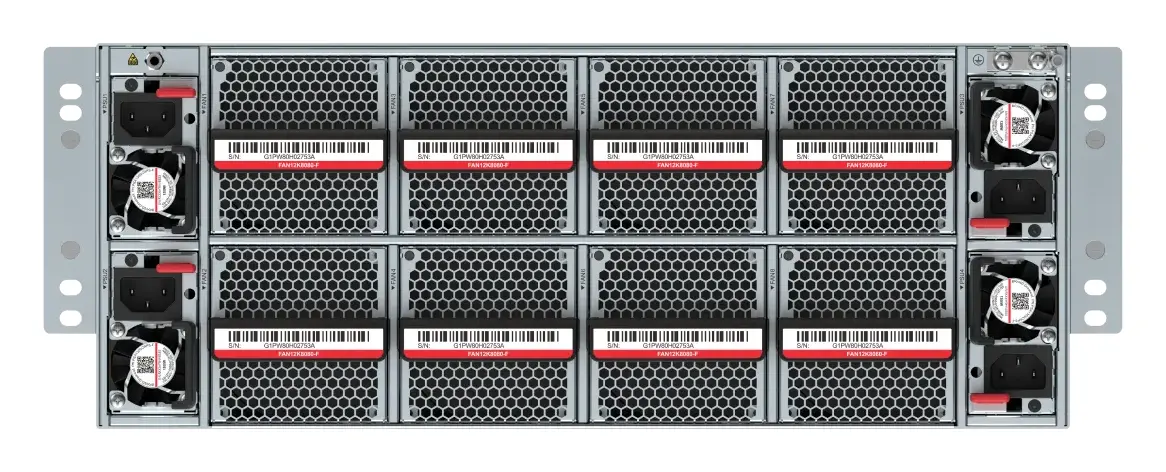

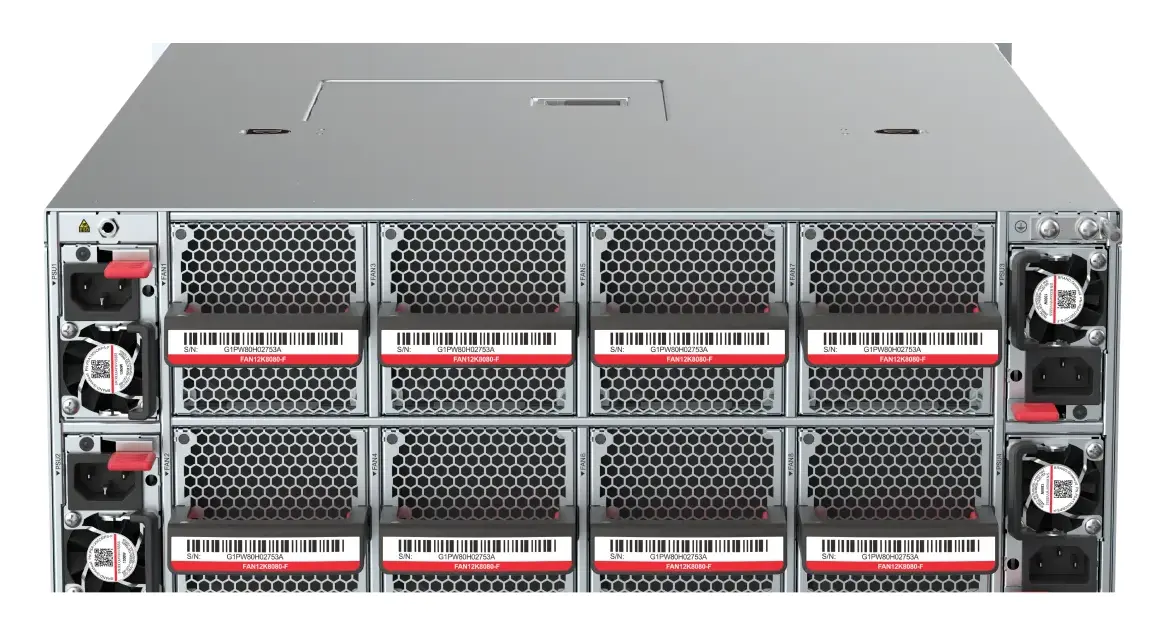

Hot-Swappable Redundant Power Modules

Hot-Swappable Redundant Fan Modules

The switch supports 2+2 power redundancy, enables failover in seconds, and ensures network connectivity during power replacement. This provides dual protection for links.

The switch supports 7+1 fan redundancy with intelligent speed adjustment and efficient heat dissipation for building low-carbon data centers.

Lossless Ethernet, Ensuring Zero Packet Loss During RDMA E2E Communication

With the RDMA technology, data does not need to be handled by the CPU during device communication. This reduces the CPU load and addresses network latency issues. PFC and ECN are leveraged to implement intelligent data exchange and eliminate packet loss, ensuring lossless transmission of data.

Telemetry-based Network Monitoring and Automated O&M, Making Management Easy and Efficient

The switch enabled with telemetry provides a comprehensive view of data status and hierarchy. The switch proactively collects and pushes information to provide sub-second-level network monitoring in real time, making network management more efficient and accurate.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Boyutlar (G x D x Y)	442 mm x 760 mm x 175 mm (17.40 in. x 29.92 in. x 6.89 in.)
Height	4 RU
Ağırlık	39.65 kg (87.41 lbs.) (A chassis installed with four power modules and eight fan modules)
Anahtarlama Kapasitesi	51.2 Tbps
Paket İletim Hızı	10300 Mpps
Servis Portu	128 x 100GE/200GE QSFP56 ports
Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB Portu	1 x USB 2.0 port (Type A connector)
Slot	4 x power module slots; 8 x fan module slots
Güç Tüketimi	Maximum power consumption: 2550 W; Typical power consumption: 1800 W; Static power consumption: 250 W
Güç Girişi	PSA1300CRPS-F-RJ (AC input); Rated input voltage: 100 V AC to 127 V AC, 200 V AC to 240 V AC, 50 Hz/60 Hz; Maximum input voltage: 90 V AC to 140 V AC, 180 V AC to 264 V AC, 47 Hz to 63 Hz; Rated input current: 12 A (100 V AC to 127 V AC); 8 A (200 V AC to 240 V AC); Power connector: C14; PSA1300CRPS-F-RJ (HVDC input):; Rated input voltage: 240 V DC (For Chinese mainland only); Maximum input voltage: 180 V DC to 310 V DC; Rated input current: 6.5 A
Sıcaklık	Operating temperature: 0°C to 40°C (32°F to 104°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At altitudes ranging from 1800 m (5,905.51 ft.) to 5000 m (16,404.20 ft.), the maximum temperature decreases by 1°C (1.8°F) for every 200 m (656.17 ft.) increase in elevation.
Nem	Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing)
Rakım	Operating altitude: ≤ 5000 m (16,404.20 ft.); Storage altitude: ≤ 5000 m (16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow (port-side intake)

Yazılım Özellikleri
Layer 2 protocols	IEEE 802.3ae (10GBase), IEEE 802.3ak, IEEE 802.3an, IEEE 802.3x, IEEE 802.3ad (Link Aggregation Control Protocol), IEEE 802.1p, IEEE 802.1Q, IEEE 802.1D (STP), IEEE 802.1w (RSTP), IEEE 802.1s (MSTP), Jumbo Frame (9 KB)
IPv4 features	BGP4, OSPFv2, RIPv1, RIPv2, LPM Routing, Policy-based Routing, Route-policy, ECMP, WCMP, VRRP
IPv6 features	Neighbor Discovery (ND), ICMPv6, Path MTU Discovery, DNSv6, DHCPv6, ICMPv6, ICMPv6 redirection, ACLv6, IPv6 TCP/UDP, SNMPv6, IPv6 Ping/Traceroute, IPv6 RADIUS, IPv6 Telnet/SSH, IPv6 FTP/TFTP, NTPv6, IPv6 MIB for SNMP, IPv6 VRRP, IPv6 QoS, static routing, ECMP, PBR, OSPFv3, RIPng, and BGP4+
Data center features	PFC and ECN; RDMA; VXLAN, BGP-EVPN; PFC deadlock prevention; RALB, AILB
Visualization	Telemetry for collecting basic switch information, real-time status of RoCE-related buffer, interface QoS queue and interface utilization status, key events such as ECN and PFC; gRPC; sFlow
QoS	IEEE 802.1p, DSCP, and ToS mapping; ACL-based traffic classification; Priority marking and re-marking; Multiple queue scheduling mechanisms, including SP, WRR, WFQ, DRR, SP+WRR, SP+WFQ, SP+DRR; Congestion avoidance mechanisms such as WRED and tail discarding
High availability	GR for RIP/OSPF/BGP, BFD, Device Link Detection Protocol (DLDP), Rapid Ethernet Uplink Protection Protocol (REUP), Rapid Link Detection Protocol (RLDP), 2+2 power redundancy, fan redundancy, and hot swapping of line cards and power modules
Security features	Network Foundation Protection Policy (NFPP), CPU Protection Policy (CPP), RADIUS/TACACS, IPv4/IPv6 packet filtering by basic ACL, extended ACL or VLAN-based ACL, cleartext and MD5-based authentication for OSPF, RIPv2, and BGPv4 packets, Telnet login from specified IP addresses, broadcast packet suppression, and hierarchical user management
Yönetim Modu	SNMP v1/v2c/v3, Telnet, Console, MGMT, RMON, SSHv1/v2, FTP/TFTP, NTP clock, Syslog, SPAN/RSPAN/ERSPAN, ZTP, NETCONF, Python, fan and power alarm, and temperature alarm
Other protocols	DHCP Client, DHCP Relay, DHCP Server, DNS Client, ARP Proxy, and Syslog

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF

Sık sorulanlar

RG-S6980-128DC hakkında kısa yanıtlar.

RG-S6980-128DC kaç portlu?

RG-S6980-128DC 28 porta sahiptir.

RG-S6980-128DC fiyatı ne kadar?

RG-S6980-128DC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
