RUIJIE · RG-WS6512-L
Ruijie RG-WS6512-L Kablosuz Kontrolcü
Model
RG-WS6512-LRuijie RG-WS6512-L kablosuz kontrolcü: Layered management and control for large networks, Switching between centralized and local forwarding, Load balancing between APs, dynamic bandwidth allocation for STAs, 5G band-select, smooth network connection, Ruijie cloud management, intelligent optimizati.
- Kablosuz standart
- Wi-Fi 5
- Layered management and control for large networks
- Switching between centralized and local forwarding
- Load balancing between APs, dynamic bandwidth allocation for STAs, 5G band-select, smooth network connection
- Ruijie cloud management, intelligent optimization
Genel bakış
Ruijie RG-WS6512-L özellikleri ve kullanım alanları.
Medium to large networks, government, general education, medical care, enterprises, etc

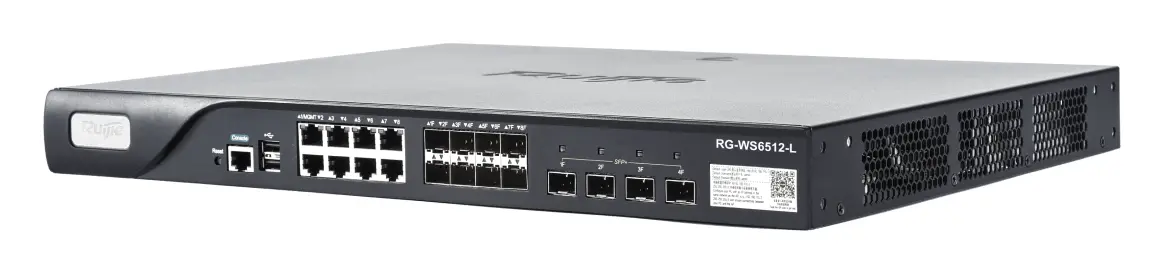

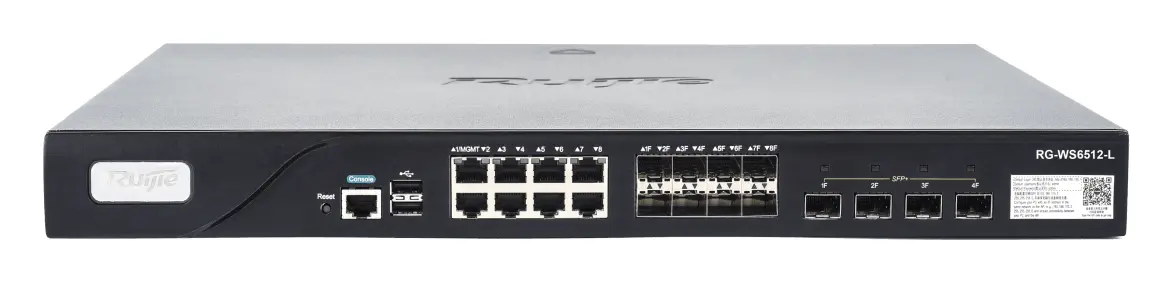

The RG-WS6512-L high-performance wireless access controller (AC), developed by Ruijie Networks, is targeted for next-generation high-speed wireless networks. It can be deployed on a Layer 2 or Layer 3 network without any architecture or hardware device changes, delivering seamless and secure control over wireless networks.
The RG-WS6512-L can manage up to 128 wireless access points (APs) by default. With licenses for capacity expansion, it can manage a maximum of 1,152 generic APs or 2,304 wall-mounted APs.
Through powerful centralized and visualized management and control over wireless networks, the RG-WS6512-L can significantly simplify construction and deployment of wireless networks.
The RG-WS6512-L, adopting enhanced security and clustering technologies, offers identity-based networking services. Multiple ACs in a cluster can share a user database, allowing clients to seamlessly roam in different areas of a network. The cluster design guarantees the security and session integrity during roaming and smooth interaction of data and voice over Wi-Fi applications.
High-speed Forwarding with Full IPv6 Support
● Centralized/Distributed, integrated, and intelligent local forwarding, eliminating the traffic bottleneck of the wireless access controller
● Full IPv6 support
● Adaptive Portal authentication page for clients, fair client access, and intelligent load balancing through spectrum navigation
● Intelligent RF management, flexibly controlling AP configuration and optimizing RF coverage and performance
● Advanced wireless access controller cluster technology for fast roaming and voice support
Secure and Reliable Network Systems
● Advanced AC virtualization technology for high reliability and capacity and performance scaling
● Virtual AP technology, managing APs in groups for secure and convenient authentication and encryption
● Dynamic network isolation for identity-based access control
● Authentication and encryption technologies including WPA3, 802.1x, PSK, WEP, and TKIP for enhanced data security
● Deep Packet Inspection (DPI) based on packet characteristics, identifying over 2500 applications
● Uniform policy enforcement for WLAN, LAN, and WAN traffic, including content auditing, Flow Pre-Manager (FlowPM), and Ruijie Network Foundation Protection (RNFP)
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Cihaz Boyutları (G x D x Y) | 440 mm x 340 mm x 43.6 mm (17.32 in. x 13.39 in. x 1.72 in.) |
|---|---|
| Shipping dimensions(W x D x H) | 630 mm x 335 mm x 500 mm (24.8 in. x 13.19 in. x 19.69 in.) |
| Kabin Yüksekliği | 1 RU |
| Cihaz Ağırlığı | Main unit: 5.9 kg (13.01 lbs); Power module: 0.4 kg (0.88 lbs); A power module is delivered with the main unit. |
| Kutulu Ağırlık | 14.50 kg (31.97 lbs) |

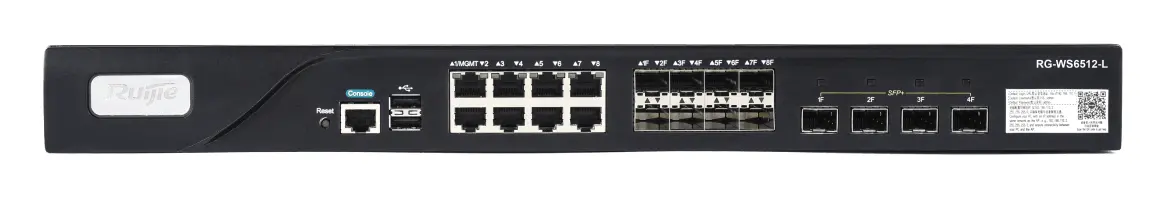

| Sabit Servis Portları | 8 x GE combo ports , when the combo port is used as an electrical port,; Port 1 can be used as an out-of-band management port (MGMT).; It supports 10/100/1000Base-T auto-negotiation.; It supports Auto MDI/MDIX crossover.; 4 x 10GE SFP + ports |
| Sabit Yönetim Portu | 1 x RJ45 console port; 2 x USB ports |
| Status LED | 1 x system status LED; 20 x service port LEDs |
| Buton | 1 x Reset button; Press the button for shorter than 3 seconds. Then the device restarts.; Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Maks. Güç Tüketimi | 70 W |

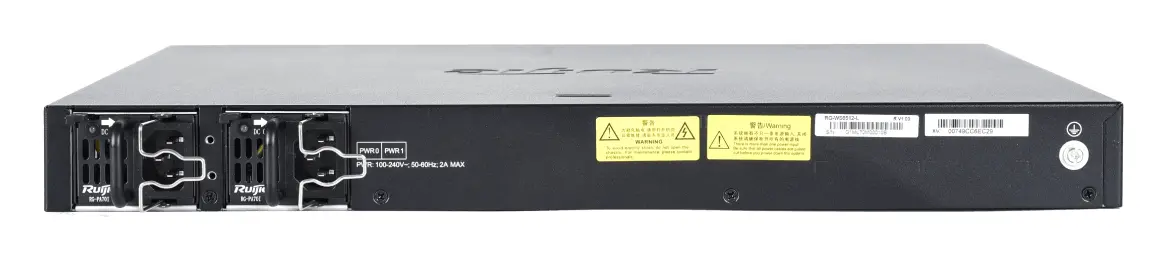

| Input power supply | 2 x RG-PA70I 70 W AC power modules; A power module is delivered with the main unit. You can buy one more optionally. |
| Giriş Gerilimi | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Giriş Akımı | 10 A (steady state) |
| Output voltage | 12 V/5.83 A |
| Sıcaklık | Main unit operating temperature: 0°C to 45°C (32°F to 113°F); Power module operating temperature: –10°C to +50°C (+14°F to +122°F); Main unit storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 3,000 m (9,843 ft.) and 5,000 m (16,404 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Rakım | 0 m to 5,000 m (0 ft. to 16,404 ft.) |
| Nem | Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing) |

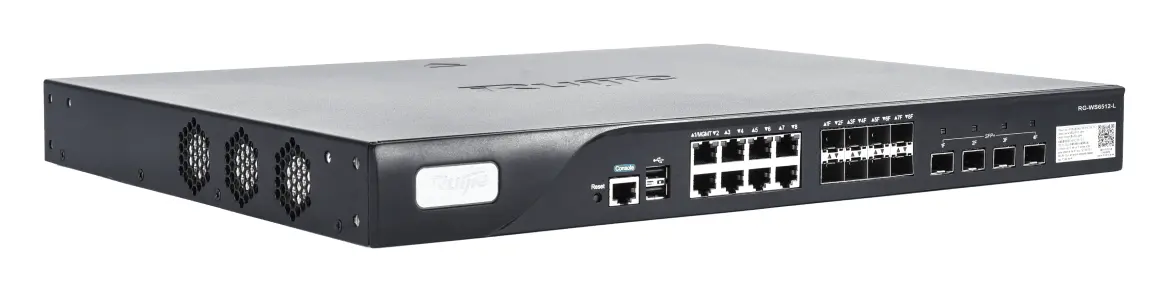

| Fan | Three built-in fans (on the left side); Right-to-left airflow; Fan speed adjustment; Fan fault alarm |
| Gürültü Seviyesi | < 78 dB |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Default number of manageable APs | 128; Note: The default number of APs that can be managed by the RG-WS6512-L is subject to the AP model. See the Ordering Information for details. |
|---|---|
| Maximum number of configurable APs | 4,096 |
| Maximum number of manageable APs | 2,304; Note: The maximum number of APs that can be managed by the RG-WS6512-L is subject to the AP model. See the Ordering Information for details. |
| Maximum number of manageable STAs | 32,768; Note: The maximum number of STAs that can be managed by the RG-WS6512-L is subject to the network environment. Contact technical support team for details. |
| WLAN service | Maximum number of WLAN IDs: 4,094; Maximum number of associated STAs per WLAN: 32,768 |
| Intra-AC roaming handoff time | < 50 ms |
| Maximum number of virtualized ACs | 4 |
| IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
| CAPWAP | Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT |
| Dolaşım (Roaming) | Intra-AC Layer 2 or Layer 3 roaming; Inter-AC Layer 2 or Layer 3 roaming; Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode; Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode |
| Forwarding mode | Centralized forwarding; Local forwarding; Service-based flexible forwarding |
| Wireless QoS | AP/WLAN/STA-based rate limiting; (WLAN/STA-based rate limit range: 8-261,120 in the unit of 8 Kbps. For example, if you set the value to 8, the rate limit is 8 x 8 Kbps = 64 Kbps.); Static and intelligent rate limiting based on STA quantity; Fair scheduling |
| User isolation | AC-based user isolation; AP-based user isolation; WLAN-based user isolation |
| Güvenilirlik | AC virtualization; AC failover; Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby); Multi-AC cluster (N-to-N); Remote intelligent perception technology (RIPT); Non-stop service during upgrade |
| STA management | Access control based on the number of STAs associated with the AP; Access control based on the number of STAs associated with the SSID; Balanced access control based on the number of STAs associated with the AP; Balanced access control based on the AP traffic; Band steering; Configuration of the RSSI threshold in dB (Range: 0-100); Configuration of the STA idle timeout period in seconds (range: 60-86,400) |
| WLAN optimization | Adjustment of the transmit power for beacon packets or probe responses |
| RF management | Country or region code setting; Manual setting of the transmit power; Automatic setting of the transmit power; Manual setting of the operating channel; Automatic setting of the operating channel; Automatic adjustment of the data rate; Coverage hole compensation; AP load balancing based on traffic and STA quantity; Band selection; Radio Frequency Interference (RFI) detection and mitigation |
| 802.11 forwarding capacity | 40 Gbps (subject to the wireless network environment) |
|---|---|
| Number of MAC address entries | 131,072 |
| Number of VLANs | 4,096 |
| Number of ARP entries | 81,920 |
| DHCP address pools | Number of IPv4 address pools: 2,000; Number of IPv4 addresses: 81,920; Number of IPv6 address pools: 256; Number of IPv6 addresses: 2,048 |
| Number of routing entries | IPv4 routing entries: 8,192; IPv6 routing entries: 10,000 |
| Number of multicast entries | Static routing entries: 2,048; Multicast group routing entries: 4,096 |
| Maximum number of STAs supported by the built-in Portal server | 7,500 |
|---|---|
| Number of ACL entries | 131,072 |
| Applicable software version | RGOS 11.9(6)W1B3 or later |
|---|
| IPv4 security authentication | Web authentication; 802.1X authentication; MAB authentication; SMS authentication |
|---|---|
| IPv6 security authentication | Web authentication |
| IEEE 802.11 security and encryption | Multi-SSID mode; SSID hiding; IEEE 802.11i-compliant PSK authentication; WPA and WPA2; WPA3: WPA3-Personal (SAE), WPA3-Enterprise (CCMP, 128-bit), and WPA3-Enterprise (GCMP, 192-bit); WEP (WEP/WEP128); TKIP; CCMP; Anti-ARP spoofing |
| CPP | Destekleniyor |
| NFPP | Destekleniyor |
| WIDS | Destekleniyor |
| AP virtualization | Destekleniyor |
| IPv4 protocols | Ping and traceroute; DHCP server, DHCP client, DHCP relay, and DHCP snooping; DNS client; NTP; Telnet; TFTP server and TFTP client; FTP server and FTP client |
|---|---|
| IPv6 protocols | DNSv6 client; DHCPv6 relay and DHCPv6 server; TFTPv6 client; FTPv6 server and FTPv6 client; IPv6 CAPWAP; ICMPv6; IPv6 ping; Manual tunnels, automatic tunnels, and ISATAP tunnels; Manually configured IP addresses and automatically created local addresses; IPv6 traceroute; Neighbor Discovery (ND) |
| IPv4 routing | Static routing, RIP, and OSPF |
| IPv6 routing | Static routing, RIPng, and OSPFv3 |
| Ağ Yönetimi | SNMP v1/v2c/v3; RMON; Syslog; Remote probe |
|---|---|

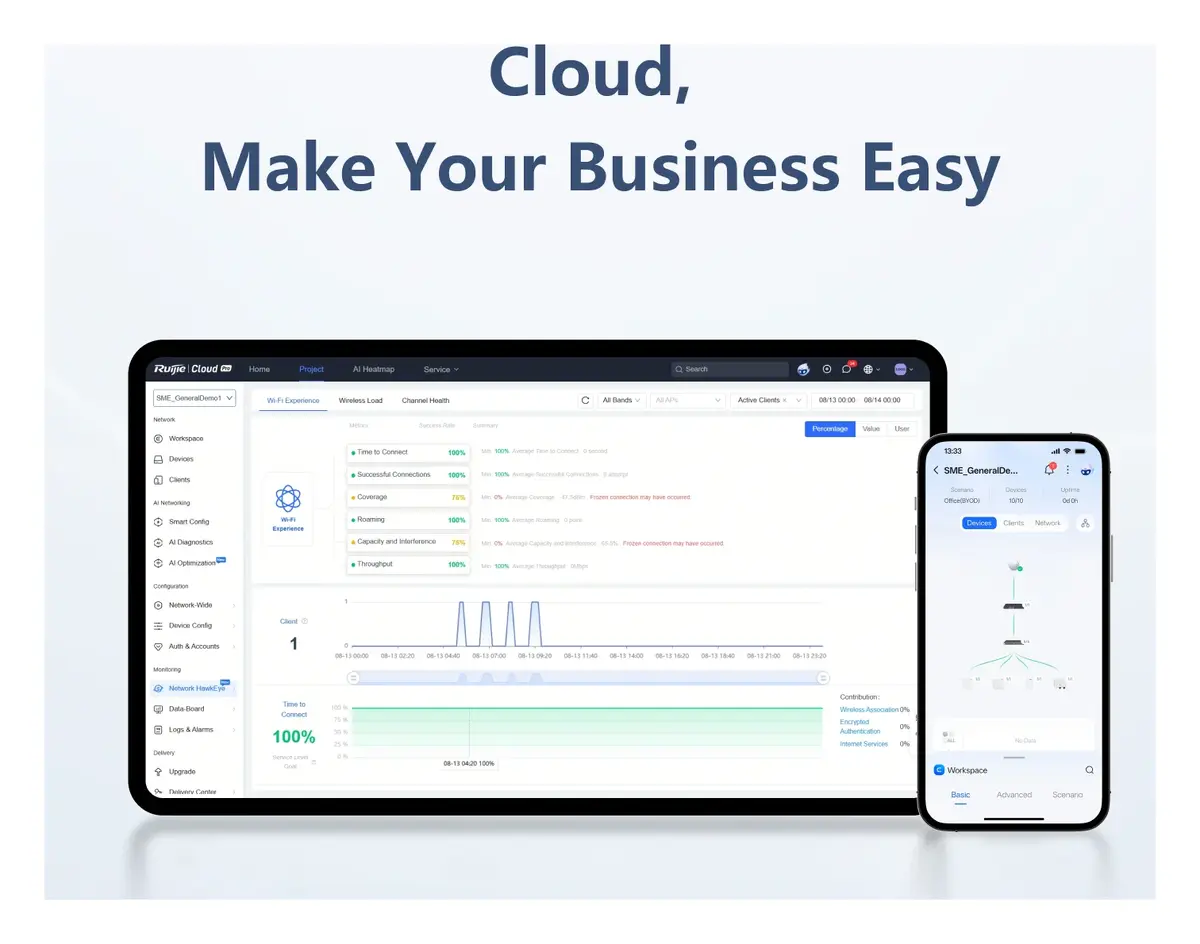

| Network management platform | Eweb; Ruijie Cloud; Wi-Fi heat map |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
| Güvenlik Standardı | IEC 62368-1, EN 62368-1 |
|---|---|
| EMC Standardı | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386 |
