Ruijie RG-WS6012-L Kablosuz Kontrolcü
Model
RG-WS6012-LRuijie RG-WS6012-L kablosuz kontrolcü: Multiple high-speed interfaces, delivering 10 Gbps forwarding capability, Management of 32 APs by default, which can be expanded to 896 APs to flexibly meet service expansion needs, Intelligent load balancing for improved user experience, Ruijie Cloud used for.
- Kablosuz standart
- Wi-Fi 5
- Multiple high-speed interfaces, delivering 10 Gbps forwarding capability
- Management of 32 APs by default, which can be expanded to 896 APs to flexibly meet service expansion needs
- Intelligent load balancing for improved user experience
- Ruijie Cloud used for unified management and simplified O&M
Genel bakış
Ruijie RG-WS6012-L özellikleri ve kullanım alanları.
Fit for scenarios such as hotels, offices, campuses, and hospitals.

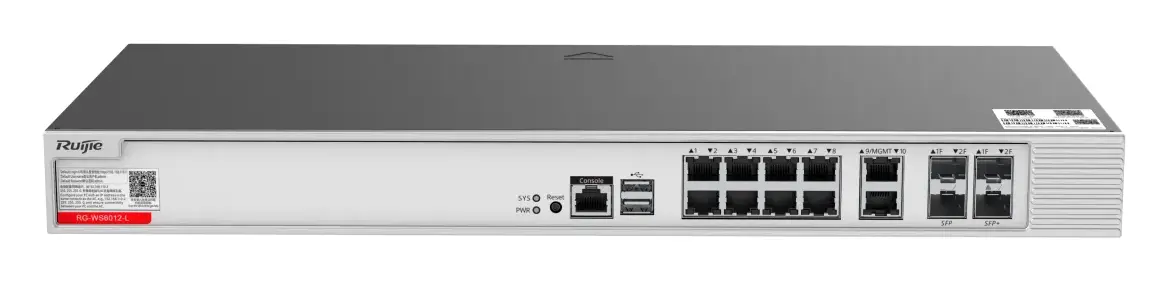

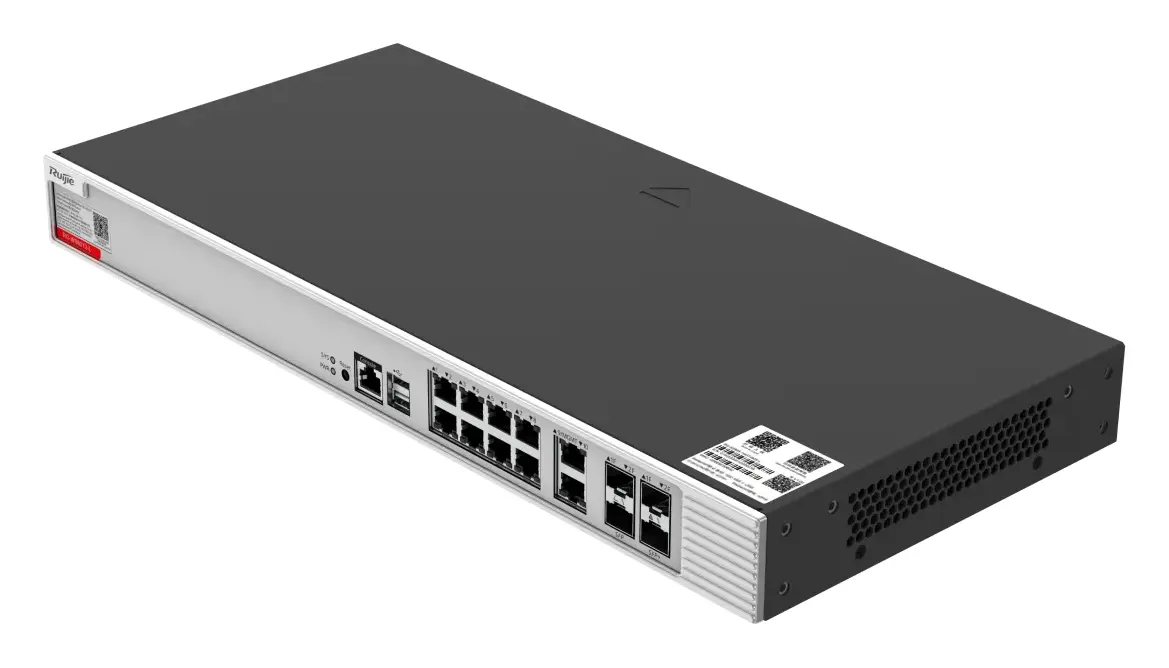

RG-WS6012-L High-Performance 10 Gbps Wireless Access Controller
The RG-WS6012-L access controller (AC) is designed for small- and medium-scale networks, delivering 10 Gbps forwarding capacity. It provides high scalability, enabling flexible configuration and management of access points (APs).
High Performance and High Capacity
Multiple high-speed interfaces, delivering 10 Gbps forwarding capability Management of 32 APs by default, which can be expanded to 896 APs to flexibly meet service expansion needs
Intelligent Load Balancing
User- and traffic-based load balancing used to allocate users to different APs, preventing AP overload Frequency-based load balancing used to steers dual-band clients to the 5 GHz frequency band, enhancing bandwidth utilization
Cloud Unified Management, Efficient O&M

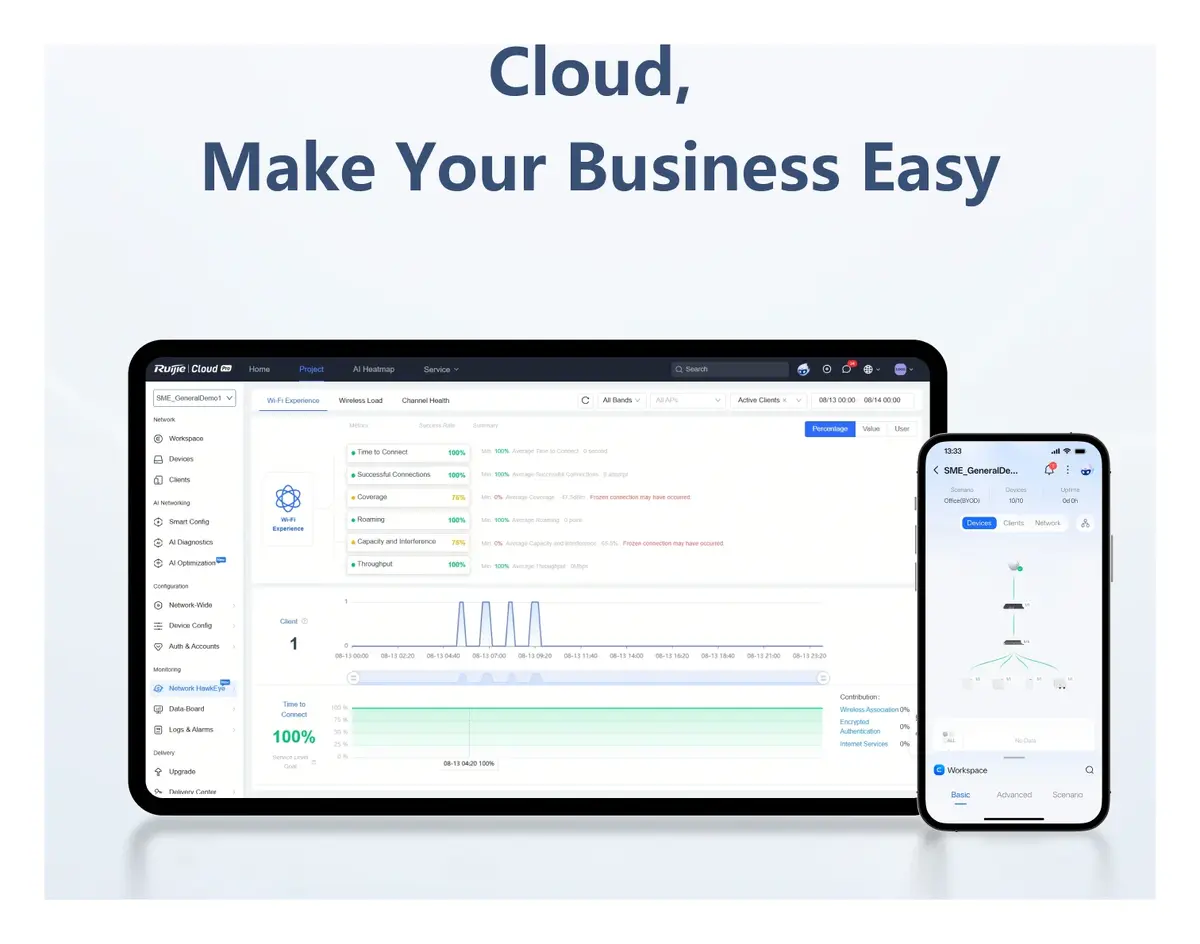

Unified management through Ruijie Cloud, eliminating the need for onsite provisioning Real-time alarms and intelligent troubleshooting, improving O&M efficiency
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Bellek | 4 GB |
|---|---|
| Flash Bellek | 16 MB |
| Cihaz Boyutları (G x D x Y) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in., without rack-mount brackets); 486.2 mm x 205 mm x 43.6 mm (19.14 in. x 8.07 in. x 1.72 in., including rack-mount brackets) |
|---|---|
| Kutu Boyutları (G x D x Y) | 550 mm x 460 mm x 368 mm (21.65 in. x 18.11 in. x 14.49 in.) |
| Rack size | 1 RU |
| Cihaz Ağırlığı | 2.7 kg (5.95 lbs) |
| Kutulu Ağırlık | 3.5 kg (7.72 lbs) |
| Montaj | Rack-mount |

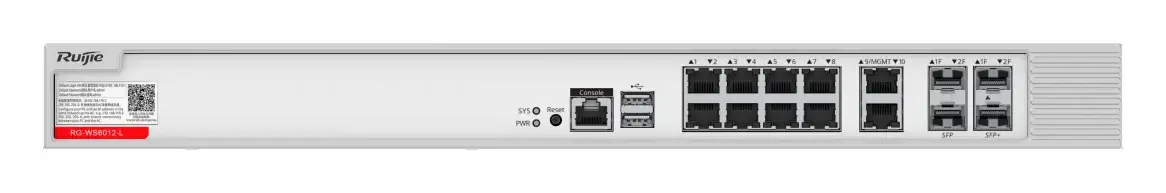

| Sabit Servis Portları | 8 x 10/100/1000BASE-T ports; 2 x 1GE SFP/RJ45 combo ports; RJ45 ports support 10/100/1000BASE-T.; Port 9/MGMT can also be used as a management port.; 2 x 10GE SFP+ ports |
|---|---|
| Sabit Yönetim Portu | 1 x RJ45 console port; 2 x USB 3.0 ports, compatibility with USB 2.0 |
| Status LED | 1 x system status LED; 1 x power status LED; 8 x 10/100/1000BASE-T port LEDs; 2 x 1GE SFP/RJ45 combo port LEDs; 2 x 10GE SFP+ port LEDs |
| Buton | 1 x Reset button; Press the button for shorter than 3 seconds. Then the device restarts.; Press the button for longer than 3 seconds. Then the device restores to factory settings. |
| Maks. Güç Tüketimi | 30 W |
|---|---|

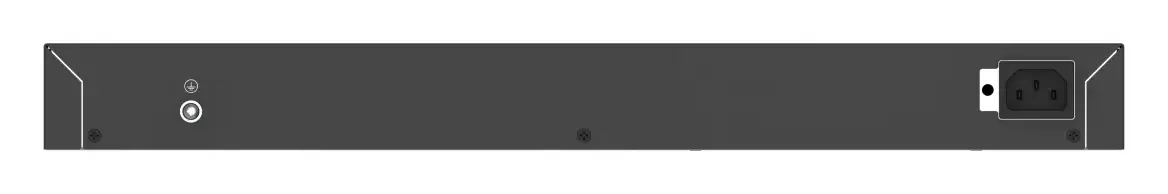

| Input power supply | 1 x 40 W built-in power module |
| Giriş Gerilimi | 100 V AC to 240 V AC, 50 Hz to 60 Hz |
| Giriş Akımı | 0.25 A (maximum RMS current) |
| Output voltage | 12 V/3.33 A |
| Sıcaklık | Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F). |
|---|---|
| Rakım | Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.); Storage altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.) |
| Nem | Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing) |
| Gürültü Seviyesi | < 78 dB |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| Default number of manageable APs | 32; Note: The default number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details. |
|---|---|
| Maximum number of configurable APs | 2,048 |
| Maximum number of manageable APs | 896; Note: The maximum number of APs that can be managed by the RG-WS6012-L is subject to the AP model. See the Ordering Information for details. |
| Maximum number of manageable STAs | 4,480; Note: The maximum number of STAs that can be managed by the RG-WS6012-L is subject to the network environment. Contact technical support team for details. |
| WLAN service | Maximum number of WLAN IDs: 2,048; Maximum number of associated STAs per WLAN: 4,480 |
| Intra-AC roaming handoff time | < 50 ms |
| Maximum number of virtualized ACs | 4 |
| Number of concurrent CAPWAP data channels | 896 |
| IEEE 802.11 protocols | 802.11, 802.11b, 802.11a, 802.11g, 802.11d, 802.11h, 802.11w, 802.11k, 802.11v, 802.11r, 802.11i, 802.11e, 802.11n, 802.11ac, and 802.11ax |
| CAPWAP | Layer 2 and Layer 3 topology supported between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT |
| Dolaşım (Roaming) | Intra-AC Layer 2 or Layer 3 roaming; Inter-AC Layer 2 or Layer 3 roaming; Intra-AC Layer 2 or Layer 3 roaming in local forwarding mode; Inter-AC Layer 2 or Layer 3 roaming in local forwarding mode |
| Forwarding mode | Centralized forwarding; Local forwarding; Service-based flexible forwarding |
| Wireless QoS | AP/WLAN/STA-based bandwidth limiting; (STA-based rate limit range: 8–261,120 in the unit of 8 kbps. For example, if you set the value to 8, the rate limit is 8 x 8 kbps = 64 kbps.); Static and intelligent rate limiting based on STA quantity; Fair scheduling |
| User isolation | AC-based user isolation; AP-based user isolation; WLAN-based user isolation |
| Güvenilirlik | AC virtualization; AC failover; Multi-AC hot standby (1+1 A/A and A/S hot standby, and N+1 hot standby); Multi-AC cluster (N-to-N); Remote intelligent perception technology (RIPT); Non-stop service during upgrade |
| STA management | Access control based on the number of STAs associated with the AP; Access control based on the number of STAs associated with the SSID; Balanced access control based on the number of STAs associated with the AP; Balanced access control based on the AP traffic; Band steering; Configuration of the RSSI threshold in dBm (range: 0–100); Configuration of the STA idle timeout period in seconds (range: 60–86,400) |
| WLAN optimization | Adjustment of the transmit power for beacon or probe response frames |
| RF management | Country or region code setting; Manual setting of the transmit power; Automatic setting of the transmit power; Manual setting of the operating channel; Automatic setting of the operating channel; Automatic adjustment of the data rate; Coverage Hole Detection; AP load balancing based on traffic and STA quantity; Band selection; Radio frequency interference (RFI) detection and mitigation |
| Forwarding capacity | 10 Gbps (subject to the wireless network environment) |
|---|---|
| Number of MAC address entries | 32,768 |
| Number of VLANs | 4,096 |
| Number of ARP entries | 32,768 |
| DHCP address pools | Number of IPv4 address pools: 2,000; Number of IPv4 addresses: 24,576; Number of IPv6 address pools: 256; Number of IPv6 addresses: 2,048 |
| Number of routing entries | IPv4 routing entries: 8,192; IPv6 routing entries: 10,000 |
| Maximum number of STAs supported by the built-in Portal server | 1,500 |
|---|---|
| Number of ACL entries | 65,536 |
| Applicable software version | AC_RGOS 11.9(6)W6B1 or later |
|---|
| IPv4 security authentication | Web-based authentication; 802.1X authentication; MAB authentication; SMS authentication |
|---|---|
| IPv6 security authentication | 802.1X authentication; Web-based authentication |
| IEEE 802.11 security and encryption | Multi-SSID mode; SSID hiding; IEEE 802.11i-compliant PSK authentication; WPA and WPA2; WEP (WEP/WEP128); TKIP; CCMP; ARP anti-spoofing |
| CPP | Destekleniyor |
| NFPP | Destekleniyor |
| WIDS | Destekleniyor |
| AP virtualization | Destekleniyor |
| IPv4 protocols | Ping and traceroute; DHCP server, DHCP client, DHCP relay, and DHCP snooping; DNS client; NTP; Telnet; TFTP server and TFTP client; FTP server and FTP client |
|---|---|
| IPv6 protocols | DNSv6 client; DHCPv6 relay and DHCPv6 server; TFTPv6 client; FTPv6 server and FTPv6 client; IPv6 CAPWAP; ICMPv6; IPv6 ping; Manual tunnels, automatic tunnels, and ISATAP; Manually configured IP addresses and automatically created local addresses; IPv6 traceroute; Neighbor discovery |
| IPv4 routing | Static routing, RIP, and OSPF |
| IPv6 routing | Static routing |
| Ağ Yönetimi | SNMP v1/v2c/v3; RMON; Syslog; Remote probe |
|---|---|
| Network management platform | Eweb; Wi-Fi heat map |
| User access management | Console port login, Telnet login, SSH login, and FTP upload |
| Güvenlik Standardı | IEC 62368-1, EN 62368-1 |
|---|---|
| EMC Standardı | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, and ETSI EN 300 386 |
| Number of manageable APs | 32 (default), 896 (maximum) |
|---|---|
| Çalışma Sıcaklığı | 0°C to 45°C (32°F to 113°F) |
| Boyutlar (G x D x Y) | 440 mm x 200 mm x 43.6 mm (17.32 in. x 7.87 in. x 1.72 in.) |
