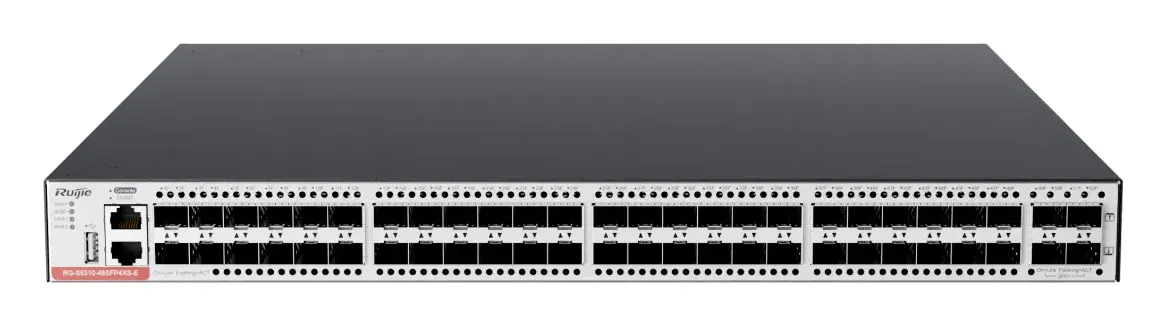

RUIJIE · RG-S5310-48SFP4XS-E Ruijie RG-S5310-48SFP4XS-E 48 Port Gigabit SFP 4×10G SFP+ L3 Yönetilebilir Switch

Ruijie RG-S5310-48SFP4XS-E 48 Port Gigabit SFP 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-S5310-48SFP4XS-E

Ruijie RG-S5310-48SFP4XS-E, 48 portlu gigabit bir yönetilebilir switch'tir. 48 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 48 port

VSU virtualization,flexible networking and high performance
QoS policy to achieve flexible allocation of network resources
Network security policies and real-time monitoring, delivering enhanced network robustness
Multiple management modes, simplified and easy network maintenance

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S5310-48SFP4XS-E özellikleri ve kullanım alanları.

Full Gigabit Ethernet Access Switch for Large-sized Networks

Layer 3 Access Switch for 10G Uplink RG-S5310-48SFP4XS-E

Full-gigabit access switch for large-sized enterprise and campus LANs, with 4 x 1GE/10GE SFP+ uplink ports for high-speed data transmission 48 x 1GE SPF ports, providing high-speed network experience for short-distance services

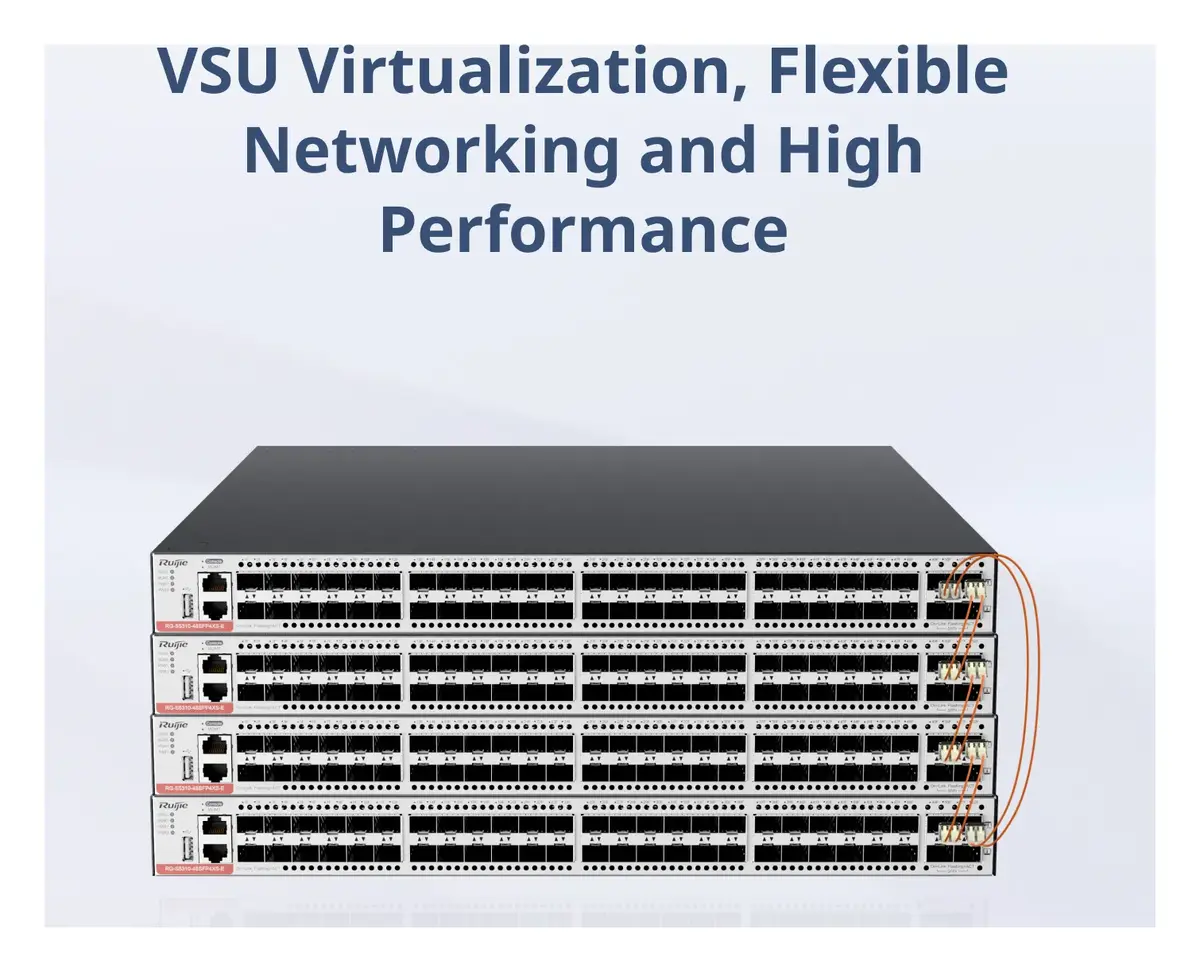

VSU Virtualization, Flexible Networking and High Performance

Millisecond Failover

High Scalability

Simplified Networking

The VSU connects to peripherals through an aggregate link, realizing service switching in milliseconds upon a failure.

VSU virtualization technology is supported to increase bandwidth through link aggregation, which greatly improves forwarding capabilities of the switch.

Multiple physical switches can be virtualized into one logical unit to simplify network configuration and architecture, eliminating loops, and improving reliability.

Perfect QoS policy to achieve flexible allocation of network resources, stable rate without congestion

It has multi-layer flow classification and flow control capabilities such as MAC flow, IP flow, and application flow, ensuring the accurate distribution of multi-service traffic, achieving no congestion in the network, and providing high-quality network

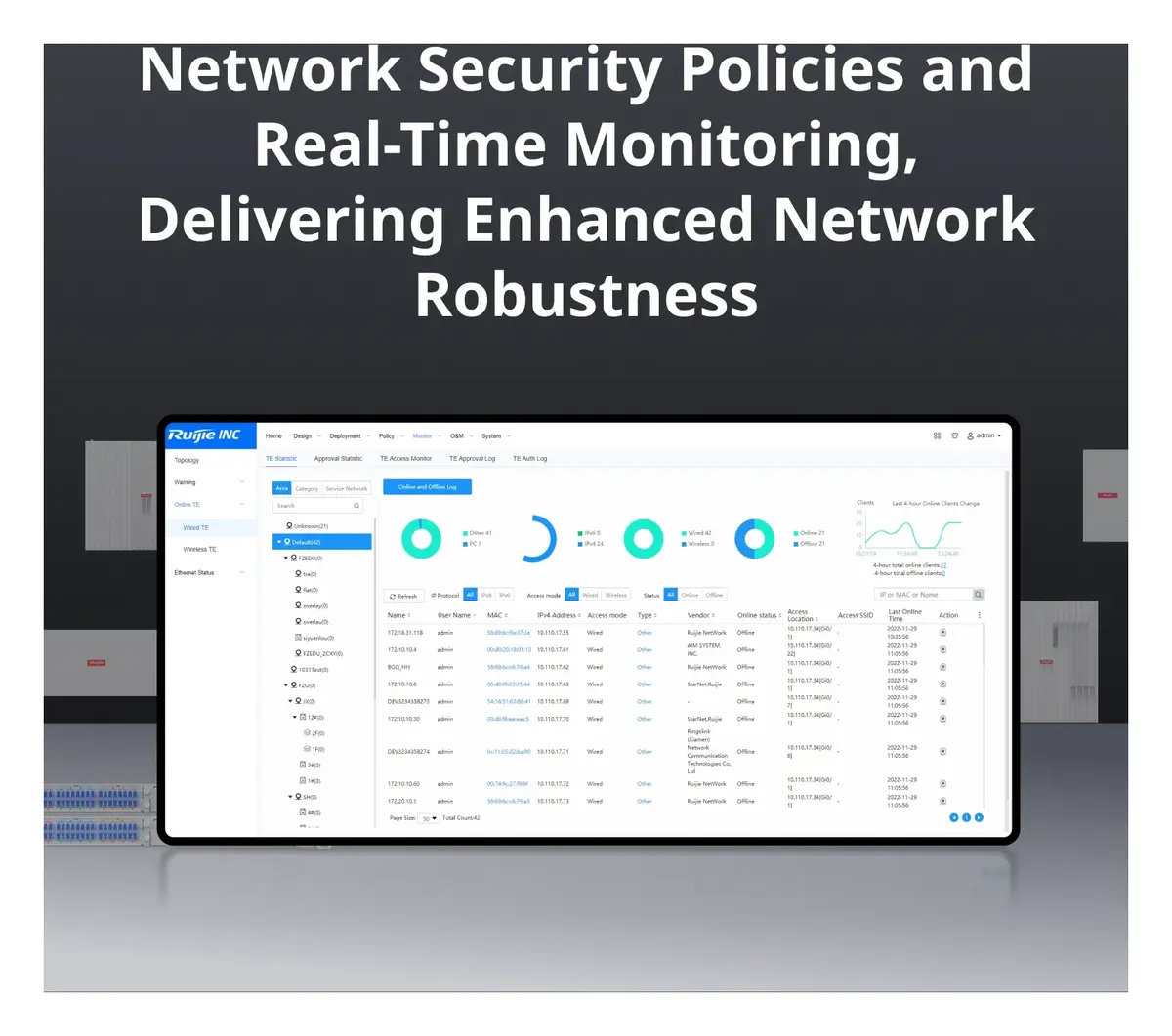

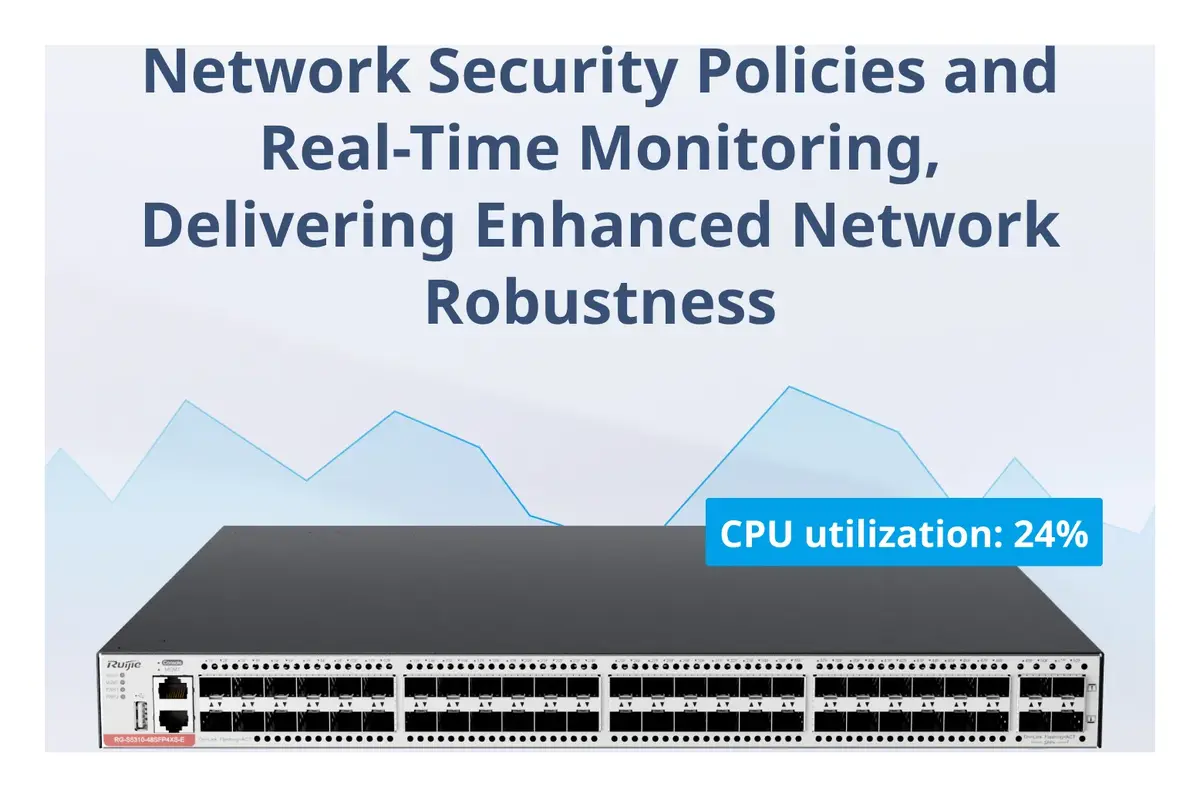

Network Security Policies and Real-Time Monitoring, Delivering Enhanced Network Robustness

CPU Protect Policy (CPP) is supported to control the packet type and traffic volume sent to the CPU to prevent high CPU usage. Network Foundation Protection Policy (NFPP) is supported to isolate users with attacker behaviors to ensure network security and stability. CPU usage

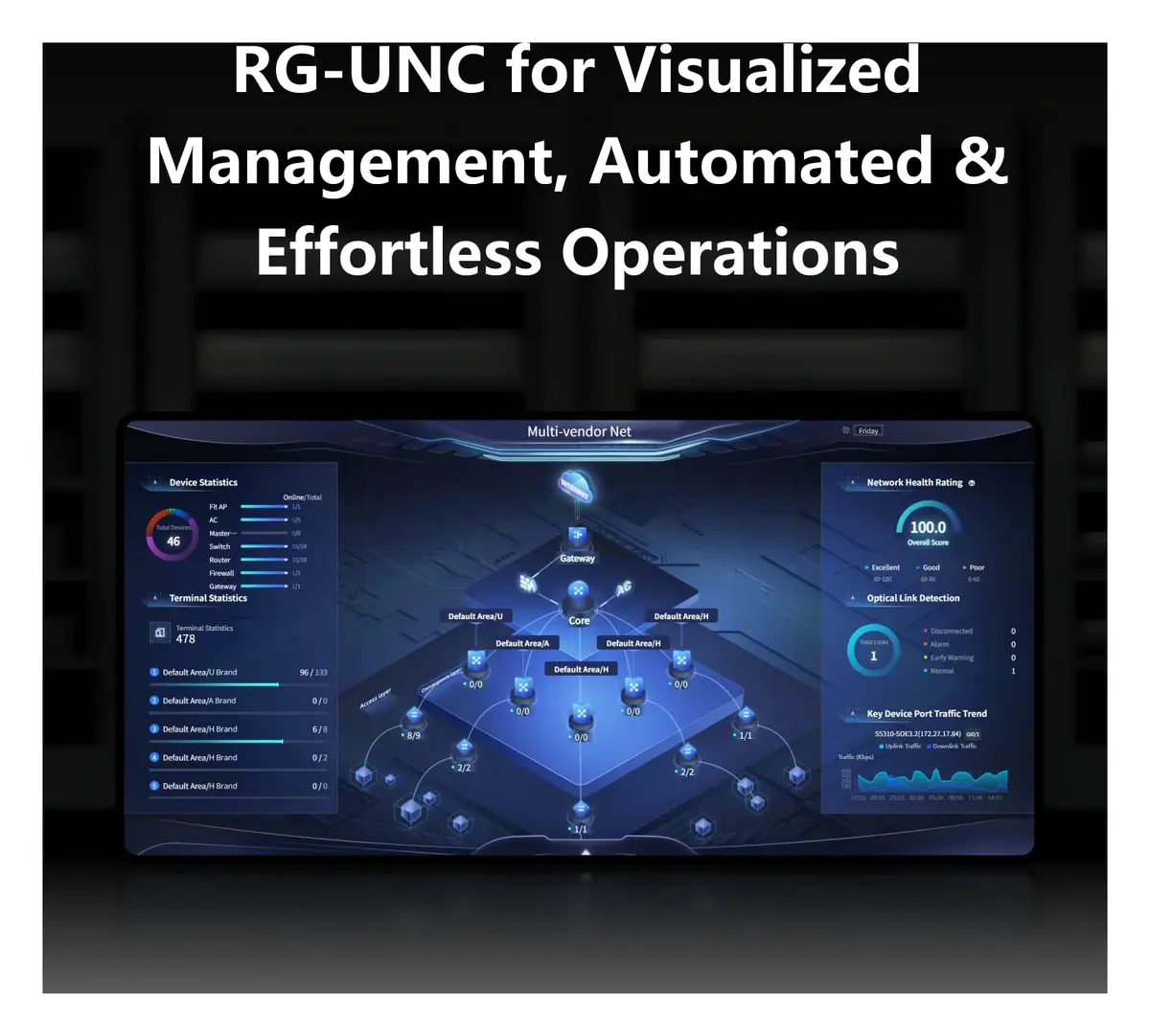

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Sabit Servis Portları	48 x 1GE SPF ports; 4 x 1GE/10GE SFP+ ports
Modül Yuvası	2 x power module slots
Güç Modülü	RG-PA150IB-F; RG-PD150IB-F
Sabit Yönetim Portu	1 x RJ45 console port; 1 x RJ45 MGMT port
USB	1 x USB 2.0 port

Sistem Özellikleri
Sistem Paket İletim Hızı	158 Mpps
Sistem Anahtarlama Kapasitesi	211 Gbps
İşlemci (CPU)	Dual-core CPU, each core with the clock speed of 1.2 GHz
Gerçek Zamanlı Saat (RTC)	Destekleniyor
BootROM	16 MB
Flash Bellek	2 GB
Bellek	1 GB
Switch Tampon Belleği	3 MB

*2 means the system's switching capacity.
Cihaz Boyutları (G x D x Y)	442.0 mm x 420.0 mm x 43.6 mm (17.40 in. x 16.54 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	570.0 mm x 565.0 mm x 172.0 mm (22.44 in. x 22.24 in. x 6.77 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	4.5 kg; (9.92 lbs)
Kutulu Ağırlık	6.58 kg (14.51 lbs)
Güç Kaynağı	2 x pluggable power modules
Güç Girişi	RG-PA150IB-F (AC input); Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AV to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 3 A; RG-PD150IB-F (DC input):; Rated input voltage: –48 V DC to –60 V DC; Maximum input voltage: –36 V DC to –75 V DC; Maximum input current: 5 A
Maks. Çıkış Gücü	RG-PA150IB-F: 150 W; RG-PD150IB-F: 150 W
Maks. Güç Tüketimi	108 W

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.)
MTBF	289,080 hours (about 33 years, dual power modules); 175,200 hours (about 20 years, single power module)
Fan	2 x fixed fan modules
Isı Dağılımı	Fan cooling, left-to-right and front-to-right airflow
Gürültü Seviyesi	27°C (80.6°F): 38.9 dB; 45°C (113°F): 53.7 dB
Güç Modülü Yedekliliği	1+1 redundancy
Güç Modülü Sıcak Takas	Destekleniyor
USB hot swapping	Destekleniyor
Cable hot swapping	Supported by all ports
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply failure alarming
Fan İzleme	Fan speed adjustment: 3 levels; Fan failure alarming
Sıcaklık İzleme	Temperature monitoring, over-temperature alarming; If the ambient temperature exceeds a certain value, the device will be reset.
ESD Koruması	Air discharge: 8 kV; Contact discharge: 6 kV
Aşırı Gerilim Koruması	MGMT port: 4 kV; Service port: 10 kV; Power port: common mode 6 kV, differential mode 6 kV

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Performans ve Kapasite
Maks. VSU Üye Sayısı	8
VSU bandwidth	40 Gbps
Maximum number of SVIs	1,000
Maks. MAC Adres Kaydı	32,000
Maks. ARP Kaydı	Without a license: 4,000; With a license: 16,000
Maximum number of ND entries	Without a license: 2,000; With a license: 8,000
Maks. IPv4 Unicast Rota	Without a license: 8,000 (shared with IPv6 routes); With a license: 12,000 (shared with IPv6 routes)
Maks. IPv6 Unicast Rota	4,000 (shared with IPv4 routes)
Maximum number of IPv4 multicast routes	2,500
Maximum number of IPv6 multicast routes	1,200
Maximum number of IGMP groups	2,500
Maximum number of MLD groups	1,200
Maximum number of VRF instances	512
Maximum number of ACEs	In: 3,500 Out: 1,750

Fonksiyonlar
Ethernet Anahtarlama	IEEE 802.1Q (supporting 4K VLANs); Jumbo frame (maximum length: 9,216 bytes); Maximum number of VLANs that can be created: 4,094; Voice VLAN; Super VLAN and private VLAN; MAC address-based, port-based, protocol-based, and IP subnet-based VLAN assignment; GVRP; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); Auto errdisable recovery; BPDU filter; Port fast; Root guard; ERPS (G.8032); LLDP/LLDP-MED, LLDP IPv6, and LLDP-POE
IP Servisleri	Static and dynamic ARP, ARP proxy, and ARP entry timeout; DHCP client, DHCP relay, DHCP server, and DHCP snooping; DHCPv6 client, DHCPv6 relay, DHCPv6 server, and DHCPv6 snooping; DNS client, DNS proxy, and DNSv6 client; MAC address filtering; Setting the MAC address aging time; Neighbor Discovery (ND), ND proxy, and ND snooping; GRE tunnel
IP Yönlendirme	IPv4 and IPv6 static routing; RIP and RIPng; OSPFv2, OSPFv3, and GR; IS-ISv4 and IS-ISv6; BGP4 and BGP4+; IPv4/IPv6 VRF; IPv4/IPv6 PBR
Multicast	IGMPv1/v2/v3; IGMPv1/v2 snooping; IGMP fast leave; PIM-DM, PIM-SM, PIM-SSM, PIM SMv6, and PIM-SSMv6; MSDP for inter-domain multicast; MLDv1/v2 and MLD proxy; MLDv1/v2 snooping; PIM-SMv6; Multicast source IP address check; Multicast source port check; Multicast querier
ACL ve QoS	Standard IP ACLs (hardware ACLs based on IP addresses); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); Extended MAC ACLs (hardware ACLs based on source MAC addresses, destination MAC addresses, and optional Ethernet type); Expert-level ACLs (hardware ACLs based on flexible combinations of the VLAN ID, Ethernet type, MAC address, IP address, TCP/UDP port number, protocol type, and time range); Time based ACLS, ACL 80, and IPv6 ACL; Global ACLs; ACL redirection; Po
Güvenlik	Multiple AAA modes; RADIUS authentication and authorization; RADIUS and TACACS+; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and port-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1 and SSHv2; Global IP-MAC binding; ICMPv6; Port security; IP source guard; SAVI; ARP spoofing prevention; CPP and NFPP; Multiple attack defense functions; 3-tuple binding (IP address, MAC address, and port); 3-tuple bindin
Güvenilirlik	REUP; RLDP; RLDP, Layer 2 link connectivity detection, and unidirectional link detection; DLDP; IPv4 VRRP v2/v3, IPv6 VRRP, and super-VLAN for VRRP; BFD, RAS, NSR, VRRR, VRRP+, and SDN loop detection; Basic LACP; Inter-VSU AP; Link monitoring, fault notification, and remote loopback based on 802.3ah (EFM); Hot swapping of power modules
Cihaz Sanallaştırma	VSU; Local and remote stacking; Inter-chassis link binding in a stack; Virtualization through standard service interfaces
Ağ Yönetimi ve Bakım	SPAN, RSPAN and ERSPAN; 1:1 mirroring, N:1 mirroring, 1:N mirroring; Flow-based local and remote mirroring; sFlow; NTP client, NTP server, NTPv6 client, and NTPv6 server; SNTP; CLI (Telnet/Console); FTP client, FTP server, FTPv6 client, and FTPv6 server; TFTP client, TFTP server, TFTPv6 client, and TFTPv6 server; FTP and TFTP; SNMP v1/v2/c3; Web; Syslog/Debug; RMON (1, 2, 3, 9); Various types of RMON groups, including event groups, alarm groups, history groups, and statistics groups, as well as
VXLAN	VXLAN (authorized)
PoE	RG-S5310-24GT4XS-P-E and RG-S5310-48GTXS-P-E:; IEEE 802.3af and 802.3at power supply standards; Automatic and energy-saving power supply management modes; Uninterrupted power supply in hot start mode; Scheduled power-on or power-off of PoE ports based on the time policy; Port priority

Temel Özellikler
Sistem Anahtarlama Kapasitesi	211 Gbps
Sistem Paket İletim Hızı	158 Mpps
Çalışma Sıcaklığı	0°C to 45°C (32°F to 113°F)
Warranty duration	3 years

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF Installation GuidePDF

Sık sorulanlar

RG-S5310-48SFP4XS-E hakkında kısa yanıtlar.

RG-S5310-48SFP4XS-E kaç portlu?

RG-S5310-48SFP4XS-E 48 porta sahiptir ve 48 adet SFP uplink portu bulunur.

RG-S5310-48SFP4XS-E fiyatı ne kadar?

RG-S5310-48SFP4XS-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
