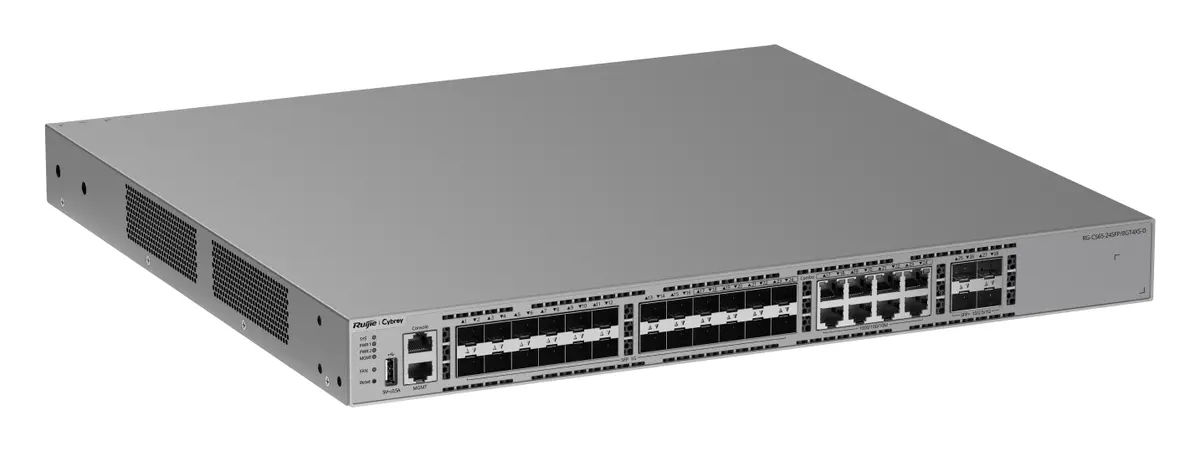

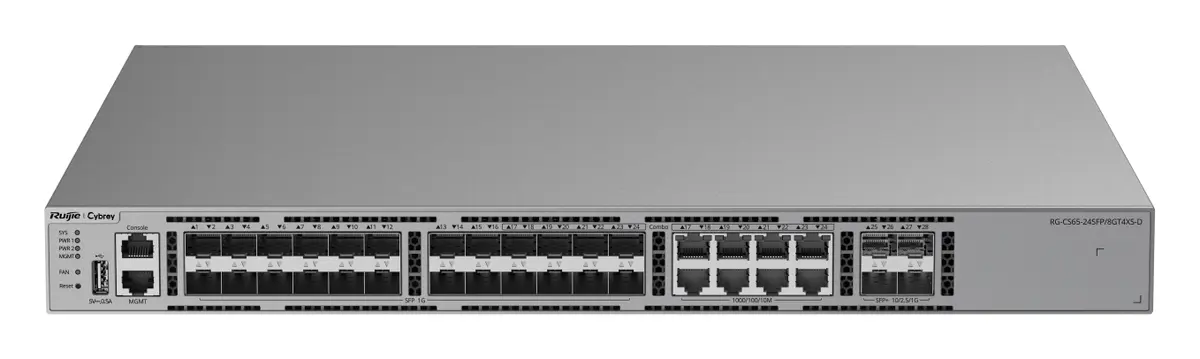

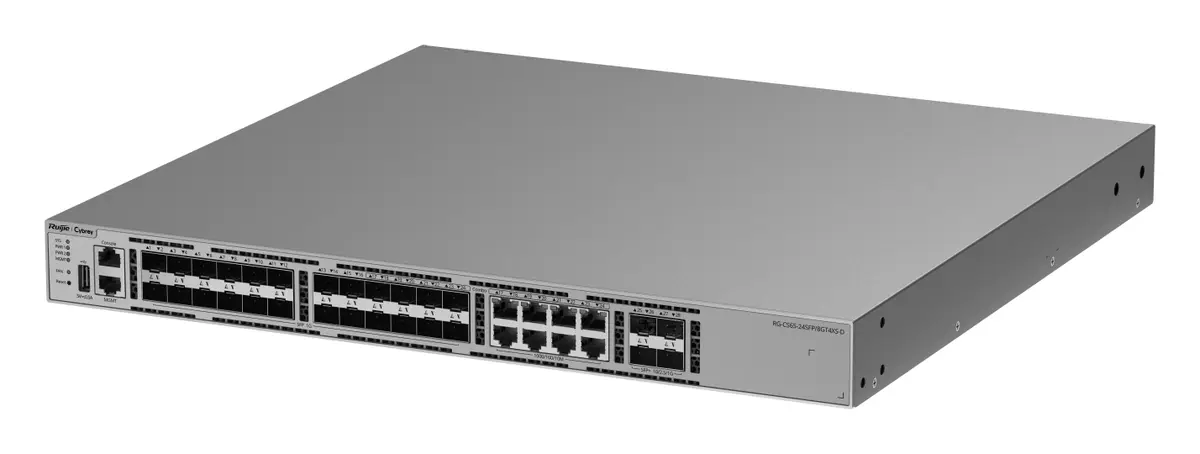

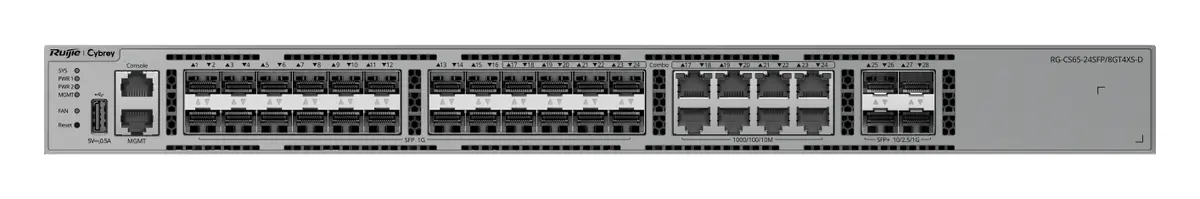

RUIJIE · RG-CS65-24SFP/8GT4XS-D Ruijie RG-CS65-24SFP/8GT4XS-D 24 Port Gigabit SFP 4×10G SFP+ L3 Yönetilebilir Switch

Ruijie RG-CS65-24SFP/8GT4XS-D 24 Port Gigabit SFP 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-CS65-24SFP/8GT4XS-D

Ruijie RG-CS65-24SFP/8GT4XS-D, 24 portlu gigabit bir yönetilebilir switch'tir. 24 adet SFP portu ile fiber uplink bağlantısı kurulabilir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 24 port

Supports operating temperatures up to 50°C
N+1 power supply and fan redundancy design
Dual flash, dual boot, and dual bin
Circuit isolation protection based on optical ports
Supports up to 8 devices in a VSU
Comprehensive Layer 3 service features

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-CS65-24SFP/8GT4XS-D özellikleri ve kullanım alanları.

Offices, hotels, warehouses, hospitals, and schools.

RG‑CS65‑24SFP/8GT4XS‑D Layer 3 Aggregation Switch with 10G Uplinks & Versatile Fiber/Copper Connectivity

1G Access Switches with 10G Uplinks

Cybrey switches offer 24 x 1GE SFP ports (with 8 combo ports) and 4 x 10G SFP+ uplinks, supporting multi‑rate access (1G/2.5G/10G) for flexible aggregation deployment.

Layer 3 Core/Aggregation Switches

Cybrey switches provide complete IPv4/IPv6 routing with OSPF, BGP, IS‑IS, and RIP. They are ideal for use as aggregation switches in large campus networks or core switches in SME networks, enabling flexible interconnection and service delivery.

8-unit stacking for flexible expansion helps maintain continuous service during device failures.

Dual-boot & Dual-bin

Dual-boot for reliable device startup and reboot, and dual-bin for redundant system partitions help maintain stable service operation.

Area-based Port Power Supply

When an optical transceiver experiences a short-circuit fault, Cybrey switches support optical port isolation to help prevent broader system impact.

Cybrey switches provide full Layer 3 capabilities, supporting both Layer 2 flat deployment and Layer 3 networking. They deliver fast convergence and fault domain isolation, improve SLA performance, and reduce TCO.

10 kV Surge Protection & 50°C Operation

Compared with typical switches that support 6–8 kV surge protection and operation up to 45°C, Cybrey switches deliver 10 kV surge protection and stable performance at temperatures up to 50°C, making them suitable for harsh environments.

In the Box

Rack-mount guide rail

M4 x 8 mm screws

* Accessory pictures are for reference only. Specifications of accessories vary by sales region and country. Please refer to the actual item received.

Cybrey Cloud, Make Your Business Easy

MAC Address Management

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler
Sabit Servis Portları	24 x 1GE SFP ports (Ports 17 to 24 are 10/100/1000BASE-T combo ports); 4 x 1GE/2.5GE/10GE SFP+ ports
Port restrictions	-
Konsol Portu	1
Yönetim Portu	1
USB	1
Anahtarlama Kapasitesi	128 Gbps (Gbit/s)
İletim Hızı	95.23 Mpps
Packet buffer size	32 Mbit
İşlemci (CPU)	Quad-core ARMv8 Cortex-A72 CPU frequency up to 2000 MHz
SDRAM	4 GB+8 bit ECC
Flash Bellek	1 GB
BootROM	16 MB
Gerçek Zamanlı Saat (RTC)	Evet
Cihaz Boyutları (G x D x Y)	442 mm x 420 mm x 43.6 mm (17.4 in. x 16.54 in. x 1.72 in.)
Kabin Yüksekliği	1 RU
Packaging dimensions (W x D x H)	570 mm x 565 mm x 225 mm (22.44 in. x 22.24 in. x 8.86 in.)
Cihaz Ağırlığı	5.40 kg (11.90 lbs)
Packaging weight	8.01 kg (17.66 lbs)
Güç Modülü	RG-PA150IB-FC
Besleme Modu	2 x pluggable power modules (not pre-installed)
Maks. Güç Tüketimi	110 V: 100 W; 220 V: 99 W
Güç Girişi	RG-PA150IB-FC (AC input):; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 3 A
Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Depolama Sıcaklığı	–40°C to +70°C (–40°F to +158°F)
Çalışma Nemi	10% RH to 90% RH (non-condensing)
Depolama Nemi	5% RH to 95% RH (non-condensing)
Çalışma Rakımı	0 m to 5000 m (0 ft. to 16,404.20 ft.)
Soğutma	Air cooling, front-to-rear airflow, left-to-rear airflow

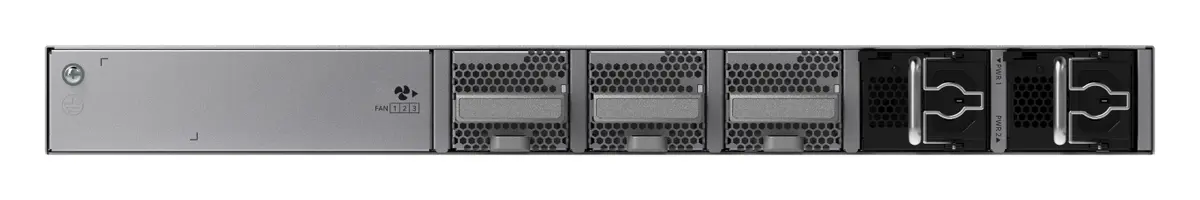

Fan	3 x hot-swappable fan modules (pre-installed)
Gürültü	27°C (80.6°F): 40 dB
Fan speed adjustment	Intelligent speed adjustment
Güç Yedekliliği	Evet
Hot swapping of power modules	Evet
Hot swapping of cables	Evet
USB hot swapping	Evet
Aşırı Gerilim Koruması	Service port: ±10 kV for common mode; MGMT port:±10 kV for common mode; Power connector: ±6 kV for common mode and ±6 kV for differential mode
ESD prevention	Contact discharge: 6 kV; Air discharge: 8 kV
Temperature monitoring and protection	Temperature monitoring, temperature alarm, and over-temperature protection
Fan İzleme	Fault alarm
Güç Kaynağı İzleme	Monitoring of power supply model and status; Power supply failure alarming
MTBF	> 400,000 hours
Energy efficiency	Evet
Güvenlik Standartları	IEC 62368-1 EN 62368-1
EMC Standartları	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN IEC 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN IEC 61000-4-11
Garanti	5 years
VLAN	IEEE 802.1Q; Port-based VLAN; MAC-based VLAN; Voice VLAN; IP/Subnet-based VLAN; Protocol-based VLAN; Private VLAN; Super VLAN; GVRP
Spanning tree	IEEE802.1d STP; IEEE802.1w RSTP; Standard 802.1s MSTP
LLDP	LLDP; LLDP-MED
Basic QinQ	Basic QinQ; Transparent transmission of double-tagged packets
ARP	ARP; anyIP
ND	Neighbor discovery
VRF	IPv4 and IPv6 VRF
Static routing	IPv4 static routing; IPv6 static routing
OSPF	OSPFv2 basics; OSPFv3 basics
BGP4	BGP4 basics
BGP4+	BGP4+ basics
IS-ISv4	IS-ISv4 basics
IS-ISv6	IS-ISv6 basics
RIP	RIP; RIPv2
IGMP snooping	IGMP snooping v1/v2; IGMP snooping v3
IGMP	IGMPv1/v2/v3; IGMP proxy
MLD snooping	MLD snooping; MLD snooping v2
MLD	MLDv1/v2
PIM-SMv4	PIM-SMv4; PIM-SSMv4
ACL	IP standard ACL; IP extended ACL; MAC extended ACL; IPv6 ACL; Expert ACL; Time-based ACL; ACL-based redirection; ACL80
QoS	Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; SP; WRR; SP+WRR; DRR; SP+DRR; WFQ; SP+WFQ; Congestion avoidance: tail drop; RED/WRED; Traffic shaping (ingress/egress)
802.1X	Port-based authentication; MAC-based authentication
VSU Sanallaştırma	Device virtualization
VRRP	IPv4 VRRPv2; IPv4 VRRPv3; IPv6 VRRP
VRRP+	IPv4 VRRP+; IPv6 VRRP+
BFD	BFD detection
Aggregate interface	LACP basics
Mirroring	SPAN; RSPAN; ERSPAN
SNMP	SNMPv1/v2c/v3; RMON (1, 2, 3, 9)
SSH	SSHv2; SSHv1
DHCP	DHCPv4 client; DHCPv4 server; DHCPv4 relay; DHCPv4 snooping; DHCPv6 client; DHCPv6 relay; DHCPv6 snooping
USB	USB 2.0
Maximum number of created VLANs	4094
Jumbo frame length / Port MTU	9216
Layer 2 traffic convergence time	RJ45 port: 800 ms; Optical port: 200 ms
Maks. ARP Kaydı	14000
IPv4 routing table size	16000
IPv6 routing table size	8000 (resources shared with IPv4 routing)
Maximum number of IPv4 multicast routing table entries	4000
Maximum number of IPv6 multicast routing table entries	2000
Maximum number of inbound ACE entries	2500
Maximum number of outbound ACE entries	1000
Maximum number of QoS hardware queues	8 (shared by unicast and multicast traffic)
Maks. VSU Üye Sayısı	8
Main unit	1
Rack-mount bracket	2
Rack-mount guide	2
Rack-mount guide rail	2
Screw	10 x M4 x 8 mm screws
Rubber pad	4
Grounding wire	1
User Manual	1
Warranty Card	1

RIPng
PBR	IPv4 PBR; IPv6 PBR

PIM-DMv4
PIM-SMv6	PIM-SMv6; PIM-SSMv6

AAA
Web-based authentication	HTTP-based authentication; HTTPS-based authentication

SAVI
Global IP-MAC binding	Configuring global IP-MAC binding entries
IPv4 uRPF	Supporting strict and loose modes, and allowing default routes to be used for uRPF checks.

TACACS+
CPP	Hardware CPP

sFlow
gRPC	gRPC framework

ND snooping
DNS	DNS client; DNSv6 client
NTP	NTP client; NTP server
SNTP	SNTP client; SNTP
FTP	FTP client; FTP server
TFTP	TFTP client; TFTP server

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF

Sık sorulanlar

RG-CS65-24SFP/8GT4XS-D hakkında kısa yanıtlar.

RG-CS65-24SFP/8GT4XS-D kaç portlu?

RG-CS65-24SFP/8GT4XS-D 24 porta sahiptir ve 24 adet SFP uplink portu bulunur.

RG-CS65-24SFP/8GT4XS-D fiyatı ne kadar?

RG-CS65-24SFP/8GT4XS-D için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
