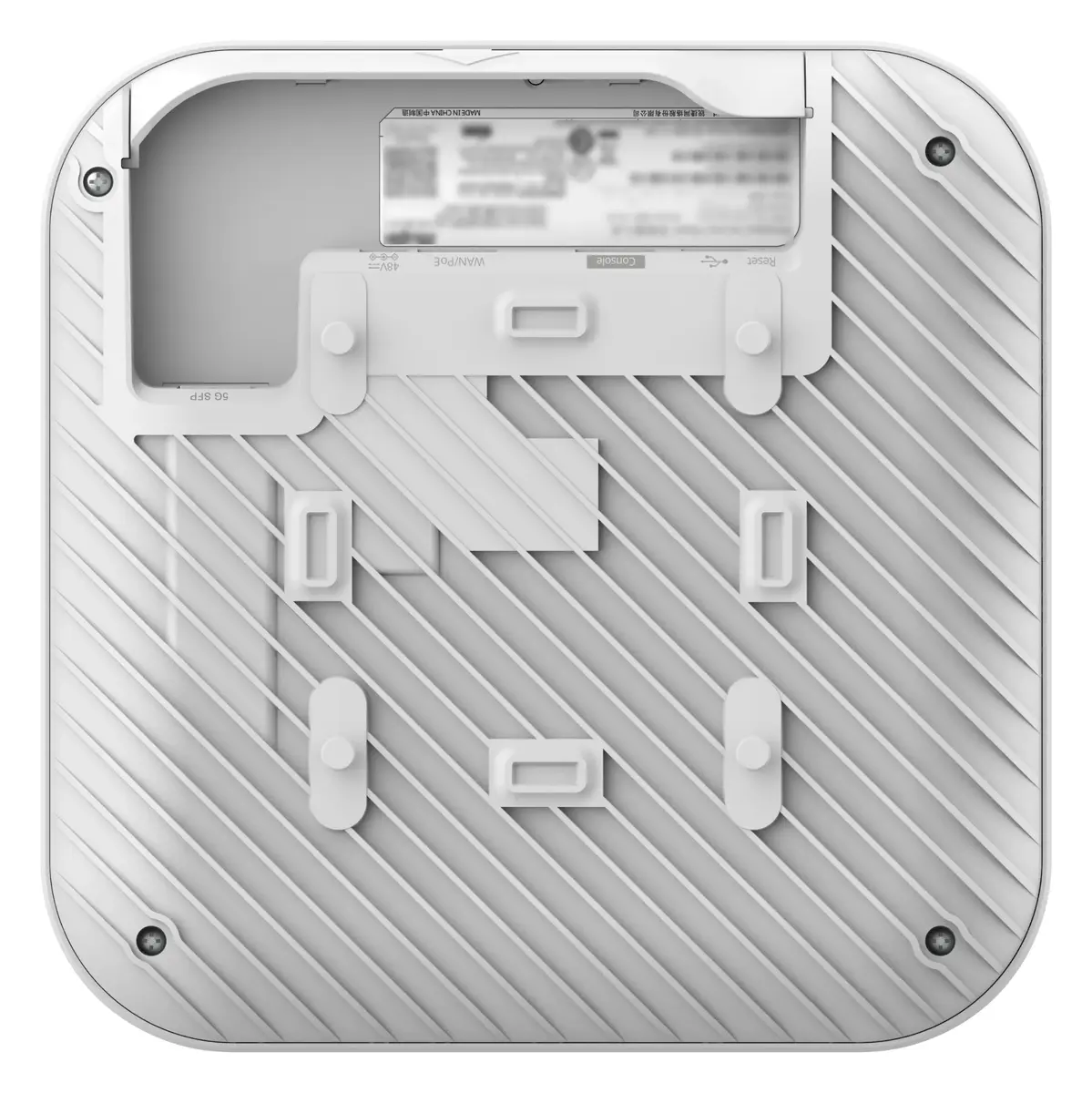

Ruijie RG-AP9220(V2) Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 4

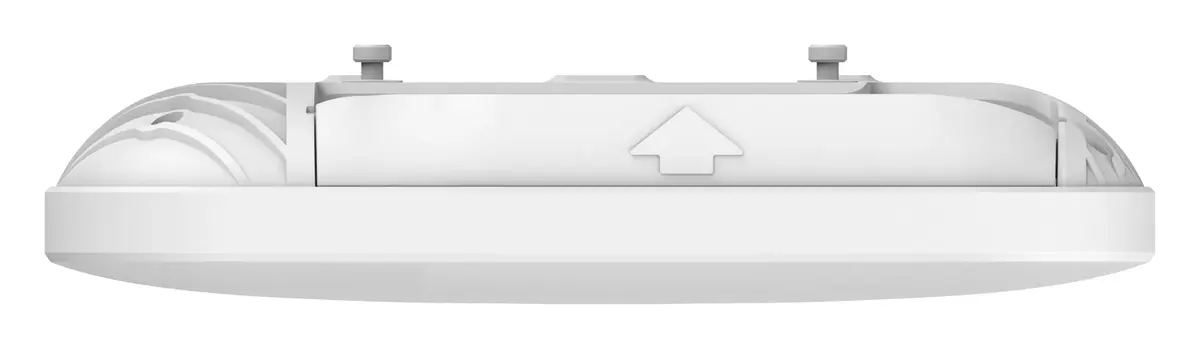

Ruijie RG-AP9220(V2) Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 5

Ruijie RG-AP9220(V2) Wi-Fi 7 Çift Bant Tavan Tipi Access Point — görsel 6

1 / 6

Kablosuz Access Point Wi-Fi 7 indoor APs

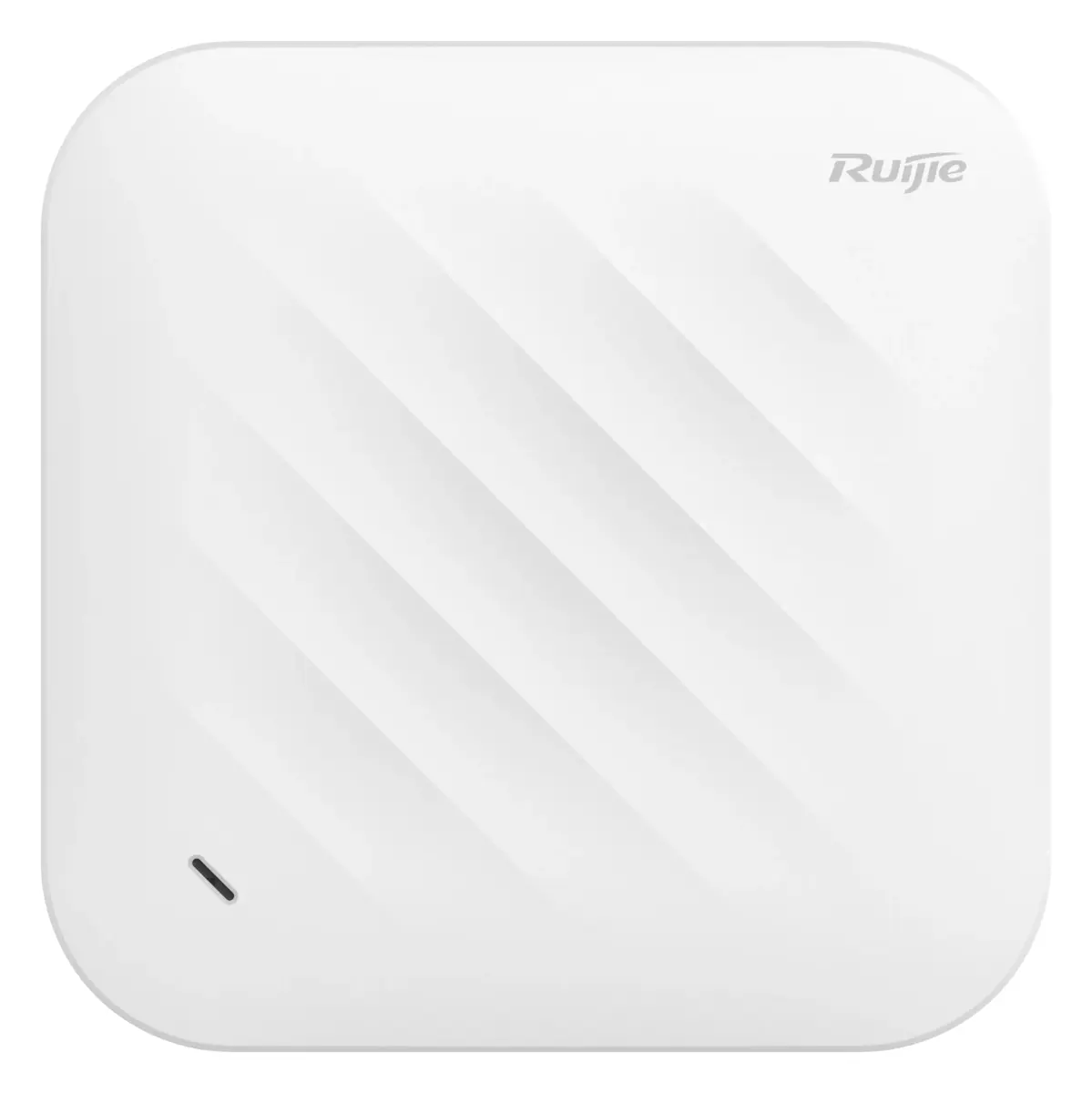

Ruijie RG-AP9220(V2) Wi-Fi 7 Çift Bant Tavan Tipi Access Point

ModelRG-AP9220(V2)

Ruijie RG-AP9220(V2) access point: 5GE SFP port and 2.5G Ethernet port for flexible networking, Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps, PoE and DC power supply modes for flexible deployment, WIS digital twin network for superior network O&M efficiency.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

5GE SFP port and 2.5G Ethernet port for flexible networking
Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps
PoE and DC power supply modes for flexible deployment
WIS digital twin network for superior network O&M efficiency

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 19 satır

802.11n	Four spatial streams; Radio 1 -- 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 -- 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio 2 -- 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, and 64-QAM; Packet aggregation:;
802.11ac	Two spatial streams; Radio 2 -- 5 GHz: 2x2 downlink MU-MIMO, two spatial streams; Channels:; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 -- 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: OFDM; Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, and 256-QAM; Packet aggregation:; A-MPDU; A-MSDU; DFS; CDD/CSD; MRC; STBC; LDPC; TxBF
802.11ax	Four spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 574 Mbps (MCS0 to MCS11); Radio 2 -- 5 GHz: 7.3 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: Uplink/Downlink Orthogonal Frequency-Division Multiple Access
802.11be	Four spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 3.570 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 688 Mbps (MCS0 to MCS13); Radio 2 -- 5 GHz: 7.3 Mbps to 2.882 Gbps (MCS0 to MCS13); Radio technologies: Uplink/Downlink OFDMA; Modulation types: BPSK, QPSK, 16-QAM, 6
Anten	Wi-Fi; 2.4 GHz: Two built-in omnidirectional smart antennas, with the peak antenna gain of 4.5 dBi; 5 GHz: Two built-in omnidirectional smart antennas, with the peak antenna gain of 5.2 dBi; Bluetooth; One built-in omnidirectional antenna, with the peak antenna gain of 4.5 dBi
Port	1 x 100/1000/2.5GBASE-T port; 1 x 5GE SFP port, which is compatible with 1GE and 2.5GE transceivers; 1 x RJ45 console port; 1 x USB 2.0 port (Type A connector); 1 x Bluetooth 5.3
Status LED	1 x system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service port status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating
Buton	1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x Y x D)	Main unit: 200 mm x 200 mm x 40 mm (7.87 in. x 7.87 in. x 1.57 in.); Shipping: 500 mm x 390 mm x 260 mm (19.69 in. x 15.35 in. x 10.24 in.)
Ağırlık	Main unit: 0.64 kg (1.41 lbs); Mounting bracket: 0.06 kg (0.13 lbs); Shipping: 12.18 kg (26.85 lbs)
Montaj	Ceiling/Wall-mount
Lock option	Kensington lock and securing latch
Input power supply	The AP supports the following power supply modes:; 48 V DC/0.54 A power input over the DC connector; PoE/PoE+ input, in compliance with IEEE 802.3af/at; Note:; If both DC power and PoE are available, DC power is preferred.; When 802.3af power supply is used, the AP starts up normally. In this case, the USB port is disabled, the maximum transmit power of radios is 19 dBm, and optical ports are not supported.
Maks. Güç Tüketimi	Maximum power consumption: 18.5 W; DC power: 18.5 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, maximum radio power of 23 dBm, and USB port for external power supply; 802.3at (PoE+): 18.5 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, maximum radio power of 23 dBm, and USB port for external power supply; 802.3af (PoE): 12.95 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, maximum radio power of 19 dBm, and USB port disabled; Idle mode: 5.5 W
External power supply	When 802.3at (PoE+) power supply is used, the AP can provide 5 V/0.5 A power over the USB port to supply power to or connect to an IoT module.
Ortam Koşulları	Storage temperature: --40°C to +70°C (--40°F to +158°F); Storage humidity: 0% RH to 95% RH (non-condensing); Storage altitude: --500 m to +5,000 m (--1640.42 ft. to +16,404.20 ft.); Operating temperature: --10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: --500 m to +5,000 m (--1640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 1,800--5,000 m (5,905.51--16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.
MTBF	200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory	512 MB DRAM, 256 MB flash
Yayın Gücü	2.4 GHz; Maximum transmit power (802.3at): 23 dBm (199.53 mW); Minimum transmit power (802.3af): 0 dBm (1 mW); 5 GHz; Note:; You can adjust the transmit power by percentage (recommended) or in 1 dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.

Wi-Fi Radio Performance 24 satır

Frequency Band and Protocol	Data Rate
2.4 GHz 802.11b	1 Mbps; 11 Mbps
2.4 GHz 802.11g	6 Mbps; 54 Mbps
2.4 GHz 802.11n (HT20)	MCS0; MCS7
2.4 GHz 802.11n (HT40)	MCS0; MCS7
2.4 GHz 802.11ax (HE20)	MCS0; MCS11
2.4 GHz 802.11ax (HE40)	MCS0; MCS11
2.4 GHz 802.11be (EHT20)	MCS0; MCS13
2.4 GHz 802.11be (EHT40)	MCS0; MCS13
5 GHz 802.11a	6 Mbps; 54 Mbps
5 GHz 802.11n (HT20)	MCS0; MCS7
5 GHz 802.11n (HT40)	MCS0; MCS7
5 GHz 802.11ac (VHT20)	MCS0; MCS8
5 GHz 802.11ac (VHT40)	MCS0; MCS9
5 GHz 802.11ac (VHT80)	MCS0; MCS9
5 GHz 802.11ac (VHT160)	MCS0; MCS9
5 GHz 802.11ax (HE20)	MCS0; MCS11
5 GHz 802.11ax (HE40)	MCS0; MCS11
5 GHz 802.11ax (HE80)	MCS0; MCS11
5 GHz 802.11ax (HE160)	MCS0; MCS11
5 GHz 802.11be (EHT20)	MCS0; MCS13
5 GHz 802.11be (EHT40)	MCS0; MCS13
5 GHz 802.11be (EHT80)	MCS0; MCS13
5 GHz 802.11be (EHT160)	MCS0; MCS13

Basic Functions 1 satır

Applicable software version	RGOS11.9(6)W8 or later

WLAN 12 satır

Maximum number of associated STAs	1,024 (up to 512 STAs per radio)
Recommended number of STAs	64
Maximum number of BSSIDs	32 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs	16
STA management	SSID hiding; Band steering (preferential access to the 5 GHz radio); Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent STA identification; Intelligent load balancing based on the STA quantity, traffic, or band; Intelligent STA identification (the AC is required); Rate set configuration
STA limiting	SSID-based STA limiting; Radio-based STA limiting
Bandwidth limiting	STA/SSID/AP-based rate limiting
CAPWAP	IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through Network Address Translation (NAT); MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data tunnels; Encryption over CAPWAP control tunnels
Data forwarding	Centralized and local forwarding
Wireless roaming	Layer 2 and Layer 3 roaming
Wireless locating	Mobile unit (MU) locating
Application management	Application identification

Security and Authentication 6 satır

Authentication and encryption	Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server; PSK, web-based, 802.1X, WPA, WPA2, and WPA3 authentication; MAB; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3), WPA3-Enterprise (CCMP)
Data frame filtering	Allowlist, static blocklist, and dynamic blocklist
WIDS	WIDS; User isolation; Rogue AP detection and containment
Dynamic policy	IP standard access control list (ACL), MAC extended ACL, IP extended ACL, expert ACL, and IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with an AC)
CPP	CPU Protect Policy (CPP)
NFPP	Network Foundation Protection Policy (NFPP); ARP attack defense, ICMP attack defense, and DHCP attack defense

Routing and Switching 9 satır

MAC	Static MAC address, MAC address filtering, MAC address limiting; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024
Ethernet	Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; Optical transceiver information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)
VLAN	Interface-based VLAN assignment; Maximum number of SVIs: 256; Maximum number of VLANs: 4,094; VLAN ID range: 1--4,094
ARP	ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; ARP check
IPv4 services	Static IPv4 address and DHCP-assigned IPv4 address; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG, and DNS ALG
IPv6 services	IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping; IPv6 DHCP client; Maximum number of IPv6 addresses configured on each Layer 3 interface: 400
IP Yönlendirme	IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
Multicast	Multicast-to-unicast conversion
VPN	PPPoE client; IPsec VPN

Network Management and Monitoring 4 satır

Ağ Yönetimi	NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarms; Information statistics collection and logging
Network management platform	Web management (eWeb)
User access management	Console, Telnet, SSH, FTP client, FTP server, and TFTP client
Switchover among Fat, Fit, and cloud modes	When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in Cloud mode, it can be managed through WIS Cloud.

Intelligent O&M 6 satır

Experience	Network operation analysis such as device stability and signal coverage; Measuring user network experience based on indicators including latency, packet loss, RSSI, and channel utilization, with visualized network experience results; Statistics on the number of online and offline failures of STAs associated with different APs, average RSSI, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience coverage evaluation based on the time r
Network optimization	Network performance optimization, including one-click network optimization and optimization solution setting based on different scenarios; Sticky client roam steering and experience indicator comparison; Remote association steering and experience indicator comparison; One-click diagnosis for analyzing problems and providing suggestions
Big data	Baseline analysis, recording changes in configuration, software version, and other parameters, and tracking changes in network KPIs; Time capsule for analyzing the history of device version and configuration changes
Cloud site survey	Batch generation of building floor information, floor plan upload, and drag-and-drop AP placement
One-click report	One-click health check report and generation of reports on the overall network operating status
Security radar	Unauthorized Wi-Fi signal locating and classified display, as well as countermeasure capabilities

Bulut Yönetimi 1 satır

Yönetim ve Bakım	Uniformly connecting, managing, and maintaining APs, ACs, and other devices; Batch device configuration and upgrade; ZTP deployment, creating configuration templates, and automatically applying configured templates; Discovering wired and wireless network topology with one click and generating the topology

Cloud Authentication 3 satır

Authentication mode	SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Portal authentication page	Customizing Portal authentication pages for PCs and mobile phones
SMS gateway	Interworking with Guodu and Alibaba Cloud SMS gateways

Platform Capabilities 3 satır

Big data capabilities	Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, data model conversion, and integration
Hierarchical and role-based access control	Authorizing different applications for different users to meet service needs of different departments; Administrators at different sites have different operation permissions.
System management	System management functions including account operations, authorization configuration, email configuration, configuration backup, and exception alarms

Uyumluluk 1 satır

Uyumluluk	EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN IEC 62311, IEC 62368-1, EN 62368-1, EN 18031-1, EN 18031-2

Temel Özellikler 9 satır

Wireless protocol	802.11a/b/g/n/ac/ax/be
Radyo Tasarımı	Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2), up to 4 spatial streams
Max. data transmission rate	3.570 Gbps
Wi-Fi antenna	Built-in omnidirectional smart antennas
Sabit Servis Portları	1 x 100/1000/2.5GBASE-T port 1 x 5GE SFP+ port
Bluetooth	Bluetooth 5.3
Max. number of associated STAs	1,024 (512 STAs per radio)
Maks. Güç Tüketimi	18.5 W
Çalışma Sıcaklığı	–10°C to +50°C (14°F to 122°F)

Genel bakış

Ruijie RG-AP9220(V2) kullanım alanları ve özellikleri.

Suitable for indoor scenarios across higher education, government, K12 education, finance, and commercial sectors.

RG-AP9220(V2), Wi-Fi 7 Indoor Access Point

The RG-AP9220(V2) is Ruijie's next-generation Wi-Fi 7 (802.11be) indoor access point. It supports four spatial streams and a combined peak data rate of 3.570 Gbps. Designed with one 5GE SFP port and one 2.5G Ethernet port, it offers flexible deployment and investment protection.

5GE SFP Port and 2.5G Ethernet Port for Flexible Networking

The device provides one 5GE SFP port and supports SOE networking. It also provides one 2.5G Ethernet port to meet the needs of existing network infrastructures, helping protect your investment.

Enterprise-Class Wi-Fi 7 Delivering a Data Rate of Up to 3.570 Gbps

Empowering seamless high-bandwidth applications with next-generation wireless performance.

PoE and DC Power Supply Modes for Flexible Deployment

The device supports PoE, allowing both power supply and data transmission via a single network cable connected to a PoE switch, eliminating the need for an external power adapter. It also supports DC power supply, removing the requirement for a PoE switch and helping reduce deployment costs.

WIS Digital Twin Network for Superior Network O&M Efficiency

WIS integrates intelligent O&M functions, including visualized fault locating, along with local, service and key area network optimization. These capabilities aim to improve operational efficiency and enhance the user experience for wireless networks. Go to WIS >

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-AP9220(V2) Compliance DocumentPDF · RG-AP9220(V2) Installation GuidePDF · RG-AP9220(V2)

Sık sorulanlar

RG-AP9220(V2) hakkında kısa yanıtlar.

RG-AP9220(V2) fiyatı ne kadar?

RG-AP9220(V2) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
