RUIJIE · RG-AP7176-R(V2)

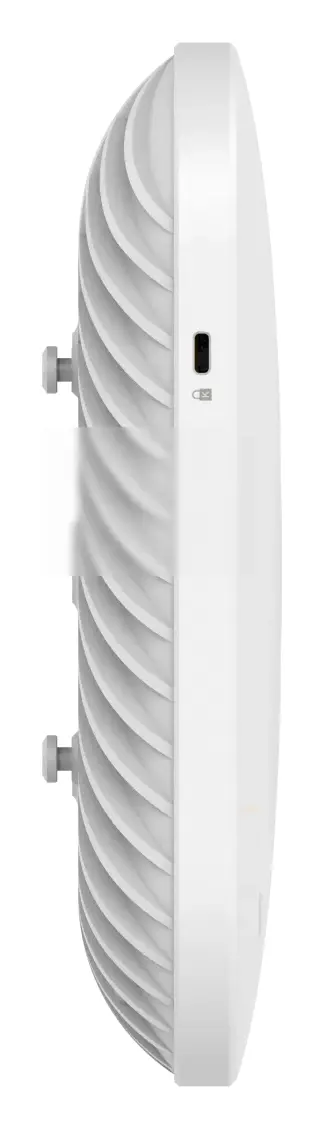

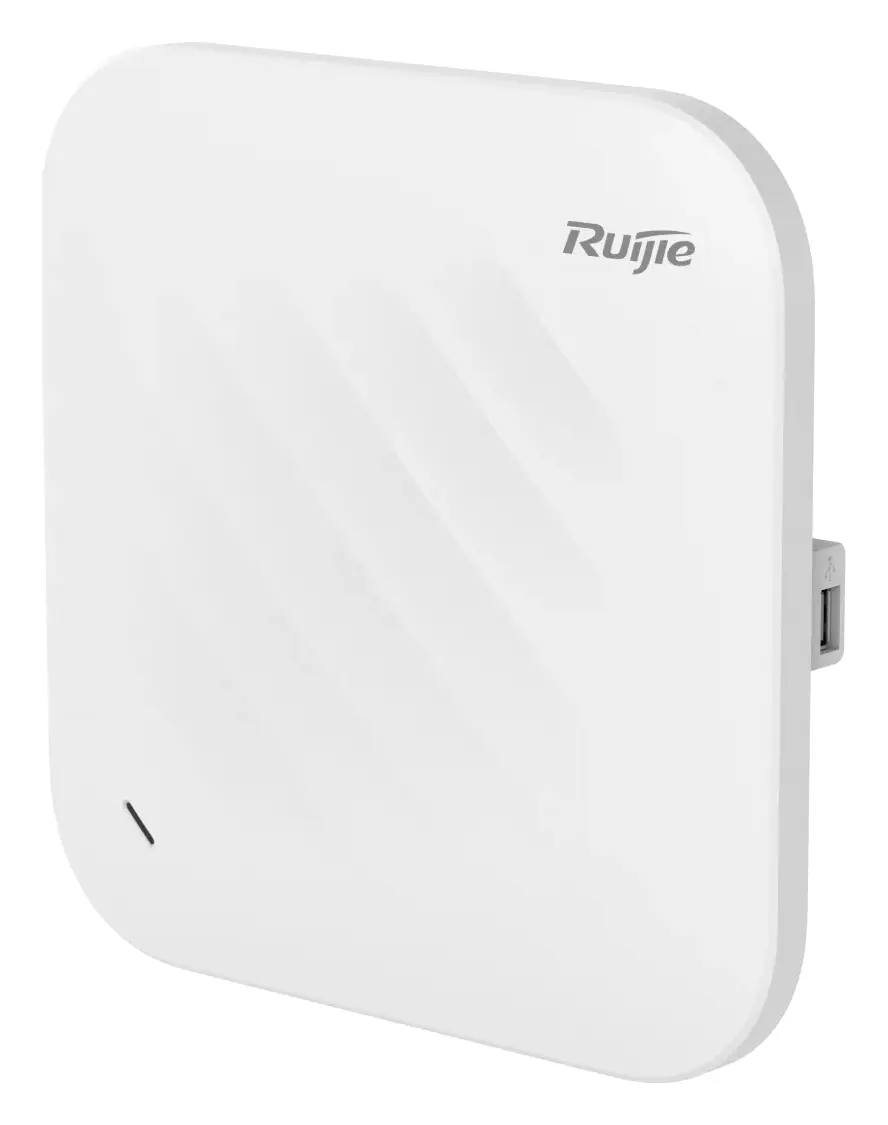

Ruijie RG-AP7176-R(V2) Wi-Fi 7 Dört Radyolu Tavan Tipi Access Point
Model
RG-AP7176-R(V2)Ruijie RG-AP7176-R(V2) access point: 10GE combo port for flexible deployment, Enterprise-class Wi-Fi 7 delivering a data rate of up to 17.982 Gbps, 5 GHz & 6 GHz ready with smooth upgrade path, Independent AI radio delivers network security & superior roaming, WIS digital twin network for superio.
- Port sayısı
- 45 port
- Kablosuz standart
- Wi-Fi 7
- 10GE combo port for flexible deployment
- Enterprise-class Wi-Fi 7 delivering a data rate of up to 17.982 Gbps
- 5 GHz & 6 GHz ready with smooth upgrade path
- Independent AI radio delivers network security & superior roaming
- WIS digital twin network for superior network O&M efficiency
Genel bakış
Ruijie RG-AP7176-R(V2) özellikleri ve kullanım alanları.
RG-AP7176-R(V2) High-Density Wi-Fi 7 Indoor AP
Experience fast, intelligent, and reliable wireless connectivity
10GE Combo Port for Flexible Deployment
The RG-AP7176-R(V2) comes with a 10GE combo port, which integrates Ethernet and optical interfaces for flexible deployment. Its 10GE SFP+ optical port supports Ruijie's SOE Solution. When paired with hybrid cables, it enables data and power transmission over 1,000m, delivers future-ready uplink performance for high-bandwidth applications, and simplifies network cabling.
Enterprise-Class Wi-Fi 7 Delivering a Data Rate of Up to 17.982 Gbps
Empowering seamless high-bandwidth applications with next-generation wireless performance.
5 GHz & 6 GHz Ready with Smooth Upgrade Path
The RG-AP7176-R(V2) supports intelligent switching between 5 GHz and 6 GHz frequency bands, providing optimal coverage, stability, and speed. It enables a hardware-free upgrade path to keep your network future-proof.
Independent AI Radio Delivers Superior Roaming & Network Security
Superior Roaming Experience
AI Radio’s real-time client scanning enables better roaming policies, delivering a superior experience for mobile office, mobile video conferencing, or online learning.
The hardware-independent AI radio provides real-time security for 2.4 GHz/5 GHz radio and conducts radar scanning to eliminate potential risks.
AI Radio Safeguarding
Traditional AP Safeguarding
24/7 real-time scanning 5 GHz/2.4 GHz full-band scanning
Timeframe-based, single-band scanning Consuming radio resources for communication
WIS Digital Twin Network for Superior Network O&M Efficiency
WIS integrates intelligent O&M functions, including visualized fault locating, along with local, service, and key area network optimization. These capabilities aim to improve operational efficiency and enhance the user experience for wireless networks. Go to WIS Digital Twin Network>
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | 12 spatial streams; Radio 1 - 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 - 5 GHz: 4x4 MIMO, four spatial streams; Radio 3 - 5 GHz: 4x4 MIMO, four spatial streams; Radio 4 - AI Radio, 2.4 GHz/5 GHz: 2x2, MIMO two spatial streams; Channel:; Radio 1 - 2.4 GHz: 20 MHz and 40 MHz; Radio 2 - 5 GHz: 20 MHz and 40 MHz; Radio 3 - 5 GHz: 20 MHz and 40 MHz; Radio 4 - AI Radio, 2.4 GHz/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 1.5 Gbps; Radio 1 - 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS31); |
|---|---|
| 802.11ac | 10 spatial streams; Radio 2 - 5 GHz: 4x4 MU-MIMO, four spatial streams; Radio 3 - 5 GHz: 4x4 MIMO, four spatial streams; Radio 4 - AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channel:; Radio 2 - 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 - 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 4 - AI Radio, 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 6.934 Gbps; Radio 2 - 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); Radio 3 - 5 GHz: 6.5 Mbps to 3.467 Gbps (MCS0 to MCS9); |
| 802.11ax | 12 spatial streams; Radio 1 - 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 - 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 3 - 5 GHz/6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 4 - AI Radio, 2.4 GHz/5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channel:; Radio 1 - 2.4 GHz: 20 MHz and 40 MHz; Radio 2 - 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 - 5 GHz/6 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 4 - AI Radio, 2.4 GHz/5 GHz: 20 MHz |
| 802.11be | 10 spatial streams; Radio 1 - 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 - 5 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Radio 3 - 5 GHz/6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channel:; Radio 1 - 2.4 GHz: 20 MHz and 40 MHz; Radio 2 - 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 - 5 GHz/6 GHz: 20 MHz, 40 MHz, 80 MHz, 160 MHz, and 320 MHz; Combined peak data rate: 12.218 Gbps/17.982 Gbps; Radio 1 - 2.4 GHz: 7.3 Mbps to 0.688 Gbps (MCS0 to MCS13); Radio 2 |
| Anten | Wi-Fi; 2.4 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; 5 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; 5 GHz/6 GHz: four built-in omnidirectional smart antennas, with peak antenna gain of 3 dBi; Bluetooth; One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 3 dBi |
| Port | 1 x 100/1000/2.5G/5G/10GBASE-T port , shared with one 10GE SFP+ port; 1 x 10GE SFP+ port, compatibility with 1GE/2.5GE/10GE modules, shared with one 10GE RJ45 port; 1 x 10/100/1000BASE-T port, supplying IEEE 802.3af power to an IoT unit; 1 x RJ45 console port; 1 x USB 2.0 (Type-A connector); 1 x Bluetooth 5.3 |
| Status LED | 1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Boyutlar (G x D x Y) | Main unit: 220 mm x 220 mm x 42.7 mm (8.66 in. x 8.66 in. x 1.68 in.); Shipping: 495mm x 379mm x 261mm (19.49 in. x 14.92 in. x 10.28 in.) |
| Ağırlık | Main unit: 1.2 kg (2.65 lbs); Mounting bracket: 0.05 kg (0.11 lbs); Shipping: 1.5 kg (3.31 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Input power supply | The AP supports the following power supply modes:; 54 V DC/1.25 A power input over DC connector; PoE/PoE+/PoE++ input, in compliance with IEEE 802.3af/at/bt standard; Note: if both DC power and PoE are available, DC power is preferred. |
| Maks. Güç Tüketimi | Maximum power consumption: 55 W; DC power: 55 W, Radio 1 (2.4 GHz) 2x2, Radio 2 (5 GHz) 4x4, Radio 3 (5 GHz/6 GHz) 4x4, Radio 4 (AI Radio) 2x2, LAN 1 for PoE power supply (48 V/12.95 W), USB port for external power supply (5 V/2.5 W); 802.3bt (PoE++): 55 W, Radio 1 (2.4 GHz) 2x2, Radio 2 (5 GHz) 4x4, Radio 3 (5 GHz/6 GHz) 4x4, Radio 4 (AI Radio) 2x2, LAN 1 for PoE power supply (48 V/12.95 W), USB port for external power supply (5 V/2.5 W); 802.3at (PoE+): 25.5 W, Radio 1 (2.4 GHz) 2x2, Radio 2 ( |
| External power supply | When powered by 802.3bt (PoE++), the AP can supply power to an external device.; The USB port can source 5 V/2.5 W power to an attached device.; The LAN 1 port can source IEEE 802.3af power to an IoT unit. |
| Ortam Koşulları | Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 3,000–5,000 m (9,842.52–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the ma |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 1024 MB DRAM, 256 MB flash |
| Yayın Gücü | 2.4 GHz; Maximum transmit power: 23 dBm (199.53 mW); Minimum transmit power: 6 dBm (3.98 mW); 5 GHz; 6 GHz; Maximum transmit power: 22 dBm (158.49 mW); Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 2.4 GHz 802.11be(EHT20) | MCS0; MCS13 |
| 2.4 GHz 802.11be(EHT40) | MCS0; MCS13 |
| 5 GHz 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT160) | MCS0; MCS9 |
| 5 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE80) | MCS0; MCS9; MCS11 |
| 5 GHz 802.11ax (HE160) | MCS0; MCS9; MCS11 |
| 5 GHz 802.11be (EHT80) | MCS0; MCS9; MCS11; MCS13 |
| 5 GHz 802.11be (EHT160) | MCS0; MCS9; MCS11; MCS13 |
| 6 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 6 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 6 GHz, 802.11ax (HE80) | MCS0; MCS9; MCS11 |
| 6 GHz, 802.11ax (HE160) | MCS0; MCS9; MCS11 |
| 6 GHz, 802.11be (EHT20) | MCS0; MCS11 |
| 6 GHz, 802.11be (EHT40) | MCS0; MCS11 |
| 6 GHz, 802.11be (EHT80) | MCS0; MCS9; MCS11; MCS13 |
| 6 GHz, 802.11be (EHT160) | MCS0; MCS9; MCS11; MCS13 |
| 6 GHz, 802.11be (EHT320) | MCS0; MCS9; MCS11; MCS13 |
| Applicable software version | RGOS11.9(6)W5B9 or later |
|---|
| Maximum number of associated STAs | 1280; Radio 1: Up to 256 STAs; Radio 2: Up to 512 STAs; Radio 3: Up to 512 STAs |
|---|---|
| Maximum number of BSSIDs | 48 (up to 16 BSSIDs per radio) |
| Maximum number of WLAN IDs | 16 |
| STA management | SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent load balancing based on the STA quantity, traffic, or band; Intelligent STA identification technology; Rate set settings |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT; MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data channels; Encryption over CAPWAP control channels |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU and TAG device locating |
| Application management | Application identification |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server; PSK, PPSK, Web, 802.1X, WPA, WPA2, and WPA3 authentication; QR code-based guest authentication, SMS-based authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless Intrusion Detection System (WIDS); User isolation; Rogue AP detection and containment |
| ACL | IP standard ACL, MAC extended ACL, IP extended ACL, expert-level ACL, and IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC) |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP); ARP attack defense, ICMP attack defense, and DHCP attack defense |
| MAC | Static MAC address, MAC address filtering, MAC address limiting; MAC address table size: 4,096; Maximum number of static MAC addresses: 2,048; Maximum number of filtered MAC addresses: 2,048 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q; Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
| VLAN | Interface-based VLAN assignment; VLAN Group (dynamic VLAN assignment based on the MAC address and 802.11 key); Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Identification of IP address conflicts between downlink users; Maximum number of ARP entries: 2,048; ARP check |
| IPv4 services | Static IPv4 address and DHCP-assigned IPv4 address; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG, and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping; IPv6 DHCP client; Maximum number of IPv6 addresses configured on each Layer 3 interface: 400 |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging |
|---|---|
| Network management platform | Web management (Eweb) |
| User access management | Console, Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in Cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions |
|---|---|
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
| Wireless protocol | 802.11a/b/g/n/ac/ax/be |
|---|---|
| Radyo Tasarımı | Quad-radio: 2.4 GHz (2x2), 5 GHz (4x4), 5 GHz/6 GHz (4x4), 2.4 GHz/5 GHz (2x2), up to 12 spatial streams |
| Max. data transmission rate | 17.982 Gbps |
| Wi-Fi antenna | Built-in omnidirectional smart antenna |
| Sabit Servis Portları | 1 x 100/1000/2.5G/5G/10GBASE-T port 1 x 10GE SFP+/RJ45 combo port 1 x 10/100/1000BASE-T port |
| Bluetooth | Bluetooth 5.3 |
| Max. number of associated STAs | 1280 |
| Maks. Güç Tüketimi | 55 W |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to 122°F) |
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-AP7176-R(V2) hakkında kısa yanıtlar.
RG-AP7176-R(V2) fiyatı ne kadar?
RG-AP7176-R(V2) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
