RUIJIE · RG-AP880-E

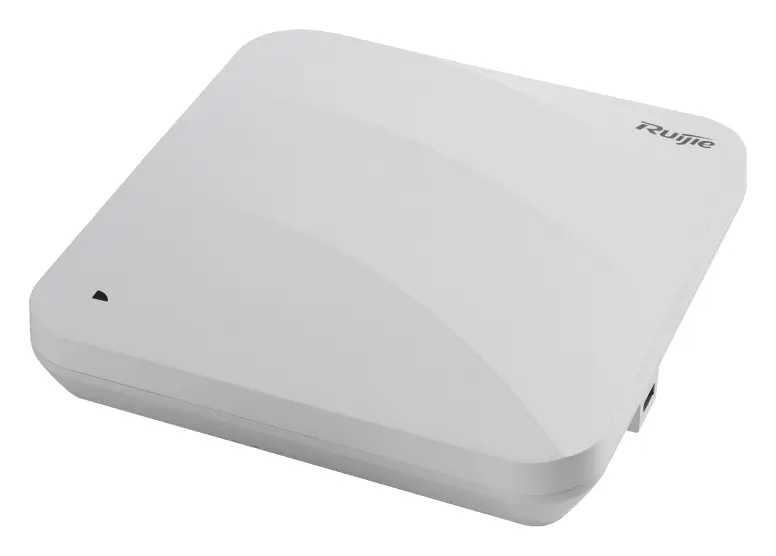

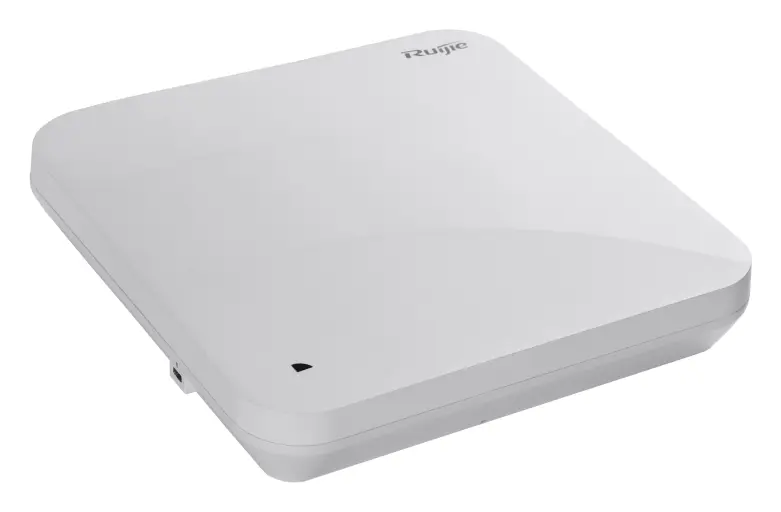

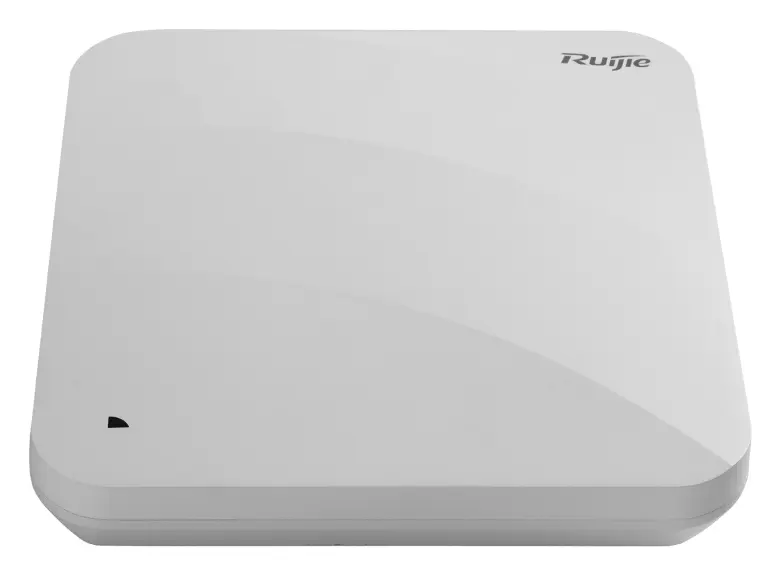

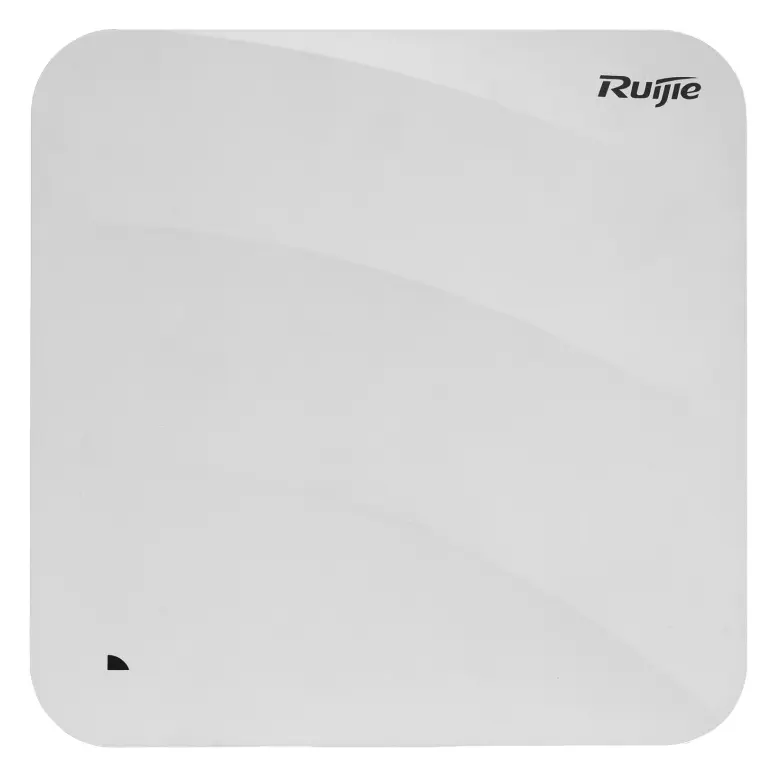

Ruijie RG-AP880-E Wi-Fi 6E Üç Bant Tavan Tipi Access Point
Model
RG-AP880-ERuijie RG-AP880-E access point: Multi-scenario adaptability, providing flexible solutions to meet diverse service needs, 5G optical port and 5G electrical port for flexible networking, Upgraded to Wi-Fi 6E, a combined data rate of up to 7.780 Gbps, PoE and DC power supply, flexible deploymen.
- Kablosuz standart
- Wi-Fi 6E
- Multi-scenario adaptability, providing flexible solutions to meet diverse service needs
- 5G optical port and 5G electrical port for flexible networking
- Upgraded to Wi-Fi 6E, a combined data rate of up to 7.780 Gbps
- PoE and DC power supply, flexible deployment
- Unified WIS cloud management, intelligent O&M
Genel bakış
Ruijie RG-AP880-E özellikleri ve kullanım alanları.
Indoor high-quality network scenarios in the higher education, medical industry, government and commerce
Product Overview The RG-AP880-E is a Wi-Fi 6E wireless access point that delivers tri radios, high performance, and enterprise-grade encryption. Its hybrid cloud management mode and high-density access design allow the RG-AP880-E to be flexibly deployed in high-quality network scenarios, such as classrooms, dormitories, and large venues in the education industry, outpatient clinics and mobile ward rounds in the medical industry, and large conference centers in government and commerce industries. Product Highlights Ultra-High Performance Tri-band design (2.4 GHz + 5 GHz + 6 GHz), six spatial streams, 1024-Quadrature Amplitude Modulation (QAM) high-speed access, and up to 7.780 Gbps peak data rate, realizing high-speed wireless access experience Wi-Fi 6E technology to leverage 6 GHz spectrum resources and deliver a data rate of up to 4.804 Gbps at 6 GHz radio, providing supreme wireless experience to users RF power adjustment and intelligent channel allocation to solve the problems such as co-channel interference and adjacent channel interference, thereby improving network transmission efficiency and stability
Flexible Networking Local and cloud management modes, and intelligent wireless network optimization, reducing TCO and maximizing ROI Access through optical and Ethernet cables for flexible networking and high-speed backhaul over 5 Gbps wired links IEEE 802.11k/v/r support, roaming stickiness optimization, and client steering, achieving seamless roaming and improved user experience Rich IoT features: PoE output, Bluetooth 5.1, and wireless locating High Security and Reliability Encryption and authentication technologies including Wi-Fi Protected Access 3 (WPA3), enhanced open security, 802.1X, and Private Pre-shared Key (PPSK), enhancing data security Dynamic Frequency Selection (DFS), optimizing the use of available RF spectrum to prevent radar channel interference Cyclic Delay/Shift Diversity (CDD/CSD), Maximum Ratio Combining (MRC), Space-Time Block Coding (STBC), and Low-Density Parity Check (LDPC), improving the signal quality, signal receiving, and reliability and performance of data transmission Transmit beam-forming (TxBF) expands the signal coverage and enhances the reliability of specific devices, thereby improving the data rate Intelligent identification and monitoring,…
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM; Packet aggregation:; Aggregate |
|---|---|
| 802.11ac | Two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DFS); Cyclic |
| 802.11ax | Eight spatial streams; Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 3 – 6 GHz: 4x4 uplink/downlink MU-MIMO, four spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – 6 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 7.780 Gbps:; Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8. |
| Anten | Wi-Fi; 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.; 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi.; 6 GHz: four built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.; Bluetooth; One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4.6 dBi. |

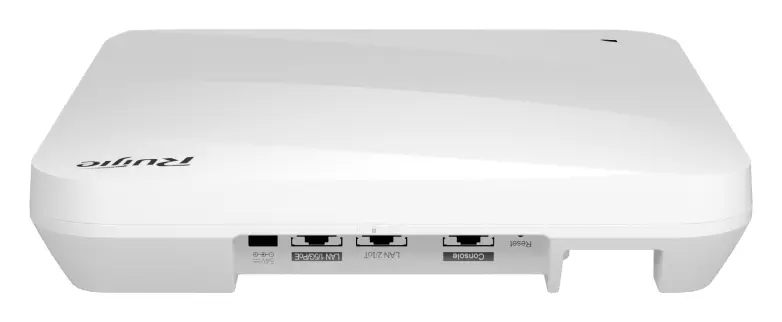

| Port | 1 x 100/1000/2.5G/5GBase-T port; 1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules, shared with one 100/1000/2.5G/5GBASE-T port; 1 x 10/100/1000Base-T port; 1 x RJ45 console port (serial console port); 1 x USB 3.0 (Type-A connector); 1 x Bluetooth 5.1 |
| Status LED | 1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Boyutlar (G x D x Y) | Main unit: 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.); Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.) |
| Ağırlık | Main unit: 1.0 kg (2.20 lbs); Mounting bracket: 0.1 kg (0.22 lbs); Shipping: 1.25 kg (2.76 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Input power supply | The AP supports the following two power supply modes:; 54 V DC/1.1 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).; Note: If both DC power and PoE are available, DC power is preferred. |
| Maks. Güç Tüketimi | Maximum power consumption: 40 W; DC power: 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 for PoE supply, and USB port enabled; 802.3af (PoE): 12.95 W, 2.4 GHz radio 1x1, 5 GHz radio 1x1, 6 GHz radio 1x1, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled); 802.3at (PoE+): 23 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, 6 GHz radio 4x4, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled |
| External power supply | When powered by 802.3bt (PoE++), the AP can supply power to an external device.; The USB port can source 1 A/5 W power to an attached device.; The LAN 2 port can source 48 V/12.95 W power to an IoT unit. |
| Ortam Koşulları | Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.); Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the m |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 512 MB DRAM, 256 MB flash |
| Yayın Gücü | 2.4 GHz; Maximum transmit power: 27 dBm (500 mW); Minimum transmit power: 7 dBm (5.01 mW); 5 GHz; Maximum transmit power: 30 dBm (1000 mW); Minimum transmit power: 6 dBm (3.98 mW); 6 GHz; Maximum transmit power: 26 dBm (398 mW); Minimum transmit power: 9 dBm (7.94 mW); Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz, 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE160) | MCS0; MCS11 |
| 6GHz 802.11ax (HE20) | MCS0; MCS11 |
| 6GHz 802.11ax (HE40) | MCS0; MCS11 |
| 6GHz 802.11ax (HE80) | MCS0; MCS11 |
| 6GHz 802.11ax (HE160) | MCS0; MCS11 |
| Applicable software version | RGOS11.9(6)W3B4 or later |
|---|
| Maximum number of associated STAs | 1,536 (up to 512 STAs per radio) |
|---|---|
| Practical maximum client count indication (per device) | 320 |
| Maximum number of BSSIDs | 45 (up to 15 BSSIDs per radio) |
| Maximum number of WLAN IDs | 15 |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU and TAG device locating |
| Application management | Application identification |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, UPSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP, GCMP), WPA3-OWE |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless Intrusion Detection System(WIDS); Wireless Intrusion Protection System(WIPS); User isolation; Rogue AP detection and containment |
| Dynamic Policy | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC); CoA/DM |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| MAC | Static and filtered MAC addresses; MAC address table size: 2,048; Maximum number of static MAC addresses: 2,048; Maximum number of filtered MAC addresses: 2,048 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q; Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
| VLAN | Interface-based VLAN assignment; Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Identification of IP address conflict among downlink users; Maximum number of ARP entries: 2,048; ARP check |
| IPv4 services | Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client; DNSv6 client; TFTPv6 client |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging |
|---|---|
| Network management platform | Web management (Eweb) |
| User access management | Console, Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions |
|---|---|
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
| Uyumluluk | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, ETSI EN 303 687, EN IEC 62311, IEC 62368-1, EN 62368-1, EN 18031-1, and EN 18031-2 |
|---|
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Radyo Tasarımı | Tri-radio: 2.4 GHz (2x2), 5 GHz (2x2), 6 GHz (4x4),up to 8 spatial streams |
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz + 6 GHz, 7.780 Gbps |
| Anten Tipi | Built-in omnidirectional antennas |
| Bluetooth | Bluetooth 5.1 |
| Maks. Güç Tüketimi | 40 W |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to 122°F) |
| IP Koruma Sınıfı | - |
| Garanti | 3 Years |
