RUIJIE · RG-AP820-AR(V3)

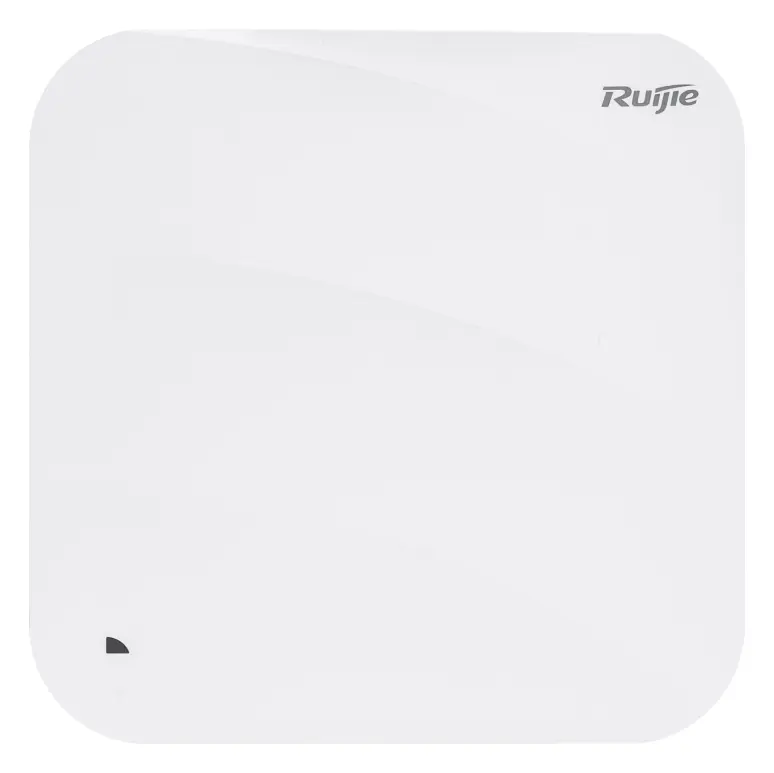

Ruijie RG-AP820-AR(V3) Wi-Fi 6 Üç Bant Tavan Tipi Access Point
Model
RG-AP820-AR(V3)Ruijie RG-AP820-AR(V3) access point: 5 Gbps SFP combo port for flexible networking, Seamless client roaming enabled by AI radio, Real-Time, full-band scanning for a secure network, 160 MHz high bandwidth, 2.976 Gbps high speed with Wi-Fi 6, WIS unified cloud management for easy O&M.
- Kablosuz standart
- Wi-Fi 6
- 5 Gbps SFP combo port for flexible networking
- Seamless client roaming enabled by AI radio
- Real-Time, full-band scanning for a secure network
- 160 MHz high bandwidth, 2.976 Gbps high speed with Wi-Fi 6
- WIS unified cloud management for easy O&M
Genel bakış
Ruijie RG-AP820-AR(V3) özellikleri ve kullanım alanları.
Indoor scenarios in the higher education, government, general education, finance, and business sectors
Wi-Fi 6 AR Series Indoor AP RG-AP820-AR(V3) with Built-in AI Radio
Six spatial streams
Max. data rate: 2.976 Gbps
160 MHz channel width
PoE/DC power supply
Bluetooth 5.1

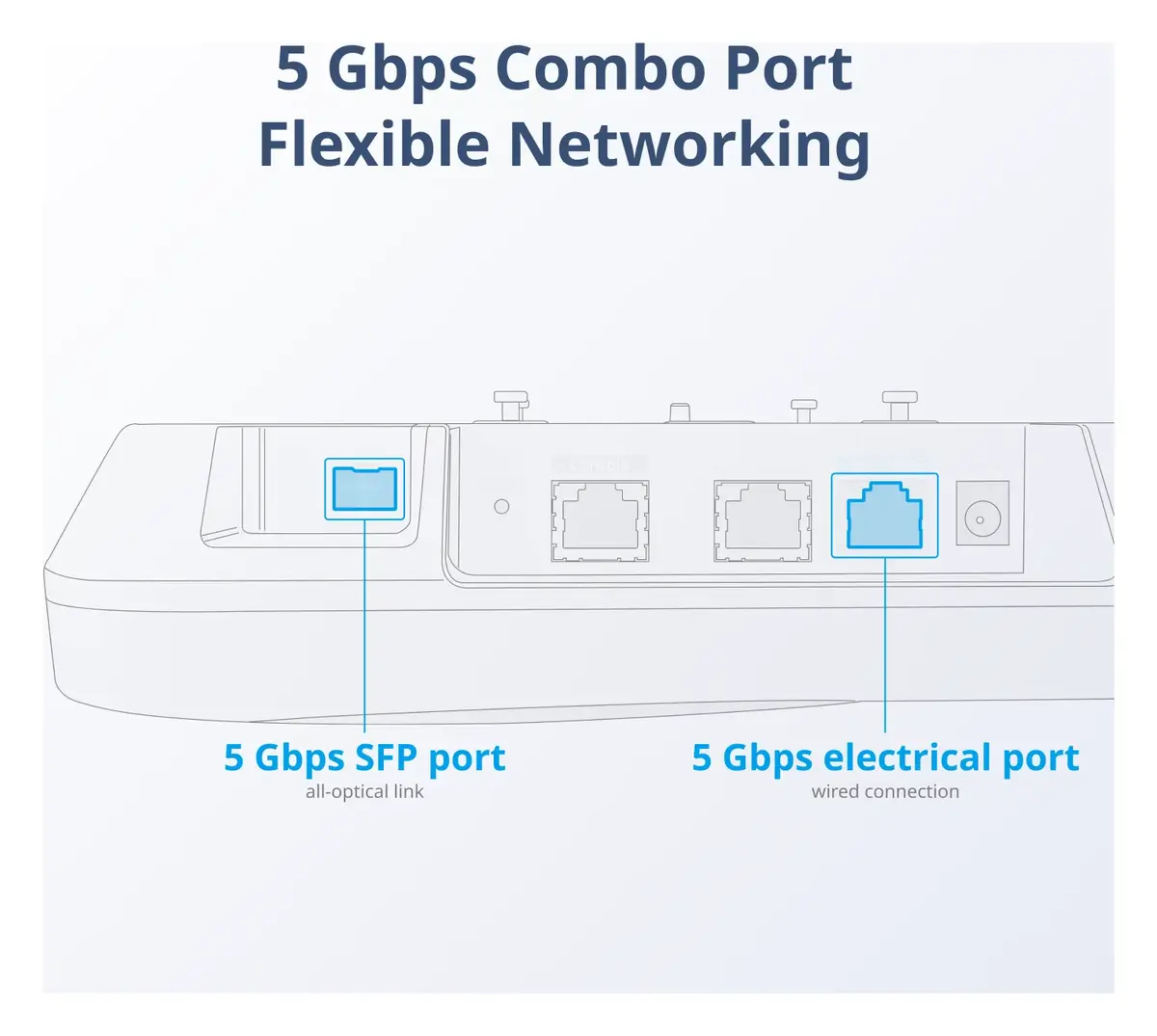

5 Gbps Combo Port, Flexible Networking
The 5 Gbps SFP port is designed for Ruijie All-Optical i-Share+ Solution, unleashing the bandwidth performance to achieve ultra-gigabit access. Moreover, one 5 Gbps electrical port is provided for wired connection, maximizing the return on investment (ROI).
Built-in AI Radio, Superior Roaming Experience
The built-in AI radio module can perform real-time client scanning and report the scanning results to the AC. Based on the information, the AC steers clients to connect to nearby APs with stronger signals. This enables optimal signal quality and service continuity for superior roaming experience.
Built-in AI Radio
Average roaming latency < 30 ms Packet loss rate < 0.5%
Conventional settled APs
Average roaming latency of 300 ms Packet loss rate of 2%
Real-Time and Full-Band Scanning, High Security
AI radio enables real-time and full-band scanning to eliminate potential risks compared with timeframe-based and single-band scanning, ensuring high network security. The secure scanning approach does not consume radio resources for communication, enabling high wireless performance and sound user experience.
24/7 real-time scanning 2.4 GHz/5 GHz full-band scanning
Timeframe-based and single-band scanning Radio resource consumption
AI Radio safeguarding
Traditional AP safeguarding
Upgraded to Wi-Fi 6, High-Speed Access at 2.976 Gbps
OFDMA and MU-MIMO technologies, ensuring concurrent robust connections for multiple clients
1024-QAM modulation, 25% higher data transmission rate than 802.11ac
OFDMA technology, reducing latency to 20 ms when data is transmitted to multiple clients simultaneously
WPA3 encryption protocol, greatly enhancing wireless security
Unified Cloud Management for Easy O&M
WIS Cloud Network enables network-wide configuration and optimization. It also supports O&M on the mobile app Wi-Fi Moho.
Go to WIS->
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | Six spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Radio 3 – AI Radio, 2.4 GH/5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Radio 3 – AI Radio, 2.4 GH/5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio 3 – AI Radio, 2.4 GHz/5 |
|---|---|
| 802.11ac | Four spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Radio 3 – AI Radio, 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Radio 3 – AI Radio, 5 GHz: 20 MHz, 40 MHz, and 80 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio 3 – AI Radio, 5 GHz: AI Radio for scanning only; Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16- |
| 802.11ax | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps:; Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OF |
| Anten | Wi-Fi; 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.4 dBi.; 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 5.2 dBi.; Bluetooth; One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 4.6 dBi. |

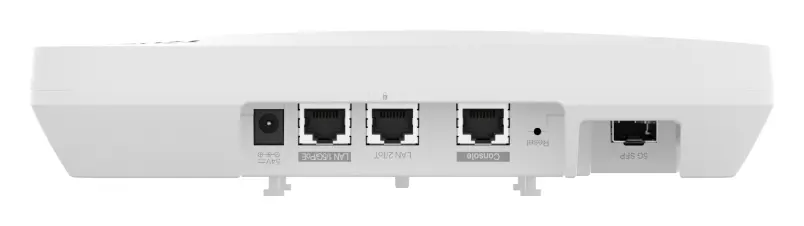

| Port | 1 x 100/1000/2.5G/5GBASE-T port, compliant with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++); 1 x 5GE SFP/RJ45 combo port, compatibility with 1GE and 2.5GE modules, shared with one 100/1000/2.5G/5GBASE-T port; 1 x 10/100/1000BASE-T port; 1 x RJ45 console port (serial console port); 1 x USB 3.0 (Type-A connector); 1 x Bluetooth 5.1 |
| Status LED | 1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Boyutlar (G x D x Y) | Main unit: 230 mm x 230 mm x 51 mm (9.06 in. x 9.06 in. x 2.01 in.); Shipping: 284 mm x 262 mm x 124 mm (11.18 in. x 10.31 in. x 4.88 in.) |
| Ağırlık | Main unit: 1.0 kg (2.2 lbs); Mounting bracket: 0.1 kg (0.22 lbs); Shipping: 1.25 kg (2.76 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Input power supply | The AP supports the following two power supply modes:; 54 V DC/1.1 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.1 mm (0.08 in.) or outer diameter of 5.5 mm (0.22 in.) and the length of 9.5 mm (0.37 in.). A DC power supply needs to be purchased independently.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af/at/bt standard (PoE/PoE+/PoE++).; Note: If both DC power and PoE are available, DC |
| Maks. Güç Tüketimi | Maximum power consumption: 40 W; DC power: 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, AI Radio enabled, LAN 2 for PoE supply, and USB port enabled; 802.3bt (PoE++): 40 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, AI Radio enabled, LAN 2 for PoE supply, and USB port enabled; 802.3at (PoE+): 23 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2, AI Radio enabled, LAN 2 and USB port that fail to provide power for external devices (PoE out disabled of LAN 2 and USB port disabled); 802.3af (PoE): 12.95 W, 2.4 GHz radio |
| External power; supply | When powered by 802.3bt (PoE++), the AP can supply power to an external device.; The USB port can source 1 A/5 W power to an attached device.; The LAN 2 port can source 48 V/12.95 W power to an IoT unit. |
| Ortam Koşulları | Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 5% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 2,000–5,000 m (6,561.68–16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the ma |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 1 GB DRAM, 256 MB flash |
| Yayın Gücü | 2.4 GHz; Maximum transmit power: 27 dBm (501.19 mW); Minimum transmit power: 19 dBm (79.43 mW); 5 GHz; Maximum transmit power: 26 dBm (398.11 mW); Minimum transmit power: 21 dBm (125.89 mW); Note: The transmit power adjusted in percentage. The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz, 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE160) | MCS0; MCS11 |
| Applicable software version | RGOS11.9(6)W2B5 or later |
|---|
| Maximum number of associated STAs | 1,024 (up to 512 STAs per radio) |
|---|---|
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Maximum number of WLAN IDs | 16 |
| STA management | SSID hiding; Band steering; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification technology; Intelligent load balancing based on the STA quantity, traffic, and frequency band; Rate set settings |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT; MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data channels; Encryption over CAPWAP control channels |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU and TAG device locating |
| Application management | Application identification |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying the source IP address of RADIUS packets, and built-in authentication server; PSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP, GCMP) |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless Intrusion Detection System(WIDS); User isolation; Rogue AP detection and containment |
| ACL | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; ACL Remark; Dynamic ACL assignment based on 802.1X authentication (used with the AC) |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| MAC | Static and filtered MAC addresses; MAC address table size: 2,048; Maximum number of static MAC addresses: 2,048; Maximum number of filtered MAC addresses: 2,048 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; IEEE802.1p and IEEE802.1Q; Optical module information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP) |
| VLAN | Interface-based VLAN assignment; Maximum number of SVIs: 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 2,048; ARP check |
| IPv4 services | Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping; IPv6 DHCP client |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | NTP server and NTP client; SNTP client; SNMPv1/v2C/v3; Fault detection and alarm; Information statistics and logging |
|---|---|
| Network management platform | Web management (Eweb) |
| User access management | Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions |
|---|---|
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
| Uyumluluk | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN IEC 62311, IEC 62368-1, EN 62368-1, EN 18031-1, and EN 18031-2 |
|---|
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Radyo Tasarımı | Tri-radio: 2.4 GHz (2x2), 5 GHz (2x2), 2.4GHz/5GHz (2x2),up to 6 spatial streams |
| Veri Hızı | 2.976 Gbps |
| Anten Tipi | Built-in omnidirectional antennas |
| Bluetooth | Bluetooth 5.1 |
| Maks. Güç Tüketimi | 40 W |
| External Power Supply | Evet |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to 122°F) |
| IP Koruma Sınıfı | - |
| Garanti | 3 Years |
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-AP820-AR(V3) hakkında kısa yanıtlar.
RG-AP820-AR(V3) fiyatı ne kadar?
RG-AP820-AR(V3) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, RG-AP820-AR(V3) için fiyat ve teslim süresini iletelim.
