RUIJIE · RG-SAP825-SP

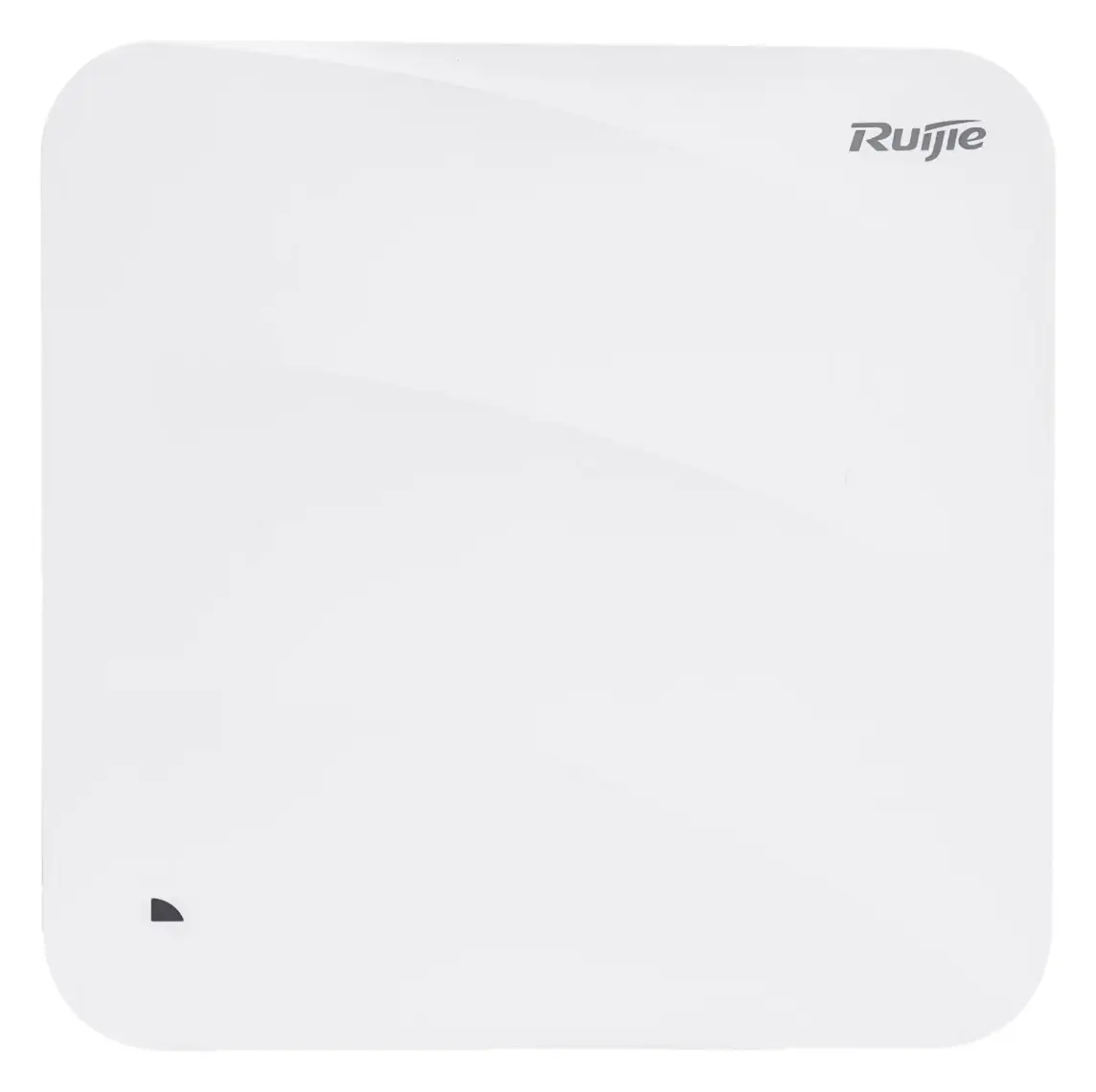

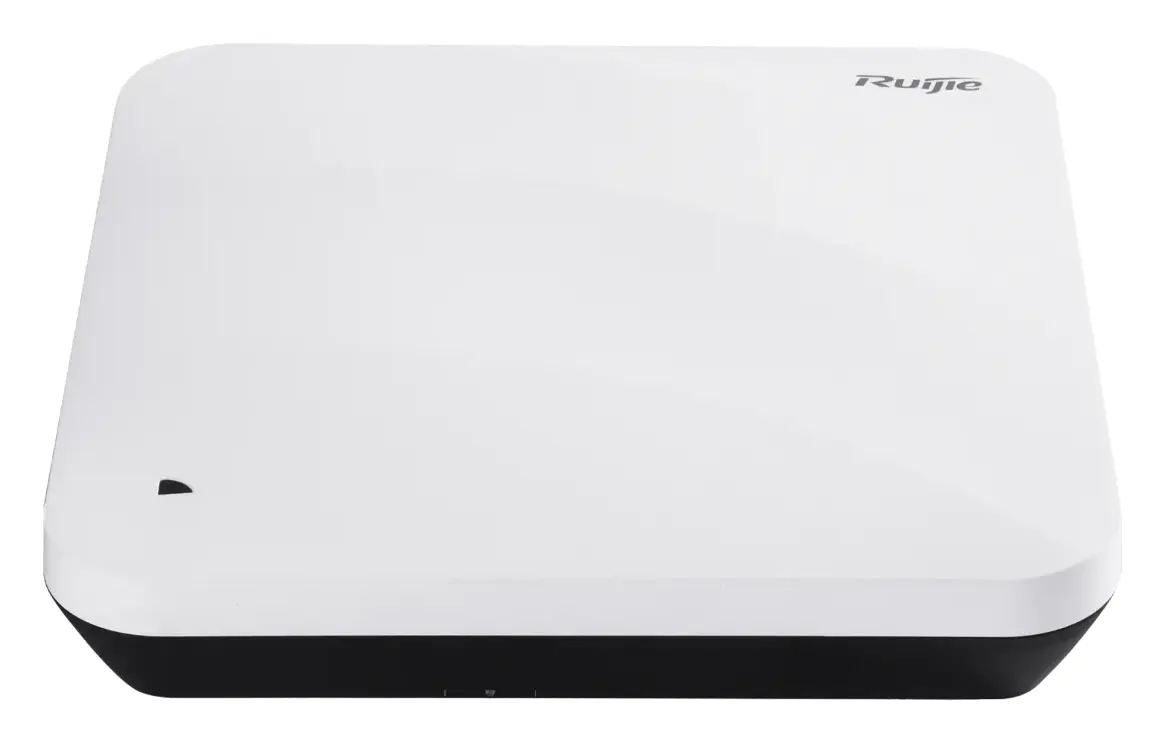

Ruijie RG-SAP825-SP Wi-Fi 6 Çift Bant Tavan Tipi Access Point
Model
RG-SAP825-SPRuijie RG-SAP825-SP access point: 2.5 Gbps combo port for flexible networking, Upgraded to Wi-Fi 6, high-speed access at 2.976 Gbps, WIS unified cloud management for easy O&M.
- Kablosuz standart
- Wi-Fi 6
- 2.5 Gbps combo port for flexible networking
- Upgraded to Wi-Fi 6, high-speed access at 2.976 Gbps
- WIS unified cloud management for easy O&M
Genel bakış
Ruijie RG-SAP825-SP özellikleri ve kullanım alanları.
Indoor high-density network scenarios in the higher education, medical industry, government and commerce
The RG-SAP825-SP is a Wi-Fi 6 wireless access point that integrates dual radios, high performance, and enterprise-grade encryption technology. Due to the hybrid cloud management mode and high-density access design, it is suitable for flexible deployment in high-quality network scenarios, such as classroom, dormitory, and office scenarios in the education industry, production workshop and warehouse scenarios in the manufacturing industry, and outpatient clinics and mobile ward rounds scenarios in the medical industry.
Product Highlights Ultra-High Performance Dual-band design (2.4 GHz + 5 GHz), four spatial streams, 1024-Quadrature Amplitude Modulation (QAM) high-speed access, and up to 2.976 Gbps peak data rate, realizing high-speed wireless access experience Orthogonal Frequency-Division Multiple Access (OFDMA), Multi-User Multiple-Input Multiple-Output (MU-MIMO), and Wi-Fi Multimedia (WMM), increasing the average rate per user in high-density deployment environments RF power adjustment and intelligent channel allocation to solve the problems such as co-channel interference and adjacent channel interference, thereby improving network transmission efficiency and stability Flexible Networking Local and cloud management modes, and intelligent wireless network optimization, reducing TCO and maximizing ROI Access through optical and Ethernet cables for flexible networking and high-speed backhaul over 2.5 Gbps optical links IEEE 802.11k/v/r support and roaming stickiness optimization, achieving seamless user roaming Rich IoT features: PoE output, Bluetooth 5.1, and wireless locating High Security and Reliability Encryption and authentication technologies including Wi-Fi Protected Access 3 (WPA3),…
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS31); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM; Packet aggregation:; Aggregate |
|---|---|
| 802.11ac | Two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DFS); Cyclic |
| 802.11ax | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps:; Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFDMA); Modulation types: BPSK, QPSK, 16 |
| Anten | Wi-Fi; 2.4 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 5 dBi.; 5 GHz: two built-in omnidirectional smart antennas, with peak antenna gain of 5.7 dBi.; Bluetooth; One onboard omnidirectional antenna, with peak antenna gain of 2.4 dBi. |

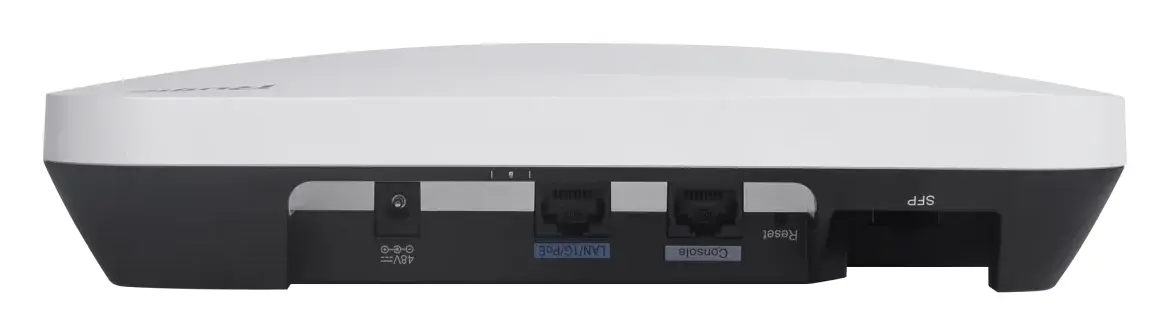

| Port | 1 x 10/100/1000BASE-T port; 1 x 2.5GE SFP/RJ45 combo port, compatibility with 1GE module, shared with one 10/100/1000BASE-T port; 1 x RJ45 console port (serial console port); 1 x Bluetooth 5.1 |
| Status LED | 1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Boyutlar (G x D x Y) | Main unit: 220 mm x 220 mm x 49 mm (8.66 in. x 8.66 in. x 1.93 in.); Shipping: 507 mm x 319 mm x 278 mm (19.96 in. x 12.56 in. x 10.94 in.) |
| Ağırlık | Main unit: 0.6 kg (1.33 lbs); Mounting bracket: 0.2 kg (0.44 lbs); Shipping: 1.04 kg (2.29 lbs) |
| Montaj | Wall/Ceiling-mount (a mounting bracket is delivered with the main unit) |
| Lock option | Kensington lock and securing latch |
| Input power supply | The AP supports the following two power supply modes:; 48 V/0.6 A power input over DC connector: The DC connector accepts 2.1 mm/5.5 mm center-positive circular plug. A DC power supply needs to be purchased independently.; PoE input over LAN 1: The power source equipment (PSE) complies with IEEE 802.3af standard (PoE).; Note: If both DC power and PoE are available, DC power is preferred. |
| Maks. Güç Tüketimi | Maximum power consumption: 12.95 W; DC power: 12.95 W; 802.3bt (PoE++): 12.95 W; 802.3at (PoE+): 12.95 W; 802.3af (PoE): 12.95 W; Idle mode: 6 W |
| Ortam Koşulları | Storage temperature: –40°C to +70°C (–40°F to +158°F); Storage humidity: 0% RH to 95% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1,640.42 ft. to +16,404.20 ft.); Operating temperature: –10°C to +50°C (14°F to 122°F); Operating humidity: 0% RH to 95% RH (non-condensing); Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.); Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), the |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 512 MB DRAM, 128 MB flash |
| Maks. Yayın Gücü | 2.4 GHz; Maximum transmit power: 26 dBm (398.11 mW); 5 GHz; Note:; Adjusting the transmit power by percentage (recommended) and in 1dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz 802.11ax (HE160) | MCS0; MCS11 |
| Applicable software version | RGOS11.9(6)W1B4 or later |
|---|
| Maximum number of associated STAs | 256 (up to 128 STAs per radio) |
|---|---|
| Practical maximum client count indication (per device) | 128 |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| WLAN service | Maximum number of WLAN IDs: 16; Maximum number of associated STAs per WLAN: 32 |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification technology; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; CAPWAP through NAT; Encryption over CAPWAP data channels; Encryption over CAPWAP control channels |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU device locating |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication (used with RG-WS series ACs); Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal (SAE), WPA3-Personal (WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP) |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Wireless Intrusion Detection System (WIDS); User isolation; Rogue AP detection and containment |
| ACL | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; ACL Remark; Dynamic ACL assignment based on 802.1X authentication (used with the AC) |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| MAC | Static and filtered MAC addresses; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Ethernet II frame format; 1000M SFP ports; 2.5GE interfaces |
| VLAN | Interface-based VLAN assignment; Maximum. number of SVIs (IPv4): 200; Maximum number of SVIs (IPv6): 200; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; ARP check |
| IPv4 services | Static and DHCP-assigned IPv4 addresses; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), ICMPv6, IPv6 ping, IPv6 tracert; IPv6 DHCP client; Maximum number of IPv6 addresses configured on each Layer 3 interface: 400; Maximum number of ND entries: 4,096 |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | Fault detection and alarm; Information statistics and logging |
|---|---|
| Network management platform | Web management (Eweb); RG-WS series wireless controller and Ruijie Cloud; Wireless marketing: WMC/MCP |
| User access management | Console, Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions |
|---|---|
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
| Uyumluluk | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1,; EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440,; FCC Part 15, EN IEC 62311, IEC 62368-1, EN 62368-1, EN 18031-1, and EN 18031-2 |
|---|
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Radyo Tasarımı | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2),up to 4 spatial streams |
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps |
| Anten Tipi | Built-in omnidirectional smart antennas |
| Bluetooth | Bluetooth 5.1 |
| Maks. Güç Tüketimi | 12.95 W |
| External Power Supply | Hayır |
| Çalışma Sıcaklığı | –10°C to +50°C (14°F to 122°F) |
| IP Koruma Sınıfı | - |
| Garanti | 3 Years |
