RUIJIE · RG-AP680-O(V3)
Ruijie RG-AP680-O(V3) Wi-Fi 6 Çift Bant Dış Ortam Access Point
Model
RG-AP680-O(V3)Ruijie RG-AP680-O(V3) access point: 2.5G SFP and Gigabit Ethernet Port for Flexible Networking, Built-in Omnidirectional Antennas, Wide Wi-Fi Coverage, Industrial-Grade Product Design, 2.976 Gbps High Speed with 160 MHz Band, Unified Cloud Management for Easy O&M.
- Kablosuz standart
- Wi-Fi 6
- 2.5G SFP and Gigabit Ethernet Port for Flexible Networking
- Built-in Omnidirectional Antennas, Wide Wi-Fi Coverage
- Industrial-Grade Product Design
- 2.976 Gbps High Speed with 160 MHz Band
- Unified Cloud Management for Easy O&M
Genel bakış
Ruijie RG-AP680-O(V3) özellikleri ve kullanım alanları.
Outdoor scenarios covering school playgrounds, wireless cities, energy, and business malls
RG-AP680-O(V3) Wi-Fi 6 Outdoor Access Point
Outdoor AP with Full Functions
Omnidirectional Antennas
160 MHz
Max. Data Rate 2.976 Gbps
IP68
Max number of associated STAs 1024

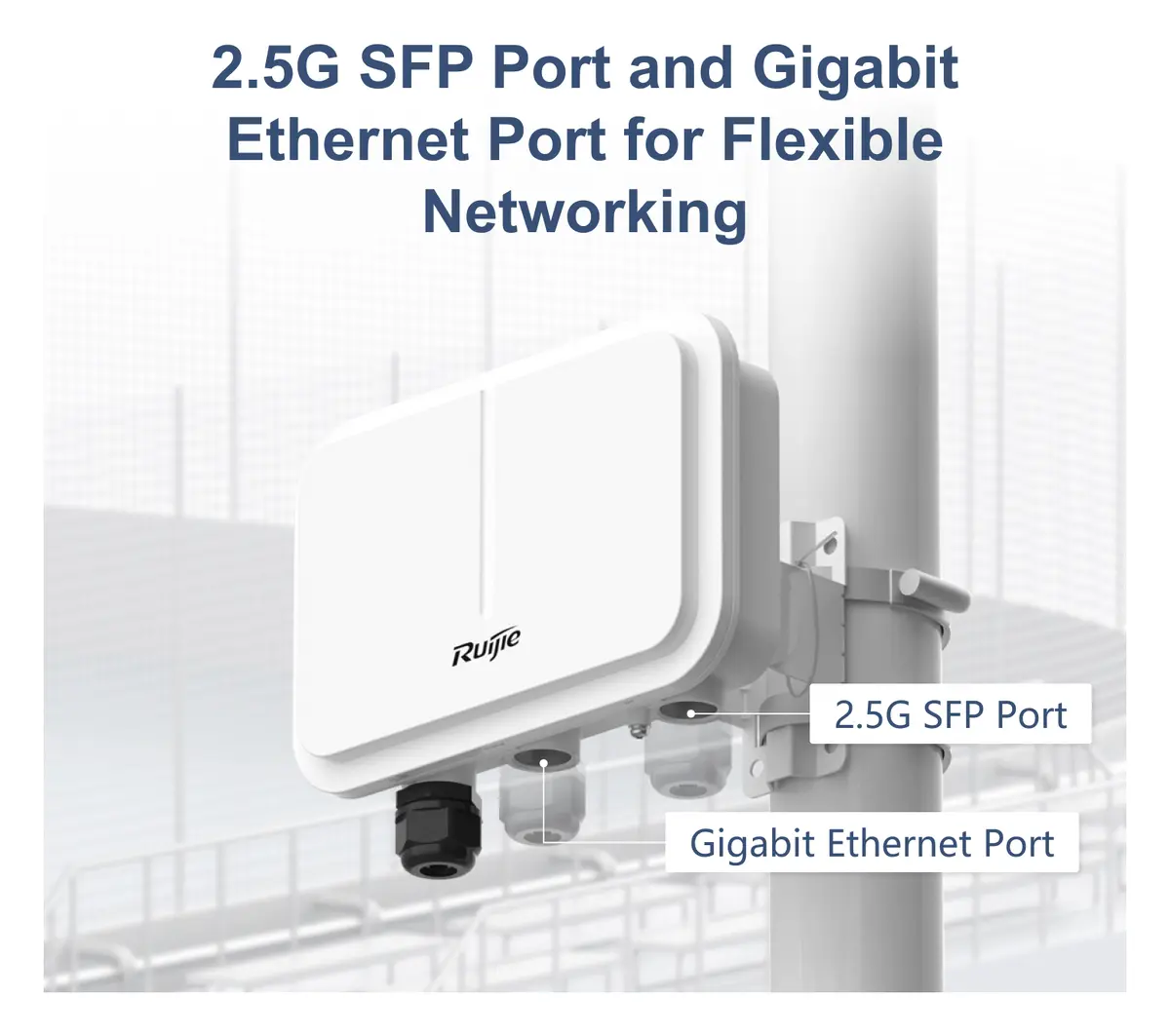

2.5G SFP Port and Gigabit Ethernet Port for Flexible Networking
2.5G SFP port
Supports all-optical networks and high bandwidth for outdoor transmission over 1+ km.
Gigabit Ethernet port
Supports flexible wired connection.
Built-in Omnidirectional Antennas, Wide Wi-Fi Coverage
The transmit power reaches 28 dBm. STAs in all directions can enjoy good wireless signal strength.
Industrial-Grade Product Design
Wide Temperature Range
IP68 dustproof and waterproof
–40°C to +65°C, adapting to different regions
6 kV lightning protection, ensuring stable running
2.976 Gbps High Speed with 160 MHz Band
Next-generation AX3000 chip supports 160 MHz channel bandwidth in the 5 GHz band. Increase the rate to 2.976 Gbps with doubled channel bandwidth.
160MHz | 2.976 Gbps
Unified Cloud Management for Easy O&M
WIS Cloud Network enables network-wide configuration and optimization. It also supports O&M on the mobile app Wi-Fi Moho.
Go to WIS Cloud Network
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| 802.11n | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600Mbps; Radio 1 – 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15 ); Radio 2 – 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; A |
|---|---|
| 802.11ac | Two spatial streams; Radio 2 – 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 – 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM; Packet aggregation:; Aggregate MAC Protocol Data Unit (A-MPDU); Aggregate MAC Service Data Unit (A-MSDU); Dynamic Frequency Selection (DF |
| 802.11ax | Four spatial streams; Radio 1 – 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 – 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 – 2.4 GHz: 20 MHz and 40 MHz; Radio 2 – 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps; Radio 1 – 2.4 GHz: 8.6 Mbps to 0.574 Gbps (MCS0 to MCS11); Radio 2 – 5 GHz: 8.6 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: uplink/downlink Orthogonal Frequency-Division Multiple Access (OFD |
| Anten | Wi-Fi; 2.4 GHz: two built-in omnidirectional antennas, with peak antenna gain of 4 dBi.; 5 GHz: two built-in omnidirectional antennas, with peak antenna gain of 6 dBi.; Bluetooth; One integrated vertically polarized omnidirectional antenna, with peak antenna gain of 5 dBi. |
| Port | 1 x 100/1000Base-T port; 1 x 2.5GE SFP port, compatibility with 1GE modules, supporting auto-negotiation; 1 x RJ45 console port (serial console port); 1 x Bluetooth 5.0 |
| Status LED | 1 x multi-color system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service interface status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating; Three single-color signal strength LEDs:; Whether bridging is enabled; Whether bridging is successful; Wireless signal strength after successful bridging |
| Buton | 1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings. |
| Boyutlar (G x D x Y) | Main unit: 251 mm x 168 mm x 64 mm (9.88 in. x 6.61 in. x 2.52 in.); Shipping: 405 mm x 232 mm x 325 mm (15.94 in. x 9.13 in. x 12.80 in.) |
| Ağırlık | Main unit: 1.0 kg (2.2 lbs); Mounting bracket: 0.9 kg (1.98 lbs); Shipping: 3.15 kg (6.94 lbs) |
| Montaj | Ceiling/Wall/Pole-mount (a mounting bracket is delivered with the main unit) |
| Input power supply | The AP supports the following two power supply modes:; 48 V DC/0.35 A power input over DC connector: The DC connector accepts the center-positive circular plug with the inner diameter of 2.0 mm (0.08 in.) or outer diameter of 6.3 mm (0.25 in.) and the length of 9.8 mm (0.39 in.). A DC power supply needs to be purchased independently.; PoE input over ETH/PoE: The power source equipment (PSE) complies with IEEE 802.3af/at standard (PoE/PoE+).; Note: If both DC power and PoE are available, DC power |
| Maks. Güç Tüketimi | Maximum power consumption: 12.95 W; DC power: 12.95 W; 802.3at (PoE+): 12.95 W; 802.3af (PoE): 12.95 W; Idle mode: 6.0 W |
| Ortam Koşulları | Storage temperature: –40°C to +85°C (–40°F to +185°F); Storage humidity: 0% RH to 100% RH (non-condensing); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16,404.20 ft.); Operating temperature: –40°C to +65°C (-40°F to +149°F); Operating humidity: 0% RH to 100% RH (non-condensing); Operating altitude: –500 m to +4,000 m (–1,640.42 ft. to +13,123.36 ft.); Note: At an altitude in the range of 1,800–4,000 m (5,905.51–13,123.36 ft.), every time the altitude increases by 220 m (721.78 ft.), t |
| IP Koruma Sınıfı | IP68 |
| MTBF | 200,000 hours (22 years) at the operating temperature of 25°C (77°F) |
| System memory | 512 MB DRAM, 128 MB flash |
| Yayın Gücü | 2.4 GHz; Maximum transmit power: 28 dBm (630.96 mW); Minimum transmit power: 10 dBm (10 mW); 5 GHz; Note:; The transmit power adjusted in percentage.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance. |
| Frequency Band and Protocol | Data Rate |
|---|---|
| 2.4 GHz, 802.11b | 1 Mbps; 2 Mbps; 5.5 Mbps; 11 Mbps |
| 2.4 GHz, 802.11g | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 2.4 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 2.4 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 2.4 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 2.4 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11a | 6 Mbps; 24 Mbps; 36 Mbps; 54 Mbps |
| 5 GHz, 802.11n (HT20) | MCS0; MCS7 |
| 5 GHz, 802.11n (HT40) | MCS0; MCS7 |
| 5 GHz, 802.11ac (VHT20) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT40) | MCS0; MCS9 |
| 5 GHz, 802.11ac (VHT80) | MCS0; MCS9 |
| 5 GHz, 802.11ax (HE20) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE40) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE80) | MCS0; MCS11 |
| 5 GHz, 802.11ax (HE160) | MCS0; MCS11 |
| Applicable software version | RGOS11.9(6)W2B4 or later |
|---|
| Maximum number of associated STAs | 1,024 (up to 512 STAs per radio) |
|---|---|
| Practical maximum client count indication (per device) | 128 |
| Maximum number of BSSIDs | 32 (up to 16 BSSIDs per radio) |
| Maximum number of WLAN IDs | 16 |
| STA management | SSID hiding; Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote Intelligent Perception Technology (RIPT); Intelligent STA identification; Intelligent load balancing based on the STA quantity or traffic |
| STA limiting | SSID-based STA limiting; Radio-based STA limiting |
| Bandwidth limiting | STA/SSID/AP-based rate limiting |
| CAPWAP | IPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT |
| Data forwarding | Centralized and local forwarding |
| Wireless roaming | Layer 2 and Layer 3 roaming |
| Wireless locating | MU and TAG device locating |
| Application management | Application identification |
| Authentication and encryption | Remote Authentication Dial-In User Service (RADIUS); PSK, UPSK and web authentication; QR code-based guest authentication, SMS authentication, and MAC address bypass (MAB) authentication; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3 transition mode), WPA3-Enterprise (CCMP) |
|---|---|
| Data frame filtering | Allowlist, static blocklist, and dynamic blocklist |
| WIDS | Rogue device discovery; Optimization of rogue AP containment for all STA types; Fuzzy containment; SSID-based blocklist; DDoS attack identification; Automatic detection of STA attacks, and adding STAs to the blocklist when ICMP attacks or TCP SYN attacks are detected; STA isolation |
| Dynamic Policy | IP standard ACL, MAC extended ACL, IP extended ACL, and expert-level ACL; IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with the AC); CoA/DM |
| CPP | CPU Protect Policy (CPP) |
| NFPP | Network Foundation Protection Policy (NFPP) |
| MAC | Static and filtered MAC addresses; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024 |
|---|---|
| Ethernet | Jumbo frame length: 1,518; Ethernet II; 1000M SFP ports modules; 2.5G ports |
| VLAN | Interface-based VLAN assignment; Layer 2 isolation of wired interfaces (including aggregate interfaces) within VLANs; Maximum number of SVIs: 191; Maximum number of VLANs: 4,094; VLAN ID range: 1–4,094 |
| ARP | ARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; Detection of IP address conflicts among downlink hosts; ARP check |
| IPv4 services | Static and DHCP-assigned IPv4 addresses; NAT, FTP ALG and DNS ALG |
| IPv6 services | IPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, IPv6 ping; IPv6 DHCP client |
| IP Yönlendirme | IPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000 |
| Multicast | Multicast-to-unicast conversion |
| VPN | PPPoE client; IPsec VPN |
| Ağ Yönetimi | NTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarm; Information statistics and logging |
|---|---|
| Network management platform | Web management (Eweb) |
| User access management | Telnet, SSH, FTP client, FTP server, and TFTP client |
| Switchover among Fat, Fit, and cloud modes | When the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet mode.; When the AP works in cloud mode, it can be managed through WIS Cloud. |
| Experience | Network operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover |
|---|---|
| Network optimization | Network performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis – analyzing problems and providing suggestions |
| Big data | Baseline analysis – recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule – analyzing the device version and configuration change history |
| Regional analysis | Batch generation of building floor information – uploading floor plans, and dragging and dropping AP positions |
| One-click report | One-click health report – generating a report on the overall operation of a network |
| Security radar | Unauthorized Wi-Fi signal location, presentation by category, and containment |
| Yönetim ve Bakım | Uniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) – creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation |
|---|
| Authentication mode | SMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server |
|---|---|
| Customized portal | Customized Portal authentication page for mobile phones and PCs |
| SMS gateway | Interconnection with SMS gateways of GUODULINK and Alibaba Cloud |
| Big data capabilities | Mainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions |
|---|---|
| Hierarchy and decentralization | Authorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios |
| System management | Account operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions |
| Uyumluluk | EN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN 62311, EN IEC 62311, EN 50665, IEC 62368-1, EN 62368-1, IEC 60950-22, EN 18031-1, and EN 18031-2 |
|---|
| Wireless Protocols | 802.11a/b/g/n/ac/ax |
|---|---|
| Radyo Tasarımı | Dual-radio: 2.4 GHz (2x2), 5 GHz (2x2) up to 4 spatial streams |
| Veri Hızı | Combined peak data rate: 2.4 GHz + 5 GHz, 2.976 Gbps |
| Anten Tipi | Built-in omnidirectional antennas |
| Sabit Servis Portları | 1 x 100/1000Base-T Ethernet port 1 x 2.5GE SFP port |
| Bluetooth | Bluetooth 5.0 |
| Maks. Güç Tüketimi | 12.95 W |
| External Power Supply | Hayır |
| Çalışma Sıcaklığı | –40°C to +65°C (-40°F to +149°F) |
| Garanti | 3 Years |
