Router & Gateway RG-RSR20-XA

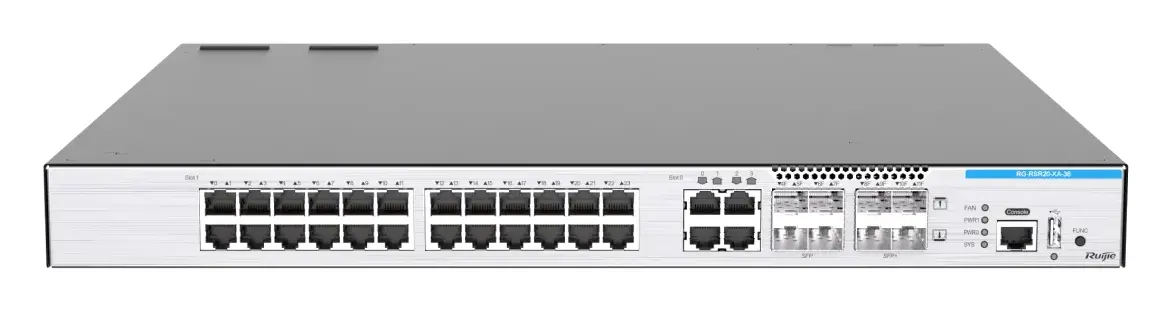

Ruijie RG-RSR20-XA-36 36 Port Gigabit Çok Servisli Router

Q: RG-RSR20-XA-36 fiyatı ne kadar?

RG-RSR20-XA-36 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.

ModelRG-RSR20-XA-36

Ruijie RG-RSR20-XA-36 router: Rich port types and quantity, multi-service convergence, one device for multiple purposes, simplifying network deployment, Dual redundancy for software and hardware and high system reliability, providing nonstop services, Comprehensive HQoS policy, enabling fi.

Port sayısı: 36 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Rich port types and quantity, multi-service convergence, one device for multiple purposes, simplifying network deployment
Dual redundancy for software and hardware and high system reliability, providing nonstop services
Comprehensive HQoS policy, enabling fine-grained traffic management and improving network experience of VIP users

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Port Özellikleri 4 satır

Sabit Servis Portları	WAN ports:; 4 x 10GE SFP+ ports; 4 x 1GE SPF ports; 4 x 10/100/1000BASE-T ports; LAN ports (supporting LAN/WAN switching):; 24 x 10/100/1000BASE-T ports
Sabit Yönetim Portu	1 x RJ45 console port
USB	1 x USB 2.0 port (Type-A connector)
Modül Yuvası	4 x expansion module slots; 2 x power module slots

Sistem Özellikleri 11 satır

Anahtarlama Kapasitesi	224 Gbps
Paket İletim Hızı	4 Mpps
MAC Adres Sayısı	Number of global MAC addresses: 10,000; Number of static MAC addresses: 4,000
ARP Tablosu Boyutu	24,000
Number of IPv4 unicast routes	100,000
Number of IPv4 multicast routes	2,048
Number of IPv6 unicast routes	100,000
Number of IPv6 multicast routes	1,024
Number of IGMP Groups	1,000
Number of MLD Groups	1,000
Number of ACEs	4,000

Boyutlar ve Ağırlık 3 satır

Cihaz Boyutları (G x D x Y)	440 mm x 420 mm x 44 mm (17.32 inch. x 16.56 in. x 1.73 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	< 7.8 kg (17.19 lbs, full configuration without packaging materials, with the nameplate at the bottom)

Güç Kaynağı ve Tüketim 5 satır

Maks. Güç Tüketimi	150 W
Güç Modülü Yedekliliği	1+1 redundancy
Güç Girişi	RG-PA150IB-F (AC input)：; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 3 A; RG-PD150IB-F (DC input)：; Rated input voltage: -48V~-60V DC; Maximum input voltage: -36V~-75V DC; Maximum input current: 5 A
Güç Çıkışı	RG-PA150IB-F (AC input):; Output voltage: 12 V; Maximum output corrent: 12.5 A; RG-PD150IB-F (DC input):
Maks. Çıkış Gücü	RG-PA150IB-F: 150 W; RG-PD150IB-F: 150 W

Ortam ve Güvenilirlik 4 satır

Sıcaklık	Operating temperature: 0°C to 50°C (32°F to 122°F); Storage temperature: –40°C to 70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
Aşırı Gerilim Koruması	6 kV

RG-RSR20-XA Series 10 satır

Ethernet Anahtarlama	Jumbo frame length: 2000 bytes; Voice VLAN; MAC address-based and interface-based VLAN assignment; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); LLDP/LLDP-MED
IP Servisleri	DHCP server, DHCP relay, DHCP client, and DHCP snooping; Static and dynamic NAT and VPN NAT; DHCPv6 client, DHCPv6 relay, and DHCPv6 snooping; Neighbor Discovery (ND); IPv6 GRE tunnel
IP Yönlendirme	IPv4/IPv6 static routing; RIP v1/v2 and RIPng; OSPFv2 and OSPFv3; GR; IS-ISv4 and IS-ISv6; BGP and BGP4+; Routing policies; IPv4/IPv6 VRF; IPv4 and IPv6 PBR
Multicast	IGMPv1/v2/v3; Static multicast routing; PIM-DM, PIM-SM, PIM-SSM, and other multicast routing protocols; PIM-SSM for IPv4 and IPv6; MSDP for inter-domain multicast; MLDv1/v2; PIM-SMv6
MPLS	MPLS forwarding; Two MPLS VPN modes: inter-AS Option B and Option C; MPLS L3VPN; 6PE/6VPE interconnection with IPv4/IPv6 MPLS backbone network; MPLS MIB (RFC 1273, 4265, 4382)
ACL ve QoS	Standard IP ACLs; Extended IP ACLs; Extended MAC ACLs; Expert-level ACLs (ACLs based on source and destination IP addresses and ports, and specified protocol); IPv6 ACLs
Güvenlik	Multiple AAA modes; RADIUS authentication and authorization; TACACS+; IEEE802.1X authentication, MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; MAC address allowlist, and bindings of VLAN IDs, interface numbers, and MAC addresses; SSHv1 and SSHv2; ICMP (interface discards ICMP traffic of which the rate exceeds the threshold); Port security; L2TP, IPsec VPN(AES-128, AES-256), and GRE; uRPF; Login authentication and password security; CPP;
Güvenilirlik	RLDP, Layer 2 link connectivity detection, unidirectional link detection, and VLAN-based loop control; DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; ECMP; BFD; GR for OSPF/IS-IS/BGP; BFD for VRRP, OSPF, BGP4, IS-IS, IS-ISv6, MPLS, and static routing
SDN technology	NETCONF
Ağ Yönetimi ve Bakım	SPAN and ERSPAN; NTP and SNTP; NTP server and NTP client; FTP and TFTP; SNMP v1/v2/v3; System operation logging; Command line through console, AUX Modem, Telnet, and SSH; RMON (1, 2, 3, 9); CWMP; gRPC

Temel Özellikler 2 satır

Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Warranty duration	3 years

Genel bakış

Ruijie RG-RSR20-XA-36 kullanım alanları ve özellikleri.

Recommended for access scenarios of small and medium-sized enterprise branches in financial, government, and other industries.

RG-RSR20-XA-36 36-Port Multi-service Fixed Access Router

Rich port types and numbers are provided, and various network functions are integrated such as routing, switching, and security. The access router is suitable for access scenarios of small and medium-sized branches of enterprises and customers in financial, government, and other industries. The next-generation HSIC expansion module is supported and rich expansion modules are provided to meet various combination requirements

4G/5G supported

Multi-service Convergence, One Device for Multiple Purposes Simplifying Networking

The router integrates routing, switching, security, and 4G/5G functions, meeting various service needs such as HQ-branch interconnection, secure external network access, and internal terminal interconnection. This simplifies network deployment and reduces costs.

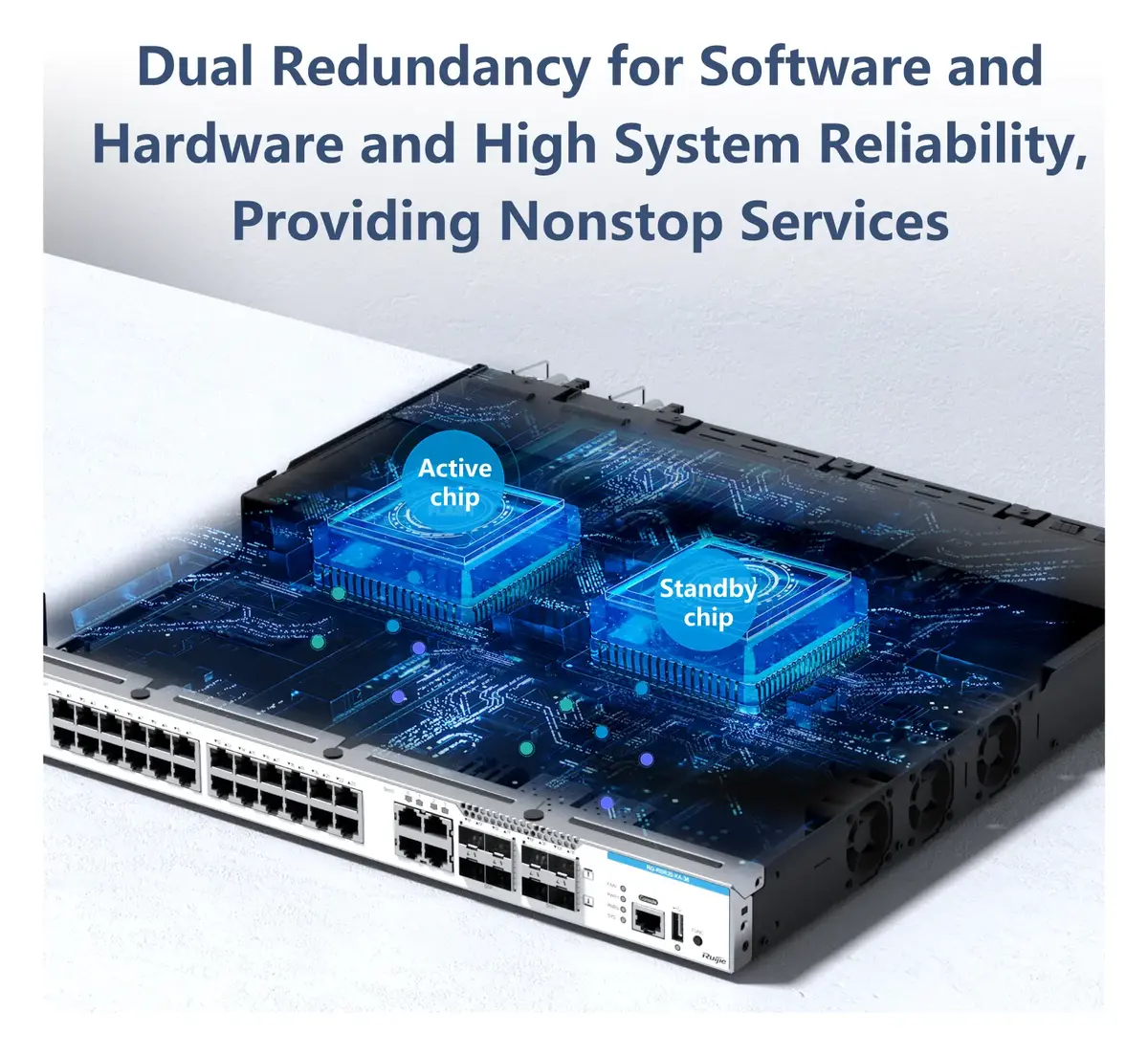

Dual Redundancy for Software and Hardware and High System Reliability, Providing Nonstop Services

Software-Level Dual-Boot

Hardware-Level Redundancy & Hot Swapping

Two flash chips are used to store the boot software, enabling dual-boot file redundancy and automatic operating system backup. This prevents device startup failure caused by flash chip malfunction, ensuring smooth services

The two power modules support redundant backups and hot swapping, ensuring continuous power supply. Similarly, a line card can also be hot-swapped without affecting other services, ensuring nonstop services.

Comprehensive HQoS Policy, Enabling Fine-Grained Traffic Management and Improving Network Experience of VIP Users

A Hierarchical Quality of Service (HQoS) policy uses multi-level queues to implement multiple scheduling, which differentiates traffic from different users and services. This ensures that higher priorities and guaranteed bandwidth are allocated to key users and services. In this way, HQoS achieves more precise traffic management than traditional QoS, thereby enhancing the network experience for VIP users.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-RSR20-XA-36 Compliance DocumentPDF · RG-RSR20-XA-36 Installation GuidePDF · RG-RSR20-XA-36
