Ruijie RG-RSR77-XA-08 8 Slot Modüler Omurga Router

Mainly used as the core or aggregation node on a WAN of the government, finance, carrier, education, or large- and medium-sized enterprise network.

Multiservice Core Router RG-RSR77-XA-08

The router supports eight line card slots and 32 subcards and offers high-density GE, 10GE, and 100GE ports. This series is designed to fit into cabinets with a depth of 600 mm (23.62 in.), saving approximately 30% of space compared to similar products in the industry.

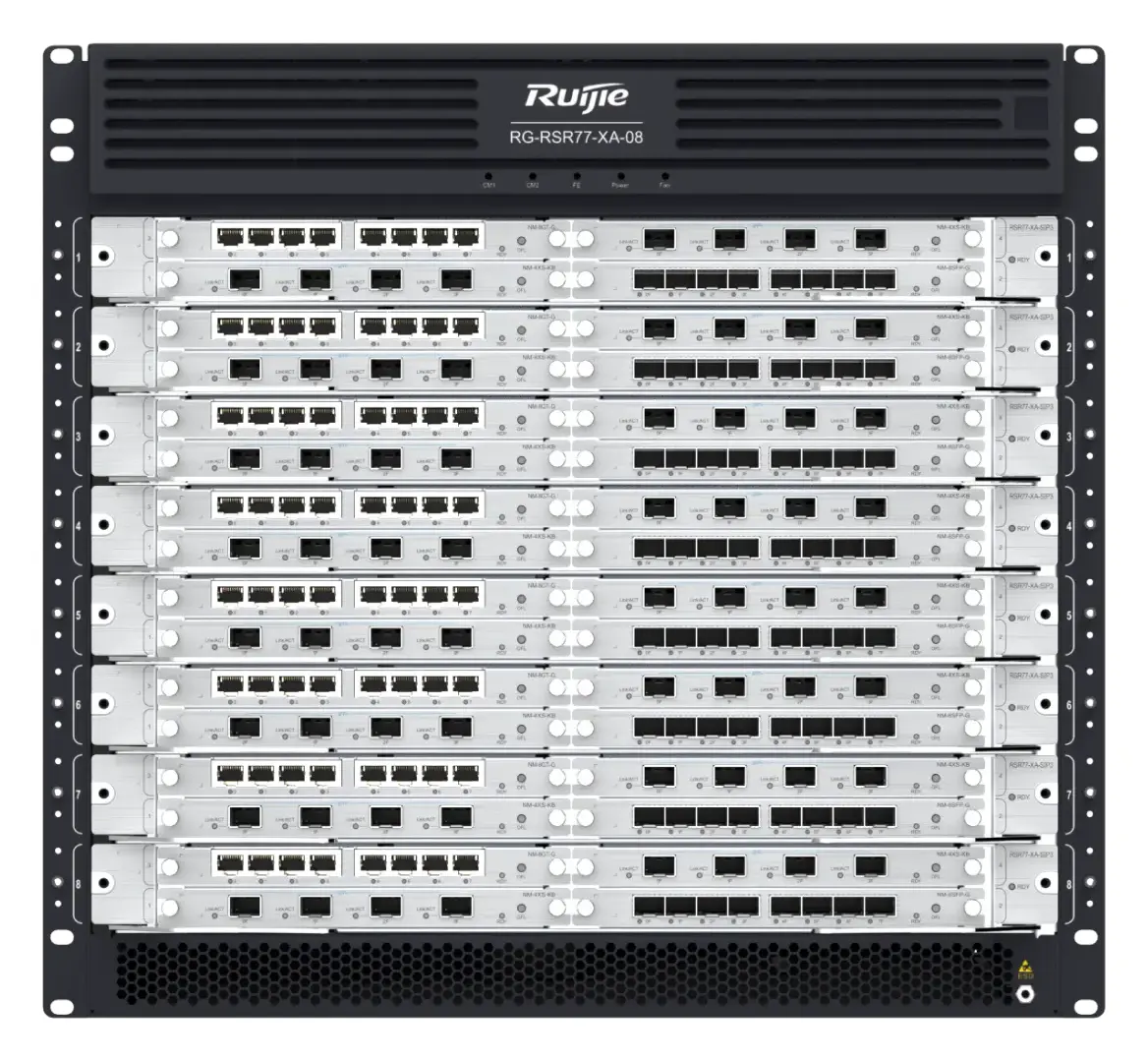

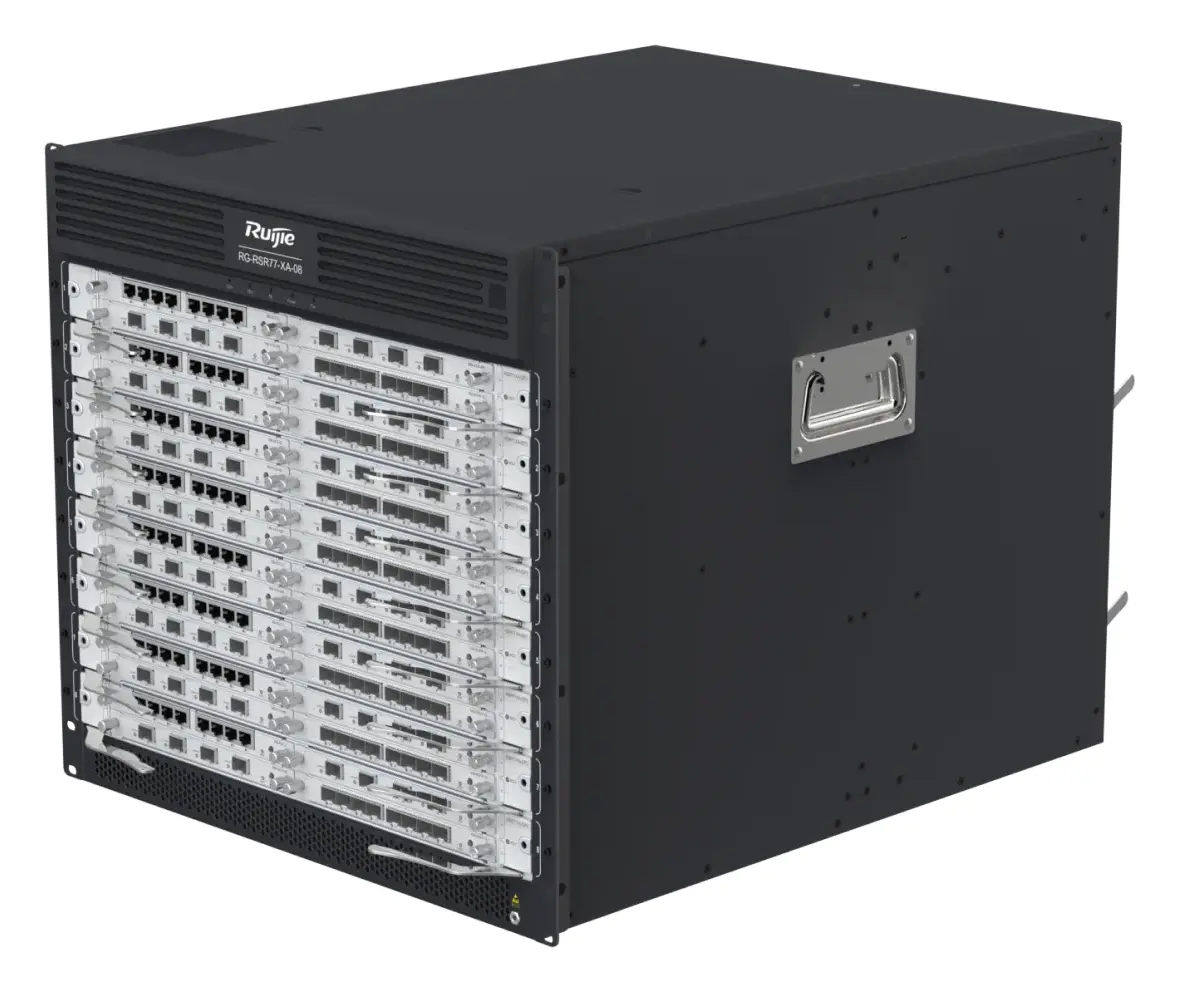

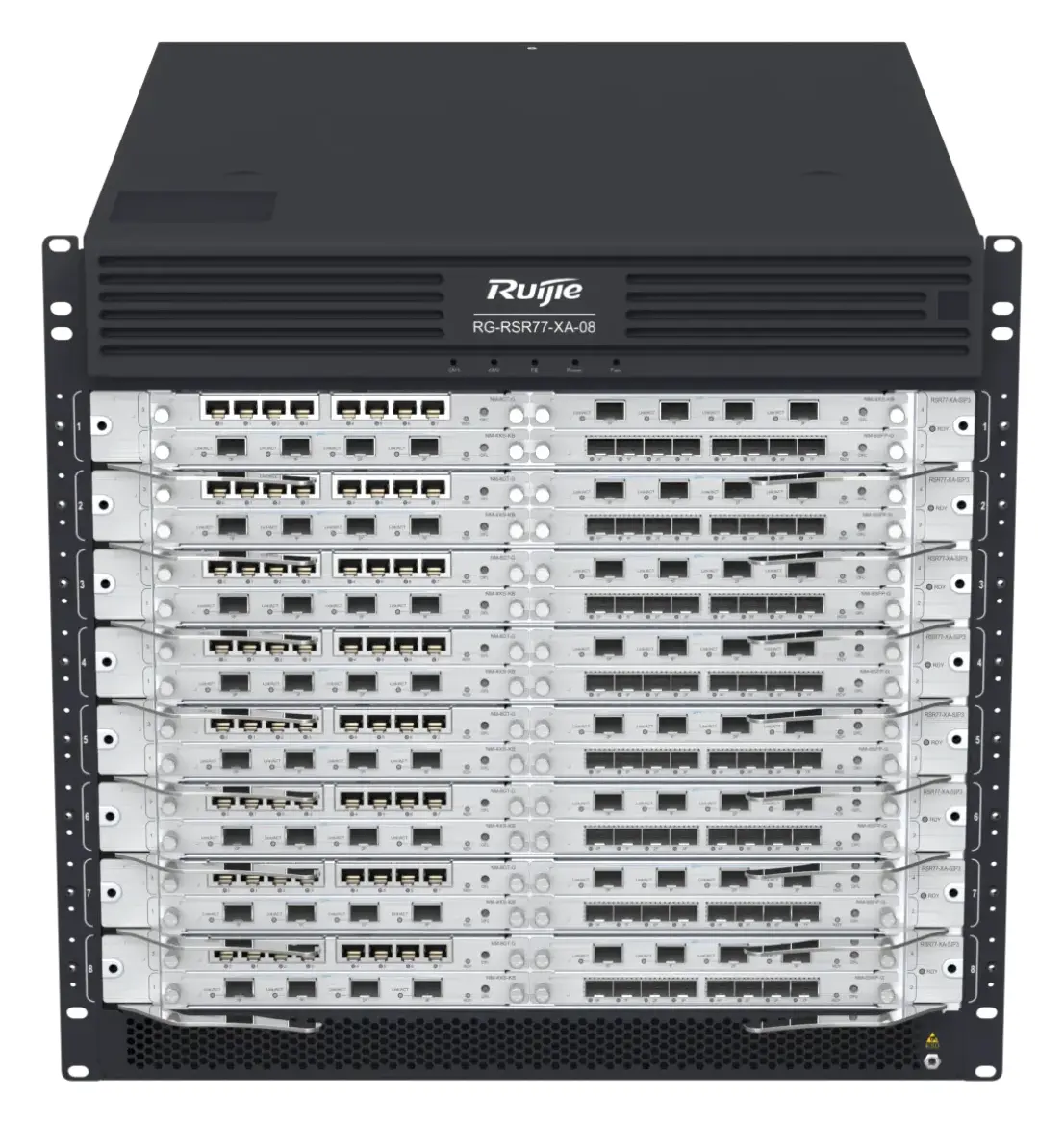

Appearance

Dimensions

A Modular Design with Various Subcard Ports, Supporting Rates Ranging from 2 Mbps to 100 Gbps

Line cards include main cards and subcards. The subcards support multiple types of ports, including GE, 10GE, and 100GE ports. You can install subcards as needed to meet different networking requirements.

Support for SRv6, Simplifying Protocol Configuration and Facilitating Quick Service Rollout

Segment Routing over IPv6 (SRv6) is a next-generation IP transport protocol based on IPv6. SRv6 simplifies and consolidates traditional complex network protocols, lowering the O&M threshold. SRv6 devices can be deployed alongside IPv6 devices so that existing networks can achieve better compatibility and support quick rollout of a large number of services.

MPLS

SRv6

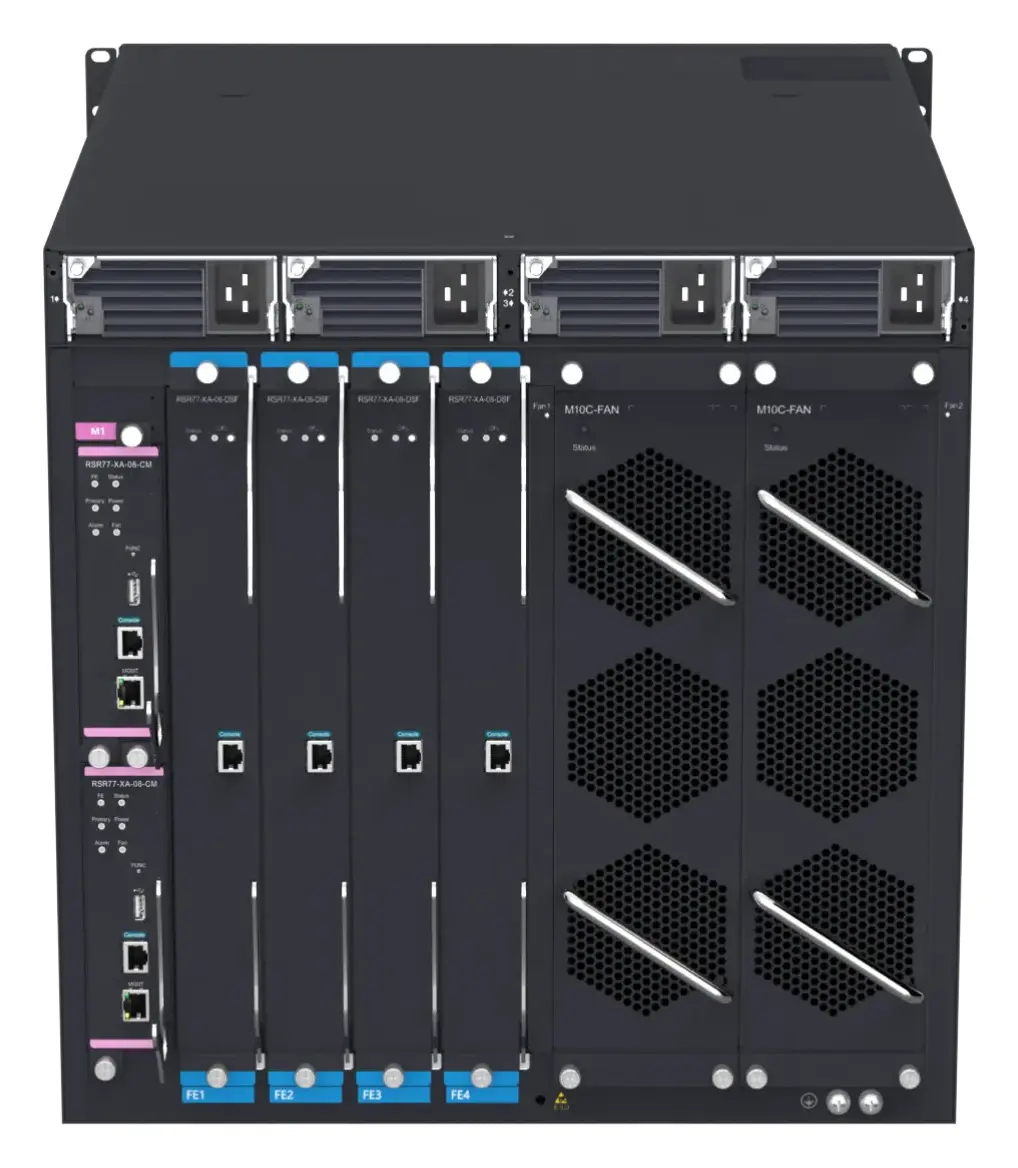

Redundancy for Critical Hardware Components, Ensuring Uninterrupted Services and Improving Overall Reliability

A redundant design is adopted for key components, such as the supervisor engine, switch fabric module, and power supply module. All modules support hot swapping, reducing the risk of device failures and service interruptions, and significantly enhancing system reliability.

1:1 Routing Engine Redundancy

If the active routing engine fails, data is switched to the standby routing engine within seconds.

3+1 Switching Fabric Module Redundancy

The router supports redundant and hot-swappable switch fabric modules, ensuring zero packet loss during failover scenarios.

N+M Power Supply Module Redundancy

The router supports AC/DC power supply redundancy and hot swapping, ensuring uninterrupted power supply.

Y-shaped Airflow Design, Improving Cooling Efficiency and Lowering Energy Consumption

The side-to-rear Y-shaped airflow design creates a three-dimensional heat dissipation channel, increasing the airflow by 30% and enhancing the overall efficiency of heat dissipation. Independent airflows of line cards and switch fabric modules, improving the heat dissipation efficiency and achieving a minimum power consumption of 0.5 W per gigabyte of data transmission.
