RUIJIE · RG-RSR830

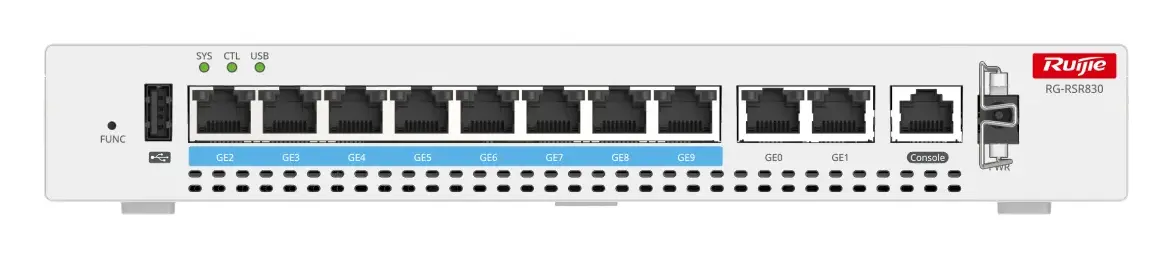

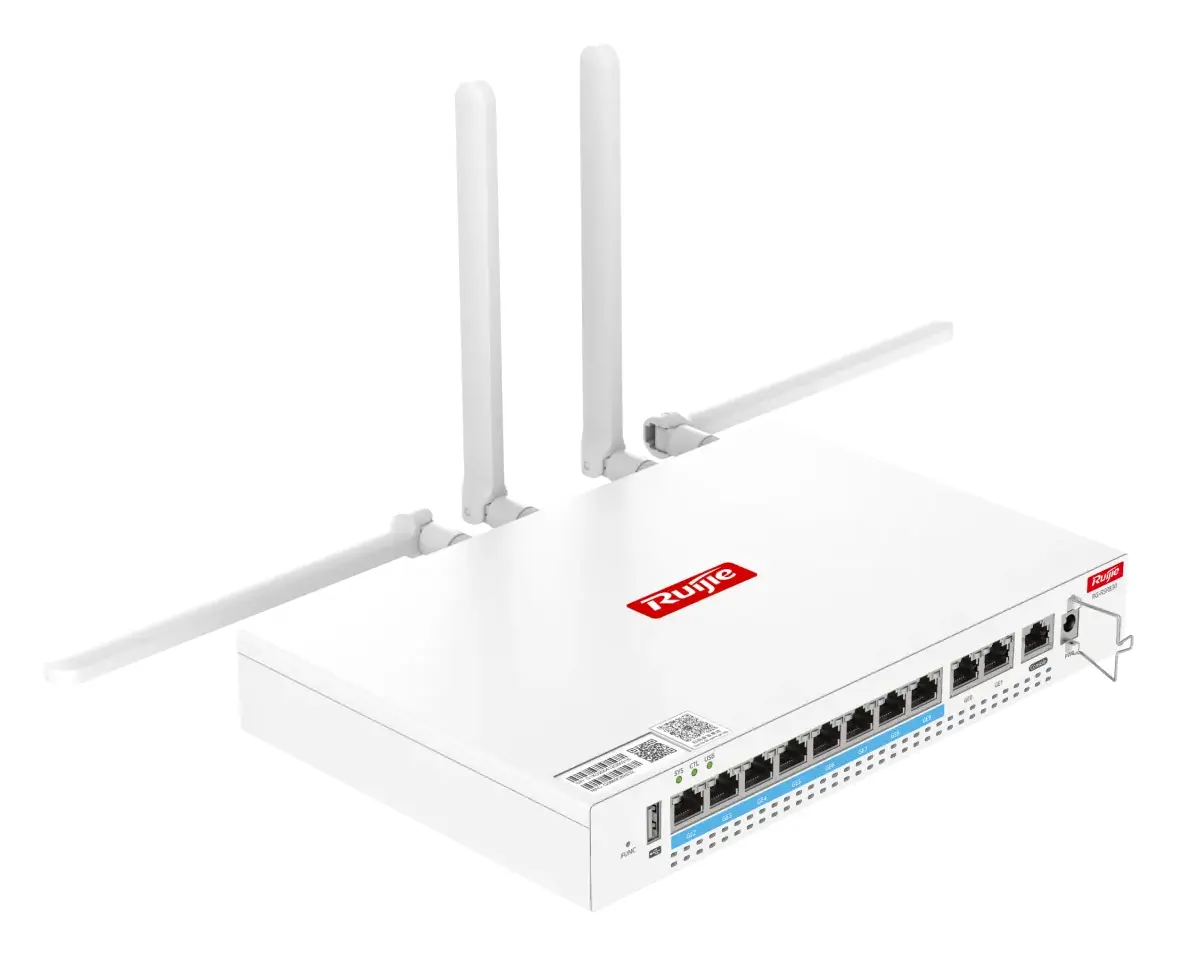

Ruijie RG-RSR830 10 Port Gigabit Mobil Router
Model
RG-RSR830Ruijie RG-RSR830 router: 4G/5G wireless module, ensuring non-stop services and efficient data transmission, Powerful application identification capability, accurate traffic control, and optimized network experience, URL filtering, application blocking, and IDS/IPS for network security.
- Port sayısı
- 10 port
- Kablosuz standart
- Wi-Fi 6
- 4G/5G wireless module, ensuring non-stop services and efficient data transmission
- Powerful application identification capability, accurate traffic control, and optimized network experience
- URL filtering, application blocking, and IDS/IPS for network security defense
- Cloud Management, Simplifying O&M, and Saving Time and Effort
Genel bakış
Ruijie RG-RSR830 özellikleri ve kullanım alanları.
Meeting your requirements for switching, routing, wireless, security, and other services, and providing flexible and cost-effective wired and wireless access solutions
RG-RSR830, 10-Port Mobile Router
The router integrates routing, switching, wireless, and other network functions, applicable to customers with multiple branches, such as retail stores, chain stores, logistics, and offices.
Ensuring Efficient Data Transmission through Seamless 5G Wireless Connectivity
Seamless connectivity is ensured with a built-in 5G module providing high-speed uplink/downlink bandwidth and network-wide access. Backed by 5G/4G wireless link standby, ensuring uninterrupted service during main link failures.
Efficient Traffic Management for Enhanced Work Efficiency and Optimal User Experience
Accurate identification of various applications allows for tailored traffic scheduling and intelligent routing, prioritizing critical business traffic to enhance office productivity and optimize user network experience.
Safeguarding Network Security through Comprehensive Security Measures
URL filtering and application blocking are supported to control user online behaviors and reduce security risks. IDS/IPS can detect threats and block malicious traffic and attacks, protecting network security.
Simplifying O&M with Cloud Management
Support both local and cloud-based deployment, enabling centralized management of LAN/WAN networks. Remote operation anytime and anywhere, enabling you to take full control of your network with ease.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| İletim Performansı | 0.5 Mpps |
|---|---|
| Sabit Servis Portları | Uplink WAN ports:; 2 x 10/100/1000BASE-T ports; Downlink LAN ports:; 8 x 10/100/1000BASE-T ports, which can be switched to WAN ports |
| Sabit Yönetim Portu | 1 x RJ45 console port |
| USB | 1 x USB 2.0 port, for connecting to the USB flash drive |
| Bellek | 2 GB |
| Flash Bellek | 4 GB |
| VPN performance (256- bit AES encryption) | 400 Mbps |
| Number of IPsec VPN Tunnels | 100 |

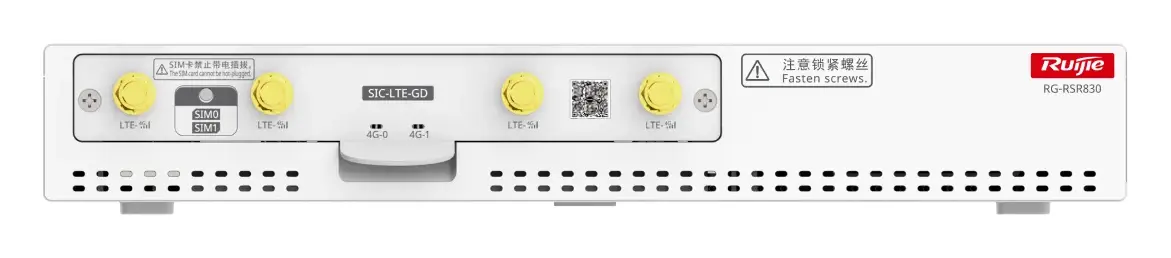

| Genişleme Modülü | SIC-LTE-GS; LTE card (Cat-6, 2 x SIM, active-standby); SIC-LTE-GD; LTE card (Cat-6, 2 x SIM, active-active); SIC-5G-G; 5G NR in global bands single card, small plug-in card; SIC-2SFP; Expansion gigabit optical module plug-in card |
| Wi-Fi Port | - |
| Cihaz Boyutları (G x D x Y) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) |
| Cihaz Ağırlığı | 0.95 kg (2.09 lbs) |
| Maks. Güç Tüketimi | 36 W (including module power) |
| Input power supply | 36 W Power Adapter:; Input: 100 V AC to 240 V AC, 50 Hz to 60 Hz, 0.9 A max.; Output: 12 V DC, 3 A max, 36 W |
| Recommended number of user | 300 |
| External Power Supply | - |
| Sıcaklık | Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F) |
| Nem | Operating humidity: 10% RH to 90% RH (non-condensing); Storage humidity: 5% RH to 95% RH (non-condensing) |
| Rakım | Operating altitude: –500 m to +4000 m (–1640.42 ft. to +13123.36 ft.); Storage altitude: –500 m to +5000 m (–1640.42 ft. to +16404.20 ft.) |
| IP Koruma Sınıfı | IP30 |
| Ethernet | Jumbo frame forwarding (max. size: 1974); Frame format: Ethernet II; Change of the MTUs (link MTU and IP MTU) in the forwarding plane; Forcibly converting the 1000M optical port into the electrical port in auto-negotiation mode (100M/1000M); LAN/WAN switching; Interface auto-negotiation factor Interface; WAN/LAN mode switching |
|---|---|
| ACL ve QoS | IP standard ACL IP extended ACL; Association with the egress ACL based on a Layer 3 interface (SVI/routed port/L3 AP); HQoS: DSCP/IP-PRE/COS; HQoS: PQ\WFQ\LPQ methods of congestion scheduling |
| IPv4 application protocol features | DHCP client; Option 43/52/138; DHCP server; Option 138; Option 43; Option 82; Large address pool Alarm (Syslog); Configuring DHCP snooping in a VLAN; Configuring DHCP snooping on a logical interface (including the physical interface and aggregate; interface); Trusted interface; DNS; DNS client; PPPoE client; FTP client; NTP client; NTP server; TFTP client; TFTP server |
| IPv6 application protocol features | DHCPv6 client; Option 18; Option 37; DHCPv6 server; Option 52; DHCPv6 Snooping; ND Snooping; FTP server; TFTP server; TFTP client; NTP server; NTP client |
| Katman 2 Özellikleri | LLDP; MAC address filter; Interface-based MAC address learning; Static MAC address; Global MAC address learning; Enforcing deletion of a MAC address using a command; MAC address aging time; Port based VLAN; 802.1QVLANTagging; PPTP/L2TP; Spanning Tree Protocol |
|---|---|
| Katman 3 Özellikleri | Proxy ARP; ARP entry aging; Ping; Traceroute; GRE tunnel; PBR/ACL/QoS/NAT for IPv4 & IPv6 services on a GRE interface Inner and outer VRF configuration; IPv4 & IPv6 VRF; Static IP; BGP4/BGP4+; IS-IS v4/v6; OSPF v2/v3; RIP v1/v2; PBR |
| NAT features | NAT sessions：75000; NAT Throughtput ：up to 940 Mbps (1500Bytes) |
| VAG | Intelligent routing; Load balancing; Active/Standby scheduling for undefined applications; Controller management; Disaster recovery |
| WLAN features | WLAN services:; SSID configuration; SSID-based VLAN configuration; UTF8 SSID; Wireless security: WPA3; User isolation: Layer 2 isolation; RF resources:; Channel configuration; Channel width configuration; Power configuration; Automatic RF optimization (channel, channel width); WMM configuration; 802.11 b/g/n/ac/ax; WLAN details:; Dual Radio, 4 spatial streams; Radio 1: 2.4GHz, 2 streams: 2×2, MU-MIMO; Radio 2: 5GHz, 2 streams: 2×2, MU-MIMO; Operating Frequency Bands:; Radio 1: 802.11b/g/n/ax, 2. |
| Security features | AAA and web authentication; EXEC authorization, RADIUS, interworking with the SAM/SMP/ACS server, and specifying the source IP address (through the source interface); Account allocation by user and login authentication (password, none); Encrypted transmission and storage of static passwords, password lifetime check, and reuse limitation; Application identification，url Filtering, IDS/IPS, blacklist and whitelist; IPSecVPN function(AES-128, AES-256); CPP and NFPP |
| VPN features | PPTP,IPSEC,L2TP,L2TP over IPSEC |
| Management features | gRPC framework; NETCONF; TACACS; SNMP v1/v2/v3; SSH; Syslog; IPv4 supported by the Telnet server; HTTP server V1.1; HTTPS server; Out-of-the-box web management; Eweb 2.0; Hostname configuration; YANG model; USB-based deployment; Obtaining device information through gRPC |
| Fixed interfaces | WAN: GE * 2, LAN: GE * 8 |
|---|---|
| Dimensions (W × D × H) | 260 mm × 170 mm × 38 mm (10.24 in. x 6.70 in. x 1.50 in.) |
| Güç Tüketimi | < 36 W (including module power) |
| IP protection | IP30 |
| Çalışma Sıcaklığı | 0°C to 45°C (32°F to 113°F) |
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
RG-RSR830 hakkında kısa yanıtlar.
RG-RSR830 fiyatı ne kadar?
RG-RSR830 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
