Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point
Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point — görsel 2

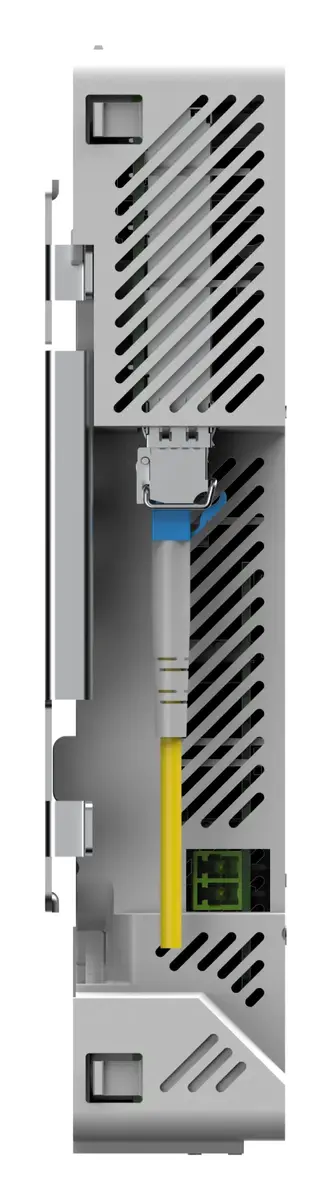

Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point — görsel 3
Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point — görsel 4
Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point — görsel 5
Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point — görsel 6
1 / 6
Yangın Modülü & Aksesuar Simplified Optical Ethernet

Ruijie RG-MAP920-SF-M(V3) Wi-Fi 7 Çift Bant Optik Mikro Tavan Tipi Access Point

ModelRG-MAP920-SF-M(V3)

Ruijie RG-MAP920-SF-M(V3), Wi-Fi 7 standardını destekleyen çift bant tavan tipi kablosuz erişim noktasıdır (Access Point).

Bağlantı
Kablosuz
Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara
Distribütör garantili
81 ile sevkiyat
Teknik destek
  • 2.5GE SFP port for high-speed indoor access
  • Enterprise-class Wi-Fi 7 delivering a data rate of up to 3.570 Gbps
  • WIS digital twin network for superior network O&M efficiency

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 18 satır
802.11nFour spatial streams; Radio 1 -- 2.4 GHz: 2x2 MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz and 40 MHz; Combined peak data rate: 600 Mbps; Radio 1 -- 2.4 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio 2 -- 5 GHz: 6.5 Mbps to 300 Mbps (MCS0 to MCS15); Radio technologies: Orthogonal Frequency-Division Multiplexing (OFDM); Modulation types: BPSK, QPSK, 16-QAM, 64-QAM; Packet aggregation:; Aggr
802.11acTwo spatial streams; Radio 2 -- 5 GHz: 2x2 downlink MU-MIMO, two spatial streams; Channels:; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 1.733 Gbps; Radio 2 -- 5 GHz: 6.5 Mbps to 1.733 Gbps (MCS0 to MCS9); Radio technologies: OFDM; Modulation types: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM; Packet aggregation:; A-MPDU; A-MSDU; DFS; CDD/CSD; MRC; STBC; LDPC; TxBF
802.11axFour spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 2.976 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 574 Mbps (MCS0 to MCS11); Radio 2 -- 5 GHz: 7.3 Mbps to 2.402 Gbps (MCS0 to MCS11); Radio technologies: Uplink/Downlink Orthogonal Frequency-Division Multiple Access
802.11beFour spatial streams; Radio 1 -- 2.4 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Radio 2 -- 5 GHz: 2x2 uplink/downlink MU-MIMO, two spatial streams; Channels:; Radio 1 -- 2.4 GHz: 20 MHz and 40 MHz; Radio 2 -- 5 GHz: 20 MHz, 40 MHz, 80 MHz, and 160 MHz; Combined peak data rate: 3.570 Gbps; Radio 1 -- 2.4 GHz: 7.3 Mbps to 688 Mbps (MCS0 to MCS13); Radio 2 -- 5 GHz: 7.3 Mbps to 2.882 Gbps (MCS0 to MCS13); Radio technologies: Uplink/Downlink OFDMA; Modulation types: BPSK, QPSK, 16-QAM, 6
AntenWi-Fi; 2.4 GHz: Two built-in omnidirectional smart antennas, with the peak antenna gain of 5.73 dBi; 5 GHz: Two built-in omnidirectional smart antennas, with the peak antenna gain of 6.49 dBi; Bluetooth; One built-in omnidirectional antenna, with the peak antenna gain of 3.35 dBi
Port1 x 2.5G SFP port, which is compatible with the 1G SFP transceiver; 4 x 10/100/1000BASE-T ports; 1 x micro USB console port; 1 x Bluetooth 5.3
Status LED1 x system status LED; AP power-on status; Software initialization status and upgrade status; Uplink service port status; Wireless user online status; CAPWAP tunnel timeout; Specific AP locating
Buton1 x Reset button; Press the button for shorter than 2 seconds. Then the device restarts.; Press the button for longer than 5 seconds. Then the device restores to factory settings.
Boyutlar (G x Y x D)Main unit: 86 mm x 160 mm x 38 mm (3.39 in. x 6.30 in. x 1.5 in.); Shipping: 347 mm x 375 mm x 289 mm (13.66 in. x 14.76 in. x 11.38 in.)
AğırlıkMain unit: 0.45 kg (0.99 lbs); Mounting bracket: 0.05 kg (0.11 lbs); Shipping: 9.78 kg (21.56 lbs)
MontajMounting in the 86 mm x 86 mm (3.39 in. x 3.39 in.) junction box or wall-mounting
Lock optionKensington lock
Input power supplyThe AP supports the following power supply modes:; 48 V DC/0.25 A power input over the DC connector; IEEE 802.3af-compliant PoE power input using hybrid cables
Maks. Güç TüketimiMaximum power consumption: 12 W; DC power: 12 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2; 802.3af (PoE): 12 W, 2.4 GHz radio 2x2, 5 GHz radio 2x2; Idle mode: 9 W
Ortam KoşullarıStorage temperature: --40°C to +70°C (--40°F to +158°F); Storage humidity: 0% RH to 95% RH (non-condensing); Storage altitude: --500 m to +5,000 m (--1640.42 ft. to +16,404.20 ft.); Operating temperature: --10°C to +40°C (14°F to 104°F); Operating humidity: 5% RH to 95% RH (non-condensing); Operating altitude: --500 m to +5,000 m (--1640.42 ft. to +16,404.20 ft.); Note: At an altitude in the range of 1,800--5,000 m (5,905.51--16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.
MTBF200,000 hours (22 years) at the operating temperature of 25°C (77°F)
System memory512 MB DDR3L, 256 MB flash
Yayın Gücü2.4 GHz; Maximum transmit power: +20 dBm (100 mW); Minimum transmit power: +12 dBm (15.85 mW); 5 GHz; Minimum transmit power: +10 dBm (10 mW); Note:; Adjust the transmit power by percentage (recommended), with 1 dBm increments.; The transmit power is limited by local regulatory requirements. For details, see WLAN Country or Region Codes and Channel Compliance.
Wi-Fi Radio Performance 20 satır
Frequency Band and ProtocolData Rate
2.4 GHz 802.11g6 Mbps; 54 Mbps
2.4 GHz 802.11n (HT20)MCS0; MCS7
2.4 GHz 802.11n (HT40)MCS0; MCS7
2.4 GHz 802.11ax (HE20)MCS0; MCS11
2.4 GHz 802.11ax (HE40)MCS0; MCS11
2.4 GHz 802.11be (EHT20)MCS0; MCS13
2.4 GHz 802.11be (EHT40)MCS0; MCS13
5 GHz 802.11a6 Mbps; 54 Mbps
5 GHz 802.11n (HT20)MCS0; MCS7
5 GHz 802.11n (HT40)MCS0; MCS7
5 GHz 802.11ac (VHT20)MCS0; MCS8
5 GHz 802.11ac (VHT40)MCS0; MCS9
5 GHz 802.11ac (VHT80)MCS0; MCS9
5 GHz 802.11ax (HE20)MCS0; MCS11
5 GHz 802.11ax (HE40)MCS0; MCS11
5 GHz 802.11ax (HE80)MCS0; MCS11
5 GHz 802.11ax (HE160)MCS0; MCS11
5 GHz 802.11be (EHT80)MCS0; MCS13
5 GHz 802.11be (EHT160)MCS0; MCS13
Basic Functions 1 satır
Applicable software versionRGOS11.9(6)W7B4 or later
WLAN 12 satır
Maximum number of associated STAs1,024 (up to 256 STAs per radio)
Recommended number of STAs64
Maximum number of BSSIDs32 (up to 16 BSSIDs per radio)
Maximum number of WLAN IDs16
STA managementSSID hiding; Band steering (preferential access to the 5 GHz radio); Each SSID can be configured with the authentication mode, encryption mechanism, and VLAN attributes independently.; Remote intelligent perception technology (RIPT); Intelligent load balancing based on the STA quantity, traffic, or band; Intelligent STA identification (the AC is required)
STA limitingSSID-based STA limiting; Radio-based STA limiting
Bandwidth limitingSTA/SSID/AP-based rate limiting
CAPWAPIPv4/IPv6 CAPWAP; Layer 2 and Layer 3 topology between an AP and an AC; An AP can automatically discover the accessible AC.; An AP can be automatically upgraded through the AC.; An AP can automatically download the configuration file from the AC.; CAPWAP through NAT; MTU setting and fragmentation over CAPWAP tunnels; Encryption over CAPWAP data tunnels; Encryption over CAPWAP control tunnels
Data forwardingCentralized and local forwarding
Wireless roamingLayer 2 and Layer 3 roaming
Wireless locatingMobile unit (MU) locating
Application managementApplication identification
Security and Authentication 6 satır
Authentication and encryptionRemote Authentication Dial-In User Service (RADIUS); EXEC authorization, specifying source IP addresses of RADIUS packets, supporting authentication of other vendors, and built-in authentication server; PSK, web-based, 802.1X, WPA, WPA2, and WPA3 authentication; MAB; Data encryption: WEP (64/128 bits), WPA-Personal, WPA-Enterprise, WPA2-Personal (PSK, TKIP, CCMP), WPA2-Enterprise, WPA3-Personal (SAE, WPA2/WPA3), WPA3-Enterprise (CCMP, GCMP), and WPA3-OWE
Data frame filteringAllowlist, static blocklist, and dynamic blocklist
WIDSWireless Intrusion Detection System (WIDS); User isolation; Rogue AP detection and containment
Dynamic policyIP standard ACL, MAC extended ACL, IP extended ACL, expert ACL, and IPv6 ACL; Time range-based ACL; ACL based on a Layer 2 interface; ACL based on a Layer 3 interface; Ingress ACL based on a wireless interface; Dynamic ACL assignment based on 802.1X authentication (used with an AC)
CPPCPU Protect Policy (CPP)
NFPPNetwork Foundation Protection Policy (NFPP); ARP attack defense, ICMP attack defense, and DHCP attack defense
Routing and Switching 9 satır
MACStatic MAC address and MAC address filtering; MAC address table size: 1,024; Maximum number of static MAC addresses: 1,024; Maximum number of filtered MAC addresses: 1,024
EthernetJumbo frame length: 1,518; Full-duplex and half-duplex modes of interfaces; Optical transceiver information display, alarms about faults, and diagnosis parameter measurement (QSFP+/SFP+/SFP)
VLANInterface-based VLAN assignment; Maximum number of SVIs: 256; Maximum number of VLANs: 4,094; VLAN ID range: 1--4,094
ARPARP entry aging, gratuitous ARP learning, and proxy ARP; Maximum number of ARP entries: 1,024; ARP check
IPv4 servicesStatic IPv4 address and DHCP-assigned IPv4 address; Maximum number of IPv4 addresses configured on each Layer 3 interface: 200; NAT, FTP ALG, and DNS ALG
IPv6 servicesIPv6 addressing, Neighbor Discovery (ND), IPv6 ND proxy, ICMPv6, and IPv6 ping; IPv6 DHCP client; Maximum number of IPv6 addresses configured on each Layer 3 interface: 400
IP YönlendirmeIPv4/IPv6 static route; Maximum number of static IPv4 routes: 1,024; Maximum number of static IPv6 routes: 1,000
MulticastMulticast-to-unicast conversion
VPNPPPoE client; IPsec VPN
Network Management and Monitoring 4 satır
Ağ YönetimiNTP server and NTP client; SNTP client; SNMPv1/v2c/v3; Fault detection and alarms; Information statistics collection and logging
Network management platformWeb management (eWeb)
User access managementConsole, Telnet, SSH, FTP client, FTP server, and TFTP client
Switchover among Fat, Fit, and cloud modesWhen the AP works in Fit mode, it can be switched to Fat mode through an AC.; When the AP works in Fat mode, it can be switched to Fit mode through the console port or Telnet.; When the AP works in cloud mode, it can be managed through WIS Cloud.
Intelligent O&M 6 satır
ExperienceNetwork operation analysis, such as device stability and signal coverage; Measuring users' network experience based on indicators such as the latency, packet loss, signal strength, and channel utilization, and visualizing results of the network experience; Statistics on the number of online and offline failures of STAs associated with different APs, average signal strength, and other parameters; VIP monitoring and alarm, and custom alarm thresholds; STA global experience map and experience cover
Network optimizationNetwork performance optimization, including one-click network optimization and scenario-based optimization; Client steering to cope with roaming stickiness, and experience indicator comparison; Client steering to cope with remote association, and experience indicator comparison; One-click diagnosis -- analyzing problems and providing suggestions
Big dataBaseline analysis -- recording the configuration, version, and other changes, and tracking network KPI changes; Time capsule -- analyzing the device version and configuration change history
Regional analysisBatch generation of building floor information -- uploading floor plans, and dragging and dropping AP positions
One-click reportOne-click health report -- generating a report on the overall operation of a network
Security radarUnauthorized Wi-Fi signal location, presentation by category, and containment
Bulut Yönetimi 1 satır
Yönetim ve BakımUniformly connecting, managing, and maintaining APs, ACs, and other devices, batch device configuration and upgrade, and other functions; Deployment through Zero Touch Provisioning (ZTP) -- creating configuration templates and automatically applying configured templates; One-click discovery of the wired and wireless network topology and topology generation
Cloud Authentication 3 satır
Authentication modeSMS authentication, fixed account authentication, one-click authentication, Facebook authentication, Instagram authentication, voucher authentication, and other authentication modes; Authentication implemented in the cloud, without the need to deploy the local authentication server
Customized portalCustomized Portal authentication page for mobile phones and PCs
SMS gatewayInterconnection with SMS gateways of GUODULINK and Alibaba Cloud
Platform Capabilities 3 satır
Big data capabilitiesMainstream persistence solutions based on Hadoop, MongoDB, and MySQL, providing distributed storage capabilities; Spark-based big data computing capabilities; Data warehouse building based on Hive, and data model conversion, integration, and other functions
Hierarchy and decentralizationAuthorizing different applications for different users to meet service needs of different departments; Granting operation permissions to administrators in different scenarios
System managementAccount operation, authorization configuration, email configuration, configuration backup, exception alarms, and other system management functions
Uyumluluk 1 satır
UyumlulukEN 55032, EN 55035, EN 61000-3-3, EN IEC 61000-3-2, EN 301 489-1, EN 301 489-3, EN 301 489-17, EN 300 328, EN 301 893, EN 300 440, FCC Part 15, EN IEC 62311, IEC 62368-1, EN 62368-1, EN 18031-1, and EN 18031-2

Genel bakış

Ruijie RG-MAP920-SF-M(V3) kullanım alanları ve özellikleri.

Suitable for dormitories, private offices, hotel rooms, and similar scenarios.

RG-MAP920-SF-M(V3) SOE Micro AP

The RG-MAP920-SF-M(V3) is a Wi-Fi 7 wall-plate access point launched for Ruijie SOE Solution. It features dual radios with a combined peak data rate of 3.570 Gbps. It supports one 2.5GE SFP port and four 1000BASE-T ports, meeting needs of high-speed wired access for multiple devices.

2.5GE SFP Port for Ultra-Gigabit High-Speed Indoor Access

With the uplink 2.5GE SFP port, the device easily handles high-bandwidth broadband access requirements, delivering a more stable and smoother network experience.

Enterprise-Class Wi-Fi 7 Delivering a Data Rate of Up to 3.570 Gbps

Empowering seamless high-bandwidth applications with next-generation wireless performance.

WIS Digital Twin Network for Superior Network O&M Efficiency

WIS integrates intelligent O&M functions, including visualized fault locating, along with local, service and key area network optimization. These capabilities aim to improve operational efficiency and enhance the user experience for wireless networks. Go to WIS Digital Twin Network >

Nerelerde kullanılır?

Yangın algılama sisteminde giriş/çıkış kontrolü, loop izolasyonu veya kurulum aksesuarı olarak kullanılır.

Kurulum ve uyumluluk

Yangın algılama sistemleri; Binaların Yangından Korunması Hakkında Yönetmelik ve TS EN 54 standardına uygun olarak projelendirilmeli ve yetkili ekiplerce devreye alınmalıdır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-MAP920-SF-M(V3) Compliance DocumentPDF · RG-MAP920-SF-M(V3) Installation GuidePDF · RG-MAP920-SF-M(V3)

Sık sorulanlar

RG-MAP920-SF-M(V3) hakkında kısa yanıtlar.

RG-MAP920-SF-M(V3) kablosuz mu çalışır?
Evet, RG-MAP920-SF-M(V3) kablosuz çalışır.
RG-MAP920-SF-M(V3) cep telefonundan yönetilebilir mi?
Evet. Ruijie sistemleri Ruijie Cloud uygulamasıyla kurulup devreden çıkarılabilir; alarm anında anlık bildirim alınır.
RG-MAP920-SF-M(V3) fiyatı ne kadar?
RG-MAP920-SF-M(V3) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
