Ruijie RG-AM5528-SF Optik Master Tavan Tipi Access Point

Recommended for deployment in schools, hotels, medical care, office, production workshops, etc.

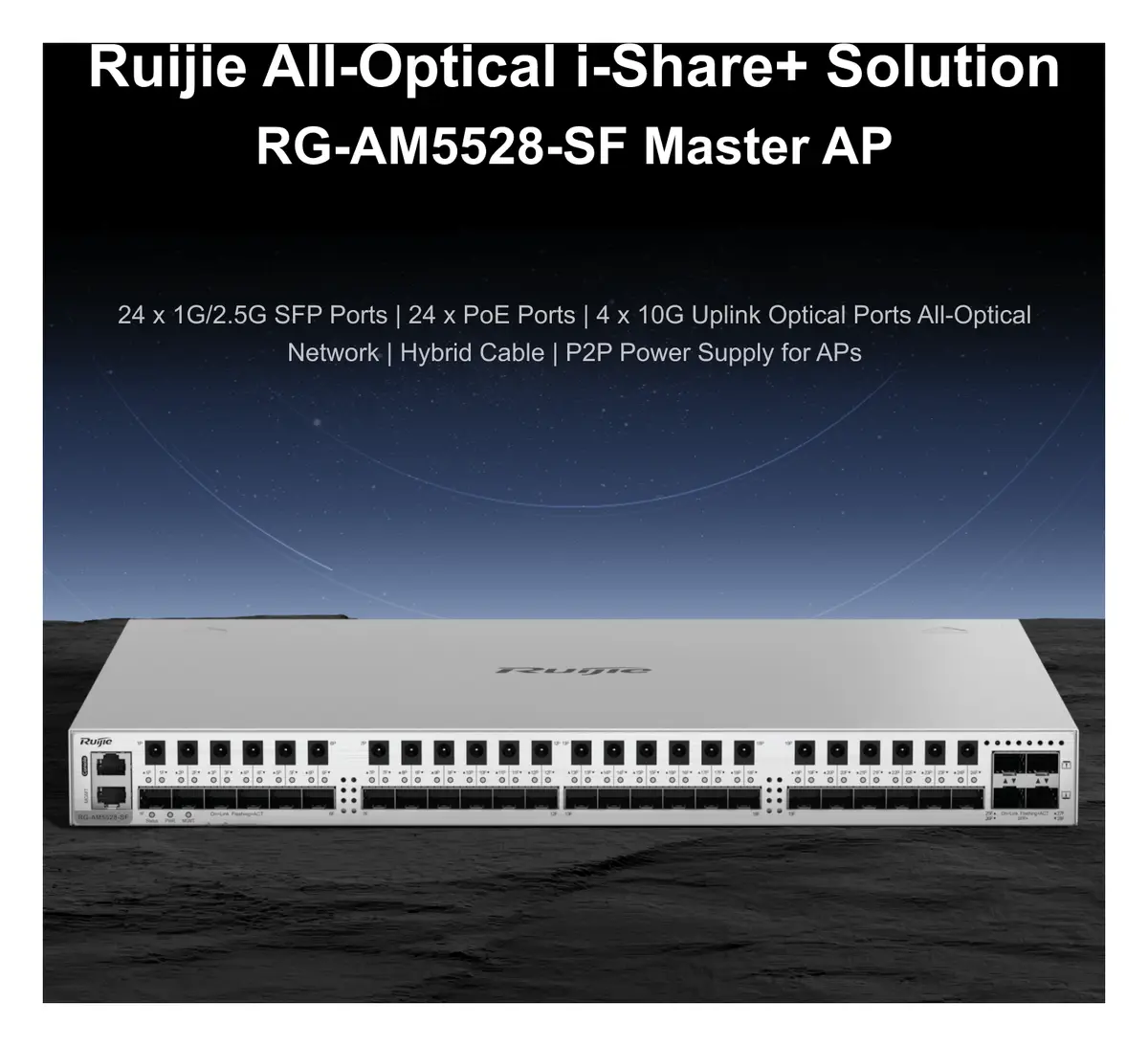

Ruijie All-Optical i-Share+ Solution — Master AP RG-AM5528-SF

All-optical architecture, point-to-point power supply for APs through hybrid cables High-bandwidth data transmission and long-distance power supply, supporting the long-term evolution of wireless network construction in the next two decades

Specifications

Solution

All-Optical Network

Hybrid Cable

Wi-Fi 6

i-Share Mode

Power On/Off of a Single AP

24 Optical Ports and 24 PoE Ports, Hybrid Cable, Maximum Transmission Distance of 1000 m

24 optical ports and 24 power supply ports, and direct connection with optical APs through innovative hybrid cables Only one cable for high-bandwidth data transmission and long-distance PoE power supply concurrently, simplifying the deployment of an all-optical network

Longer Distance The connection distance between the master and micro APs is up to 1,100 m, realizing central management.

Faster Transmission The transmission rate of the hybrid cable is up to 400 Gbps to meet the expansion requirements in the next two decades.

Superior Power Supply The master AP can power 24 micro APs with one cable, eliminating the need for local power supply.

2.5G Optical Ports, Eliminating the Bottleneck of Gigabit Networks and Maximizing AP Performance

Full 2.5G downlink optical ports, allowing high-speed transmission of APs Breaking the bottleneck of wired networks and providing better wireless experience for growing service needs

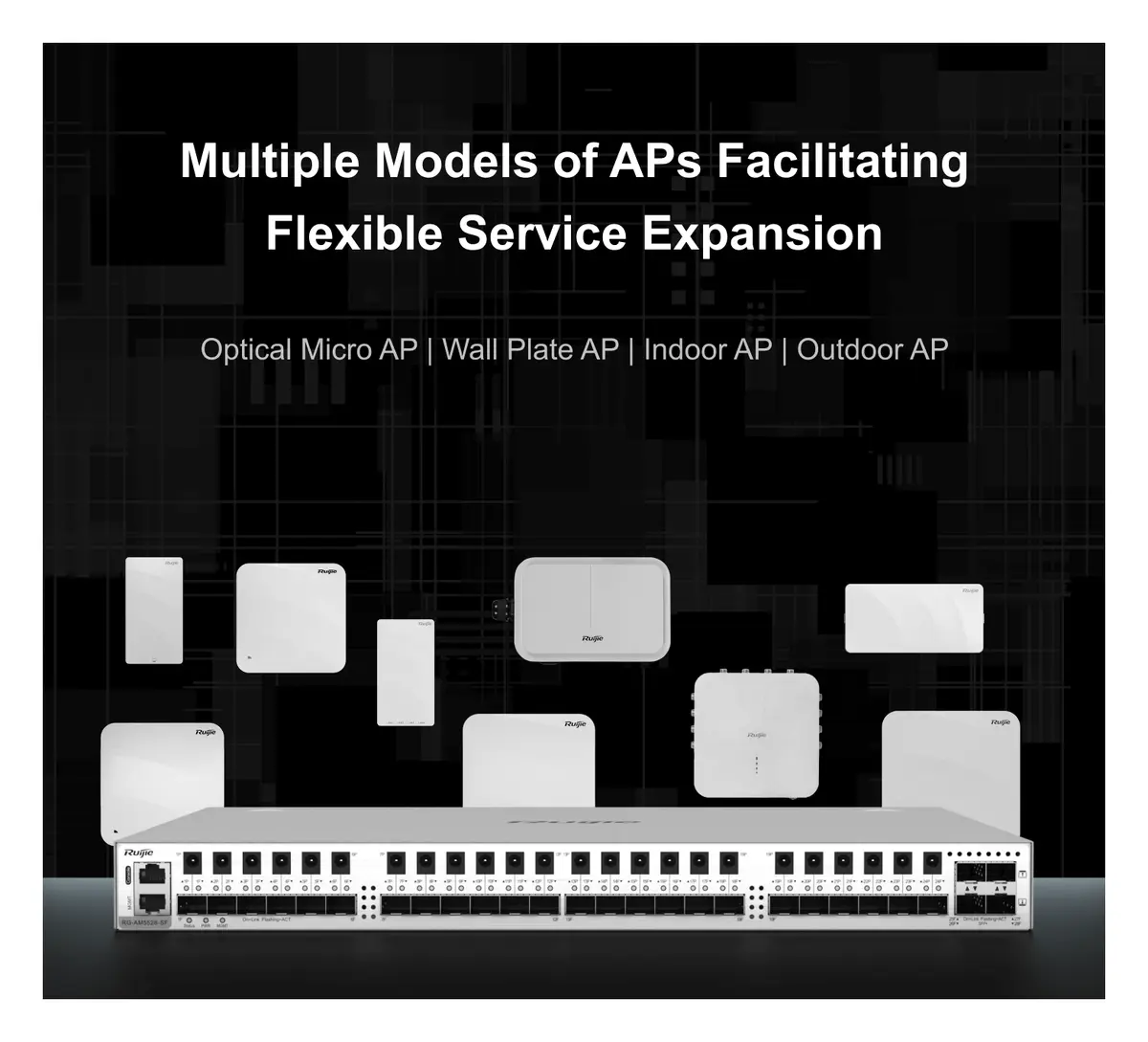

Multiple AP Models, Facilitating Flexible Service Expansion

The optical i-Share master AP provides the i-Share mode, supports access of micro APs, and integrates wired and wireless coverage of intensive rooms such as dormitories and hotels. It can also switch to the common mode, provide Layer 2 switching, realize on-demand access of the ordinary wall plate APs, indoor APs, and outdoor APs, facilitating flexible service expansion.

An O/E converter is required for connecting an conventional AP with copper ports to a master AP.

P2P Power Supply Control and Remote Power-on/Power-off, Eliminating the Need for Onsite Operation

The 24 power supply ports correspond to the downlink power ports one by one, and support visualization of power supply per circuit on the INC. When an AP fails, each AP can be powered on or off remotely, without performing any onsite operation.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
