Juniper
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 1 satır
| Donanım Açıklaması | SRX320 Firewalls include hardware (8GbE, 2x MPIM slots, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (firewall, NAT, IPSec, routing, MPLS and switching). RMK not included. |
|---|
Bağlantı 9 satır
| Toplam Dahili Port | 8x1GbE |
|---|---|
| Dahili RJ-45 Portları | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec Destekli Portlar | 2x1GbE |
| Bant Dışı (OOB) Yönetim Portu | 0 |
| Mini PIM (WAN) Yuvası | 2 |
| Konsol (RJ-45 + miniUSB) | 1 |
| USB 3.0 Port (Tip A) | 1 |
| PoE+ Portları | 6 2 |
Bellek ve Depolama 3 satır
| Sistem Belleği (RAM) | 4 GB |
|---|---|
| Depolama | 8 GB |
| SSD Yuvası | 0 |
Boyutlar ve Güç 4 satır
| Form Faktörü | Desktop |
|---|---|
| Boyutlar (GxYxD) | 11.81 x 1.73 x 7.52 in. (29.99 x 4.39 x 19.10 cm) |
| Ağırlık (Cihaz + PSU) | 3.28 lb (1.51 kg) 4 / 3.4 lb (1.55 kb) 5 |
| Yedekli PSU | No |
Teknik Özellikler 47 satır
| Güç Kaynağı | AC (external) |
|---|---|
| Rated DC voltage range | N/A |
| Rated DC operating voltage range | N/A |
| Maks. PoE Gücü | 180W 5 |
| Ortalama Güç Tüketimi | 46W 4 /221W 5 |
| Ortalama Isı Yayılımı | 157 BTU/h 4 / 755 BTU/h 5 |
| Maks. Akım Tüketimi | 0.634A 4 / 2.755 A 5 |
| Akustik Gürültü Seviyesi | 37 dBA 4 /40 dBA 5 |
| Hava Akışı / Soğutma | Front to back |
| Çalışma Sıcaklığı | 32°F to 104°F (0°C to 40°C) |
| Depolama Sıcaklığı | -4°F to 158°F (−20°C to 70°C) |
| Çalışma Nemi | 10% to 90% non-condensing |
| Depolama Nemi | 5% to 95% non-condensing |
| MTBF | 32.5 years 4 / 26 years 5 |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 19.2R1) |
| Common Criteria certification | NDPP, VPNEP, FWEP, IPSEP (based on Junos 19.2R1) |
| NAT Kuralı | 1,000 |
| MAC Tablosu Boyutu | 15,000 |
| IPSec VPN Tünel Sayısı | 256 |
| Number of remote access/SSL VPN (concurrent) users | 50 |
| GRE Tünel Sayısı | 256 |
| Maks. Güvenlik Bölgesi | 16 |
| Maks. Sanal Yönlendirici | 32 |
| Maks. VLAN Sayısı | 1,000 |
| AppID sessions | 16,000 |
| IPS sessions | 16,000 |
| URLF sessions | 16,000 |
| 4G / LTE MPIM (SRX-MP-LTE-AA and SRX-MP-LTE-AE) | Yes |
| 802.11ac Wave 2 Wi-Fi MPIM | Yes |
| Management (CLI, JWEB, SNMP, Telnet, SSH) | Included |
| Ethernet switching (L2 Forwarding, IRB, LACP, etc.) | Included |
| L2 Transparent, Secure Wire | Included |
| Routing (RIP, OSPF, BGP, Virtual router) | Included |
| Multicast (IGMP, PIM, SSDP, DMVRP) | Included |
| Packet Mode | Included |
| Overlay (GRE, IP-IP) | Included |
| Network Services (J-Flow, DHCP, QOS, BFD) | Included |
| Stateful Firewall, Screens, ALGs | Included |
| NAT (static, SNAT, DNAT) | Included |
| IPSec VPN (Site-to-Site VPN, Auto VPN, Group VPN) | Included |
| Firewall policy enforcement (UAC, HPE Aruba Networking CPPM) | Included |
| Remote Access/SSL VPN (concurrent users) | Optional |
| Chassis Cluster, VRRP, ISSU/ICU | Included |
| Automation (Junos scripting, auto-installation) | Included |
| MPLS, LDP, RSVP, L3 VPN, pseudo-wires, VPLS | Included |
Performans ve Ölçek 16 satır
| Routing with packet mode (64 B packet size) in Kpps | 300 |
|---|---|
| Routing with packet mode (IMIX packet size) in Mbps | 800 |
| Routing with packet mode (1,518 B packet size in Mbps | 1,500 |
| Stateful firewall (64 B packet size) in Kpps | 200 |
| Stateful firewall (IMIX packet size) in Mbps | 600 |
| Stateful firewall (1,518 B packet size) in Mbps | 1,900 |
| IPSec VPN (IMIX packet size) in Mbps | 116 |
| IPSec VPN (1,400 B packet size) in Mbps | 336 |
| Application visibility and control in Mbps | 500 |
| Recommended IPS in Mbps | 200 |
| Next-generation firewall in Mbps | 226 |
| Secure Web Access firewall in Mbps | 171 |
| Route table size (RIB/FIB) (IPv4 or IPv6) | 256k/256k |
| Maks. Eşzamanlı Oturum (IPv4/IPv6) | 64,000 |
| Maks. Güvenlik Politikası | 1,000 |
| Saniyede Bağlantı | 5,000 |
Genel bakış

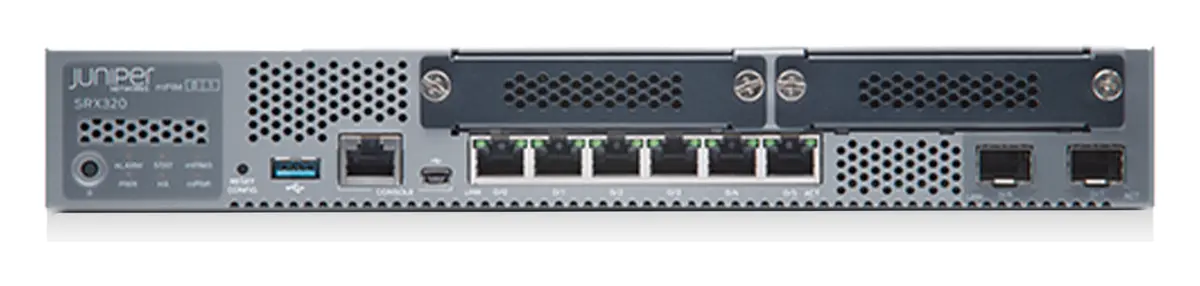

Juniper SRX320-SYS-JB kullanım alanları ve özellikleri.
The SRX300 line of firewalls combines effective security, SD‑WAN, routing, switching, and WAN interfaces with next‑generation firewalls and advanced threat mitigation capabilities for cost‑effective, secure connectivity.
The SRX300 line of firewalls combines effective security, SD-WAN, routing, switching, and WAN interfaces with next-generation firewalls and advanced threat mitigation capabilities for cost-effective, secure connectivity across distributed enterprise locations. By consolidating fast, highly available switching, routing, security, and NGFW capabilities in a single device, enterprises can remove network complexity, protect and prioritize their resources, and improve user and application experience while lowering the total cost of ownership (TCO).
Juniper Networks’ SRX300 line of firewalls delivers a next-generation firewall (NGFW) and a secure SD-WAN solution that supports the changing needs of enterprise networks. Whether rolling out new services and applications across locations, connecting to the cloud, or trying to achieve operational efficiency, the SRX300 line helps organizations realize their business objectives while providing scalable, easy to manage, secure connectivity, and advanced threat mitigation capabilities. NGFW and content security capabilities make detecting and proactively mitigating threats easier while improving the user and application experience.
