Aruba
R7H97A
Aruba

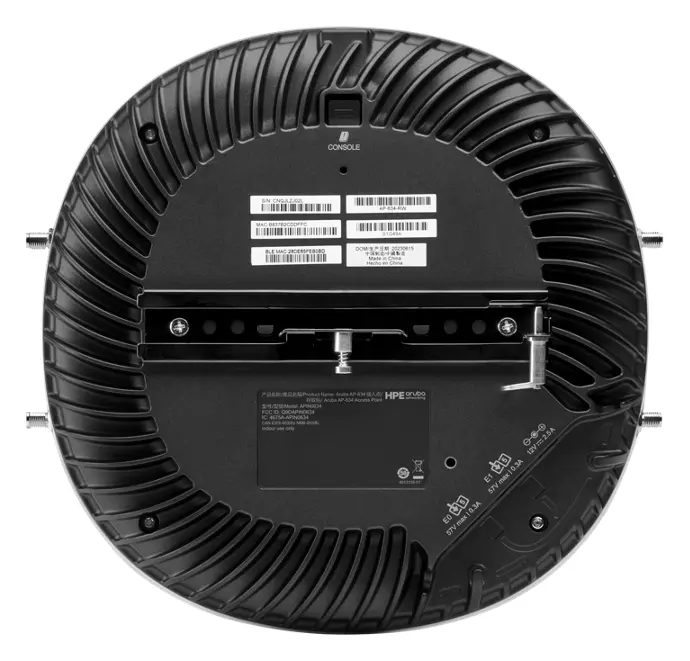

Aruba AP-634 Wi-Fi 6E Harici Anten Access Point
Model
AP-634Aruba AP-634 access point: Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum, Wider channels and less interference to deliver faster speeds for lowlatency, bandwidth-hungry applications like high-definition video and augmented reality.
- Kablosuz standart
- Wi-Fi 6E
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum
- Wider channels and less interference to deliver faster speeds for lowlatency, bandwidth-hungry applications like high-definition video and augmented reality / virtual reality
- Unique filtering capabilities to mitigate gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands
- High availability with hitless failover for
- Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E, once it is approved in the country
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S1G49A |
|---|---|
| Bölgesel Sipariş Kodları | S1G49A (RW), S1G50A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-634 Tri-radio 2x2:2 Wi-Fi 6E External Antennas Campus AP |
Seri Özellikleri 18 satır
| Kullanım Alanı | Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 6E (802.11ax with 6 GHz) |
| Wi-Fi Radyoları | Triple 2x2 |
| Radyo Yapılandırma Seçenekleri | 2.4 GHz and 5 GHz and 6 GHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40 (2.4 GHz), 20/40/80 (5 GHz), 20/40/80/160 (6 GHz), and maximum peak data rate 3.9 Gbps |
| Wi-Fi Anteni | HPE Aruba Networking 630 Series Campus Access Points models: AP-634: Two sets of two (female) RP-SMA connectors for external antennas. AP-635: Integrated downtilt omnidirectional antennas for 2x2 MIMO. Built-in antennas are for horizontal ceiling-mounted orientation of the AP. The downtilt angle gain is roughly 30° to 40°. |
| Ultra Tri-Band (UTB) Filtreleme | Yes |
| IoT Desteği | IEEE 802.15.4/Zigbee or Bluetooth 5.0, USB port |
| Dahili Sensör | No |
| Konum Servisleri | 802.11 FTM support GNSS receiver |
| Hücresel Destek | USB LTE modem (sold separately) |
| Kablolu Ağ Arayüzü | 2 x 2.5GbE |
| MACsec Desteği | No |
| Portlar | E0, E1: Two Ethernet wired network ports (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| AP Yönetimi | On-premises Public Cloud Virtual Private Cloud (VPC) as a Service |
| Sertifikalar | UL2043 plenum rating Wi - Fi Alliance®: Wi-Fi CERTIFIED® a, b, g, n, ac Wi-Fi CERTIFIED 6E (ax, 6 GHz) WPA, WPA2 and WPA3—Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, W-Fi Agile Multiband Bluetooth SIG Ethernet Alliance (PoE, PD device, class 5) |
| Regülasyonlar | FCC/ISED CE Marked Low Voltage Directive 2014/35/EU UL/IEC/EN 62368-1 EN 60601-1-2; The AP-634 will be offered in countries where there is an existing or clear and defined path to allow operation of 6 GHz radios with external connectorized antennas, either as a lowpower indoor (LPI) or standard power (SP) product.; For more country-specific regulatory information and approvals, contact your HPE representative. |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-634 kullanım alanları ve özellikleri.
HPE Aruba Networking 630 Series Campus Access Points are designed to take advantage of the 6 GHz band using three radios for comprehensive tri-band coverage. With 6 GHz, wireless capacity is more than doubled, allowing enterprises to meet needs today and plan for future growth. The Wi-Fi 6E APs allow countries to take advantage of Wi-Fi 6E once it is approved in country through automated notification and easy deployment of 6 GHz regulatory tables.
The 630 series delivers a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds for fixed low power indoor (LPI) use. With up to seven 160 MHz channels, the 630 series increases performance for low-latency, bandwidth-hungry applications. The ultra tri-band (UTB) filtering eliminates interference between 5 GHz and 6 GHz and prevents gaps in channel
coverage. To ensure high availability, the 630 series includes dual port hitless failover for Ethernet and power.
The HPE Aruba Networking 630 Series Campus Access Points deliver a maximum aggregate 3.9 Gbps data rate for higher throughput and faster speeds.
- Three radios to extend the benefits of Wi-Fi 6E to the 6 GHz band accessing up to 1200 MHz of spectrum
- Wider channels and less interference to deliver faster speeds for lowlatency, bandwidth-hungry applications like high-definition video and augmented reality / virtual reality
- Unique filtering capabilities to mitigate gaps in coverage and help minimize interference between the 5 GHz and 6 GHz bands
- High availability with hitless failover for
- Automated notification and easy deployment of 6 GHz regulatory tables to allow countries to take advantage of Wi-Fi 6E, once it is approved in the country
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-634 hakkında kısa yanıtlar.
AP-634 fiyatı ne kadar?
AP-634 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
Hızlı teklif
Formu doldurun, AP-634 için fiyat ve teslim süresini iletelim.
