Aruba
R7H97A
Aruba

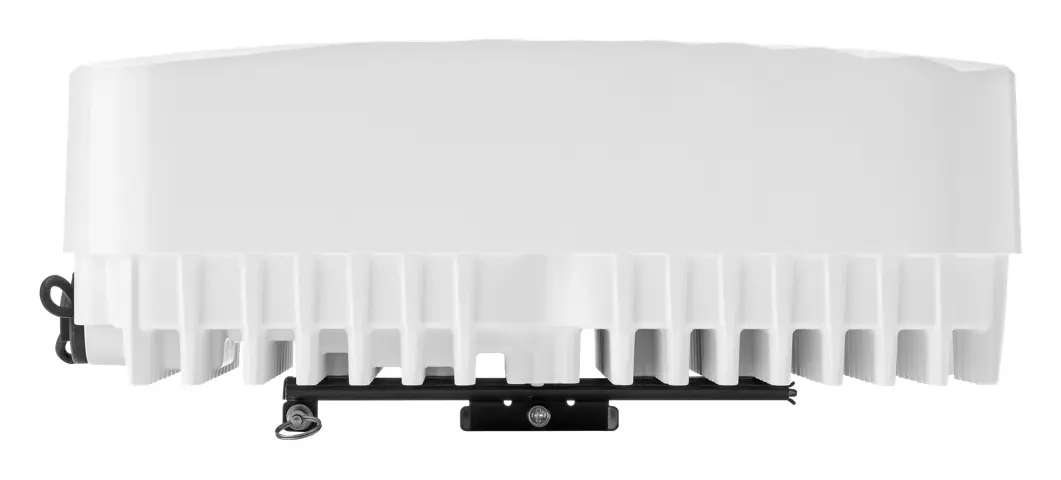

Aruba AP-763 Wi-Fi 7 Endüstriyel Access Point
Model
AP-763Aruba AP-763 endüstriyel access point: High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments, AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless.
- Kablosuz standart
- Wi-Fi 7
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
- AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
- It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
- Industrial IoTready platform with highpower integrated Bluetooth and 802.15.4/Zigbee radios
- Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
- Dynamic power save mode helps reduce energy consumption
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Genel 3 satır
| Sipariş Kodu (RW / Türkiye) | S4K10A |
|---|---|
| Bölgesel Sipariş Kodları | S4K13A (EG), S6A19A (ID), S4K12A (IL), S4K11A (JP), S4K10A (RW), S4K09A (US) |
| Ürün Adı (Üretici) | HPE Aruba Networking AP-763 Flex Radio 2x2 Wi-Fi 7 Dynamic Omni-Directional Indoor AP |
Seri Özellikleri 19 satır
| Kullanım Alanı | Hardened Outdoor Industrial Ruggedized Indoor |
|---|---|
| Wi-Fi Nesli | Wi-Fi 7 (802.11be) |
| Wi-Fi Radyoları | Dual 2x2 MIMO radios, tri - band coverage (2.4 GHz, 5 GHz, 6 GHz) or single 4x4 MIMO radio in 5 GHz or 6 GHz |
| Radyo Yapılandırma Seçenekleri | 6 GHz (4x4) with 160 MHz (AP-763 and AP-765 models only) 5 GHz (4x4) with 80 MHz (AP-763 and AP-765 models only) 6 GHz + 5 GHz (2x2) with 160/80 MHz 6 GHz + 2.4 GHz (2x2) with 80/40 MHz 5 GHz + 2.4 GHz (2x2) with 80/40 MHz |
| Bant Başına Maks. Bant Genişliği ve Veri Hızı | 20/40/80/160 MHz channel bandwidths supported Aggregate peak data rate 5.8 Gbps using 6 GHz (4x4) with 160 MHz |
| Wi-Fi Anteni | HPE Aruba Networking 760 Series Outdoor Access Points models: AP-763/AP-765: Integrated tri-band dynamic antennas (software-provisionable omnidirectional or directional) AP-764: Outdoor IP-rated RP-SMA connectors |
| Ultra Tri-Band (UTB) Filtreleme | No |
| IoT Desteği | BLE 5.4 w/HADM 802.15.4/Zigbee USB |
| Dahili Sensör | Barometric sensor |
| Konum Servisleri | 802.11 FTM support Built-in GPS GNSS receiver |
| Hücresel Destek | No |
| Kablolu Ağ Arayüzü | 1 x 5GbE (auto-sensing link speed 100/1000/2500/5000BASE-T and MDI/MDIX) |
| MACsec Desteği | Yes |
| Portlar | 1 x 5GbE USB 2.0 Reset button Serial console |
| AP İşletim Sistemi Desteği | HPE Aruba Networking Wireless Operating System 10 |
| AP Yönetimi | Public Cloud Virtual Private Cloud (VPC) as a Service On-premises |
| Sertifikalar | Wi - Fi Alliance®: Wi - Fi CERTIFIED® a, b, g, n, ac, 6, 7 WPA2 and WPA3 (enterprise, personal), Enhanced Open (OWE) WMM, WMM PS, Wi-Fi agile multiband Bluetooth SIG Ethernet Alliance (E0, PoE PD Device Class 6) |
| Regülasyonlar | FCC/ISED CE marked EU RED with NB TA (as needed) ETSI EN 300328 2.4GHz ETSI EN 301893 5GHz ETSI EN 303687 (6GHz) EN301489-1 / 489-17 EN 300440 EN 303413 GNSS (GPS) IEC/EN 62368 - 1 EN 60601 - 1 - 1, EN60601 - 1 - 2 |
| Garanti | Limited lifetime warranty. |
Genel bakış
Aruba AP-763 kullanım alanları ve özellikleri.
The HPE Aruba Networking 760 Series Hardened Access Points bring high performance WiFi 7 to challenging locations such as industrial sites, warehouses, and large public venues. These compact Wi-Fi 7 access points boost security, support Internet of Things (IoT) devices, and help provide accurate location services. HPE Aruba Networking Central helps drive efficient operations and provides AI-automation and machine learning (ML) insights for fine-tuned wireless connectivity.
With integrated IoT radios, fast 5GbE wired connectivity, and a limited lifetime warranty, the 760 series is purposebuilt to deliver high-performance WiFi 7
across a range of environmental conditions: indoor industrial, outdoors, and hazardous environments, delivering up to 5.8 Gbps maximum aggregate data rates using 6 GHz (4x4).
compliant, ideal for environments such as oil rigs, industrial manufacturing, and transportation sites.
- High performance hardened Wi-Fi 7 access points with purpose-built models for industrial indoors, outdoors, large public venues, and hazardous environments
- AI-driven orchestration and management with HPE Aruba Networking Central helps provide amazing wireless experiences and operational efficiency
- It delivers up to 4.3 Gbps maximum 5 GHz + 6 GHz aggregate data rate, using dual 2x2 MIMO radios (5 GHz and 6 GHz 2x2), or up to 5.8 Gbps (in 6 GHz 4x4)
- Industrial IoTready platform with highpower integrated Bluetooth and 802.15.4/Zigbee radios
- Low power indoor (LPI) power and standard power (SP) device operation, where available. Embedded GPS receiver for location and SP support
- Dynamic power save mode helps reduce energy consumption
Nerelerde kullanılır?
Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
AP-763 hakkında kısa yanıtlar.
AP-763 fiyatı ne kadar?
AP-763 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
