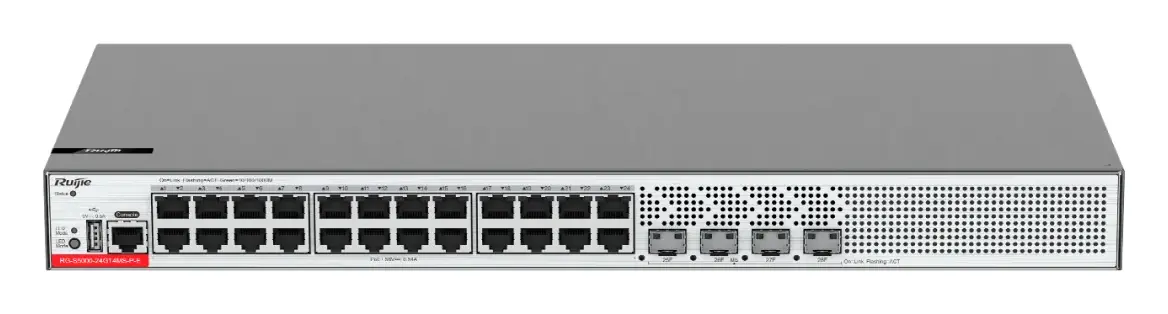

Ruijie RG-S5000-24GT4MS-P-E 24 Port Gigabit PoE+ 4×2.5G SFP L2+ Yönetilebilir Switch

ModelRG-S5000-24GT4MS-P-E

Ruijie RG-S5000-24GT4MS-P-E, 24 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 30 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 24 port

2.5GE uplinks, overcoming GE limitations, supporting diverse access types, and enabling integration into 10GE networks
Unique CPU protection policy, ensuring stable and nonstop services
RLDP for smooth network connections
10 kV surge protection for ports, providing high reliability
Combination with the UNC, offering simplified and efficient O&M

Fiyat ve stok bilgisi alınAynı iş günü dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

Türkiye geneli sevkiyat

Kurulum ve teknik destek

Genel bakış

Ruijie RG-S5000-24GT4MS-P-E özellikleri ve kullanım alanları.

Fit for wired, wireless, and other networks in university, hospital, government, and enterprise campus scenarios

Smart-Managed Layer 2+ Access Switch RG-S5000-24GT4MS-P-E

Compliant with IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) standards, the switch can reliably supply required power to IP surveillance, teleconference systems, and wireless networks.

Ports

Applications

Up to 30 W output per PoE+ port

Custom PoE port priority

Custom PoE port power supply periods

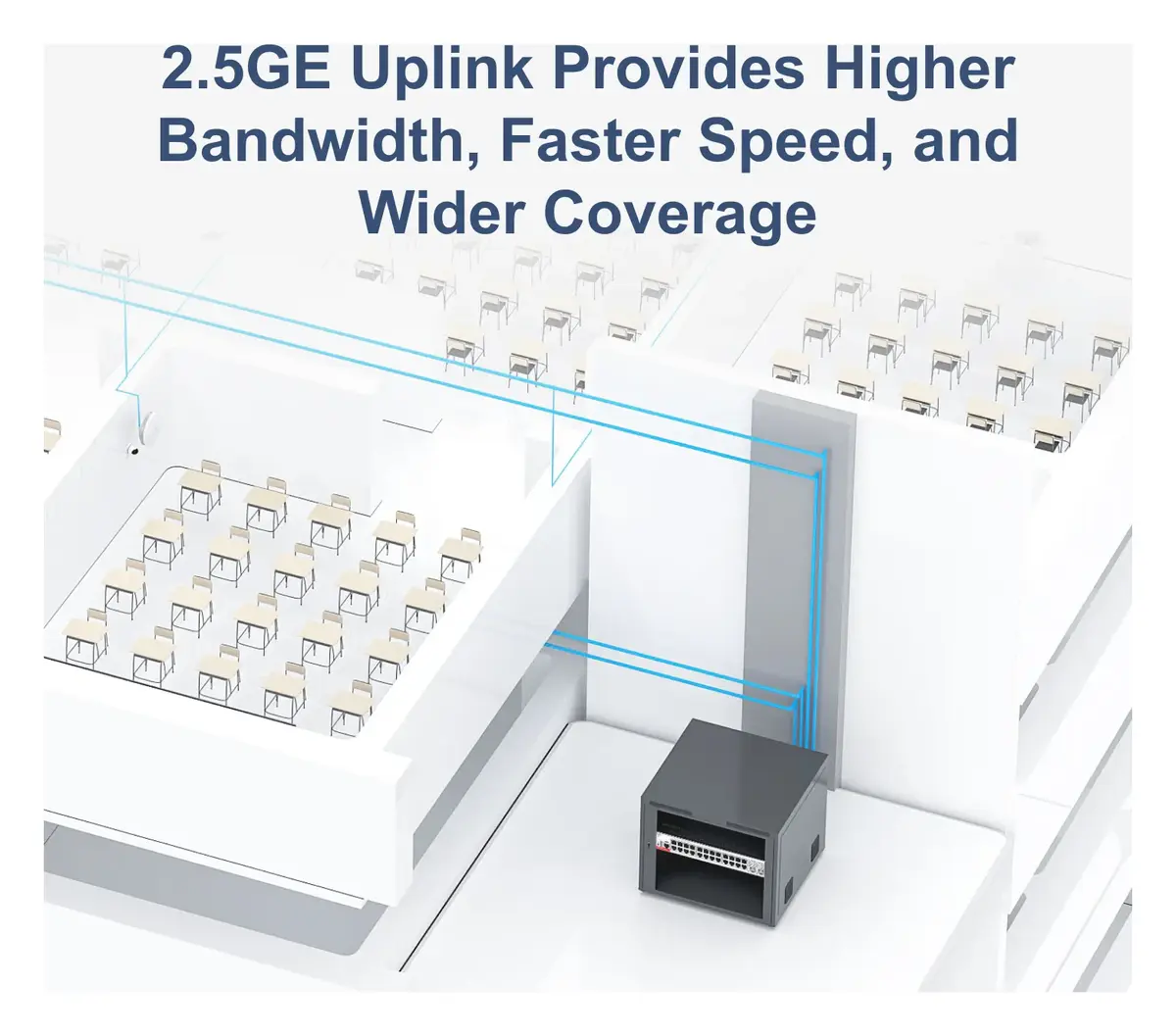

2.5GE Uplink Provides Higher Bandwidth, Faster Speed, and Wider Coverage

The 2.5GE uplink optical port eliminates the bottleneck of gigabit access, delivering higher bandwidth and faster forwarding rate to support more access terminals.

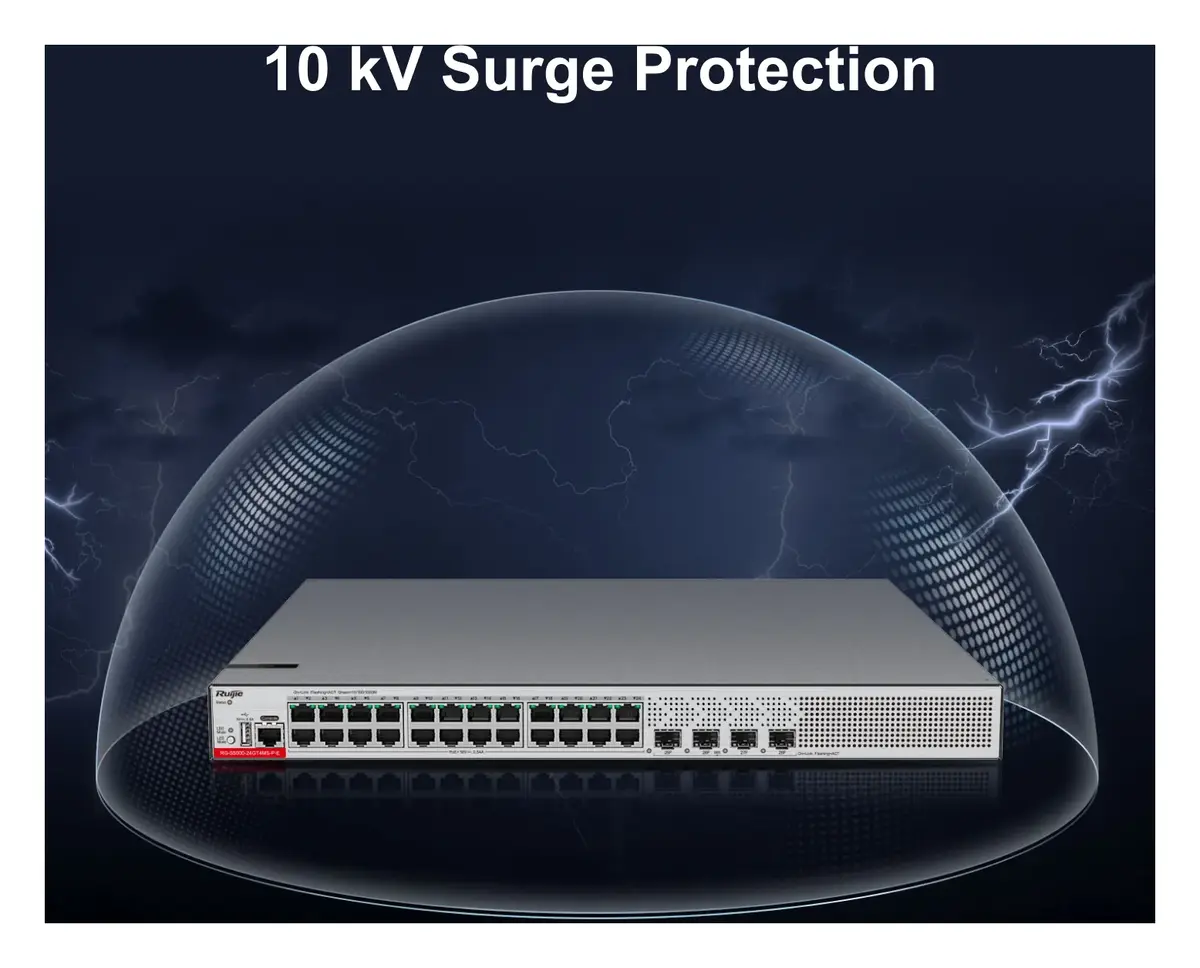

10 kV Surge Protection

Industry-leading port surge protection capability, strong protection ability, adaptation to harsh environment.

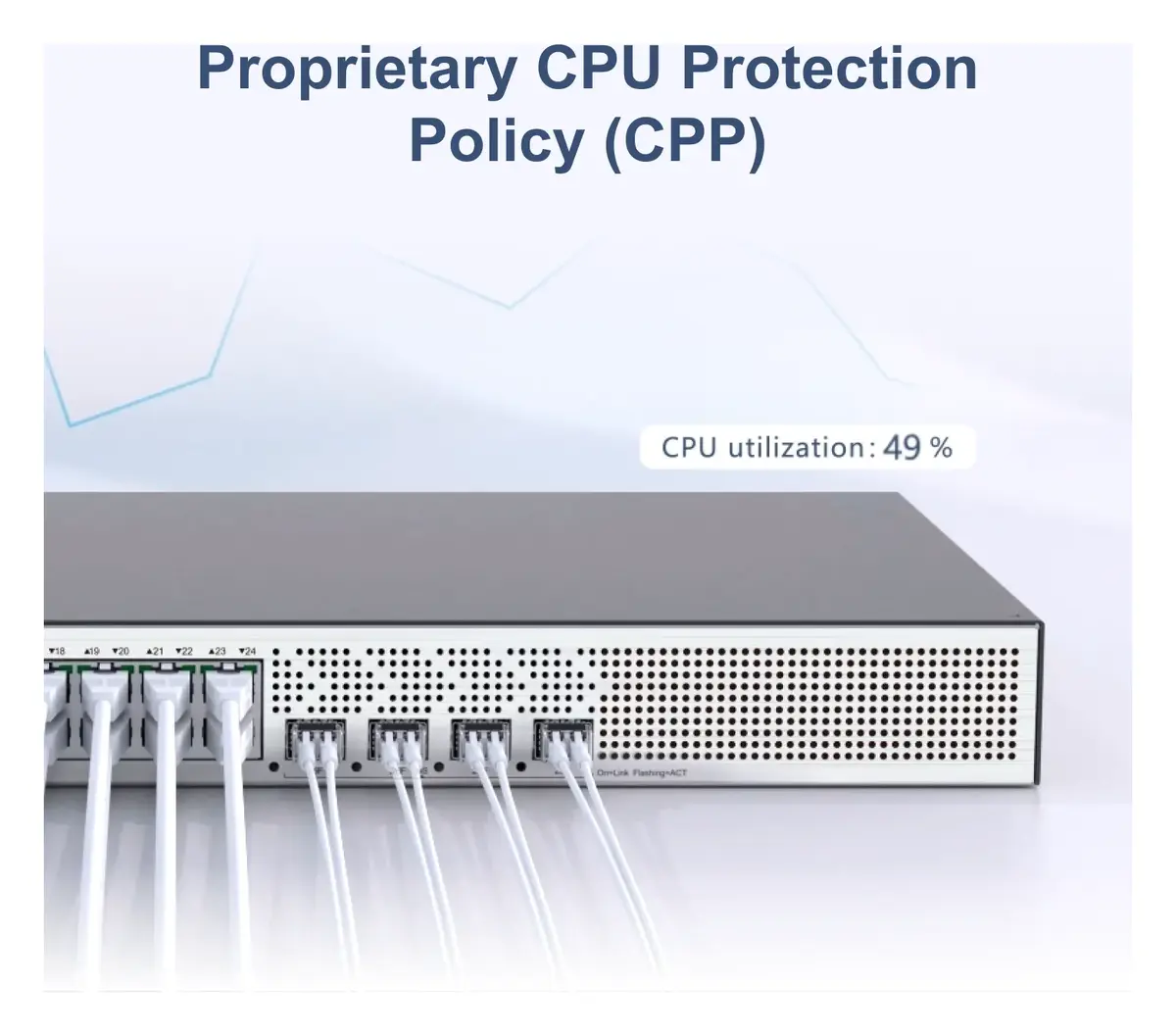

Proprietary CPU Protection Policy (CPP)

CPP protects the CPU by controlling the type and size of packets sent to the CPU. CPP fully protects the CPU from unauthorized traffic, malicious attacks and excessive resource consumption.

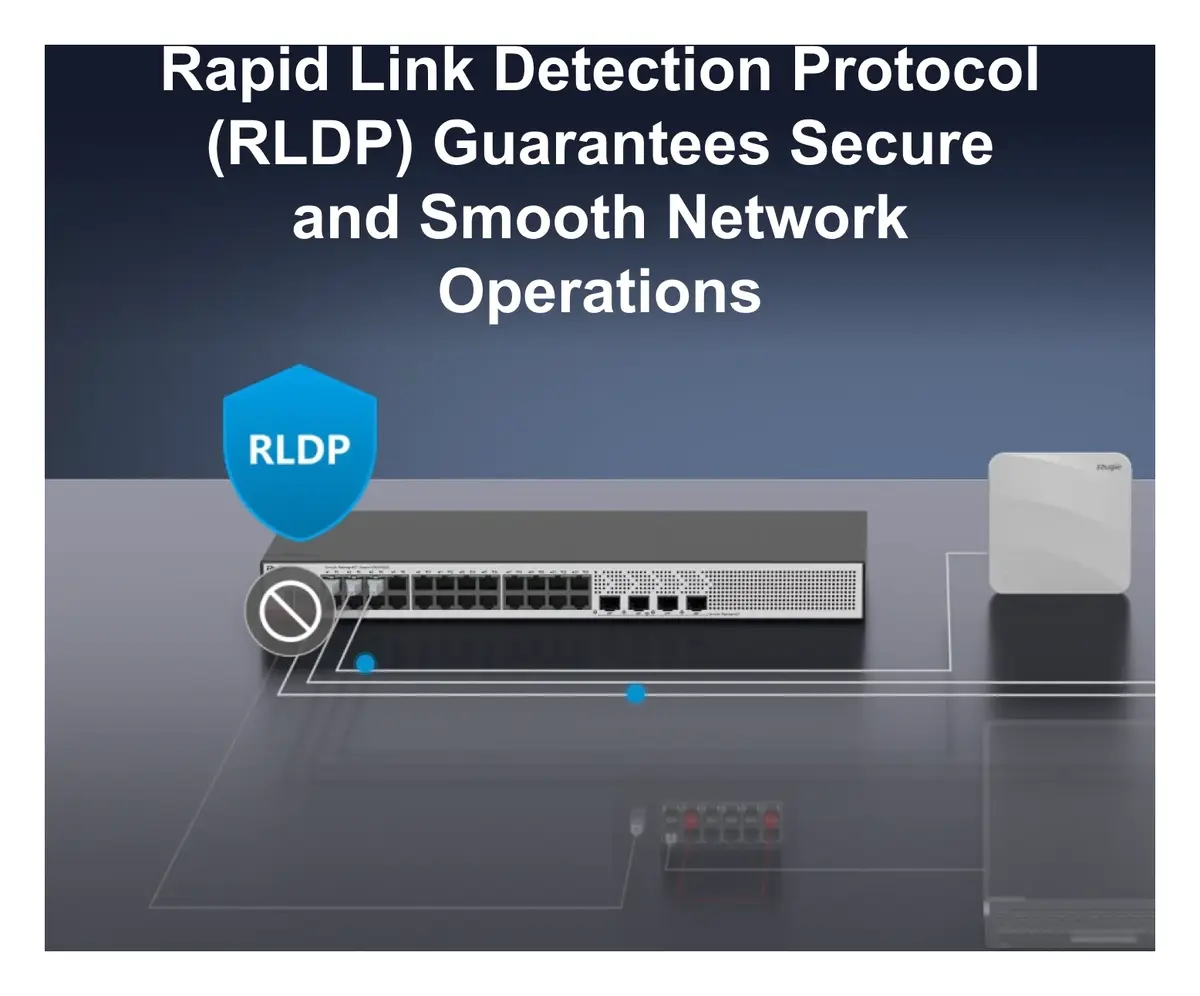

Rapid Link Detection Protocol (RLDP) Guarantees Secure and Smooth Network Operations

RLDP can quickly discover loops caused by unauthorized connection of the port to a hub and other devices, and take corresponding measures to prevent broadcast storms and ensure the security of the device and the link.

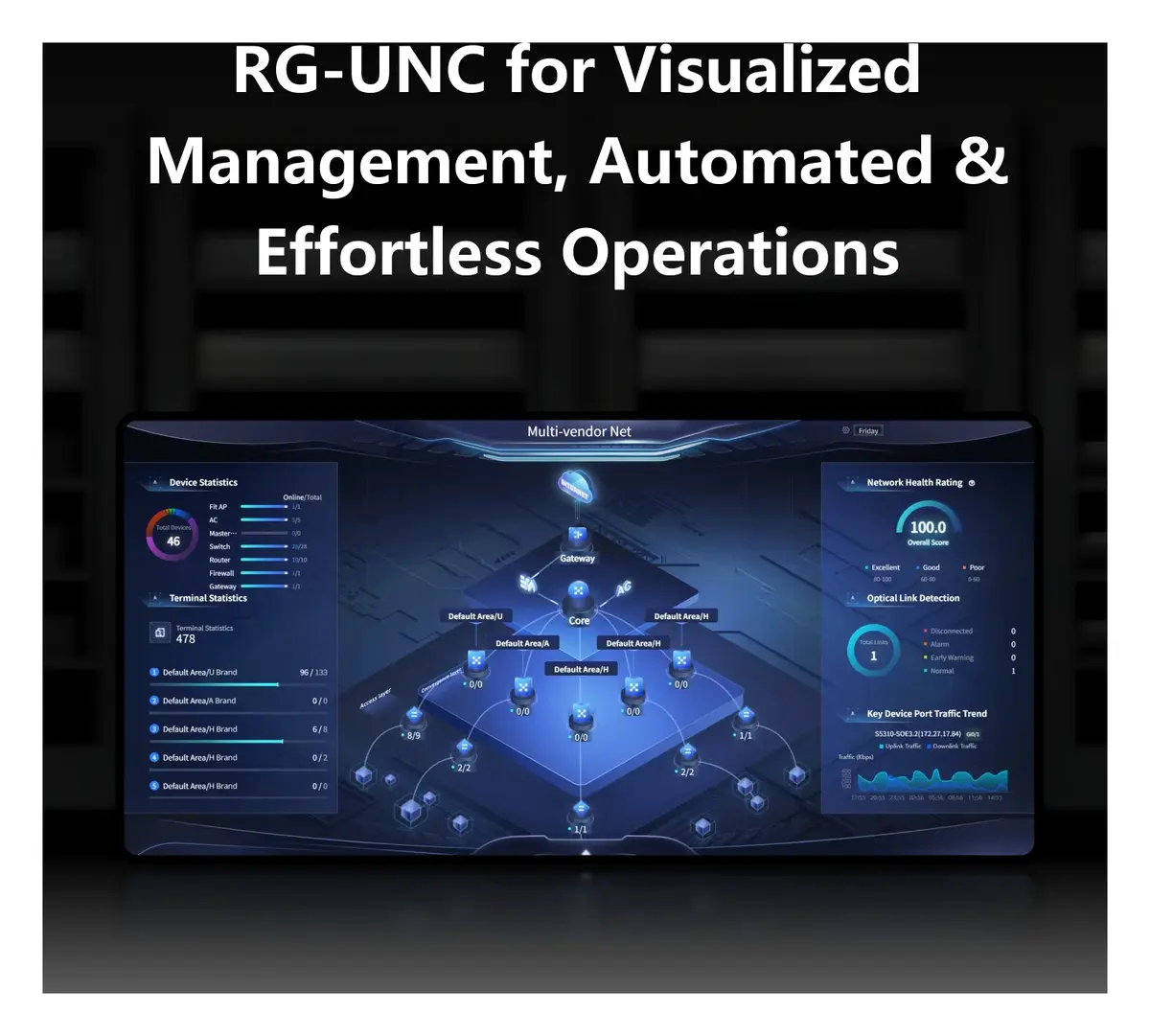

Ruijie Unified Networking Central (RG-UNC) Visualized Management, Automated and Effortless Operations

RG-UNC, a unified visual management platform, supports real-time monitoring of key devices and links, fine-grained alarms, centralized configuration backup and recovery, network-wide management, plug-and-play, and rapid deployment, enhancing O&M efficiency.

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Teknik özellikler

Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri
Sabit Servis Portları	24 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/2.5GE SFP ports
Sabit Yönetim Portu	1 x RJ45 console port
USB	1 x USB port
Sistem Paket İletim Hızı	61 Mpps
Sistem Anahtarlama Kapasitesi	82 Gbps
İşlemci (CPU)	Single-core CPU, with the clock speed of 1.2 GHz
Flash Bellek	64 MB
Bellek	512 MB DDR4
Switch Tampon Belleği	512 KB

*2 means the system's switching capacity.
Cihaz Boyutları (G x D x Y)	440.0 mm x 220.0 mm x 43.6 mm (17.32 in. x 8.66 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	570 mm x 490 mm x 390 mm (22.44 in. x 19.29 in. x 15.35 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	2.8 kg (6.17 lbs)
Kutulu Ağırlık	4.13 kg (9.11 lbs)
Montaj	Mounting on a workbench/wall or in a rack (cabinet)

Güç Kaynağı ve Tüketim
Güç Kaynağı	1 x fixed power supply
Güç Girişi	AC input; Rated input voltage: 100 V AC to 240 V AC, 50/60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 6 A
Maks. Çıkış Gücü	Fixed power supply: 430 W
PoE Portu	Ports 1 to 24; support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)
PoE Çıkış Gücü	Each PoE port provides up to 30 W of power; The maximum power is 370 W
Maks. Güç Tüketimi	33 W (without PoE load); 403 W (full PoE load)
Energy saving	Energy Efficient Ethernet (EEE)

Ortam ve Güvenilirlik
Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F); Note: At an altitude between 1,800 m (5,905.51 ft.) and 5,000 m (16,404.20 ft.), every time the altitude increases by 220 m (721.78 ft.), the maximum temperature decreases by 1°C (1.8°F).
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.); Storage altitude: –500 m to +5,000 m (–1640.42 ft. to +16404.20 ft.)
MTBF	200,000 hours (about 22 years)
Fan	2 x fixed fan modules
Isı Dağılımı	Forced air cooling
Gürültü Seviyesi	27℃ (80.6°F): 40 dB
USB hot swapping	Destekleniyor
Cable hot swapping	Supported by all ports
Fan İzleme	Fan speed control and fan failure alarming
Sıcaklık İzleme	Temperature monitoring, over-temperature alarming; If the ambient temperature exceeds a certain value, the device will be reset.
ESD Koruması	Air discharge: 8 kV/15 kV; Contact discharge: 6 kV/8 kV
Aşırı Gerilim Koruması	Service port: 10 kV; Power port: common mode 6 kV, differential mode 2 kV

Sertifikalar ve Uyumluluk
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
RoHS	European RoHS Directive 2011/65/EU & Amendment(EU) 2015/863

Performans ve Kapasite
Maximum number of SVIs	31 (shared with routed ports)
Maks. MAC Adres Kaydı	16,000
Maks. ARP Kaydı	512 (shared with ND entries and local routing entries)
Maximum number of ND entries	256 (shared with ARP entries and local routing entries)
Maks. IPv4 Unicast Rota	64
Maks. IPv6 Unicast Rota	64
Maximum number of ACEs	In: 500 Out: Not Supported

Fonksiyonlar
Ethernet Anahtarlama	Jumbo frame (maximum length: 9216 bytes); 802.3az EEE; IEEE 802.1Q (4K VLANs); Voice VLAN; Port-based VLAN assignment; Basic QinQ and selective QinQ; STP (IEEE 802.1.d), RSTP (IEEE 802.1w), and MSTP (IEEE 802.1s); ERPS (G.8032); LLDP/LLDP-MED
IP Servisleri	Static and dynamic ARP; DHCP client; DHCP relay; DHCP server; DHCP snooping; DNS client; Neighbor Discovery (ND)
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2
Multicast	IGMP snooping v1/v2; IGMP fast leave
ACL ve QoS	Standard IP ACLs (IP-based hardware ACLs); Extended IP ACLs (hardware ACLs based on IP addresses or TCP/UDP port numbers); MAC-based extended ACLs (ACLs based on source or destination MAC addresses); Expert ACLs; IPv6 ACL; ACL 80; Global ACLs; ACL redirection; Flow-based rate limiting at the ingress; Port rate limiting; Traffic classification based on 802.1p or DSCP priorities; Traffic classification based on 802.1p priorities, DSCP priorities, and IP precedences; Congestion management: SP, WRR,
Güvenlik	Filtering of invalid MAC addresses; RADIUS authentication and authorization; RADIUS and TACACS+; IEEE 802.1X authentication; MAC address bypass (MAB) authentication, and interface-based and MAC address-based 802.1X authentication; Web authentication; Hypertext Transfer Protocol Secure (HTTPS); SSHv1.5 and SSHv2.0; ICMPv6; IP source guard; Proxy ARP and ARP entry aging; Hardware CPP and NFPP; Various attack defense functions including NFPP, ARP anti-spoofing, DHCP/DHCPv6 attack defense, ICMP atta
Güvenilirlik	RLDP; LACP; Load balancing modes; Rapid Link Detection Protocol (RLDP), Layer 2 link connectivity detection, and unidirectional link detection
Ağ Yönetimi ve Bakım	RSPAN; sFlow (sFlow is a network detection technology based on packet sampling, which is mainly used for traffic statistics analysis in super-heavy network traffic scenarios); NTP (NTP client and NTP server); TFTP (TFTP client); SNMPv1/v2c/v3; CWMP; SSH v1.5/v2.0
PoE	RG-S5000-10GT2MS-P-E and RG-S5000-24GT4MS-P-E:; IEEE 802.3af and 802.3at; Automatic and energy-saving power supply management mode; Uninterrupted power supply in hot start mode; Scheduled powering on or off PoE ports; Port priority
Cloud	WIS

Temel Özellikler
Sistem Anahtarlama Kapasitesi	82 Gbps
Sistem Paket İletim Hızı	61 Mpps
MAC address	16000
Çalışma Sıcaklığı	0°C to 45°C (32°F to 113°F)
Garanti	3 years

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF Compliance DocumentPDF Installation GuidePDF

Sık sorulanlar

RG-S5000-24GT4MS-P-E hakkında kısa yanıtlar.

RG-S5000-24GT4MS-P-E IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 30 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-S5000-24GT4MS-P-E kaç portlu?

RG-S5000-24GT4MS-P-E 24 porta sahiptir.

RG-S5000-24GT4MS-P-E fiyatı ne kadar?

RG-S5000-24GT4MS-P-E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
