PoE Switch RG-CS83

Ruijie RG-CS83-12GT4XS-P 12 Port Gigabit PoE+ 4×10G SFP+ L3 Yönetilebilir Switch

ModelRG-CS83-12GT4XS-P

Ruijie RG-CS83-12GT4XS-P, 12 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 30 W. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 12 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Provides multiple network management methods, achieving simple and easy network maintenance.
Provides open and programmable RGOS modular operating system. Basic functions are incorporated into the main version, and c ustom functions are released in app mode, ensuring stability of the basic functions.
Rectifies faults related to processes online in seconds, without interrupting network operation.
Supports Python that allows applications across platforms.
Upgrades and extends functions online to ensure nonstop services.

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 18 satır

Sabit Servis Portları	12 x 10/100/1000BASE-T ports, supporting PoE/PoE+; 4 x 1GE/10GE SFP+ ports
Sabit Yönetim Portu	1 x RJ45 console port
USB	1 x USB 2.0 port (No capacity limit, 2G/4G/8G capacity tested)
Paket İletim Hızı	78 Mpps
Anahtarlama Kapasitesi	104 Gbps
İşlemci (CPU)	Dual-core CPU, each core with the clock speed of 1.0 GHz
BootROM	16 MB (storing boot software for 1+1 boot redundancy)
Flash Bellek	512 MB (storing boot software for 1+1 boot redundancy)
Bellek	1 GB
Switch Tampon Belleği	1.5 MB
MAC Adres Tablosu	16,000
ARP Tablosu Boyutu	4,000
Number of IPv4 unicast routes	6,000
Number of IPv4 multicast routes	1,000
Number of IPv6 unicast routes	2,000
Number of IPv6 multicast routes	750
Number of ACEs	Ingress: 1,750; Egress: 800
Number of VSU members	4

Boyutlar ve Ağırlık 5 satır

Cihaz Boyutları (G x D x Y)	442 mm x 220 mm x 43.6mm (17.40 in. x 8.66 in. x 1.72 in.)
Kutu Boyutları (G x D x Y)	540 mm x 338 mm x 154 mm (21.26 in. x 13.31 in. x 6.06 in.)
Kabin Yüksekliği	1 RU
Cihaz Ağırlığı	3.3 kg (7.28 lbs)
Kutulu Ağırlık	4.18 kg; (9.22 lbs)

Güç Kaynağı ve Tüketim 8 satır

Güç Kaynağı	1 x fixed power supply
Güç Girişi	AC input; Rated input voltage: 100 V AC to 240 V AC, 50 Hz to 60 Hz; Maximum input voltage: 90 V AC to 264 V AC, 47 Hz to 63 Hz; Maximum input current: 6 A
Maks. Çıkış Gücü	Built-in power supply: 409 W
Maks. Güç Tüketimi	35 W (non-PoE); 405 W (PoE full load)
PoE Portu	All RJ45 ports support PoE/PoE+ (IEEE802.3af/at) power supply
PoE power cable pairs	Mode A (1-2, 3-6 pairs)
PoE Çıkış Gücü	Each PoE port provides up to 30 W of power; The maximum power is 370 W
Energy saving	Destekleniyor

Ortam ve Güvenilirlik 13 satır

Sıcaklık	Operating temperature: 0°C to 45°C (32°F to 113°F); Storage temperature: –40°C to +70°C (–40°F to +158°F)
Nem	Operating humidity: 10% to 90% RH (non-condensing); Storage humidity: 5% to 95% RH (non-condensing)
Rakım	Operating altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.); Storage altitude: 0 m to 5,000 m (0 ft. to 16,404.20 ft.)
MTBF	211,466 hours (about 24 years)
Fan	1 x fixed fan module
Isı Dağılımı	Front-to-right and left-to-right airflow
Gürültü Seviyesi	27℃ (80.6°F): 35 dB
Cable hot swapping	Cable hot swapping for all ports
Fan İzleme	PID-based multi-level speed adjustment; Fan speed control (manual configuration not supported); Fan failure alarming
Sıcaklık İzleme	Destekleniyor
ESD Koruması	ESD contact/air discharge: 6 kV/8 kV; ESD susceptibility contact/air discharge: 8 kV/15 kV
Aşırı Gerilim Koruması	Power port: common mode 6 kV, differential mode 8 kV; Communication port: 10 kV
Conformal coating	Conformal coating supported (key components only)

Genel 5 satır

Sertifikalar ve Uyumluluk	RG-CS83 Series
Güvenlik Standardı	IEC 62368-1
EMC Standardı	EN 300386, EN 55032 Class A, EN 55035,; EN IEC 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3,; EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-11
Communication standard	IEEE 802.3-2005 Ethernet standard; IEEE 803.ab, IEEE 802.3af, IEEE 802.1d, IEEE 802.1q, IEEE 802.3-2005 (802.3ae), and IEEE 802.3ba (2010) standards, supporting 802.1X authentication
RoHS	Destekleniyor

RG-CS83 Series 10 satır

Ethernet Anahtarlama	Jumbo frame (maximum length: 9,216 bytes); 802.3az EEE; IEEE 802.1Q (4K VLANs); Voice VLAN; Super-VLAN and private VLAN; MAC address-based VLAN, interface-based VLAN, protocol-based VLAN, and IP subnet-based VLAN; GVRP; Basic QinQ; Selective QinQ; STP, RSTP, and MSTP; ERPS (G.8032); LLDP/LLDP-MED; Non blocking
IP Servisleri	ARP; DHCP client, DHCP relay, and DHCP server; DHCP snooping; DNS; DHCPv6 client, DHCPv6 relay, and DHCPv6 server; DHCPv6 snooping; Neighbor Discovery (ND) and ND snooping
IP Yönlendirme	Static routing; RIP and RIPng; OSPFv2 and OSPFv3; IPv4 and IPv6 VRF; IPv4 and IPv6 PBR
Multicast	IGMP v1/v2/v3, and IGMP proxy; IGMP v1/v2 snooping; PIM-DM, PIM-SM, and PIM-SSM; MSDP; MLD v1/v2; MLD snooping v1/v2; PIM-SMv6 and PIM-SSM v6
ACL ve QoS	Standard IP ACLs; Extended IP ACLs; Extended MAC ACLs; Time-based ACLs; Expert-level ACLs; ACL80; IPv6 ACL; ACL redirection; Traffic rate limiting on an interface; Congestion management: RR, SP, WRR, DRR, WFQ, SP+WRR, SP+DRR, and SP+WFQ; Congestion avoidance: tail drop; 802.1p/DSCP/ToS traffic classification; Eight priority queues per interface; L2/L3/L4 packet identification and classification
Güvenlik	Multiple AAA modes; RADIUS and TACACS+; Interface-based and MAC address-based 802.1x authentication; Web authentication; HTTPS; SSHv1 and SSHv2; Global IP-MAC binding; Port isolation and port security; IP source guard; SAVI; CPP and NFPP
Güvenilirlik	REUP, RLDP, DLDP; IPv4 VRRP v2/v3 and IPv6 VRRP; BFD; Link tracing, fault notification, and remote loopback based on 802.3ah (EFM); Dual-Boot Redundancy; Fan speed adjustment; Fan fault alarm
Cihaz Sanallaştırma	Virtual Switching Unit (VSU)
Ağ Yönetimi ve Bakım	SPAN, RSPAN; sFlow; NTP and SNTP; FTP and TFTP; SNMP v1/v2/v3; RMON (1, 2, 3, 9); NETCONF; Flow-based mirroring, and N:1 and 1:N port mirroring; CWMP (TR-069); gRPC; Cloud and SON
PoE	RG-CS83-12GT4XS-P, RG-CS83-24GT4XS-P, and RG-CS83-48GT4XS-P:; IEEE 802.3af and 802.3at; Warm start; Interface priority

Genel bakış

Ruijie RG-CS83-12GT4XS-P kullanım alanları ve özellikleri.

Business systems such as medical care, libraries, exhibition centers, websites and other gigabit access.

Layer 3 GE Managed Access Switch RG-CS83-12GT4XS-P

12 x 10/100/1000BASE-T ports and four 1GE/10GE SFP+ ports for flexible networking PoE+ supported, providing power to powered devices on security hybrid systems and wireless coverage systems

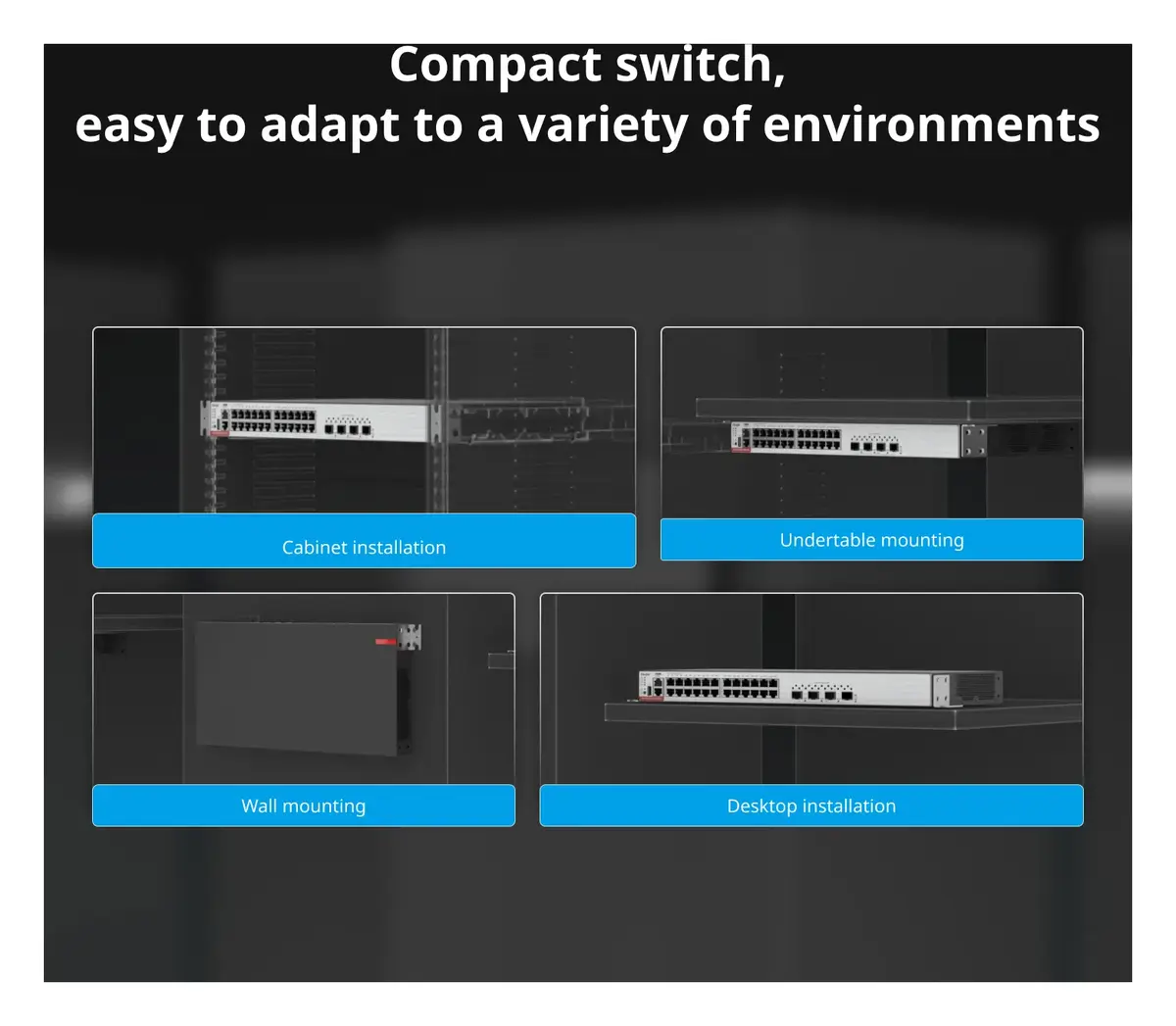

Compact switch, easy to adapt to a variety of environments

Flexible installation

Silence

The switch features user-friendly installation.The full range of unified 220mm sizes can be adapted to a variety of environments.It can be mounted on a wall, on a desk or under a desk.

The switch adopts stepless speed control fans and advanced heat dissipation architecture, with a working noise less than 35 dB. The fanless model is also available, which is as quiet and unobtrusive as a falling leaf when working.

Dual-boot at the hardware level, Offering Carrier-class Reliability

Two flash chips used to store boot software to achieve hardware-level boot redundancy, avoiding switch boot failures due to flash chip faults

10 kV Surge Protection

Industry-leading port surge protection capability.The ports can endure 10 kV surge. The PoE power modules can endure 8 kV surges and non-PoE ones can withstand 6 kV surges, strong protection ability, adaptation to harsh environment.

Cloud, Make Your Business Easy

SON, zero touch provisioning to Cloud
Monitor switch statisticsat anytime anywhere
Configure VLANs on Ruijie Cloud APP
Ease of maintenance, saving onsite labor and cost

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Kurulum ve uyumluluk

Ruijie Cloud üzerinden uzaktan yapılandırma ve izleme yapılabilir.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-CS83-12GT4XS-P Compliance DocumentPDF · RG-CS83-12GT4XS-P

Sık sorulanlar

RG-CS83-12GT4XS-P hakkında kısa yanıtlar.

RG-CS83-12GT4XS-P IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 30 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

RG-CS83-12GT4XS-P kaç portlu?

RG-CS83-12GT4XS-P 12 porta sahiptir.

RG-CS83-12GT4XS-P fiyatı ne kadar?

RG-CS83-12GT4XS-P için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
