RUIJIE · RG-ANT30-D2

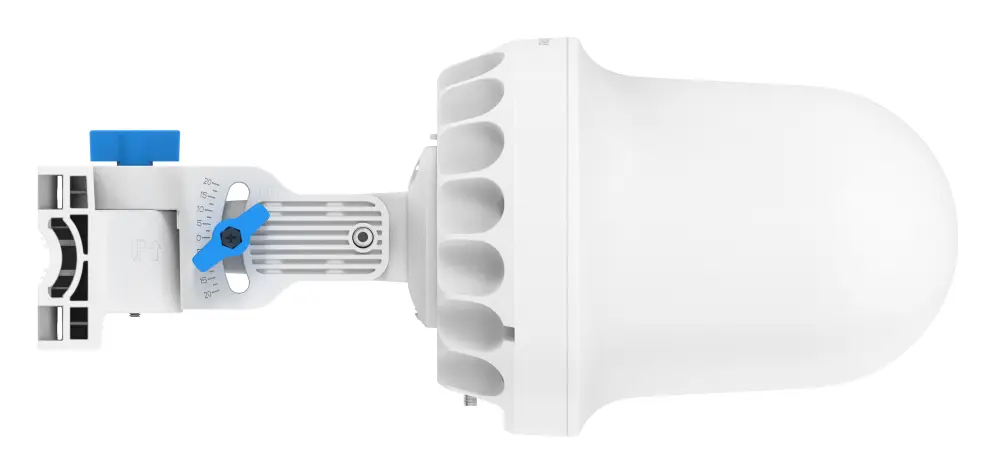

Ruijie RG-ANT30-D2 Yönlü Dış Ortam Anten
Model
RG-ANT30-D2Ruijie RG-ANT30-D2 anten: High-performance dual-band directional outdoor antenna for directional coverage in either the 2.4 GHz or 5 GHz band., 14 dBi peak gain on 5 GHz and 12 dBi on 2.4 GHz for stronger, longer-range signals., 20° horizontal and vertical beamwidths on 5 GHz, and 40°.
- High-performance dual-band directional outdoor antenna for directional coverage in either the 2.4 GHz or 5 GHz band.
- 14 dBi peak gain on 5 GHz and 12 dBi on 2.4 GHz for stronger, longer-range signals.
- 20° horizontal and vertical beamwidths on 5 GHz, and 40° horizontal and vertical beamwidths on 2.4 GHz for precise signal focusing, reduced interference, and less wasted coverage.
Genel bakış
Ruijie RG-ANT30-D2 özellikleri ve kullanım alanları.
Offices, hotels, warehouses, hospitals, and schools.
RG-ANT30-D2 Dual‑Band Directional High‑Gain Outdoor Antenna
20° Narrow-Beam Antenna
The Luneburg Lens Antenna technology focuses energy more effectively , boosting signal strength and extending coverage compared with conventional antennas.
Superior Signal Performance of Luneburg Lens Antennas
The lens of the Luneberg lens antenna. Signals passing through the lens are gradually focused into a beam, rather than radiating outward in all directions.
Standard directional APs — wide beams, with signal strength declining rapidly over distance
APs with Luneburg Lens Antennas — narrow beams that concentrate energy and maintain strong signals over long distances
In a 100 m coverage scenario with heavy interference, Luneberg lens antennas deliver up to 2x the throughput of traditional directional antennas.
* The data is based on theoretical calculations; Actual results may vary depending on on-site conditions.
In the Box
Antenna mounting assembly
M5 x 66 mm Phillips hex head machine screw
M6 x 70 mm expansion anchor
M5 x 12 mm Phillips pan head screw
Laser pointer holder
*Accessory pictures are for reference only. Specifications of accessories such as power cords vary by sales region and country. Please refer to the actual item received.
Teknik özellikler
Değerler üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
| Operating frequency bands | Band 1: 2400–2500 MHz; Band 2: 5150–5850 MHz |
|---|---|
| Polarizasyon | Vertical and horizontal polarization |
| Anten Kazancı | Band 1: 12 dBi; Band 2: 15 dBi |
| 3-dB azimuth beamwidth | Band 1: 40°±5°; Band 2: 20°±3° |
| 3-dB elevation beamwidth | Band 1: 40°±5°; Band 2: 20°±3° |
| Voltage standing wave ratio | Band 1: < 2; Band 2: < 2 |
| Antenna connector | 2 x RP-SMA female antenna connectors |
| Housing material | PC |
|---|---|
| Cihaz Boyutları (G x D x Y) | 220.5 mm x 167 mm x 167 mm (8.68 in. x 6.57 in. x 6.57 in.) |
| Packaging dimensions (W x D x H) | 230 mm x 230 mm x 360 mm (9.06 in. x 9.06 in. x 14.17 in.) |
| Cihaz Ağırlığı | 0.65 kg (1.43 lbs, without the mounting bracket) |
| Packaging weight | 2.05 kg (4.52 lbs) |
| Renk | Beyaz |
| Maximum input power | 43 dBm per port |
|---|
| IP Koruma Sınıfı | IP55 |
|---|---|
| Montaj Seçenekleri | Wall-mount and pole-mount |
| Sertifikalar | CE |
|---|
| Main unit | 1 |
|---|
| Hose clamp | 2 |
|---|---|
| Antenna adjustment assembly | 1 |
| Base bracket | 1 |
| Wing knob | 2 |
| M5 x 66 mm Phillips hex head machine screw | 2 |
| Positioning nut | 1 |
| M6 x 70 mm expansion anchor | 2 |
| M5 x 12 mm Phillips pan head screw | 3 |
| Laser pointer holder | 1 |
| User Manual | 1 |
|---|---|
| Warranty Card | 1 |
