Kablosuz Access Point Ceiling AP

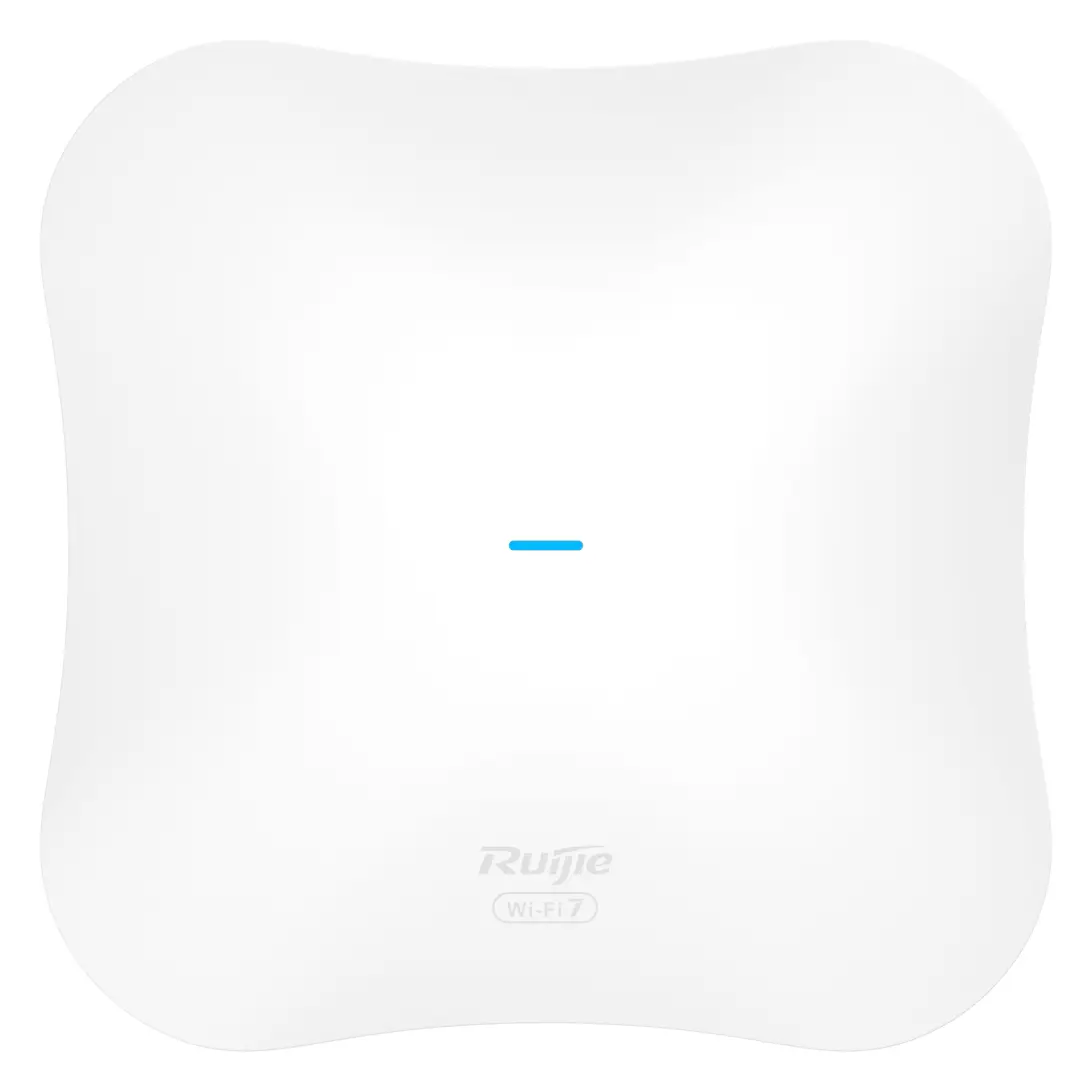

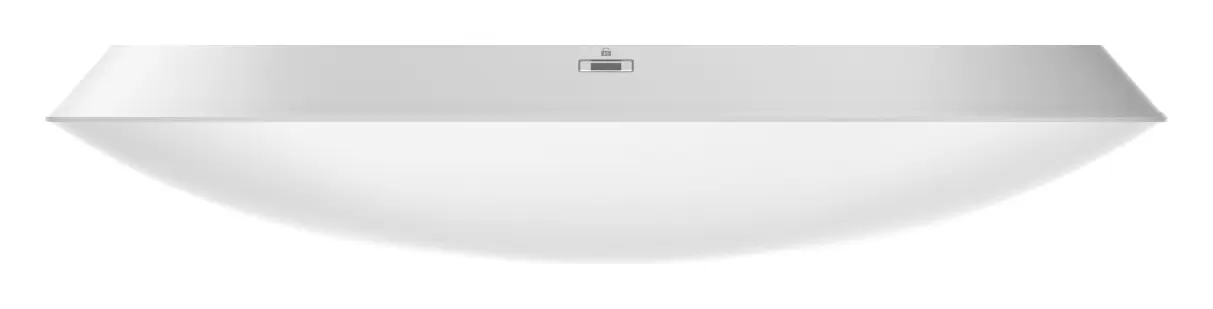

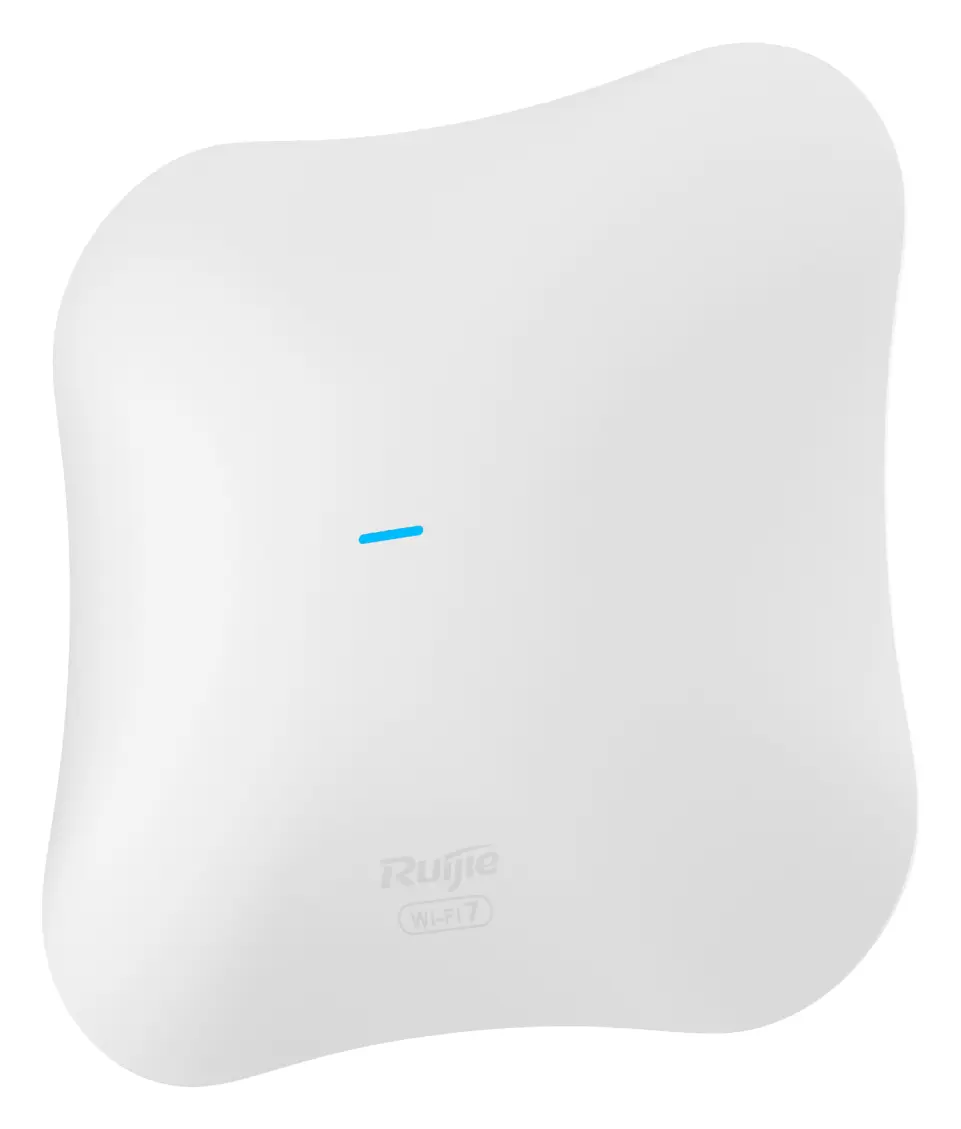

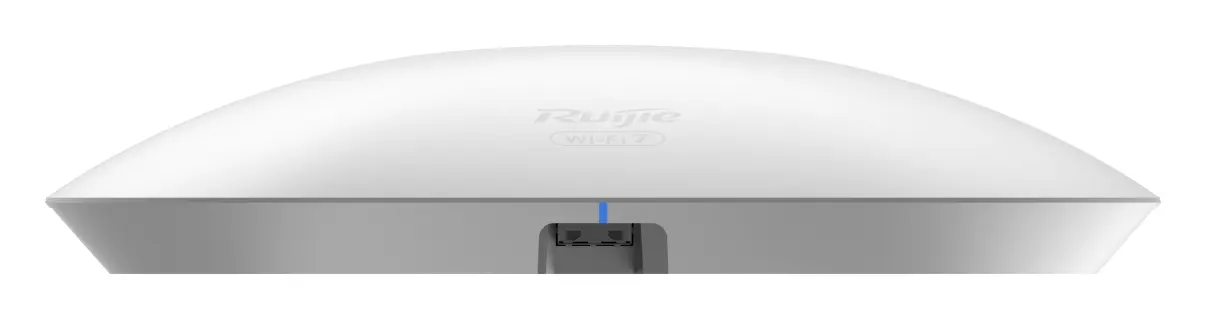

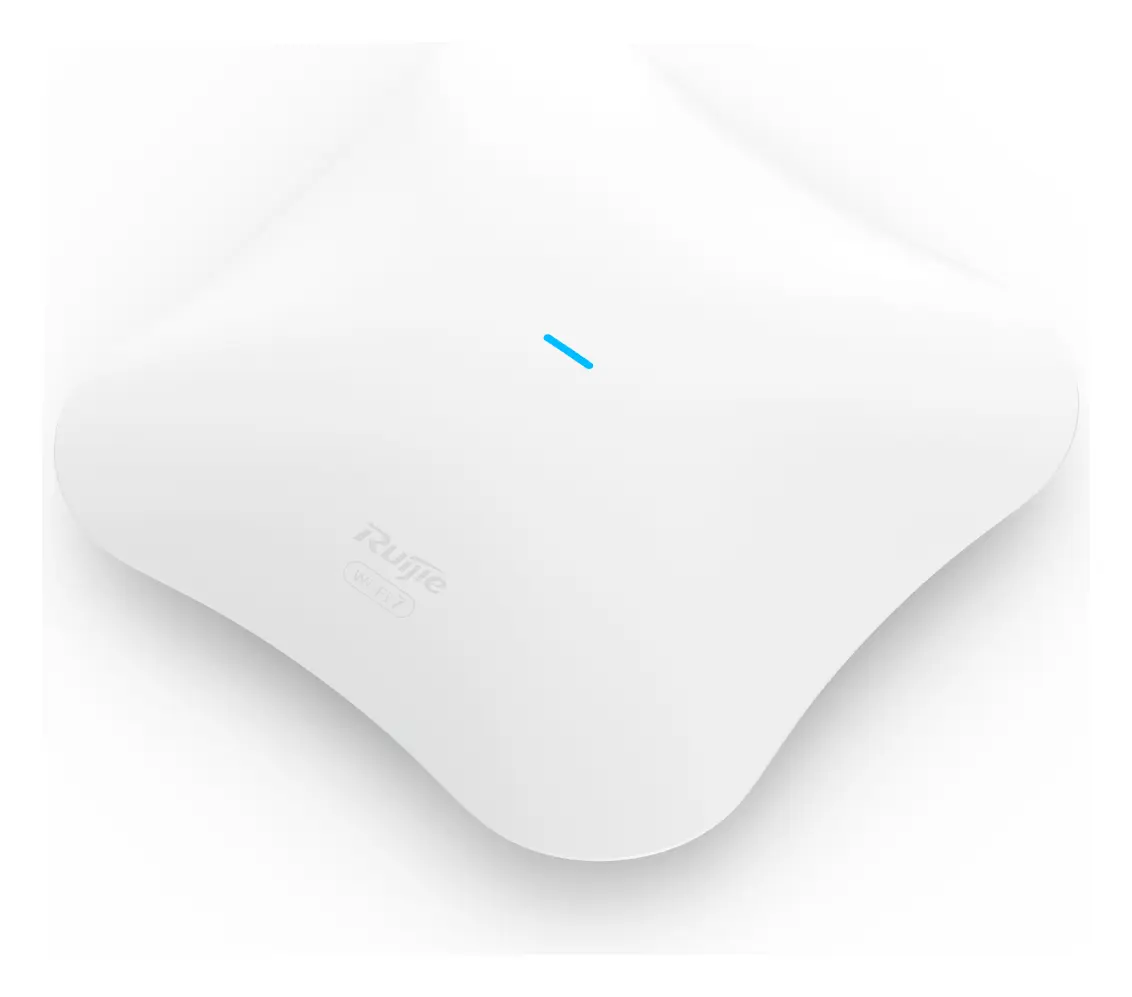

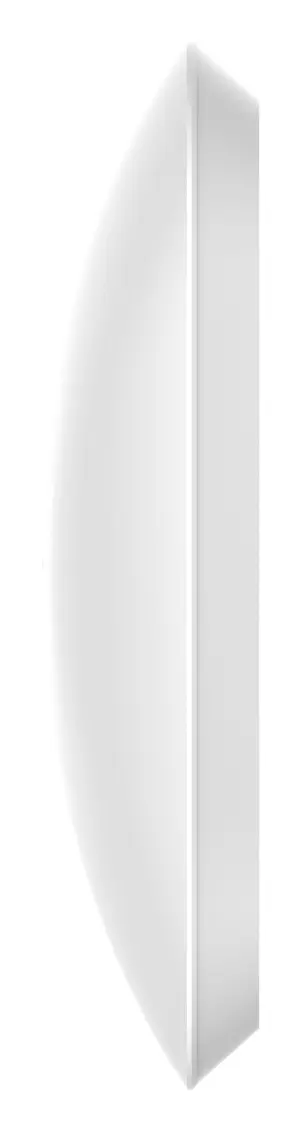

Reyee RG-RAP73PRO Wi-Fi 7 BE14000 Üç Bant Tavan Tipi Access Point

ModelRG-RAP73PRO

Reyee RG-RAP73PRO access point: Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds, Ideal for high-density scenarios, Superior streaming with Wi-Fi 7's exclusive MLO feature, Enhanced data transmission with 4K-QAM for faster speeds, Equipped with a SFP+ port, unl.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Next-generation performance with Wi-Fi 7, delivering extra-high wireless speeds
Ideal for high-density scenarios
Superior streaming with Wi-Fi 7's exclusive MLO feature
Enhanced data transmission with 4K-QAM for faster speeds
Equipped with a SFP+ port, unleashing the full potential of Wi-Fi 7
Ideal for integrating with Multi-G switches to create a robust network

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Wi-Fi Radyo 5 satır

Radyo Tasarımı	Tri-radio; 8 spatial streams; 2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 3 x 3, MU-MIMO; 6 GHz: 3 x 3, MU-MIMO
Maks. Kablosuz Veri Hızı	13657 Mbps
6 GHz Kablosuz Veri Hızı	8646 Mbps
5 GHz Kablosuz Veri Hızı	4323 Mbps
2.4 GHz Kablosuz Veri Hızı	688 Mbps

Boyutlar ve Ağırlık 3 satır

Ürün Boyutları (G x D x Y)	220 mm x 220 mm x 45 mm (8.66 in. x 8.66 in. x 1.77 in.) (excluding the mounting bracket)
Renk	Beyaz
Ağırlık	≤ 1.1 kg (2.43 lbs.) (without packaging materials)

Port Özellikleri 2 satır

10/100/1000/2500BASE-T Port Sayısı	1
10GE SFP+ Port Sayısı	1

Güç Kaynağı ve Tüketim 5 satır

Güç Kaynağı	DC power adapter; PoE+/PoE++; Note: If both the DC power adapter and PoE+/PoE++ are available for power supply, the DC power adapter is preferred.
Yerel Güç Beslemesi	Yes, one DC power connector (54 V, 0.55 A)
Dimensions of the DC connector	Outer diameter: 5.5 mm (0.22 in.); Inner diameter: 2.1 mm (0.08 in.); Length: 10 mm (0.39 in.)
PoE Bütçesi	Hayır
Maks. Güç Tüketimi	30 W

Ortam ve Güvenilirlik 3 satır

Çalışma Sıcaklığı	0°C to 40°C (32°F to 104°F)
Montaj Seçenekleri	Ceiling/Wall
IP Koruma Sınıfı	IP41

WLAN 2 satır

Maximum number of associated wireless clients	128 (2.4 GHz); 256 (5 GHz); 256 (6 GHz); 600 (2.4 GHz, 5 GHz, and 6 GHz enabled)
Maximum number of devices that can be managed	300

IP Servisleri 1 satır

IPv6	Evet

Genel bakış

Reyee RG-RAP73PRO kullanım alanları ve özellikleri.

Star Hotel, Edu, Office, etc.

RG-RAP73Pro

See Never Seen Before Surf the Future Wi-Fi

A high-performance Wi-Fi 7 BE14000 Tri-Band ceiling AP

A balance between performance and design.

A smooth appearance to hold and install.

Deployment and management are simplified by Ruijie Cloud.

Change begins now. Experience a network like never before.

Surf The Future, See Never Seen

Topology

Manufacture Scenario

Mobile AGV Trolley

Fully Wireless Data Transfer and Control

What does Wi-Fi 7 bring

AGV Trolleys

Stuck, slow, and stalled every day

Low Packet loss rate Low Average latency

Real-time Transmission of Data

Unstable machine data transmission and low productivity

* Test data in laboratory environment

Office Scenario

Improved Wireless Experience for High Density Access

Mobile Access Wireless Network

Large Open Office

Large number of terminals and poor experience during peak periods

Increase capacity Reduce interference

Mobile Office

Lagging when walking

Lower roaming latency to less than 60 ms

Hybrid Office

Poor experience with bandwidth-intensive apps

Wi-Fi 7 terminal speed higher than 2000Mbps Latency lower than 10 ms

Application Scenarios

Experience a bustling digital world

For smoother and more reliable experiences

No more buffering, delays, or congestion for streaming

Delve into details on what you want to discuss

Run a lag-free meeting across time zones with global partners and hash out ideas

Robust IoT-enhanced smart office products

Cloud

Multiple wireless access points form a mesh network, simplifying wireless networking

Reyee AP Mesh

MLO allows devices to use channels across different frequency bands, enabling simultaneous transmission and reception of data over multiple links

Achieve wireless network optimization with WIO (Wi-Fi Intelligent Optimization) technology in just one click

Make authentication secure and advertisement engaging

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Product DatasheetPDF · RG-RAP73PRO

Sık sorulanlar

RG-RAP73PRO hakkında kısa yanıtlar.

RG-RAP73PRO fiyatı ne kadar?

RG-RAP73PRO için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
