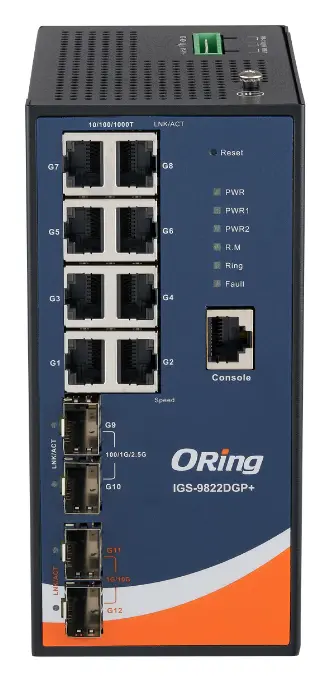

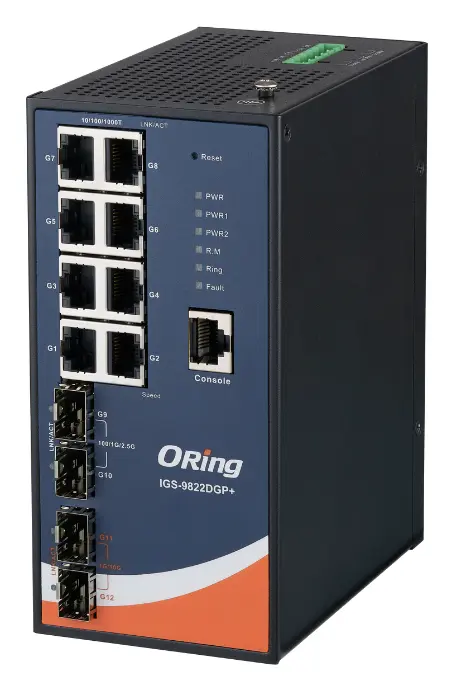

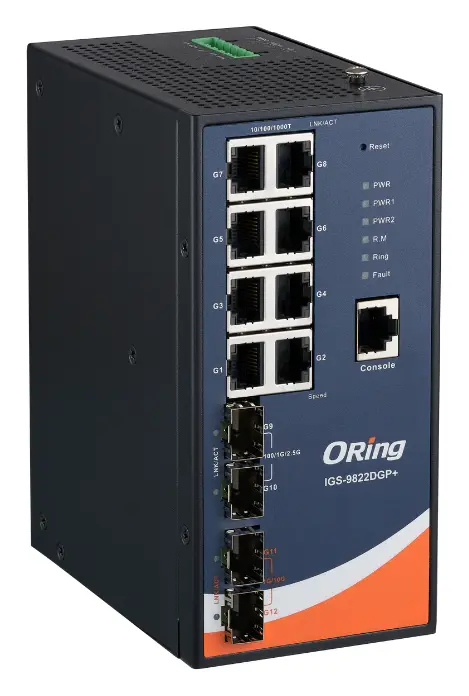

ORing IGS-9822DGP+ 8GE + 2 1G/2.5G SFP + 2 1G/10G SFP Endüstriyel Yönetilebilir Switch

ModelIGS-9822DGP+

ORing IGS-9822DGP+ gigabit bir endüstriyel switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Support O-Ring, O-Chain, MRP, ERPS and RSTP/MSTP (STP compatible) for Ethernet redundancy
Support Modbus TCP and Ethernet/IP
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support Device Binding security function
Support DoS/DDoS auto prevention

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Fiziksel Portlar 3 satır

10/100/1000Base-T(X) ports in RJ45	8
1000/10G Base-X with SFP/SFP+ port	2
1000/2500Base-X with SFP port	2

LED Göstergeler 4 satır

Power Indicator (Power)	Green : Power LED x 3
Ring Master Indicator (R.M.)	Green : Indicates that the system is operating in O-Ring Master mode
O-Ring Indicator (Ring)	Green : Indicates that the system operating in O-Ring mode; Green Blinking : Indicates that the Ring is broken
Fault Indicator (Fault)	Amber : Indicate unexpected event occurred

Güç 4 satır

Güç Tüketimi (Tipik)	19 Watts
Yedekli Güç Girişi	Dual DC inputs 12~48VDC on 6-pin terminal block
Aşırı Akım Koruması	Present
Ters Polarite Koruması	Present

Fiziksel Özellikler 3 satır

Kasa	IP-30
Dimensions (mm)	74.3 (W) x 125 (D) x 153.6 (H) mm
Ağırlık (g)	1078 g

Teknoloji 10 satır

Ethernet Standartları	IEEE 802.3 for 10Base-T; IEEE 802.3u for 100Base-TX and 100Base-FX; IEEE 802.3ab for 1000Base-T; IEEE 802.z for 1000Base-X; IEEE 802.3ae for 10Gigabit Ethernet; IEEE 802.3x for Flow control; IEEE 802.3ad for LACP (Link Aggregation Control Protocol ); IEEE 802.1p for COS (Class of Service); IEEE 802.1Q for VLAN Tagging; IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol); IEEE 802.1s for MSTP (Multiple Spanning Tree Protocol); IEEE 802.1x for Authentication; IEEE 802.1AB for LLDP (Link Layer Disc
MAC Adres Tablosu	32K
Packet buffer Size	32Mbits
Priority Queues	8
Anahtarlama Yöntemi	Store-and-Forward
Switch Özellikleri	Switching latency: 7 us; Switching bandwidth: 66Gbps; Max. Number of Available VLANs: 4095; VLAN ID range: VID 1 to 4094; IGMP multicast groups: 128 for each VLAN; Port rate limiting: User Define
Jumbo Frame	Up to 10K Bytes
Security Features	Device Binding security feature; Enable/disable ports, MAC based port security; Port based network access control (802.1x); MAC-based authentication(802.1x); VLAN (802.1Q ) to segregate and secure network traffic; Radius centralized password management; SNMPv3 encrypted authentication and access security; Https / SSH enhance network security; Web and CLI authentication and authorization; IP source guard
Software Features	IEEE 1588v2 clock synchronization; IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static); Multiple Registration Protocol (MRP); MSTP (RSTP/STP compatible); Redundant Ring (O-Ring) with recovery time less than 30ms; TOS/Diffserv supported; Quality of Service (802.1p) for real-time traffic; VLAN (802.1Q) with VLAN tagging; Guest VLAN; GVRP; IGMP v2/v3 Snooping; Application-based QoS management; DOS/DDOS auto prevention; Port configuration, status, statistics, monitoring, sec
Network Redundancy	O-Ring; O-Chain; MRP*NOTE 1; MSTP (RSTP/STP compatible); ERPS

Arıza Kontağı 1 satır

Röle Çıkışı	Relay output to carry capacity of 1A at 24VDC

Ortam Koşulları 3 satır

Depolama Sıcaklığı	-40 to 85oC (-40 to 185oF)
Çalışma Sıcaklığı	-40 to 75oC (-40 to 167oF)
Çalışma Nemi	5% to 95% Non-condensing

Garanti 1 satır

Garanti	5-years

Sertifikalar ve Onaylar 6 satır

EMC	EN 55032, EN 55035 (CE EMC)
EMI	CISPR 32, EN 55032, FCC Part 15 B Class A
EMS	IEC 61000-4-2 (ESD), IEC 61000-4-3 (RS), IEC 61000-4-4 (EFT), IEC 61000-4-5 (Surge), IEC 61000-4-6 (CS), IEC 61000- 4-8 (PFMF), IEC 61000-4-11 (DIP)
Darbe Dayanımı	IEC 60068-2-27
Serbest Düşme	IEC 60068-2-31
Titreşim	IEC 60068-2-6

Genel bakış

ORing IGS-9822DGP+ kullanım alanları ve özellikleri.

ORing IGS-9822DGP+ – 8GE + 2 1G/2.5G SFP + 2 1G/10G SFP Managed Ethernet Switch. Bu ürün ORing Industrial Networking'in Endüstriyel Yönetilebilir Switch ailesinde yer alır.

Öne Çıkan Teknik Özellikler

Güç Tüketimi (Tipik): 19 Watts
Yedekli Güç Girişi: Dual DC inputs 12~48VDC on 6-pin terminal block
Kasa: IP-30
MAC Adres Tablosu: 32K
Jumbo Frame: Up to 10K Bytes
Çalışma Sıcaklığı: -40 to 75oC (-40 to 167oF)
Garanti: 5-years

Temel Özellikler (Features)

Support O-Ring, O-Chain, MRP, ERPS and RSTP/MSTP (STP compatible) for Ethernet redundancy
Support Modbus TCP and Ethernet/IP
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Support 10K Bytes Jumbo Frame
Syslog/SNMP Trap notification for warning of unexpected event
Support DBU-01 backup unit device to quickly backup/restore configuration
Support Universal Plug ad Play Protocol

Genel Bakış (Description)

IGS-9822DGP+ is a managed gigabit Ethernet switch with 8x 10/100/1000Base-T(X) ports and 2x 100/1G/2.5GBase-X + 2x 1G/10GBase-X SFP ports. The switch supports Ethernet redundancy protocols, including RSTP/MSTP, O-Ring, O-Chain, G.8032 ERPS, and IEC 62439-2 MRP, ensuring fast recovery technology to protect mission-critical applications from network interruptions or temporary malfunctions. It operates over a wide temperature range from -40°C to 75°C. IGS-9822DGP+ can be centrally managed conveniently via Open-Vision, excluding the web-based interface, Telnet, and console (CLI) configuration. Therefore, the switch is one of the most reliable choices for highly managed fiber Ethernet applications.

Nerelerde kullanılır?

Fabrika sahası, trafik dolapları ve açık alan panolarında geniş sıcaklık aralığında kesintisiz çalışacak şekilde tasarlanmıştır.

Tüm özellikler

Support O-Ring, O-Chain, MRP, ERPS and RSTP/MSTP (STP compatible) for Ethernet redundancy
Support Modbus TCP and Ethernet/IP
Support IEEE 802.3az Energy-Efficient Ethernet technology
Provided HTTPS/SSH protocol to enhance network security
Support SMTP client and NTP server protocol
Support IP-based bandwidth management
Support Device Binding security function
Support DoS/DDoS auto prevention
IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
Support SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
Support ACL, TACACS+ and 802.1x User Authentication for security
Support 10K Bytes Jumbo Frame
Syslog/SNMP Trap notification for warning of unexpected event
Support DBU-01 backup unit device to quickly backup/restore configuration
Support Universal Plug ad Play Protocol
Rigid IP-30 housing design
DIN-Rail and wall mounting enabled

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet (EN)PDF · IGS-9822DGP+ Hızlı Kurulum Kılavuzu (EN)PDF · IGS-9822DGP+ Kullanım Kılavuzu (EN)PDF · IGS-9822DGP+

Sık sorulanlar

IGS-9822DGP+ hakkında kısa yanıtlar.

IGS-9822DGP+ fiyatı ne kadar?

IGS-9822DGP+ için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
