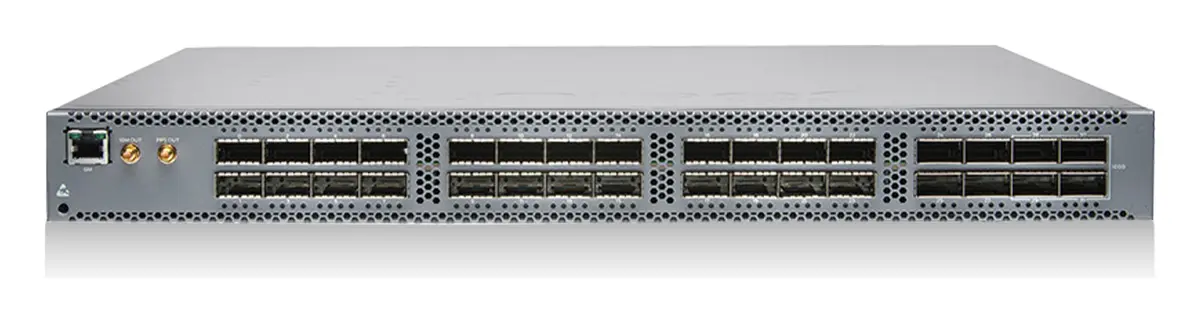

Juniper QFX5110-32Q-DC-AFI 32 Port 40G QSFP+ DC Veri Merkezi Switch

This data sheet provides overview of QFX5110 access and aggregation switches that deliver low latency, rich Layer 2 and Layer 3 features, VXLAN overlay deployments, and 100GbE uplinks.

QFX5110 access and aggregation switches deliver low latency, rich Layer 2 and Layer 3 features, VXLAN overlay deployments, and 100GbE uplinks, making it the industry’s most nimble line of switches.

Data centers are rapidly adopting cloud services, whether completely off-premises models or hybrid models with critical services offered through on-premises private clouds. The tremendous growth of off-premises cloud services, coupled with the widespread adoption of overlay technologies, has created a need for highly agile switching platforms that can satisfy the demands of these evolving data centers.

The high performance Juniper Networks QFX5110 line of Ethernet switches fit the bill, providing the foundation for dynamic data centers. As a critical enabler for IT transformation, the data center network supports cloud and SDN adoption, network virtualization, integrated/scale-out storage, and the rapid deployment and delivery of mission-critical applications that significantly increase east-west traffic within the data center. Furthermore, increasing demand for 100GbE spine ports is driving the need for 100GbE uplinks for all server access speeds, including 10GbE and 40GbE. The QFX5110 includes 100GbE uplinks, enabling it to support a diverse set of switching architectures, including fabric, Layer 3, and spine-and-leaf deployments, enabling users to easily adapt as requirements change over time. The QFX5110 switch can be positioned in campus distribution and core deployments.

The QFX5110 switches include 10GbE (fiber) and 40GbE or 100GbE fixed-configuration options with rich Layer 2, Layer 3, and MPLS features. The QFX5110 switches run the same reliable, high performance Juniper Networks Junos operating system that is used by the Juniper Networks QFX5100 family of products, EX Series Ethernet Switches, HPE Juniper Networking routers, and Juniper Networks SRX Series Services Gateways, ensuring a consistent implementation and operation of control plane features across the entire HPE infrastructure.

The QFX5110 switches are compact, 1 U platforms that provide wire-speed packet performance, very low latency, and a rich set of Junos OS features. In addition to a high throughput Packet Forwarding Engine (PFE), the performance of the QFX5110 control plane is further enhanced with a powerful 1.8 GHz quad-core Intel® CPU with 16 GB of memory and 64 GB SSD storage.

• L3 gateway capabilities for bridging between virtualized and bare-metal servers
• Rich Layer 2, Layer 3, and MPLS support
• High-density 10GbE, 40GbE, and 100GbE ports for data center spine and leaf topologies and campus distribution
• Support high-density, multi-speed configurations for 10/40/100GbE access and aggregation, with up to 64 or 96 10GbE ports, up to four 100GbE uplink ports, and up to 32 40GbE ports in a 1 U platform
• Deliver up to 2.56 Tbps Layer 2 and Layer 3 performance, with latency as low as 550 nanoseconds
• Include a 1.8 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
• Feature rich automation capabilities with support for Python and zero touch provisioning (ZTP)
• Support virtualization protocols such as Virtual Extensible LAN (VXLAN) and Open vSwitch Database (OVSDB) protocol as L2 Gateway or L3 Gateway
• Offer advanced Junos OS features such as BGP add-path, MPLS, L3 VPN, and IPv6 6PE
• Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Tüm özellikler

• L3 gateway capabilities for bridging between virtualized and bare-metal servers
• Rich Layer 2, Layer 3, and MPLS support
• High-density 10GbE, 40GbE, and 100GbE ports for data center spine and leaf topologies and campus distribution
• Support high-density, multi-speed configurations for 10/40/100GbE access and aggregation, with up to 64 or 96 10GbE ports, up to four 100GbE uplink ports, and up to 32 40GbE ports in a 1 U platform
• Deliver up to 2.56 Tbps Layer 2 and Layer 3 performance, with latency as low as 550 nanoseconds
• Include a 1.8 GHz quad-core Intel CPU with 16 GB memory and 64 GB SSD storage
• Feature rich automation capabilities with support for Python and zero touch provisioning (ZTP)
• Support virtualization protocols such as Virtual Extensible LAN (VXLAN) and Open vSwitch Database (OVSDB) protocol as L2 Gateway or L3 Gateway
• Offer advanced Junos OS features such as BGP add-path, MPLS, L3 VPN, and IPv6 6PE
• Software modularity, with process modules running independently in their own protected memory space and with the ability to do process restarts
