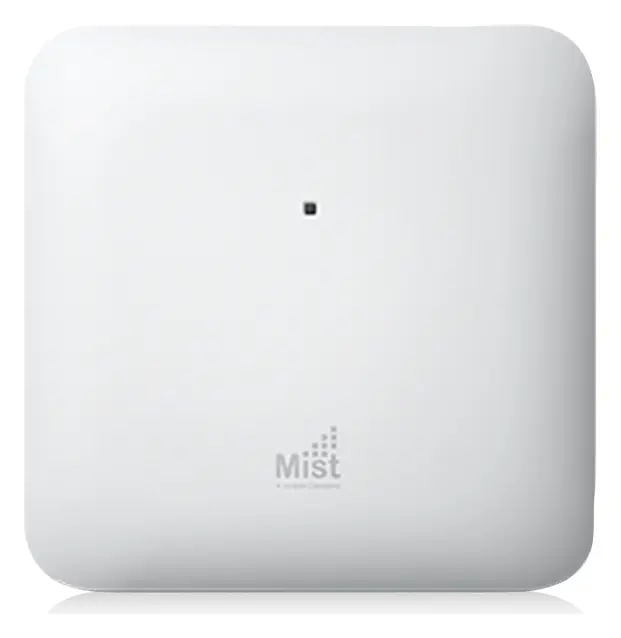

Juniper AP43 Wi-Fi 6 Access Point

ModelAP43

Juniper AP43 access point.

Kablosuz standart: Wi-Fi 6

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 2 satır

Sipariş Kodu (WW / Türkiye)	AP43-WW
Bölgesel Sipariş Kodları	AP43-US, AP43-WW

Teknik Özellikler 33 satır

Deployment Wi-Fi standard	Indoor 802.11ax (Wi-Fi 6) 4x4:4 SS
Wi-Fi Radyoları	Dedicated third radio for scanning
Anten Seçenekleri	Internal/ External
Sanal BLE (vBLE)	Y
USB	Y
IoT Sensörleri	Humidity, Pressure, Temperature
Garanti	Limited lifetime
Desteklenen Frekanslar	2.4 GHz, 5 GHz
Wi-Fi Standardı	802.11ax (Wi-Fi 6), including support for OFDMA, 1024-QAM, MU-MIMO, Target Wake Time (TWT), Spatial Frequency Reuse (BSS Coloring). Backwards compatibility with 802.11a/b/g/n/ac
Combined highest supported data rates	Dual-Band: 3.5 Gbps Dual 5 GHz (internal antenna model): 4.8 Gbps
2.4 GHz	4x4:4 802.11ax up to 1,148 Mbps data rate
MIMO Çalışması	Four spatial stream SU-MIMO for up to 2,400 Mbps wireless data rate to individual 4x4 HE80 Four spatial stream MU-MIMO for up to 2,400 Mbps wireless data rate to up to four MU-MIMO capable client devices simultaneously
Dedicated fourth radio	2.4 GHz and 5 GHz, dual-band WIDS/WIPS, spectrum analysis, synthetic client and location analytics radio
Internal antennas	Four 2.4 GHz omnidirectional antennas with 4 dBi peak gain Four 5 GHz omnidirectional antennas with 6 dBi peak gain
Bluetooth 5.0	vBLE 16-element Directional Antenna Array + Omni Bluetooth Antenna
Hüzme Yönlendirme (Beamforming)	Transmit Beamforming and Maximal Ratio Combining
Güç Seçenekleri	802.3at PoE, 802.3bt PoE, 12V/3A DC power supply
Power adaptor	100–240 VAC, 50–60 Hz, input. 12V/3A DC output)
Boyutlar	222 x 222 x 53 mm (8.74 x 8.74 x 2.09 in)
Ağırlık	1.39 kg (3.06 lbs) excluding mount and accessories
Kutu Boyutları	Size (L x W x H): 279 x 298 x 76 mm (11.0 x 11.8 x3.0 in) Weight: 2.18 kg (4.2 lbs)
Çalışma Sıcaklığı	Internal antenna: 0° to 40° C External antenna: –20° to 50° C
Çalışma Nemi	10% to 90% maximum relative humidity, non-condensing
Çalışma İrtifası	3,048 m (10,000 ft)
Mean Time Between Failures (MTBF)	Indoor MTBF in hours is 454,0002
IoT port	-pin interface for digital I/O and analog input (0 to +5V)
USB	USB 2.0 support interface
12VDC	Input for optional DC power supply
Eth0	100/1000Base-T, 2.5GBase-T (802.3bz); RJ45; PoE PD
Eth1	10/100/1000Base-T; RJ45; optional PoE PSE mode (requires 802.3bt on Eth0)
External Antennas (AP43E)	Six RP-SMA Male connectors (four dual-band for client radios; two dual-band for third radio)
Sıfırlama	Reset to the factory default settings
Göstergeler	One multicolor status LED

Genel bakış

Juniper AP43 kullanım alanları ve özellikleri.

Juniper AP43 access point which integrates patented virtual Bluetooth LE (vBLE) and Internet of Things (IoT) capabilities to deliver unprecedented user experiences.

The Juniper AP43 high performance Wi-Fi 6 (802.11ax) access point integrates patented virtual Bluetooth LE (vBLE) and Internet of Things (IoT) capabilities to deliver unprecedented user experiences.

The Juniper AP43 high performance Wi-Fi 6 (802.11ax) access point integrates patented virtual Bluetooth LE (vBLE) and Internet of Things (IoT) capabilities to deliver unprecedented user experiences. The AP43 Series works in conjunction with the Juniper Mist cloud architecture driven by Mist AI to collect and analyze metadata in near real time from all wireless clients. This enables rapid problem detection and root cause identification with predictive recommendations and proactive troubleshooting.

While wired and wireless networks are business critical, they are also harder to operate given the sheer number of mobile devices and IoT resources—not to mention the extensive variety of hardware, operating systems, and applications currently in use. Traditional architectures—highly manual and network-centric—lack the scale, flexibility, and end-to-end visibility required to support today’s users and the IT departments that manage them.

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Datasheet - AP43 access point (PDF)PDF · AP43

Sık sorulanlar

AP43 hakkında kısa yanıtlar.

AP43 fiyatı ne kadar?

AP43 için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
