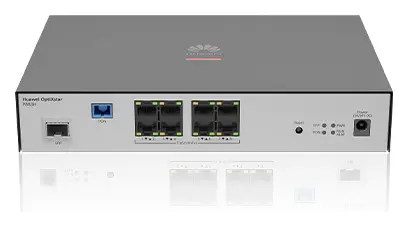

Huawei P883H PoE ONU

ModelP883H

Huawei P883H PoE ONU: Ultra wide access, High Reliability，High Security, Easy O&M, Centralized management on eSight • Automatic service configuration.

Port sayısı: 45 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Ultra wide access
High Reliability，High Security
Easy O&M
Centralized management on eSight • Automatic service configuration

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 20 satır

Boyutlar (G x D x Y)	250mm x 180mm x 43.6mm
Network-side ports	2 x XGS-PON Pro (BOB+SFP), compatible with XGS-PON
User-side ports	8 x 2.5GE(PoE+)
Rated power supply	54V/56V
PoE output power	• Maximum total power: 120 W; • Maximum power per port: 30 W
Static power consumption	12 W
Maks. Güç Tüketimi	23 W (without PoE); 145 W (120 W over PoE)
Çalışma Sıcaklığı	-5°C to 45°C
Çalışma Nemi	5%–95% RH, non-condensing
Weight (excluding adapter)	1.66 kg
Surge protection specifications	GE: 4 kV in common mode; AC power (power adapter): 6 kV in common mode and 6 kV in differential mode
Soğutma	Natural cooling
Montaj Şekli	Placed horizontally on a desktop, wall-mounting, or installed in a 19-inch cabinet or network box
PON Portu	• Port mode: XGS-PON Pro; − Port type: SC/UPC; − Transmission rate: RX 12.44 Gbit/s, TX 12.44 Gbit/s; − Optical receiver sensitivity: -22 dBm; − Overload optical power: -7 dBm; • Port mode: XGS-PON; − Port type: SC/UPC; − Transmission rate: 9.953 Gbit/s in the uplink and 9.953 Gbit/s in the downlink; − Receiver sensitivity: -28 dBm; − Overload optical power: -8 dBm
SFP port	• Interface mode: XGS-PON Pro; − Optical module type: XGS-PON Pro optical module; − Optical module encapsulation mode: SFP+; − Interface type: SC/UPC; − Transmission rate: 12.44 Gbit/s in the uplink and 12.44 Gbit/s in the downlink; − Receiver sensitivity: -27 dBm; − Overload optical power: -7 dBm; • Interface mode: XGS-PON; − Optical module type: XGS-PON optical module; − Optical module encapsulation mode: SFP+; − Interface type: SC/UPC; − Transmission rate: 9.953 Gbit/s in the uplink and 9.953
2.5GE ports	• RJ-45 port; • Standards compliance: IEEE802.3; • 10/100/1000/2500 Mbit/s auto-sensing; • Half duplex/full duplex auto-negotiation and configuration; • VLAN tag/tag removal, VLAN transparent transmission, and VLAN filtering based onEthernet ports; • Support PoE+/PoE
Güvenlik	• MAC authentication, 802.1x authentication, MAB authentication, and dynamic delivery of user policies (VLAN and ACL); • Dos/ARP anti-attacks; • MAC address and IP address binding; • Device access control
Multicast	• IGMP v2/v3 snooping; • IGMP proxy; • MLDv1/MLDv2 snooping; • Dynamic controllable multicast; • Uncontrollable multicast
QoS	• Ethernet port rate limitation; • 802.1p priority; • SP/WRR/SP+WRR
Networking protection	• Type B single-homing protection; • Type B dual-homing protection; • Type C single-homing protection; • Type C dual-homing protection; • PON upstream load sharing

Genel bakış

Huawei P883H kullanım alanları ve özellikleri.

Huawei OptiXstar P883H is an ONU designed for enterprise, education, and healthcare scenarios. It provides two XGS-PON Pro ports on the network side and eight 2.5G Ethernet ports. These ports provide high-quality voice, data, and HD video services.

Ultra wide access

XGS-PON Pro，Transmission rate: 12.4416 Gbit/s • 2.5GE port, PoE+, Wi-Fi 7 AP access.

High Reliability，High Security

Type B/Type C service protection • 802.1x authentication、 Firewall、DoS/ARP anti-attacks and other security features

Easy O&M

Centralized management on eSight • Automatic service configuration

Nerelerde kullanılır?

FTTH ve site/kampüs fiber projelerinde fiber üzerinden yüksek hızlı erişim dağıtımı için kullanılır.

Sık sorulanlar

P883H hakkında kısa yanıtlar.

P883H fiyatı ne kadar?

P883H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
