IP Dome Kamera DeepinView

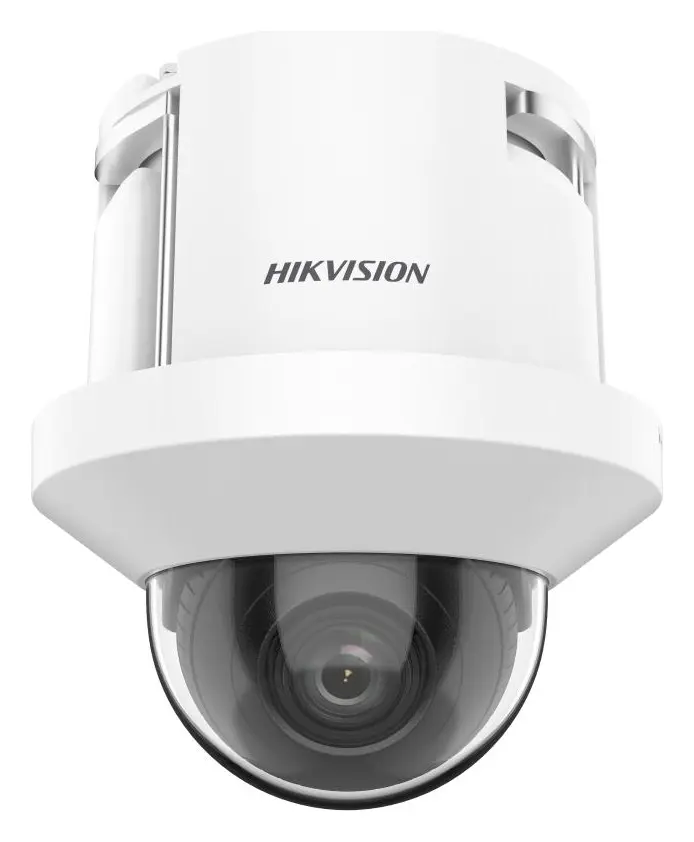

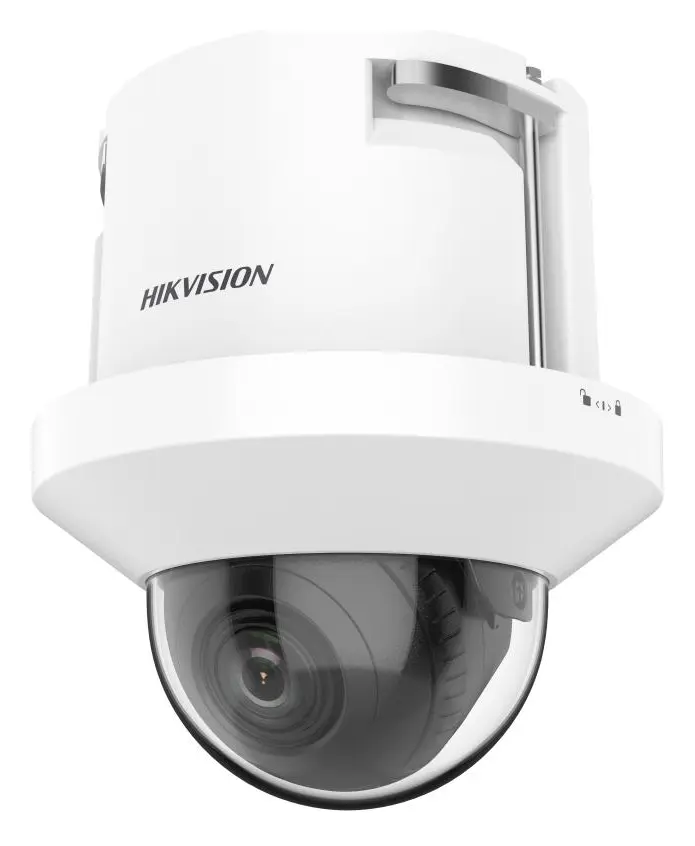

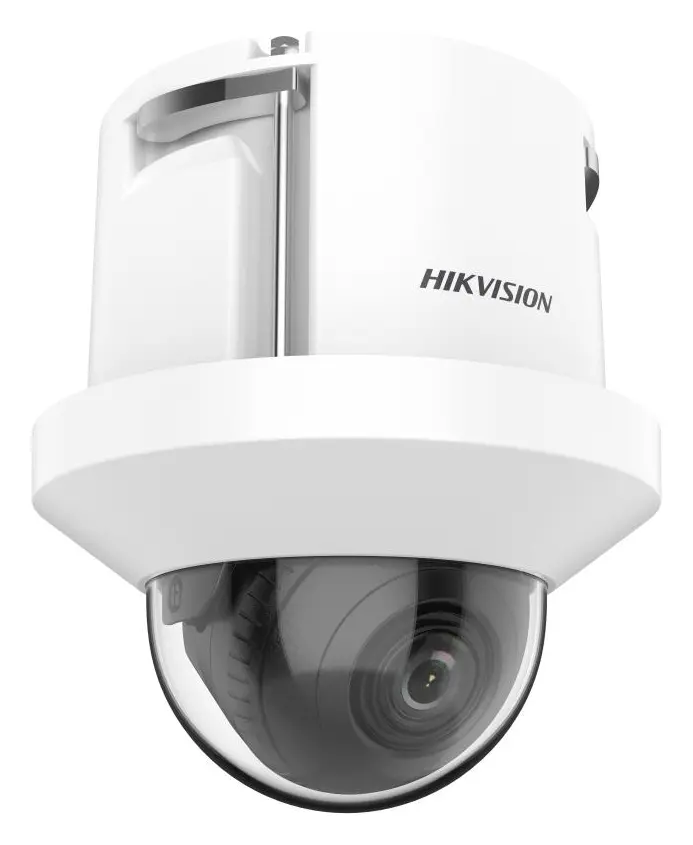

Hikvision IDS-2CD5146G2/V-ZS/RC 4 MP DeepinView Varifocal IP Dome Kamera

ModelIDS-2CD5146G2/V-ZS/RC

Hikvision IDS-2CD5146G2/V-ZS/RC, 4 MP çözünürlüklü, 2.8–12 mm motorize lensli bir IP dome kameradır. DeepinView teknolojisiyle insan ve araç hareketlerini ayırt ederek yanlış alarmları azaltır. IP67 su ve toz koruması ve IK10 darbe dayanımı ile dış ortam kurulumlarına uygundur.

Sinyal tipi: IP
Çözünürlük: 4 MP
Gece görüşü: IR (siyah-beyaz)
Koruma sınıfı: IP67
Lens: Motorize
Teknoloji: DeepinView, DarkFighter

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

High quality imaging with 4MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67) and vandal proof (IK10)
Unique PTRZ capability for efficient installation and maintenance
Specially designed for recessed inceiling mount
Powered by Guanlan large-scale model, camera supports AI Encoding to reduce storage usage by 50% while keeping image quality of key targets like human and vehicles.
Dedicated large-scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Kamera 6 satır

Görüntü Sensörü	1/1.8" Progressive Scan CMOS
Maks. Çözünürlük	2688 × 1520
Min. Aydınlatma	Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0.0002 Lux @ (F1.2, AGC ON)
Enstantane Süresi	1 s to 1/100,000 s
Gece/Gündüz	IR cut filter; Blue glass module (less ghost phenomenon)
Açı Ayarı	Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens 4 satır

Odak Uzaklığı ve Görüş Açısı	2.8 to 12 mm, horizontal FOV 114.6° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°; 8 to 32 mm, horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°
Lens Tipi	Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
İris Tipi	P-iris
Diyafram	2.8 to 12 mm: F1.4 to F2.1; 8 to 32 mm: F1.7 to F1.7

Piksel Yoğunluğu (DORI) 1 satır

OODPCVS	Wide: 2.8 to 12 mm: Overview: 75.9 m, Outline: 37.9 m, Discern: 19 m, Perceive: 12.1 m, Characterize: 6.1 m, Validate: 3 m, Scrutinize: 1 m; 8 to 32 mm: Overview: 110 m, Outline: 55 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m; Tele: 2.8 to 12 mm: Overview: 187.9 m, Outline: 94 m, Discern: 47 m, Perceive: 30.1 m, Characterize: 15 m, Validate: 7.5 m, Scrutinize: 2.5; 8 to 32 mm: Overview: 500 m, Outline: 250 m, Discern: 125 m, Perceive: 80 m, Chara

OODPCVS

Wide: 2.8 to 12 mm: Overview: 75.9 m, Outline: 37.9 m, Discern: 19 m, Perceive: 12.1 m, Characterize: 6.1 m, Validate: 3 m, Scrutinize: 1 m; 8 to 32 mm: Overview: 110 m, Outline: 55 m, Discern: 27.5 m, Perceive: 17.6 m, Characterize: 8.8 m, Validate: 4.4 m, Scrutinize: 1.5 m; Tele: 2.8 to 12 mm: Overview: 187.9 m, Outline: 94 m, Discern: 47 m, Perceive: 30.1 m, Characterize: 15 m, Validate: 7.5 m, Scrutinize: 2.5; 8 to 32 mm: Overview: 500 m, Outline: 250 m, Discern: 125 m, Perceive: 80 m, Chara

AI Açık Platform 1 satır

Model Özellikleri	Model type for AI Open Platform trained algorithm loading: high-performance model (small model).; Supports 4 model packages, each capable of detecting 16 target types and classifying 4 targets. The targets can be classified as 64 types. The device runs only 1 model at the same time.

Video 13 satır

Ana Akış	50 Hz: 25 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720); 60 Hz: 30 fps (2688 × 1520, 2560 × 1440, 1920 × 1080, 1280 × 720)
Alt Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Üçüncü Akış	50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480); 60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)
Dördüncü Akış	50 Hz: 25 fps (704 × 576, 640 × 480); 60 Hz: 30 fps (704 × 480, 640 × 480)
Video Sıkıştırma	Main stream: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264; Fourth stream: H.265/H.264/MJPEG
Video Bit Hızı	32 Kbps to 8 Mbps
H.264 Tipi	Baseline Profile, Main Profile, High Profile
H.265 Tipi	Main Profile
Bit Hızı Kontrolü	CBR, VBR
Ölçeklenebilir Video Kodlama (SVC)	H.264 and H.265 encoding
İlgi Bölgesi (ROI)	8 fixed regions for each stream
Hedef Kırpma	Hayır
AI Kodlama	Evet

Ses 5 satır

Ses Tipi	Mono sound
Ses Sıkıştırma	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Ses Bit Hızı	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps(G.722.1)/16 Kbps(G.726)/8~320 Kbps(MP3)/32~192 Kbps(MP2L2)/16~64 Kbps(AAC-LC)
Ses Örnekleme Hızı	8 kHz/16 kHz/32 kHz/48 kHz
Ortam Gürültüsü Filtreleme	Evet

Ağ 8 satır

Protokoller	IPv4, HTTP, SSL/TLS, ICMP, SFTP, SMTP, RTSP, HTTPS, NTP, QoS, WebSocket, FTP, RTP, WebSockets, UDP, DHCP, IGMP, TCP/IP, DNS, RTCP, IPv6, Bonjour
Eşzamanlı Canlı İzleme	Up to 20 channels
API	ISAPI, EZVIZ, Open Network Video Interface, ISUP, OTAP, SDK
Kullanıcı/Host	Up to 32 users; 3 user levels: administrator, operator, and user
Güvenlik	AES128/256, complicated password, control timeout settings, TLS 1.2, host authentication (MAC address), Password protection, WSSE and digest authentication for Open Network Video Interface, security audit log, 802.1X authentication(EAP-LEAP, EAP-TLS, EAP-MD5), RTP/RTSP over HTTPS, basic and digest authentication for HTTP/HTTPS, TLS 1.3, HTTPS encryption, watermark, IP address filter
Ağ Depolama	NAS（NFS, SMB/CIFS）
İstemci	iVMS-4200, Hik-Connect
Web Tarayıcı	Plug-in required live view: IE 10, IE 11; Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+; Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Görüntü 8 satır

Görüntü Parametresi Geçişi	Evet
Gece/Gündüz Geçişi	Day, Night, Auto, Schedule, Alarm Trigger
Görüntü Ayarları	Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Geniş Dinamik Aralık (WDR)	140 dB
Görüntü İyileştirme	BLC, HLC,3D DNR, Distortion Correction
Mahremiyet Maskesi	8 programmable polygon privacy masks
Görüntü Bindirme	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.
Görüntü Sabitleme	EIS

Arayüz 7 satır

Ethernet Arayüzü	1 RJ45 10 M/100 M self-adaptive Ethernet port
Dahili Depolama	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 1 TB
Alarm	2 input, 2 output (max. 12 VDC, 30 mA)
Ses	1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Reset Tuşu	Evet
Güç Çıkışı	12 VDC, max. 100 mA; External extension cord less than 10 meters.
RS-485	1 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Olay 3 satır

Temel Olaylar	Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception (HDD full, HDD error, network disconnected, IP address conflict, illegal login, abnormal restart), alarm input and output, video quality diagnosis
Akıllı Olaylar	parking detection, people gathering detection, object removal detection, loitering detection, audio exception detection, defocus detection, region exiting detection, unattended baggage detection, intrusion detection, scene change detection, Line crossing detection, fast moving detection, region entrance detection
Bağlantı (Linkage)	send email, trigger recording, notify surveillance center, trigger alarm output, Upload to FTP/NAS/memory card, audible warning

Derin Öğrenme Fonksiyonları 8 satır

Çoklu Hedef Tipi Algılama	Supports simultaneous detection and capture of human body, face, and vehicle; Gets face features; Gets human body features; Gets vehicle features; Supports counting the number of line crossing targets by type, including human body, non-motor vehicle, motor vehicle
Yüz Yakalama	Detects up to 60 faces simultaneously; Supports swing left and right from -60° to 60°, tilt up and down from -30° to 30°; Uploads face with background and closed-up face pictures
Isı Haritası	A graphic description of visits (by calculating amount of people or amount of dwell time) in a configured area.; Two report types are available, space heat map and time heat map line chart.
Çevre Koruma	Line crossing, intrusion, region entrance, region exiting; Support alarm triggering by specified target types (human and vehicle); Support combined event alarm triggering; Dedicated large scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras
Metadata	Intrusion detection, line crossing detection, region entrance detection, region exiting detection
Bölgesel Kişi Sayma	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 3 detection modes: people density detection, number of people exception detection, waiting time exception detection; Supports parameter settings: alarm times per exception, alarm interval, first alarm delay; Supports searching real-time number of people; People density detection: supports scheduled uploading, number of people change uploading, congestion level uploading; Number of people exception de
Görev Başında/Dışında Algılama	Supports up to 8 detection regions, and independent arming schedule and linkage method; Supports 2 detection modes: absence detection, on/off duty detection; Supports parameter settings: person on duty, absence duration
AcuSeek	Support search for humans, vehicles, This function requires use with AcuSeek NVR/Servers.

Genel 11 satır

Güç	12 VDC ± 20%, 0.96 A, max. 11.5 W; PoE: IEEE 802.3at, Type 2, Class 4, 42 .5V to 57 V, 0.32 A to 0.24 A, max. 13.3 W
Malzeme	Aluminum alloy body
Boyutlar	Ø135 mm × 149.1 mm (Ø5.31" × 5.87")
Paket Boyutları	170 mm × 170 mm × 242 mm (6.69" × 6.69" × 9.53")
Ağırlık	Approx. 1080 g (2.38 lb.)
Paketli Ağırlık	Approx. 1380 g (3.04 lb.)
Depolama Koşulları	-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Başlangıç ve Çalışma Koşulları	-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Dil	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Genel Fonksiyonlar	Heartbeat, anti-banding, one-key reset, mirror, password protection, flash log
Entegre Konnektör Paneli	Hayır

Onaylar 5 satır

EMC	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32: 2015
Güvenlik	CB: IEC 62368-1: 2014+A11
Koruma	IK10: IEC 62262:2002
Çevre	CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
Taşımacılık Sertifikası	IATA Dangerous Goods Regulations, Dangerous Goods List, International Maritime Dangerous Goods Code, Railway Dangerous Goods List

Genel bakış

Hikvision IDS-2CD5146G2/V-ZS/RC kullanım alanları ve özellikleri.

Hikvision IDS-2CD5146G2/V-ZS/RC, 4 MP çözünürlük, 2.8–12 mm motorize varifocal lens ve IK10 koruma sunan bir IP Dome Kamera modelidir. DeepinView serisi gelişmiş derin öğrenme analizleri sunar.

4MP DeepinViewX In-Ceiling Mount Moto Varifocal Dome Camera

High quality imaging with 4MP resolution
Excellent low-light performance via Darkfighter 2.0 technology
Efficient H.265+ compression technology to save bandwidth and storage
Water and dust resistant (IP67) and vandal proof (IK10)
Unique PTRZ capability for efficient installation and maintenance
Specially designed for recessed inceiling mount
Powered by Guanlan large-scale model, camera supports AI Encoding to reduce storage usage by 50% while keeping image quality of key targets like human and vehicles.
Dedicated large-scale AI model for perimeter protection, reduce false alarms by 90% compared to conventional AI cameras

Nerelerde kullanılır?

Tavan montajlı yapısıyla iç mekânlarda göze batmadan geniş alan izler; kameranın hangi yöne baktığı dışarıdan kolay anlaşılmaz.

Kurulum ve uyumluluk

IDS-2CD5146G2/V-ZS/RC PoE destekli bir NVR veya PoE switch üzerinden tek ağ kablosuyla beslenebilir; ONVIF desteği olan kayıt cihazlarıyla da çalışır. Uzaktan izleme için Hik-Connect mobil uygulaması kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · IDS-2CD5146G2/V-ZS/RC Hızlı Başlangıç KılavuzuPDF · IDS-2CD5146G2/V-ZS/RC Kullanım KılavuzuPDF · IDS-2CD5146G2/V-ZS/RC Firmware (V5.10.0_260612) - indirme sayfasıPDF · IDS-2CD5146G2/V-ZS/RC

Sık sorulanlar

IDS-2CD5146G2/V-ZS/RC hakkında kısa yanıtlar.

IDS-2CD5146G2/V-ZS/RC dış ortamda kullanılabilir mi?

Evet. IP67 koruma sınıfı sayesinde yağmur ve toza karşı dayanıklıdır; IK10 gövdesi darbelere karşı da korumalıdır.

IDS-2CD5146G2/V-ZS/RC hangi kayıt cihazıyla çalışır?

IP kamera olduğu için NVR kayıt cihazlarıyla çalışır. Tüm akıllı özellikler için Hikvision NVR, temel kayıt için ONVIF destekli NVR'lar kullanılabilir.

IDS-2CD5146G2/V-ZS/RC kaç megapiksel?

IDS-2CD5146G2/V-ZS/RC 4 MP çözünürlüğe sahiptir ve 2.8–12 mm lens kullanır.

IDS-2CD5146G2/V-ZS/RC cep telefonundan nasıl izlenir?

Hikvision cihazları Hik-Connect mobil uygulamasıyla izlenir. Cihaz uygulamaya eklendikten sonra canlı izleme, kayıt izleme ve bildirim alma yapılabilir.

IDS-2CD5146G2/V-ZS/RC fiyatı ne kadar?

IDS-2CD5146G2/V-ZS/RC için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
