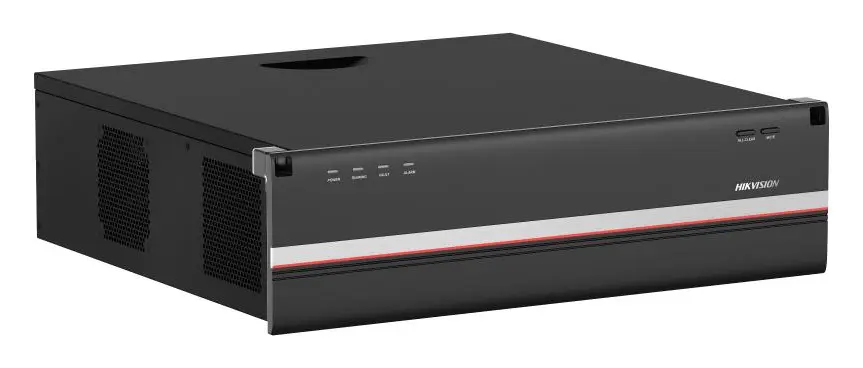

Hikvision DS-QFT0308H Sunucu
Model
DS-QFT0308HHikvision DS-QFT0308H sunucu: 【System】, High spatial resolution product, with 5x improved positioning accuracy, widely compatible with small-space temperature measurement applications, 3U rack-mounted 8-channel temperature measurement fiber optic host, the device adopts a short case desi.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- 【System】
- High spatial resolution product, with 5x improved positioning accuracy, widely compatible with small-space temperature measurement applications
- 3U rack-mounted 8-channel temperature measurement fiber optic host, the device adopts a short case design, with an all-in-one optical module
- Support open network interface, and can be accessed via OTAP, MODBUS protocol
- Support lightning protection, surge protection, and ESD protection
- Support Class1 laser classification
- 【Monitoring】
- Support simultaneous monitoring of multiple temperature alarm points
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Temel Parametreler 11 satır
| Fiber Tipi | Multi-mode(62.5/125um) |
|---|---|
| Kanal | 8 |
| Single-Channel Detection Range | 3km/6km/12km(Multi-mode switching) |
| Positioning Accuracy | 3km: ±0.1m; ; 6km: ±0.2m; ; 12km: ±0.4m; |
| Sıcaklık Aralığı | -200℃~800℃(actual temperature monitoring capability depends on the selected fiber optic). |
| Sıcaklık Doğruluğu | 3km: ±0.5℃; ; 6km: ±1°C; ; 12km: ±1°C; |
| Temperature Resolution | 0.1℃ |
| Spatial Resolution | 3km: 0.2m; ; 6km: 0.4m; ; 12km: 0.8m; |
| Sampling Interval | 0.1m |
| Partition Quantity | ≤1000 per channel, it is configurable |
| Alarm Response Time | ≤5s per channel |
Fonksiyon 4 satır
| Alarm Tetikleme | Constant Temperature Alarm, Temperature Rise Alarm, Temperature Drop Alarm, Temperature Difference Alarm |
|---|---|
| LED Gösterge | Power indicator: Solid blue: power on; Light off: power off; Running indicator: Solid blue: program running normally; Flashing blue: program running abnormally; Fault indicator: Light off: all-in-one module running normally; Solid yellow: all-in-one module error; Tamper indicator: Solid red: tamper alarm triggered; Light off: tamper alarm not triggered |
| Buzzer | Stay buzzing for tampering alarm.; When the alarm information is processed or the clear alarm/mute button is pressed, the buzzer can be muted. |
| Switch | 1 rocker switch for power, 1 mute button, 1clear alarm button, 1 reset button |
İletişim 1 satır
| İletişim Yöntemi | Wired communication |
|---|
Arayüz 4 satır
| Fiber Interface | 8 FC/APC fiber interfaces |
|---|---|
| Güç Arayüzü | 2 power input interface with 100~240V AC power input |
| Function Interface | 1 RJ45 1000 M network interface; 1 RS-232 interface; 2 RS-485 interfaces; 2 USB 3.0 interfaces |
| Alarm Çıkışı | 32 relay outputs |
Genel 9 satır
| Malzeme | Metal |
|---|---|
| Güç | 100-240V～50/60Hz 0.5A |
| Renk | Black |
| Güç Tüketimi | ＜35 W |
| Çalışma Sıcaklığı | -15 °C to 55 °C (5 °F to 131 °F) |
| Laser Classification | Class 1 |
| Çalışma Nemi | 0% to 95% (± 2%) |
| Boyutlar | 133.51mm x 483mm x 450.41mm((5.26" × 19.02" × 17.73")) |
| Ağırlık | Approx. 11 kg (24.25 lb.) |
Genel bakış
Hikvision DS-QFT0308H kullanım alanları ve özellikleri.
Hikvision DS-QFT0308H bir Sunucu modelidir.
High Definition Fiber-Optic Temperature Server 3KM 8-Ch
- 【System】
- High spatial resolution product, with 5x improved positioning accuracy, widely compatible with small-space temperature measurement applications
- 3U rack-mounted 8-channel temperature measurement fiber optic host, the device adopts a short case design, with an all-in-one optical module
- Support open network interface, and can be accessed via OTAP, MODBUS protocol
- Support lightning protection, surge protection, and ESD protection
- Support Class1 laser classification
- 【Monitoring】
- Support simultaneous monitoring of multiple temperature alarm points
- Support constant temperature alarm, temperature rise Alarm and temperature difference alarm
- Support uploading alarm types, temperature, and other information
- 【Environment】
- Strong environmental adaptability. With front-end passive and flexible characteristics, the device can be installed in various complex terrains, not restricted by power supply and network conditions.
- It can withstand harsh environments such as moisture, temperature variations, and is resistant to ammonia, chlorine, salt spray, acid rain, and more
Tüm özellikler
- 【System】
- High spatial resolution product, with 5x improved positioning accuracy, widely compatible with small-space temperature measurement applications
- 3U rack-mounted 8-channel temperature measurement fiber optic host, the device adopts a short case design, with an all-in-one optical module
- Support open network interface, and can be accessed via OTAP, MODBUS protocol
- Support lightning protection, surge protection, and ESD protection
- Support Class1 laser classification
- 【Monitoring】
- Support simultaneous monitoring of multiple temperature alarm points
- Support constant temperature alarm, temperature rise Alarm and temperature difference alarm
- Support uploading alarm types, temperature, and other information
- 【Environment】
- Strong environmental adaptability. With front-end passive and flexible characteristics, the device can be installed in various complex terrains, not restricted by power supply and network conditions.
- It can withstand harsh environments such as moisture, temperature variations, and is resistant to ammonia, chlorine, salt spray, acid rain, and more
Dokümanlar
Veri sayfası ve kullanım kılavuzları.
Sık sorulanlar
DS-QFT0308H hakkında kısa yanıtlar.
DS-QFT0308H fiyatı ne kadar?
DS-QFT0308H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
