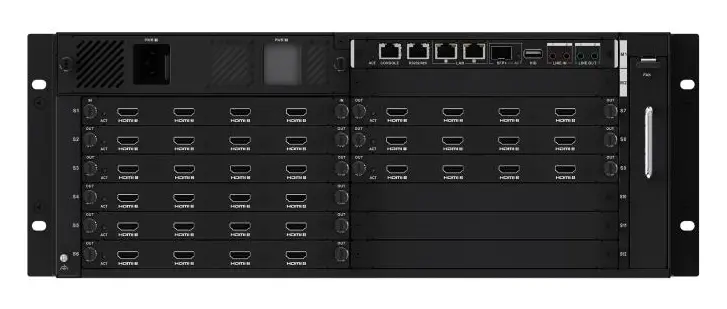

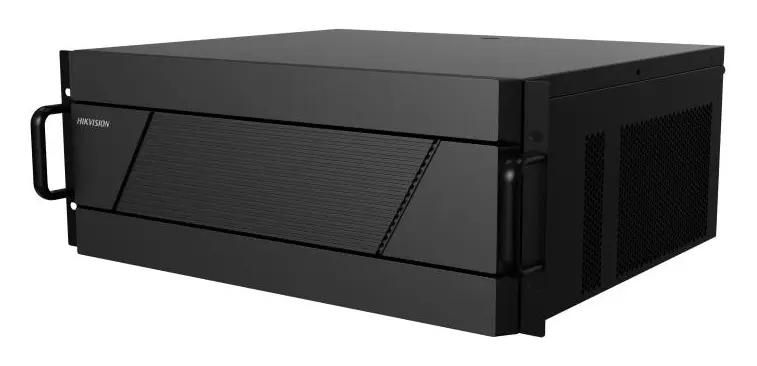

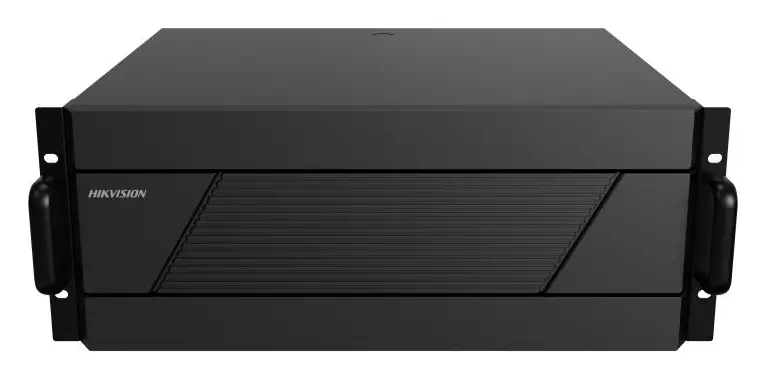

Hikvision DS-6932UDI-U(D) Video Decoder
Model
DS-6932UDI-U(D)Hikvision DS-6932UDI-U(D) video decoder: Adopts 4U standard chassis with ATCA architecture for small to medium-scale surveillance., Supports auto temperature adjustment of the intelligent fan to ensure system stability and reliability., Supports HDMI signal input and output, and 2K/4K input/out board.
Fiyat ve stok bilgisi alınAynı gün dönüş
Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.
Distribütör garantili
81 ile sevkiyat
Teknik destek
- Adopts 4U standard chassis with ATCA architecture for small to medium-scale surveillance.
- Supports auto temperature adjustment of the intelligent fan to ensure system stability and reliability.
- Supports HDMI signal input and output, and 2K/4K input/out boards.
- Supports H.264 and H.265 video encoding (H.265 by default), with maximum capacity of 4 encoding channels.
- Supports H.265, H.264, MJPEG and other mainstream encoding formats.
- Supports up to 576 decoding channels system-wise; supports simultaneous decoding of 288 channels at 1080p@30 Hz or 576 channels at 720p@30 Hz.
- Supports the maximum LED loading capacity of 2.6 MP per port.
- Supports the division of 1, 4, 6, 8, 9, 16, 25, and 36 per output port window, with customizable layout by numbers of rows and columns.
Teknik özellikler
Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.
Kasa 9 satır
| Kasa Yüksekliği | 4U |
|---|---|
| Bus Type | Network switching |
| Main Control Board Slot | 2 |
| Installed Main Control Boards | 1 |
| Power Supply Slot | 2 |
| Installed Power Supplies | 1 |
| Service Board Slot | Input slots: 1, output slots: 8, mixed slots: 0, empty slots:3 |
| Installed Service Boards | 9 |
| Fans | 1 |
Arayüz 3 satır
| Optical Interface | 1 × 10 Gigabit optical port (SFP+) |
|---|---|
| Electrical Interface | 2 × 1000 Mbps Ethernet port (RJ-45) |
| USB Arayüzü | 1 × USB 2.0 |
Güç 2 satır
| Güç Arayüzü | 2, 100 VAC to 240 VAC, 50/60 Hz |
|---|---|
| Device Power Consumption | 550 W |
Video Wall 15 satır
| Video Walls | 8 |
|---|---|
| Video Wall Scale | ≤32 |
| Open Windows | 576 |
| Window Division | 1, 4, 6, 8, 9, 16, 25, 36 |
| Input Source Copy Capability | Destekleniyor |
| Layers | 36 × 720p, 18 × 1080p |
| Layers per Device | 576 |
| Scenes | 128 |
| Scene Auto-Switch Delay | 3 s |
| Video Wall Live View | Supported(4 channels) |
| Live View Resolution | CIF (352 × 288), QCIF (176 × 144), HCIF (704 × 288), DCIF (528 × 384), FCIF (704 × 576) |
| Background Image | Supported (quantity: 4, max. resolution: 8129 × 4320, min. resolution: 1280 × 720, format: JPG/JPEG) |
| Subtitles | Quantity per video wall: 4 |
| Input Image Clipping | Supported (200 pixels at each side) |
| Local Signal Source Decoding Delay | 90 ms |
Genel 5 satır
| Çalışma Nemi | 10% RH to 90% RH, no condensation |
|---|---|
| Boyutlar (G × Y × D) | 442 mm × 177 mm × 385 mm (17.40 inch × 6.97 inch × 15.16 inch) |
| Net Ağırlık | 14.30 kg (31.53 lb) |
| Brüt Ağırlık | 17.30 kg (38.14 lb) |
| Paket İçeriği | 1 × device, 1 × AC power cord, 1 × grounding cable, 1 × set of pads, 1 × regulatory compliance and safety information manual |
Ses Girişi 1 satır
| Audio Input Interface | HDMI embedded audio |
|---|
Video Girişi 4 satır
| Video Input Interface Type | HDMI1.4 |
|---|---|
| Video Input Interfaces | 4 |
| Max. Video Input Resolution | 4K (Odd-numbered ports only) |
| Video Input Resolution | 1024×768@60 Hz, 1280×1024@60 Hz, 1360×768@60 Hz, 1440×900@60 Hz, 1680×1050@60 Hz, 1280×960@60 Hz, 1600×1200@60 Hz, 1280×720@50 Hz, 1280×720@60 Hz, 1920×1080@50 Hz, 1920×1080@60 Hz, 1920×1200@60 Hz, 3840×2160@30 Hz (odd-numbered ports only).; Supports custom input resolution (odd-numbered ports only): Even-numbered ports: Width: 800 to 4096 (a multiple of 4); height: 600 to 2160 (a multiple of 4); refresh rate: 30 Hz/60 Hz (weidth × height ≤ 1920×1200); Odd-numbered ports: Width: 800 to 4096 (a m |
Video Kodlama 3 satır
| Video Encoding Format | H.265 (default), H.264 |
|---|---|
| Video Encoding Channels | 4 |
| Video Encoding Capability | 4 channels of 1080p |
Ses Kodlama 1 satır
| Audio Encoding Format | G722.1, G711_U, G711_A, AAC |
|---|
Video Çıkışı 5 satır
| Video Output Interface Type | HDMI1.4 |
|---|---|
| Video Output Interfaces | 32 |
| Max. Video Output Resolution | 4K |
| Video Output Resolution | XGA_60 Hz (1024×768@60 Hz) / SXGA_60 Hz (1280×1024@60 Hz) / 720P_60 Hz (1280×720@60 Hz) / UXGA_60 Hz (1600×1200@60 Hz) / WSXGA_60 Hz (1680×1050@60 Hz) / WUXGA_60 Hz (1920×1200@60 Hz) / 1080P_60 Hz (1920×1080@60 Hz) / 4K_30 Hz (3840×2160@30 Hz) |
| Loading Capacity for Video Output to LED | Single port load 2600000, Width 144 - 3840, Height 144 - 2160, Width must be a multiple of 2 and height must be a multiple of 2 |
Video Kod Çözme 3 satır
| Video Decoding Format | H.264, H.265, Smart264, Smart265, HIK264, MPEG2, MPEG4 |
|---|---|
| Video Decoding Channels | 576 |
| Video Decoding Capability | H.264/H.265/Smart264/Smart265: 16 channels of 32 MP/24 MP, 32 channels of 16 MP/12 MP, 64 channels of 8 MP, 96 channels of 6 MP/5 MP, 144 channels of 4 MP, 288 channels of 1080p, or 576 channels of 720p/D1 or lower resolution @ 30 fps; HIK264: 32 channels of 720p @ 30 fps; MPEG4: 64 channels of 720p @ 30 fps (does not support resolutions above 720p); MPEG2: 32 channels of 720p @ 30 fps (does not support resolutions above 720p) |
Ses Çıkışı 1 satır
| Audio Output Interface | 4 × HDMI embedded audio |
|---|
Ses Kod Çözme 1 satır
| Audio Decoding Format | G711-A, G711-U, G722.1, G726-16/U/A, AAC-LC |
|---|
Cihaz Parametreleri 2 satır
| Device Splicing Capability | 32 channels |
|---|---|
| Device Decoding Capability | 288 channels of 1080p 30 fps |
Genel bakış
Hikvision DS-6932UDI-U(D) kullanım alanları ve özellikleri.
Hikvision DS-6932UDI-U(D), 69UDI-U Series ürün ailesinden bir Video Decoder modelidir.
32 output ports multi-functional video center
- Adopts 4U standard chassis with ATCA architecture for small to medium-scale surveillance.
- Supports auto temperature adjustment of the intelligent fan to ensure system stability and reliability.
- Supports HDMI signal input and output, and 2K/4K input/out boards.
- Supports H.264 and H.265 video encoding (H.265 by default), with maximum capacity of 4 encoding channels.
- Supports H.265, H.264, MJPEG and other mainstream encoding formats.
- Supports up to 576 decoding channels system-wise; supports simultaneous decoding of 288 channels at 1080p@30 Hz or 576 channels at 720p@30 Hz.
- Supports the maximum LED loading capacity of 2.6 MP per port.
- Supports the division of 1, 4, 6, 8, 9, 16, 25, and 36 per output port window, with customizable layout by numbers of rows and columns.
- Supports 32 MP video decoding of panoramic, fisheye, and standard network cameras, DVRs, NVRs, and XVRs; compatible with mainstream third-party security devices.
- Supports live view of video wall.
- Supports the access and operation via the PC client, and web client (requires Chrome 45 or above).
- Supports up to 128 scenes with customizable video wall layouts.
- Supports up to 12 subtitles in total (max. 4 per video wall).
- Compatible with devices accessed via ONVIF protocol.
Tüm özellikler
- Adopts 4U standard chassis with ATCA architecture for small to medium-scale surveillance.
- Supports auto temperature adjustment of the intelligent fan to ensure system stability and reliability.
- Supports HDMI signal input and output, and 2K/4K input/out boards.
- Supports H.264 and H.265 video encoding (H.265 by default), with maximum capacity of 4 encoding channels.
- Supports H.265, H.264, MJPEG and other mainstream encoding formats.
- Supports up to 576 decoding channels system-wise; supports simultaneous decoding of 288 channels at 1080p@30 Hz or 576 channels at 720p@30 Hz.
- Supports the maximum LED loading capacity of 2.6 MP per port.
- Supports the division of 1, 4, 6, 8, 9, 16, 25, and 36 per output port window, with customizable layout by numbers of rows and columns.
- Supports 32 MP video decoding of panoramic, fisheye, and standard network cameras, DVRs, NVRs, and XVRs; compatible with mainstream third-party security devices.
- Supports live view of video wall.
- Supports the access and operation via the PC client, and web client (requires Chrome 45 or above).
- Supports up to 128 scenes with customizable video wall layouts.
- Supports up to 12 subtitles in total (max. 4 per video wall).
- Compatible with devices accessed via ONVIF protocol.
