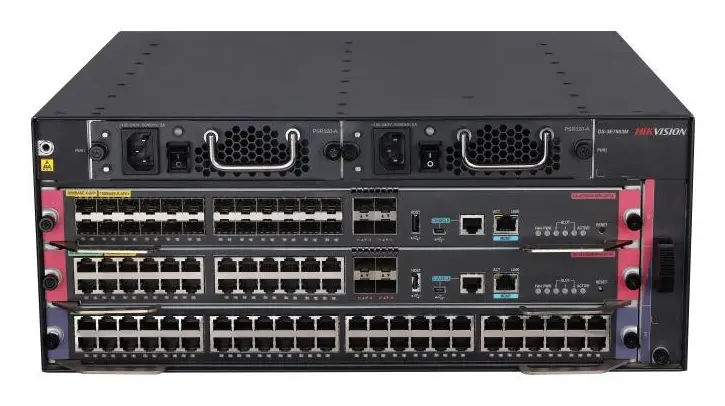

Hikvision DS-3E7803M Network Switch

ModelDS-3E7803M

Hikvision DS-3E7803M, 48 portlu gigabit bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

Port hızı: Gigabit
PoE: PoE yok
Port sayısı: 48 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

The DS-3E7800 switch provides a wealth of high-density 10G/40G interface cards, which can meet the existing and future application needs of enterprise networks： Support 48-Port 10/100/1000BASE-T Ethernet Copper Interfac
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliabil
The DS-3E7800 switch series supports Multi-VRF function, which can be used as MCE equipmen.t supporting L3 MPLS VPN and L2 MPLS VPN (Martini and Kompella).
The DS-3E7800 switch series comes with IPv4/IPv6 dual-stack platform that provides sophisticated IPv4/IPv6 solutions by supporting multiple tunnels, IPv4/IPv6 Layer 3 routing protocols, multicasting, and policy-based rou
The DS-3E7800 switch series supports hardware level encryption technology MACsec (802.1ae), which is an industry-standard security technology that provides secure communication for all traffic on Ethernet links. Compared
The switch series supports hardware level encryption technology MACsec (802.1ae), which is an industry-standard security technology that provides secure communication for all traffic on Ethernet links. MACsec provides po

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 15 satır

Boyutlar (G × Y × D)	175.00 mm × 436.00 mm × 420.00 mm (6.89'' × 17.17'' × 16.54'')
Depolama Sıcaklığı	-40 °C to 70 °C (-40 °F to 158 °F)
Montaj Şekli	Rack (equipped with mounting ears)
Brüt Ağırlık	33.55 kg (73.96 lb)
Net Ağırlık	26.55 kg (58.53 lb)
Boşta Güç Tüketimi	158.5 W
Gövde	Metal
Çalışma Sıcaklığı	0 °C to 45 °C (32 °F to 113 °F)
Çalışma Nemi	5% to 95% (no condensation)
Güç Kaynağı	100-240 VAC, 50/60 Hz, Max. 16 A
Maks. Güç Tüketimi	301.5 W
Bağıl Nem	5% to 95% (no condensation)
MPU slots	2 slots, slot-0 is only for MPU card, slot-1 is flexible slot for MPU and LPU card
LPU slots	2 slots, slot-2 is only for LPU card, slot-1 is flexible slot for MPU and LPU card
Module	DS-3E7803M-MPU-24T4X:24-Port 10/100/1000BASE-T Ethernet Copper Interface(RJ45)4-Port 10G Ethernet Optical Interface Module (SFP+, LC); DS-3E7803M-MPU-24F4X:24-Port 1000BASE Ethernet Optical Interface(SFP, LC)+4-Port 10G Ethernet Optical Interface Module (SFP+, LC); DS-3E7800-48X-SE:48-Port 10G Ethernet Optical Interface Module (SFP+, LC); DS-3E7800-16X24F-SC:16-Port 10G Ethernet Optical Interface(SFP+, LC)+24-Port 1000BASE Ethernet Optical Interface Module (SFP, LC); DS-3E7800-24T20F4X-SC:24-Por

Ağ Parametreleri 2 satır

Anahtarlama Kapasitesi	1.28 Tbps
Paket İletim Hızı	800 Mpps

Yazılım Fonksiyonları 7 satır

Güvenlik	Hierarchical user management and password protection Portal authentication MAC authentication SSHv1.5/SSHv2 Basic and advanced Access Control Lists for packet filtering OSPF, RIPv2, BGPv4 pain text and MD5 authentication IP address, VLAN ID, MAC address multiple binding combination uRPF Active/standby data backup CPU DoS Protection ARP Attack Protection
Multicast	PIM-DM, PIM-SM, PIM-SSM, MSDP, MBGP, and Any-RP IGMP V1/V2/V3 and IGMP V1/V2/V3 snooping MLD V1/V2 and MLD V1/V2 snooping
Ethernet	IEEE 802.1P(CoS priority) IEEE 802.1Q VLAN (up to 4094 VLANs) IEEE 802.1ad (QinQ), selective QinQ and Vlan mapping LLDP Static MAC configuration Limited MAC learning Port mirroring and traffic mirroring Port aggregation, port isolation, and port mirroring IEEE 802.1D (STP)/802.1w (RSTP)/802.1s (MSTP) IEEE 802.3ad (dynamic link aggregation), static port aggregation, and multi-chassis link aggregation Jumbo frame Multicast VLAN DHCP snooping Broadcast/multicast/unknown unicast storm suppression Po
Yönlendirme	Static routing, RIP v1/v2, OSPF, IS-IS, and BGP4 IPv4/IPv6 ECMP VRRP IPv4/IPv6 dual stack IPv6 static routing, RIPng, OSPFv3, IS-ISv6, and BGP4+; VRRPv3
ACL&QoS	Standard and extended ACLs; Ingress and egress ACLs; VLAN ACLs; Global ACLs; Ingress/Egress CAR with 8K granularity; Diff-Serv QoS; 802.1P/DSCP Priority marking and remarking; 802.1p, TOS, DSCP, and EXP priority mapping Flexible queue scheduling algorithms including SP (Strict priority), WRR (Weighted Round Robin), SP+WRR, WFQ (Weighted Fair Queueing) Traffic shaping Rate limiting Congestion avoidance, Tail-Drop and WRED
System Management	SNMP v1/v2/v3 NQA (Network Quality Analysis) RMON and groups 1, 2, 3 and 9 Fault alarm and automatic fault recovery System logs Device status monitoring mechanism, including the CPU engine, backplane, chips and other key components
HA	1+1 redundancy for key components such as MPUs (MPU includes CPU + Switching Fabric); 1+1 redundancy for power modules; Passive backplane; Hot swapping for all components; Real-time data backup on active/standby MPUs; CPU protection; VRRP; NSR (Nonstop Routing)/GR (Graceful Restart) for OSFP/BGP/IS-IS/RSVP; Port aggregation and multi-card link aggregation; BFD for VRRP/BGP/IS-IS/OSPF/RSVP/static routing; Ethernet OAM (802.1ag and 802.3ah); Smart-Link; ISSU (In-service Software Upgrade)

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Güvenlik	CE-LVD (EN 62368-1: 2014+A11: 2017), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Kimyasal Uyumluluk	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

Genel bakış

Hikvision DS-3E7803M kullanım alanları ve özellikleri.

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Firmware (V1.0.7 build240510) - indirme sayfasıPDF · DS-3E7803M

Sık sorulanlar

DS-3E7803M hakkında kısa yanıtlar.

DS-3E7803M kaç portlu?

DS-3E7803M 48 porta sahiptir.

DS-3E7803M fiyatı ne kadar?

DS-3E7803M için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
