Hikvision DS-3E6603-HI Yönetilebilir Switch

ModelDS-3E6603-HI

Hikvision DS-3E6603-HI bir yönetilebilir switch'tir. VLAN, QoS ve port izleme gibi yönetim özellikleri sunar.

PoE: PoE yok

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Supports integrated Main Processing Unit (MPU) and Line Processing Unit (LPU) architecture, achieving higher performance at lower costs
Supports Layer 3 routing protocols including OSPF, BGP, IS-IS, RIPv1/v2, policy-based routing (PBR), equal-cost multipath (ECMP) routing, and VRRP, enabling advanced IP routing and high-availability gateway deployment
Supports G.8032 Ethernet Ring Protection Switching (ERPS) for sub-50 ms ring network protection and fast convergence
Supports comprehensive QoS with 8 queues per port and multiple scheduling algorithms including SP, WRR, WFQ, SP+WRR, and SP+WFQ, along with traffic shaping, WRED, and priority marking/remarking for fine-grained traffic m
Supports multi-layer security features including L2-to-L4 ACL filtering, DoS attack protection, CPU protection, IP Source Guard, port isolation, 802.1X and MAC authentication, RADIUS authentication, ARP attack protection
Supports 10 kV surge protection to reduce lightning-induced damage risks
Supports hot-swappable modular fan unit and 1+1 dual power supply redundancy, enabling non-disruptive maintenance and continuous operation under PSU failure scenarios

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Donanım Özellikleri 25 satır

Anahtarlama Kapasitesi	Port Performance: 960 Gbps; Whole-Device Performance: 1440 Gbps
Paket İletim Hızı	Port Wire-Speed Packet Forwarding Rate: 714.24 Mpps; Whole-Device Packet Forwarding Rate: 1071.36 Mpps
Main Processing Unit (MPU) Slots	1 (Only slot 1 for both MPU and LPU)
Switching Fabric Unit (SFU) Slots	0 (No dedicated SFU slots)
Line Processing Unit (LPU) Slots	3 (Slot 1 for both MPU and LPU)
Power Supply Unit (PSU) Slots	2
Fan Slots	1
Güç Kaynağı	1+1 redundancy backup, 1 PSU included as standard
Fan	1 modular fan(s)
Önbellek	16 Mbits
Boyutlar (G × Y × D)	442.00 mm × 175.00 mm × 300.00 mm (17.40'' × 6.90'' × 11.80'')
Net Ağırlık	9.73 kg (21.45 lb)
Brüt Ağırlık	12.535 kg (27.63 lb)
Çalışma Sıcaklığı	0°C to 50°C (32°F to 122°F)
Çalışma Nemi	5% to 95% (no condensation)
Depolama Sıcaklığı	-40°C to 85°C (-40°F to 185°F)
Depolama Nemi	5% to 95% (no condensation)
Montaj Şekli	4U Rack Mounting (19'' width)
Güç Besleme Yöntemi	Dual Power Input, AC: 100~240 V, 50/60 Hz, 3.5~7 A
Konsol Portu	1 × Console Port
MGMT Port	Destekleniyor
Power Consumption (Idle)	Single AC: 100 W, Dual AC: 110 W
Power Consumption (Max. Load)	Single AC: 350 W, Dual AC: 380 W
Aşırı Gerilim Koruması	10 kV
Paket İçeriği	Switch × 1; AC Power Cord × 1; L-Shaped Bracket Kit × 1; Console Cable × 1; Grounding Cable × 1; Cable Retention Clip × 1; Rubber Foot × 4; Quick Start Guide × 1; Regulatory Compliance and Safety Information × 1

Performans Özellikleri 13 satır

Flash Memory	256 MB
System Memory	1 GB
MAC Address Capacity	32 K
Jumbo Frame Size	12000
VLANs	4094
VLANIF Interfaces	768
IPv4 Routes	6144
IPv6 Routes	2048
ARP Entries	6144
System-wide L2 Multicast Entries	1024
System-wide L3 Multicast Entries	512
ACL Entries	1024
QoS Forwarding Queues	8

Service Features 25 satır

Flow Control	Destekleniyor
Link Aggregation	Supports static aggregation.; Supports dynamic aggregation via LACP.
Auto-Negotiation	Destekleniyor
VLAN	Supports 4K VLANs.; Supports port-based VLAN.; Supports IP subnet-based VLAN.; Supports QinQ.; Supports Super VLAN.
Multicast	Supports IGMPv1/v2/v3 Snooping.
STP	Supports STP (IEEE 802.1d).; Supports RSTP (IEEE 802.1w).; Supports MSTP (IEEE 802.1s).
ERPS	Supports G.8032 ERPS.
Private Loop Detection	Destekleniyor
Storm Control	Destekleniyor
Traffic Suppression	Destekleniyor
Mirroring	Supports local port mirroring.; Supports N:1 port mirroring.; Supports flow mirroring.
IPv4 Service	Supports Ping.; Supports Traceroute.; Supports DNS.; Supports ARP.; Supports ARP Proxy.
IPv4 Routing	Supports static routing.; Supports OSPFv2.; Supports RIPv1/v2.; Supports equal-cost multi-path (ECMP) routing.; Supports policy-based routing (PBR).; Supports VRRP.
IPv6 Service	Supports Telnet6.; Supports FTP6.; Supports TFTP6.; Supports Traceroute6.; Supports Neighbor Discovery (ND).; Supports Path MTU (PMTU) Discovery.; Supports ICMPv6.
IPv6 Routing	Supports IPv6 static routing.
DHCP	Supports DHCP Client.; Supports DHCP Snooping.; Supports DHCP Snooping Option 82/DHCP Relay Option 82.; Supports DHCP Relay.; Supports DHCP Server.
Cable Detection	Supports virtual cable test (VCT).
802.1X Authentication	Destekleniyor
MAC Authentication	Destekleniyor
Portal Kimlik Doğrulama	Destekleniyor
RADIUS	Supports RADIUS authentication.
ACL	Supports L2 to L4 packet filtering.; Supports ACL definitions based on source/destination MAC address, source/destination IP address, IP protocol type, TCP/UDP port number or port range, etc.; Supports Time Range-based ACLs.; Supports ACL application globally, on ports, or to VLANs.; Supports Basic ACL, Advanced ACL, and MAC ACL configurations.; Supports inbound, outbound, and VLAN-based ACLs.
QoS	Supports 802.1p/DSCP priority mapping.; Supports queue scheduling mechanisms including SP, WRR, WFQ, SP+WRR, and SP+WFQ.; Supports WRED.; Supports priority marking and remarking.; Supports flow-based packet filtering.; Supports flow-based traffic statistics.; Supports flow-based redirection.; Supports flow-based rate limiting.
Güvenlik	Supports DoS attack protection.; Supports CPU protection.; Supports IP Source Guard.; Supports port isolation.; Supports HTTPS.; Supports ARP detection.; Supports ARP source suppression.; Supports ARP attack protection.; Supports IP-MAC binding.; Supports port security.
LLDP	Supports LLDP.

Operation Management 13 satır

Topology Display	Destekleniyor
Status Alarm	Destekleniyor
Management Platform	Supports device management via web.; Supports device management via iVMS-4200 Client.; Supports SADP.; Supports device management via Unified Network Management Platform.
SSH	Destekleniyor
Telnet	Destekleniyor
SNMP	Supports SNMPv1.; Supports SNMPv2c.
Clock Management	Supports NTP.
RMON	Destekleniyor
sFlow	Supports counter sampling.
FTP	Destekleniyor
TFTP	Destekleniyor
DDM	Fiber optical ports support DDM.
Log	Supports system logs.

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Güvenlik	CB (IEC 62368-1: 2023, CE-LVD (EN 62368-1: 2024+A11: 2024)
Kimyasal Uyumluluk	Reach (Regulation (EC) No.1907/2006), WEEE (2012/19/EU), CE-RoHS (2011/65/EU)

Genel bakış

Hikvision DS-3E6603-HI kullanım alanları ve özellikleri.

Hikvision DS-3E6603-HI bir Yönetilebilir Switch modelidir.

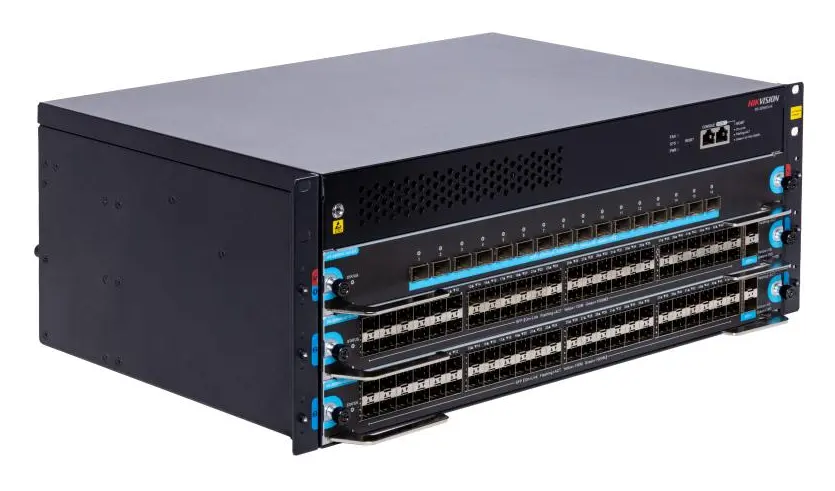

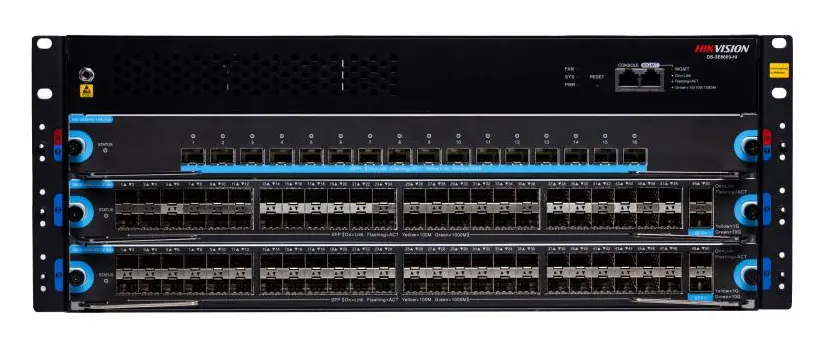

DS-3E6603 Chassis Core Switch Frame

Supports integrated Main Processing Unit (MPU) and Line Processing Unit (LPU) architecture, achieving higher performance at lower costs
Supports Layer 3 routing protocols including OSPF, BGP, IS-IS, RIPv1/v2, policy-based routing (PBR), equal-cost multipath (ECMP) routing, and VRRP, enabling advanced IP routing and high-availability gateway deployment
Supports G.8032 Ethernet Ring Protection Switching (ERPS) for sub-50 ms ring network protection and fast convergence
Supports comprehensive QoS with 8 queues per port and multiple scheduling algorithms including SP, WRR, WFQ, SP+WRR, and SP+WFQ, along with traffic shaping, WRED, and priority marking/remarking for fine-grained traffic management
Supports multi-layer security features including L2-to-L4 ACL filtering, DoS attack protection, CPU protection, IP Source Guard, port isolation, 802.1X and MAC authentication, RADIUS authentication, ARP attack protection, and HTTPS
Supports 10 kV surge protection to reduce lightning-induced damage risks
Supports hot-swappable modular fan unit and 1+1 dual power supply redundancy, enabling non-disruptive maintenance and continuous operation under PSU failure scenarios

Nerelerde kullanılır?

Kurumsal ağlarda VLAN ile kamera, misafir ve ofis trafiğini ayırmak, uplink ve omurga bağlantılarını yönetmek için kullanılır.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-3E6603-HI Hızlı Başlangıç KılavuzuPDF · DS-3E6603-HI Kullanım KılavuzuPDF · DS-3E6603-HI Kullanım KılavuzuPDF · DS-3E6603-HI

Sık sorulanlar

DS-3E6603-HI hakkında kısa yanıtlar.

DS-3E6603-HI fiyatı ne kadar?

DS-3E6603-HI için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
