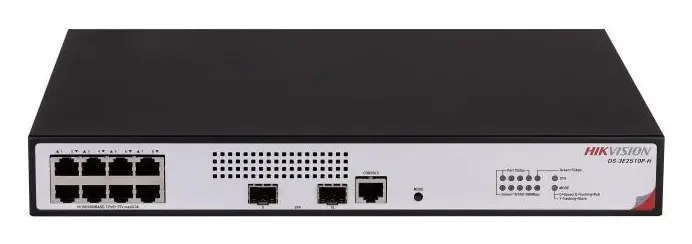

Hikvision DS-3E2510P-H 8 Port Gigabit PoE Switch

ModelDS-3E2510P-H

Hikvision DS-3E2510P-H, 8 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 125 W.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 8 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

DS-3E2500-H series supports the combination of "Ethernet port + optical port" to meet networking requirements of various scenarios, which is convenient for users to build a flexible network. It offers 24-port, and 48-por
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliabil
Support ARP Detection, which can prevent hackers or attackers from implementing "ARP spoofing attacks" through ARP packets. Support IP Source Guard, which can prevent illegal address spoofing including MAC spoofing, IP s
Support speed limit on port and traffic to prevent malicious invasion of network bandwidth and provide multiple granular management tools. Support SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR queue schedu
Support CLI command line, Web network management, and Telnet, making device management more convenient. And support SSH2.0 and other encryption methods, making management more secure. Support remote upgrade of devices th
Energy-saving design greatly reduces device power consumption and trouble spots. Radiation is reduced to reach the standard for household electrical appliances and is harmless to humans

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 13 satır

Gövde	Metal
Net Ağırlık	2.30 kg (5.07 lb)
Brüt Ağırlık	3.00 kg (6.61 lb)
Boyutlar (G × Y × D)	333.00 mm × 230.00 mm × 44.00 mm (12.99'' × 9.05'' × 1.73'')
Çalışma Sıcaklığı	-5 °C to 45 °C (23 °F to 113 °F)
Depolama Sıcaklığı	-40 °C to 70 °C (-40 °F to 158 °F)
Çalışma Nemi	10% to 95% (no condensation)
Bağıl Nem	5% to 95% (no condensation)
Güç Kaynağı	AC: 100 V～240 V AC, 50/60 Hz; Maximum voltage range: 90 V to 264 V,47 Hz to 63 Hz
Montaj Şekli	Rack (equipped with mounting ears)
Maks. Güç Tüketimi	157 W
Boşta Güç Tüketimi	13 W
Aşırı Gerilim Koruması	6 kV

Ağ Parametreleri 5 satır

Portlar	8 × Gigabit PoE port,2 × Gigabit fiber optical port
MAC Adres Tablosu	16 K
Anahtarlama Kapasitesi	Whole-Device Performance: 56 Gbps; Port Performance: 20 Gbps
Paket İletim Hızı	Whole-Device Performance: 41.66 Mpps; Port Performance: 14.88 Mpps
Dahili Önbellek	1.5 Mbits

Yazılım Fonksiyonları 11 satır

Ethernet	LLDP; Static MAC configuration; Limit of number of MAC addresses to be learned (up to 8K); Port mirroring and traffic mirroring; Port aggregation (up to 24 groups and 8 ports for each group); Port isolation; STP/RSTP/MSTP; IEEE 802.3ad (dynamic link aggregation) and static port aggregation
VLAN	802.1Q (up to 4K VLAN) Protocol-based VLAN MAC-based VLAN GUEST VLAN VLAN mapping MVRP
IP Routing	Static routing
DHCP	DHCP Relay; DHCP Client; DHCP Snooping
Multicast	IGMP V1/V2/V3 snooping; PIM Snooping; Multicast VLAN; IPv6 multicast setting
QoS	SP/WRR/SP+WRR queue scheduling 802.1p and DSCP priority mapping Port speed limit
ACL	ACL on Layer 2, Layer 3 and Layer 4 IPv4 and IPv6 ACLs VLAN ACL
Güvenlik	Hierarchical user management and password protection; SSH for a secure encrypted channel for user login; Specific IP address based FTP logging and password mechanism; Prevent attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet; MAC address limit; IP+MAC+PORT binding; IEEE 802.1x; Radius and AAA; SNMPv3; Broadcast suppression
System Management	Command line configuration via console/AUX Modem/Telnet/SSH; Uploading and downloading of FTP, TFTP, and Xmodem, and SFTP files; SNMP V1/V2c/V3; sFlow; NQA; NTP clock; System operating logs
IPv6	IPv6 static routing and dual-stack; DHCPv6 Client and DHCPv6 Snooping; ND and PMTU; IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
Reliability	Hot patch, in-service patch upgrade

PoE Güç Beslemesi 5 satır

PoE Standardı	IEEE 802.3at
PoE Güç Pinleri	End-span: 1/2(-), 3/6(+)
PoE Portu	PoE: Ports 1 to 8
Maks. Port Gücü	30 W
PoE Bütçesi	125 W

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)
Güvenlik	CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)
Kimyasal Uyumluluk	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

Genel bakış

Hikvision DS-3E2510P-H kullanım alanları ve özellikleri.

Hikvision DS-3E2510P-H, 8 port, Gigabit hız ve 125 W PoE bütçesi sunan bir PoE Switch modelidir.

8 Port Gigabit Full Managed POE Switch

DS-3E2500-H series supports the combination of "Ethernet port + optical port" to meet networking requirements of various scenarios, which is convenient for users to build a flexible network. It offers 24-port, and 48-port access and all ports support Gigabit wire speed forwarding capabilities to meet users' needs
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupte
Support ARP Detection, which can prevent hackers or attackers from implementing "ARP spoofing attacks" through ARP packets. Support IP Source Guard, which can prevent illegal address spoofing including MAC spoofing, IP spoofing, MAC/IP spoofing, and DoS attacks. Support DHCP Snooping, which can prevent private DHCP servers and ensure the authenticity and consistency of the DHCP environment. Support port security features, which can prevent MAC address-based attacks and realize traffic permit/limit based on a MAC address
Support speed limit on port and traffic to prevent malicious invasion of network bandwidth and provide multiple granular management tools. Support SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR queue scheduling algorithms, and support multi-priority data transmission. Support rich IPv6 services and multiple IPv6 management tools.
Support CLI command line, Web network management, and Telnet, making device management more convenient. And support SSH2.0 and other encryption methods, making management more secure. Support remote upgrade of devices through FTP and TFTP, SNMP v1/v2c/v3
Energy-saving design greatly reduces device power consumption and trouble spots. Radiation is reduced to reach the standard for household electrical appliances and is harmless to humans

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-3E2510P-H Hızlı Başlangıç KılavuzuPDF · DS-3E2510P-H Firmware (V1.0.6 build221223) - indirme sayfasıPDF · DS-3E2510P-H

Sık sorulanlar

DS-3E2510P-H hakkında kısa yanıtlar.

DS-3E2510P-H IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 125 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

DS-3E2510P-H kaç portlu?

DS-3E2510P-H 8 porta sahiptir.

DS-3E2510P-H fiyatı ne kadar?

DS-3E2510P-H için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
