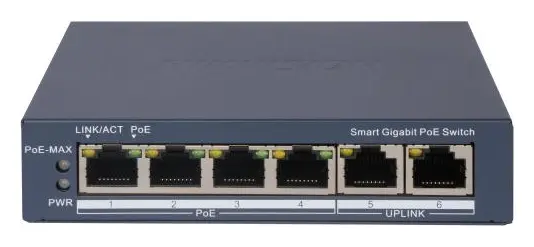

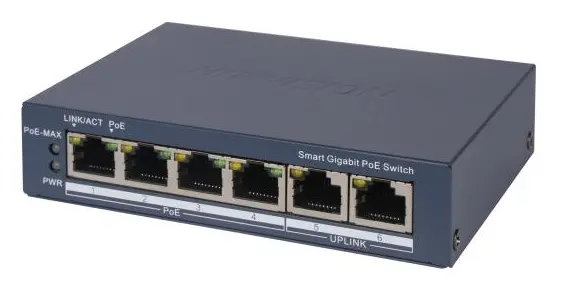

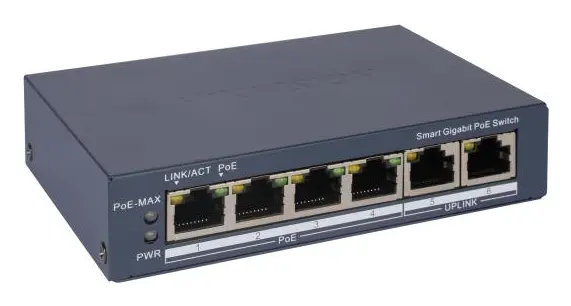

Hikvision DS-3E1506P-EI(C) 4 Port Gigabit PoE Switch

ModelDS-3E1506P-EI(C)

Hikvision DS-3E1506P-EI(C), 4 portlu gigabit bir PoE switch'tir. PoE portları IP kamera, access point ve IP telefon gibi cihazları tek ağ kablosu üzerinden besler; toplam PoE bütçesi 60 W.

Port hızı: Gigabit
PoE: PoE
Port sayısı: 4 port

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

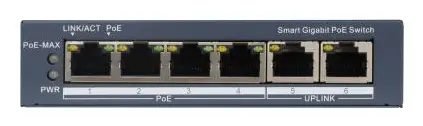

4 × Gigabit PoE port,2 × Gigabit RJ45 port
Total PoE Power Budget 60 W
Support IEEE 802.1Q VLAN tagging
Support energy saving mode with user-configurable plans
Support IEEE 802.3az Energy Efficient Ethernet (EEE) standard, saving power during periods of low data activity
Support STP/RSTP loop prevention
Support cable detection to locate failure
Support DHCP snooping

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Genel 13 satır

Gövde	Metal
Net Ağırlık	0.27 kg (0.6 lb)
Brüt Ağırlık	0.77 kg (1.7 lb)
Boyutlar (G × Y × D)	121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Çalışma Sıcaklığı	0 °C to 40 °C (32 °F to 104 °F)
Depolama Sıcaklığı	-40 °C to 85 °C (-40 °F to 185 °F)
Çalışma Nemi	5% to 95% (no condensation)
Bağıl Nem	5% to 95% (no condensation)

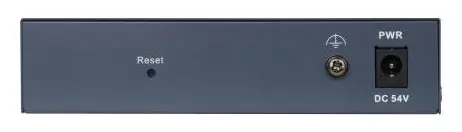

Güç Kaynağı	54 V DC, 1.2 A
Maks. Güç Tüketimi	65 W
Boşta Güç Tüketimi	1.6 W
Aşırı Gerilim Koruması	6 kV
Montaj Şekli	Desk-Mounted, Wall-Mounted

Ağ Parametreleri 6 satır

Portlar	4 × Gigabit PoE port,2 × Gigabit RJ45 port
MAC Adres Tablosu	4 K
Anahtarlama Kapasitesi	14 Gbps
Paket İletim Hızı	10.42 Mpps
Dahili Önbellek	2 Mbits
Port EEE	Power conservation is achieved by enabling the EEE function so that the PoE port(s) will automatically enter a low-power idle state during periods of low data traffic.

Yazılım Fonksiyonları 10 satır

Uzun Menzil	Ports 1 to 4: up to 300 m.; Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 6: port isolation mode to improve network security; Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 4: Auto detect and restart the cameras that do not respond.
Link Aggregation	Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.; Support static link aggregation.; Support 2 aggregation group(s).
QoS	QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance.; Support port-based priority configuration.; Support SP and WRR priority scheduling modes.; Support DSCP-based QoS policy.
Loop Prevention	Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.; Support 802.1D STP.; Support 802.1w RSTP.
VLAN	VLAN is used for network scale planning and network health improvement.; Support 802.1Q.; Configurable VLAN ID from 1-4094.; Support Trunk, Access port mode.; Support Max. 32 VLAN.
HPP	Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate.; 2. Display the port bandwidth utilization rate.; 3. Display the PoE power usage.; 4. Display topology information.; 5. Display the alarm status.; 6. Restart ports and devices.; 7. Enable port long-rage mode.; 8. Remotely upgrade the device.
System Maintenance	Support device management via web.; Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.; Support Super IP, which is a configurable IP address (default: 10.180.190.200) for direct access.; Support management via Hik-Central Pro.; Support remote management via Hik-Partner Pro.; Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.; Support 802.1ab LLDP for peer device discovery.; Support port mirro
DHCP Snooping	DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.

PoE Güç Beslemesi 7 satır

PoE Standardı	IEEE 802.3af, IEEE 802.3at
PoE Güç Pinleri	End-span: 1/2(-), 3/6(+)
PoE Portu	PoE: Ports 1 to 4
Maks. Port Gücü	30 W
PoE Bütçesi	60 W
PoE Power Saving	Power conservation is achieved by scheduling PoE to be enabled or disabled so that the PoE port(s) will cut off power to IPCs during idle periods.
Perpetual PoE	Supported; PoE remains active during system reboot, except in cases of power outage or PSE firmware upgrade.

Onaylar 3 satır

EMC	CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)
Güvenlik	UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
Kimyasal Uyumluluk	CE-RoHS (2011/65/EU), WEEE (2012/19/EU), Reach (Regulation (EC) No.1907/2006)

Genel bakış

Hikvision DS-3E1506P-EI(C) kullanım alanları ve özellikleri.

Hikvision DS-3E1506P-EI(C), 4 port, Gigabit hız ve 60 W PoE bütçesi sunan bir PoE Switch modelidir.

4 Port Gigabit Smart POE Switch

4 × Gigabit PoE port,2 × Gigabit RJ45 port
Total PoE Power Budget 60 W
Support IEEE 802.1Q VLAN tagging
Support energy saving mode with user-configurable plans
Support IEEE 802.3az Energy Efficient Ethernet (EEE) standard, saving power during periods of low data activity
Support STP/RSTP loop prevention
Support cable detection to locate failure
Support DHCP snooping
Support 6 kV surge protection

Nerelerde kullanılır?

IP kamera, access point ve IP telefon projelerinde cihazlara tek kablodan enerji ve veri taşır; NVR ile kameralar arasında dağıtım katmanı oluşturur.

Tüm özellikler

4 × Gigabit PoE port,2 × Gigabit RJ45 port
Total PoE Power Budget 60 W
Support IEEE 802.1Q VLAN tagging
Support energy saving mode with user-configurable plans
Support IEEE 802.3az Energy Efficient Ethernet (EEE) standard, saving power during periods of low data activity
Support STP/RSTP loop prevention
Support cable detection to locate failure
Support DHCP snooping
Support 6 kV surge protection

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

DatasheetPDF · DS-3E1506P-EI(C) Hızlı Başlangıç KılavuzuPDF · DS-3E1506P-EI(C) Kullanım KılavuzuPDF · DS-3E1506P-EI(C) Firmware (V3.4.9_260820) - indirme sayfasıPDF · DS-3E1506P-EI(C)

Sık sorulanlar

DS-3E1506P-EI(C) hakkında kısa yanıtlar.

DS-3E1506P-EI(C) IP kamera beslemek için uygun mu?

Evet. PoE portları IP kameraları tek kablo üzerinden besler; toplam PoE bütçesi 60 W olduğundan kamera tüketimlerinin toplamı bu değerin altında kalmalıdır.

DS-3E1506P-EI(C) kaç portlu?

DS-3E1506P-EI(C) 4 porta sahiptir.

DS-3E1506P-EI(C) fiyatı ne kadar?

DS-3E1506P-EI(C) için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
