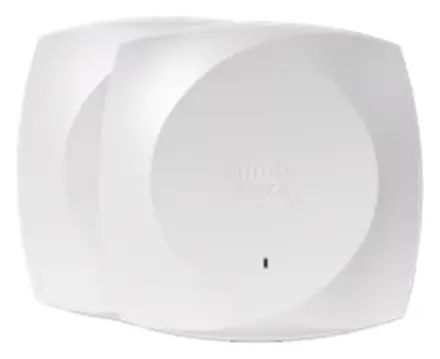

Cisco CW9176I Wi-Fi 7 İç Ortam Access Point

ModelCW9176I

Cisco CW9176I access point: Wi-Fi 7 standardı, Kullanım: İç Ortam, Wi-Fi 7 (802.11be), Wi-Fi 6E (802.11ax), 10G Multigigabit Ethernet.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 33 satır

802.11be (Wi-Fi 7)	4x4 uplink/downlink MU-MIMO with four spatial streams (2.4/5 GHz(XOR), 5 GHz, and 6 GHz); 4096 QAM; Multilink operation; Preamble puncturing; Uplink/downlink OFDMA; TWT; BSS coloring; Maximal Ratio Combining (MRC); 20-, 40-, 80-, 160-, and 320-MHz channels (6 GHz); 20-, 40-, 80-, and 160-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 18 Gbps (4x4 320 MHz on 6 GHz, 4x4 160 …
802.11ax (Wi-Fi 6/6E)	4x4 uplink/downlink MU-MIMO with four spatial streams each (2.4/5 GHz, 5 GHz, and 6 GHz); Uplink/downlink OFDMA; 1024 QAM; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (5 and 6-GHz); 20-MHz channels (2.4-GHz); PHY data rates up to 10.1 Gbps (4x4 160 MHz on 6 GHz, 4x4 160 MHz on 5 GHz, and 4x4 20 MHz on 2.4 GHz) or PHY data rates up to 14.4 Gbps (4x4 160 MHz on …
802.11ac (Wi-Fi 5)	4x4 + 4x4 downlink MU-MIMO with 4x4 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.4 Gbps (dual 4x4 160 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA2/WPA3 support
802.11n Özellikleri	4x4 MIMO with four spatial streams; MRC; 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support
Dahili Anten	Cisco Wireless 9176I; 2.4 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth; IoT: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; UWB: Peak gain 7 dBi, internal antenna, omnidirectional in azimuth; GNSS: (L1) Peak gain 3 dBi, …
Arayüzler	1x 100M/1000M/2.5G/5G/10G Multigigabit Ethernet (RJ-45); Management console port (RJ-45) with default speed of 115200 bps; USB 2.0 at 9W
Incorporated radios	Three built in radios including GPS/GNSS, dedicated IoT radio, and Ultra Wide Band radio
Boyutlar (W x L x H)	9176I access point (without mounting brackets): 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1 cm); 9176D1 access point (without mounting brackets): 9.5 x 9.5 x 2.0 in. (24 x 25 x 5.1 cm)
Ağırlık	Cisco Wireless 9176I; 3.4 lb. (1.56 kg); Cisco Wireless 9176D1; 3.4 lb. (1.56 kg)
Input power requirements	802.3bt Cisco Universal PoE (Cisco UPOE; ), 802.3at Power over Ethernet Plus (PoE+), 802.3af PoE (only for configuration staging, all radios off); (Or) Cisco power injector CW-INJ-8
Güç Tüketimi	Note: Actual power consumption may vary depending on AP usage. Typical power consumption assumes AP is passing traffic during typical business hours, and is idle during off-business hours. Business hours are assumed to be 11 hours a day, 6 days a week.; Test Conditions: 802.3bt: The 6 GHz, 5 GHz band all operating at 160 MHz (4x4) passing 1 Gbps per band of download traffic and the 2.4 GHz band …
Ortam Koşulları	Cisco Wireless 9176I; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4570 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m); Cisco Wireless 9176D1; Nonoperating (storage) temperature: -22° to 158°F (-30° to …
Available transmit power settings	Cisco Wireless 9176I
Sertifikalar	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Desteklenen Kablosuz Kontrolcüler	Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	2.4 GHz 802.11b/g/n/ax/be client access radio (or); 5 GHz 802.11a/n/ac/ax/be client access radio (XOR flexible radio); 5 GHz 802.11a/n/ac/ax/be client access radio; 6 GHz 802.11 ax/be client access radio; 2.4 GHz IoT Radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; Due to the 6 GHz band requiring PMF some Air Marshal functions may not …
Anten	CW9176I; 2.4 GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: (XOR) Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth; CW9176D1; 2.4 GHz: Peak gain 7 dBi, internal antenna, directional, 80x80 beamwidth; 5 GHz: (XOR) Peak …
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS coloring; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams; SU-MIMO, UL MU-MIMO*, and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80 MHz channels (802.11ax); Note: *40MHz channels are supported only in the 5GHz band.
802.11be Capabilities	Up to 4096-QAM on 2.4 GHz, 5 GHz and 6 GHz bands; 20 MHz channels on 2.4 GHz bands; 20, 40, 80, 160 MHz on 5 GHz bands; 20, 40, 80, 160, 320 MHz on 6 GHz bands; MLO (Multi-link operation) across different bands; MRU (Multiple Resource Unit) allocation in OFDMA; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
Güç	Power over Ethernet: 42.5 - 57 V 802.3bt / 802.3at (Low Power Mode) / 802.3af compliant (Low Power Mode); Minimum power consumption: (15.4W min 802.3af - low power mode); Maximum power consumption: (39W max 802.3bt); Power over Ethernet injector sold separately; Recommended Power Injector: CW-INJ-8: Cisco Wireless 802.3bt Power Over Ethernet Injector (power cable separate SKU); Supported Power …
Montaj	All standard mounting hardware included; Desktop, ceiling, and wall mount capable; Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes; Bubble level on the mounting cradle for accurate horizontal wall mounting
Environment	CW9176I; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4570 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m); CW9176D1; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating …
Boyutlar	CW9176I; 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1cm); Weight: 3.4 lb. (1.56 kg); CW9176D1; 9.5 x 9.5 x 2.0 in. (24 x 24 x 5.1cm); Weight: 3.4 lb. (1.56 kg)
GPS	Built-in GPS/ GNSS module for location analytics
Physical Security	Kensington lock slot
Reliability	Mean time between failure (MTBF): 981,608 hrs at 25°C operating temperature; Mean time between failure (MTBF): 349,710 hrs at 50°C operating temperature
Security	Integrated layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)***; EAP-TLS, …
Quality of Service	Advanced power save (U-APSD); WMM access categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, and 802.11r for fast layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global layer 7 traffic analytics reporting per network, per device, and per application
LED Göstergeleri	1 power/booting/firmware upgrade status
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	802.3 ab/bz; 802.3 af/at/bt; 802.11a/b/g/n/ac/ax/be; 802.11d/h/i/k/r/u/v/w
Safety Approvals	CSA and CB 60950 & 62368; EN 60601 certified; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	FCC Part 15C; 15E RSS-247 (Canada); EN 300 328 ( v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (Australia/NZ); NOM-121 (Mexico); NCC LP0002 (Taiwan); Note: For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	FCC Part 2 RSS-102 (Canada); EN 50385; EN 6231; EN 62479 (Europe); AS/NZS 2772 (Australia/NZ)

Genel bakış

Cisco CW9176I kullanım alanları ve özellikleri.

Cisco CW9176I, Cisco Wireless 9176 serisinden Wi-Fi 7 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

Cisco Wireless Wi-Fi 7 access points create wireless networks for the AI enterprise, bridging the gap between physical and digital experiences.

Cisco's Wi-Fi 7 access points power the next generation of wireless experiences, designed to revolutionize connectivity and digital experiences. Offering unprecedented speeds, enhanced security, and resilient connectivity, these products are ideal for high-density environments and critical applications. They seamlessly integrate into your existing network, whether on-premises, cloud-based, or hybrid, providing flexible deployment options to suit various organizational needs.

Öne Çıkan Özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)
Band steering
Intelligent Capture
Flexible Radio Assignment (FRA)
Bluetooth/BLE

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
10G Multigigabit Ethernet
Built-in GNSS/GPS
Integrated Ultra-Wideband (UWB) radio
AP power optimizations (AP Power Save Mode)
Band steering
Intelligent Capture
Flexible Radio Assignment (FRA)
Bluetooth/BLE
Application hosting
Container support for applications
Accelerometer

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Wireless 9176 Datasheet (EN)PDF · CW9176I Cisco Wireless 9176 Datasheet (EN)PDF · CW9176I

Sık sorulanlar

CW9176I hakkında kısa yanıtlar.

CW9176I fiyatı ne kadar?

CW9176I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
