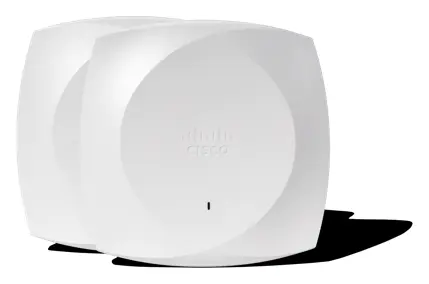

Cisco CW9172I Wi-Fi 7 İç Ortam Access Point

ModelCW9172I

Cisco CW9172I access point: Wi-Fi 7 standardı, Kullanım: İç Ortam, Tri-radio Wi-Fi 7 (2.4, 5, and 6 GHz), Aggregate data rate of 9000 Mbps, Cloud, on-premises, or hybrid management.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 7 standardı
Kullanım: İç Ortam
Tri-radio Wi-Fi 7 (2.4, 5, and 6 GHz)
Aggregate data rate of 9000 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency (30W and 45W options)

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 39 satır

802.11be (Wi-Fi 7)	2x2 with two spatial streams (2.4 GHz, 5 GHz, and 6 GHz) or 2x2 with two spatial streams (2.4 GHz ) and 4x4 with four spatial streams (5 GHz); 4096 QAM; Multilink operation; Preamble puncturing; Uplink/downlink OFDMA; TWT; BSS coloring; Maximal Ratio Combining (MRC); 20-, 40-, 80-, 160-, and 320-MHz channels (6 GHz); 20-, 40-, 80-, and 160-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); CW9172I: …
802.11ax (Wi-Fi 6/6E)	2x2 with two spatial streams (2.4 GHz, 5 GHz, and 6 GHz) or 2x2 with two spatial streams (2.4 GHz) and 4x4 with four spatial streams (5 GHz); Uplink/downlink OFDMA; 1024 QAM; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (5 and 6-GHz); 20-MHz channels (2.4-GHz); CW9172I; PHY data rates up to 5 Gbps (2x2 20 MHz on 2.4 GHz, 2x2 160 MHz on 5 GHz, and 2x2 160 MHz …
802.11ac (Wi-Fi 5)	2x2 + 2x2 downlink MU-MIMO with 2x2 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; CW9172I: PHY data rates up to 3.4 Gbps (4x4 160 MHz on 5 GHz) or PHY data rates up to 1.7 Gbps (2x2 160 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA2/WPA3 support; CW9172H: PHY data rates up to 1.7 …
802.11n version 2.0 (and related capabilities)	2x2 MIMO with four spatial streams; MRC; 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; CW9172I: PHY data rates up to 440 Mbps (2x2 40 MHz with 5 GHz and 2x2 20 MHz with 2.4 GHz) or 744 Mbps (4x4 40 MHz on 5 GHz and 2x2 on 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; CW9172H: PHY data rates up to 440 …
Dahili Anten	CW9172I; 2.4GHz: Peak gain 4dBi, internal antenna, omnidirectional in azimuth; 5GHz: Peak gain 5.5dBi, internal antenna, omnidirectional in azimuth; 6GHz: Peak gain 6dBi, internal antenna, omnidirectional in azimuth; IoT: Peak gain 2dBi, internal antenna, omnidirectional in azimuth; CW9172H; 2.4GHz: Peak gain 4dBi, internal antenna, omnidirectional in azimuth; 5GHz: Peak gain 7dBi, internal …
Arayüzler	CW9172I: 1x100M/1000M/2.5G Multigigabit Ethernet (RJ-45) Uplink; Management console port (RJ-45) with default speed of 115200 bps; USB 2.0 at 4.5W; CW9172H: 1x100M/1000M/2.5G Multigigabit Ethernet (RJ-45) Uplink; Management console port (RJ-45) with default speed of 115200 bps; 3x100M/1000M Ethernet LAN ports; 1xLAN port capable of POE out; 1x Passthrough port
Incorporated Radios	CW9172I; Wi-Fi 7 802.11be on all three radios; 2.4GHz + 5GHz + 6GHz (all 2x2:2) or 2.4 GHz (2x2:2) + 5 GHz (4x4:4); Dedicated Scan/aux Radio and IoT (BLE 6) Radio; CW9172H; Wi-Fi 7 802.11be on all three radios; 2.4GHz + 5GHz + 6GHz (all 2x2:2); Dedicated Scan/aux Radio and IoT (BLE 6) Radio
Boyutlar (WxLxH)	CW9172I (without mounting brackets): 7.8 x 7.8 x 2.1 in. (20 x 20 x 5.3 cm); CW9172H (without mounting brackets): 5.1 x 7.0 x 1.0 in (13 x 18 x 2.6 cm)
Ağırlık	CW9172I: 1.9 lb (874g); CW9172H; 1.26 lb (572 g)
Mounting Brackets	CW9172I: AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2; CW9172H: CW-MNT-H1-00; CW-MNT-H3-00; CW-ACC-DESK1-00; CW-ACC-SPACER1-00; MA-MNT-MR-H1A; AIR-AP-BRACKET-W4=
Input Power Requirements	CW9172I:
Güç Tüketimi	Note: Actual power consumption may vary depending on AP usage. Typical power consumption assumes AP is passing traffic* during typical business hours, and is idle during off-business hours. Business hours are assumed to be 11 hours a day, 6 days a week.; Test Conditions: Dual Radio 802.3at: The 5 GHz band operating at 160 MHz (4x4) passing 400 Mbps per band of download traffic and the 2.4 GHz …
Ortam Koşulları	CW9172I: Non operating (storage) temperature: -40 to – 158 F (-40 to 70 C); Non operating (storage) altitude test: 0 – 550mbar (at approx. 4863m, 16K ft); Operating temperature : 32 to 122 F (0 to 50 C); [Performance derated from 104 to 122 F (40 – 50C)]; Radio operation derated for 104F to 122F (40C to 50C); Operating humidity : 0 to 95% (noncondensing); Operating altitude test: 45C at 0- 4205m …
Available Transmit Power Settings	2.4 GHz: 23 dBm (200 mW); -4 dBm (0.39 mW); 5 GHz: 23 dBm (200 mW); -4 dBm (0.39 mW); 6 GHz: 23 dBm (200 mW); - 4 dBm (0.39 mW); Note: In countries where use of the 6-GHz band is not allowed or there is no current software support, the 6-GHz radio will be disabled. The radio may be enabled with future software, once the product is certified to operate in 6 GHz for that country.
Sertifikalar	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode.
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	2.4 GHz 802.11b/g/n/ax/be client access radio; 5 GHz 802.11a/n/ac/ax/be client access radio; 6 GHz 802.11 ax/be client access radio; Flexibility to operate in Tri-band 2.4, 5, 6 GHz in 2x2:2 or Dual-band 2.4 GHz in 2x2:2 and 5 GHz in 4x4:4; 2.4 GHz IoT Radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy (BLE) …
Anten	2.4 GHz Peak Gain 4 dBi, Internal Antenna, Omnidirectional in azimuth; 5 GHz Peak Gain 5 dBi, Internal Antenna, Omnidirectional in azimuth; 6 GHz Peak Gain 6 dBi, Internal Antenna, Omnidirectional in azimuth
802.11ax, 802.11ac Wave 2 and 802.11n Capabilities	DL-OFDMA, UL-OFDMA, TWT support, BSS coloring; 2x2 multiple input, multiple output (MIMO) with two spatial streams; 2x2+4x4; SU-MIMO, UL MU-MIMO*, and DL MU-MIMO support; Maximal ratio combining (MRC) & beamforming; 20 and 40 MHz channels (802.11n); 20, 40, and 80 MHz channels (802.11ac Wave 2); 20, 40 and 80* MHz channels (802.11ax); Note: *40MHz and 80 MHz channels are supported …
802.11be Capabilities	Up to 4096-QAM on 2.4 GHz, 5 GHz and 6 GHz bands; 20 MHz channels on 2.4 GHz bands; 20, 40, 80, 160 MHz on 5 GHz bands; 20, 40, 80, 160, 320 MHz on 6 GHz bands; MLO (Multi-link operation) across different bands; MRU (Multiple Resource Unit) allocation in OFDMA; 4 x 4 multiple input, multiple output (MIMO) with four spatial streams
Güç	Power over Ethernet: 42.5 - 57 V 802.3bt(Class 5)/802.3at/802.3af compliant; Minimum power requirement : (PD: 12.95W min 802.3af); Maximum power requirement : (PD: 25.5W max 802.3at); Idle power consumption; Dual radio mode: 10.3W +/- 2W; Tri-radio mode: 10.7W +/- 2W; Typical power consumption; Dual radio mode: 11.2W +/- 4W; Tri-radio mode: 12.2W +/- 4W; Note: Actual power consumption may vary …
Montaj	Desktop, ceiling, and wall mount capable; AIR-AP-BRACKET-1; AIR-AP-BRACKET-2; Ceiling tile rail (9/16, 15/16 or 1 1⁄2” flush or recessed rails), assorted cable junction boxes; AIR-AP-T-RAIL-R; AIR-AP-T-RAIL-F
Environment	Nonoperating (storage) temperature: -40° to 158°F (-40° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 16,000 ft (4863 m); Operating temperature: 32° to 122°F (0° to 50°C) 40-50C derated; Operating humidity: 10% to 95% (noncondensing); Operating altitude test: 45° C (113° F) at 4205m (13.8K ft); Humidity:10% to 90% non-condensing
Boyutlar	CW9172I; 7.8 x 7.8 x 2.1 in. (20 x 20 x 5.3 cm); Weight: 1.9 lb. (874 g)
IEEE Standards	802.3 ab/bz; 802.3 af/at/bt; 802.11a/b/g/n/ac/ax/be; 802.11d/h/i/k/r/u/v/w
Safety Approvals	CSA and CB 60950 & 62368; EN 60601 certified; Conforms to UL 2043 (Plenum Rating)
Radio Approvals	FCC Part 15C; 15E RSS-247 (Canada); EN 300 328 ( v2.1.1); EN 301 893 (v2.1.1); AS/NZS 4268 (Australia/NZ); NOM-121 (Mexico); NCC LP0002 (Taiwan); For additional country-specific regulatory information, please contact Meraki sales
GPS	Supported via optional USB GPS/GNSS module (CW-ACC-GPS1=)
Physical Security	Kensington lock slot
Reliability	Mean time between failure (MTBF): 842,342 hrs at 25°C operating temperature; Mean time between failure (MTBF): 349,710 hrs at 50°C operating temperature
Security	Integrated layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA, WPA2-PSK, WPA2-Enterprise with 802.1X, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE)***; EAP-TLS, …
Quality of Service	Advanced power save (U-APSD); WMM access categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, and 802.11r for fast layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global layer 7 traffic analytics reporting per network, per device, and per application
LED Göstergeleri	1 power/booting/firmware upgrade status; Ethernet LED
Regulatory	RoHS; For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	FCC Part 2 RSS-102 (Canada); EN 50385; EN 6231; EN 62479 (Europe); AS/NZS 2772 (Australia/NZ)

Genel bakış

Cisco CW9172I kullanım alanları ve özellikleri.

Cisco CW9172I, Cisco Wireless 9172 serisinden Wi-Fi 7 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco ® Wireless 9172 Series Wi-Fi 7 access points provide a seamless entry into next-generation wireless networking, delivering reliable, high-performance connectivity for environments like boutique hotels, student housing, retail stores, healthcare clinics, remote work hubs, and distributed business locations such as satellite offices, regional branches, and logistics hubs. With a compact, energy-efficient design and flexible management options, the 9172 Series helps ensure strong, future-ready connectivity without compromising affordability.

The Cisco Wireless 9172 Series Wi-Fi 7 access points are high-performance wireless solutions designed for environments like boutique hotels, healthcare clinics, retail stores, student housing, and distributed business locations such as regional branches and logistics hubs. With tri-radio functionality across 2.4-GHz, 5-GHz, and 6-GHz bands, the 9172 Series provides reliable, high-speed connectivity (frame rate up to 9000 Mbps) for spaces with low to moderate device density. Flexible deployment options—cloud, on-premises, or hybrid—allow seamless integration into existing networks.

Öne Çıkan Özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Tri-radio Wi-Fi 7 (2.4, 5, and 6 GHz)
Aggregate data rate of 9000 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency (30W and 45W options)
Moderate-density radio configurations (9172I)
Multiple Ethernet ports (9172H)
Dual power options (PoE/DC) (9172I)

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Tri-radio Wi-Fi 7 (2.4, 5, and 6 GHz)
Aggregate data rate of 9000 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency (30W and 45W options)
Moderate-density radio configurations (9172I)
Multiple Ethernet ports (9172H)
Dual power options (PoE/DC) (9172I)

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Wireless 9172 Datasheet (EN)PDF · CW9172I Cisco Wireless 9172 Datasheet (PDF)PDF · CW9172I Cisco Wireless 9172 Datasheet (EN)PDF · CW9172I

Sık sorulanlar

CW9172I hakkında kısa yanıtlar.

CW9172I fiyatı ne kadar?

CW9172I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
