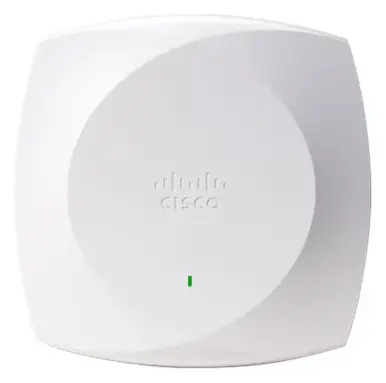

Cisco CW9171I Wi-Fi 7 İç Ortam Access Point

ModelCW9171I

Cisco CW9171I access point: Wi-Fi 7 standardı, Kullanım: İç Ortam, Dual-radio tri-band Wi-Fi 7 (2.4 and 5/6 GHz), Aggregate data rate of 6120 Mbps, Cloud, on-premises, or hybrid management.

Kablosuz standart: Wi-Fi 7

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 7 standardı
Kullanım: İç Ortam
Dual-radio tri-band Wi-Fi 7 (2.4 and 5/6 GHz)
Aggregate data rate of 6120 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Teknik Özellikler 16 satır

802.11be (Wi-Fi 7)	2x2 with two spatial streams (2.4 GHz, 5 GHz/6 GHz); 4096 quadrature amplitude modulation (QAM); Multilink operation; Preamble puncturing; Uplink/downlink OFDMA; Target Wake Time (TWT); BSS coloring; Maximal Ratio Combining (MRC); 20-, 40-, 80-, 160-, and 320-MHz channels (6 GHz); 20-, 40-, 80-, and 160-MHz channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 6.0 Gbps (2x2 320 MHz on …
802.11ax (Wi-Fi 6/6E)	2x2 with two spatial streams (2.4 GHz, 5 GHz/6 GHz); Uplink/downlink OFDMA; 1024 QAM; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (5 and 6 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 2.7 Gbps (2x2 20 MHz on 2.4 GHz, 2x2 160 MHz on 5 GHz, or 2x2 160 MHz on 6 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); …
802.11ac (Wi-Fi 5)	2x2 + 2x2 with 2 spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 1.7 Gbps (2x2 160 MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; WPA2/WPA3 support
Dahili Anten	2.4 GHz: Peak gain 4dBi, internal antenna, omnidirectional in azimuth; 5 GHz: Peak gain 5.5dBi, internal antenna, omnidirectional in azimuth; 6 GHz: Peak gain 6dBi, internal antenna, omnidirectional in azimuth; IoT: Peak gain 2dBi, internal antenna, omnidirectional in azimuth
802.11n version 2.0 (and related capabilities)	2x2 MIMO with two spatial streams; MRC; 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 440 Mbps (2x2 40 MHz with 5 GHz and 2x2 20 MHz with 2.4 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support
Arayüzler	1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45) uplink; Management console port (RJ-45) with default speed of 115200 bps; USB 2.0 at 4.5W; DC power jack, 54V
Incorporated radios	Wi-Fi 7 802.11be on all three radios; 2.4 GHz + 5 GHz or 6 GHz (all 2x2:2); Dedicated scan/aux radio and IoT (BLE 6) radio
Boyutlar (WxLxH)	CW9171I model (without mounting brackets): 7.8 x 7.8 x 2.1 in. (20 x 20 x 5.3 cm)
Ağırlık	1.9 lb (874g)
Mounting brackets	AIR-AP-BRACKET-1 or AIR-AP-BRACKET-2
Power consum	Note: Actual power consumption may vary depending on access point usage. Typical power consumption assumes the access point is passing traffic* during typical business hours and is idle during off-business hours. Business hours are assumed to be 11 hours a day, 6 days a week.; Test conditions: Dual radio 802.3at: The 5-GHz band operating at 160 MHz (2x2) passing 200 Mbps per band of download …
Ortam Koşulları	Nonoperating (storage) temperature: -40˚ to 158˚F (-40˚ to 70˚C); Non-operating (storage) altitude test: 0 to 550 mbar (at approx. 4863m, 16,000 ft); Operating temperature: 32˚ to 122˚F (0˚ to 50˚C); Radio operation derated for 104˚F to 122˚F (40˚C to 50˚C); Operating humidity: 0% to 95% (noncondensing); Operating altitude test: 50˚C (122˚F) at 0 to 4205m (13,800 ft)
Available transmit power settings	2.4 GHz: 20 dBm (100 mW); -10 dBm (0.1 mW); 5 GHz: 20 dBm (100 mW); -10 dBm (0.1 mW); 6 GHz: 20 dBm (100 mW); -10 dBm (0.1 mW); Note: In countries where use of the 6-GHz band is not allowed or there is no current software support, the 6-GHz radio will be disabled. The radio may be enabled with future software, once the product is certified to operate in 6 GHz for that country.
Sertifikalar	Wi-Fi Alliance: Wi-Fi 7 (R1), Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9000 switches with Embedded Wireless Controller in SD-Access mode.
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Genel bakış

Cisco CW9171I kullanım alanları ve özellikleri.

Cisco CW9171I, Cisco Wireless 9171 serisinden Wi-Fi 7 iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco® Wireless 9171 Series Wi-Fi 7 access points provide a seamless entry into next-generation wireless networking, delivering reliable, high-performance connectivity for environments like boutique hotels, student housing, retail stores, healthcare clinics, remote work hubs, and distributed business locations such as satellite offices, regional branches, and logistics hubs. With a compact, energy-efficient design and flexible management options, the CW9171 helps ensure strong, future-ready connectivity without compromising affordability.

The Cisco Wireless 9171 Series Wi-Fi 7 access points are high-performance wireless solutions designed for environments like healthcare clinics, student housing, and distributed business locations. With dual-radio functionality across the 2.4-GHz and 5-GHz or 6-GHz bands, the CW9171 provides reliable, high-speed connectivity (frame rate up to 6120 Mbps) for spaces with low to moderate device density. Flexible deployment options—cloud, on-premises, or hybrid—allow seamless integration into existing networks.

Öne Çıkan Özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Dual-radio tri-band Wi-Fi 7 (2.4 and 5/6 GHz)
Aggregate data rate of 6120 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency
Moderate-density radio configurations
Dual power options (PoE/DC)
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 7 standardı
Kullanım: İç Ortam
Dual-radio tri-band Wi-Fi 7 (2.4 and 5/6 GHz)
Aggregate data rate of 6120 Mbps
Cloud, on-premises, or hybrid management
IoT radios (BLE, 802.15.4)
Compact design with mount compatibility
Power efficiency
Moderate-density radio configurations
Dual power options (PoE/DC)
Wi-Fi 7 (802.11be)
Wi-Fi 6E (802.11ax)
Band steering
2.5-Gbps Multigigabit Ethernet
AP power optimizations (AP Power Save Mode)
Intelligent Capture

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Cisco Wireless 9171 Datasheet (EN)PDF · CW9171I Cisco Wireless 9171 Datasheet (PDF)PDF · CW9171I

Sık sorulanlar

CW9171I hakkında kısa yanıtlar.

CW9171I fiyatı ne kadar?

CW9171I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
