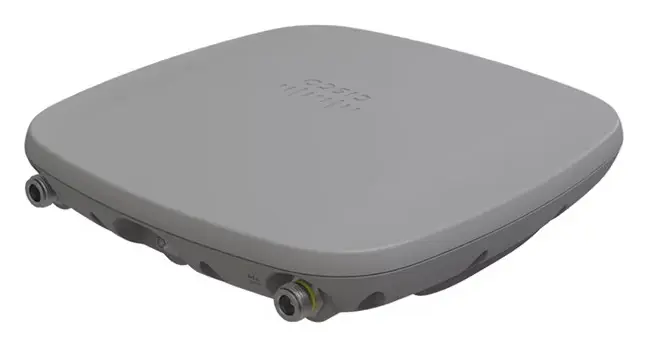

Cisco CW9163E Wi-Fi 6E Dış Ortam Access Point

ModelCW9163E

Cisco CW9163E access point: Wi-Fi 6E standardı, Kullanım: Dış Ortam, Wi-Fi 6 and Wi-Fi 6E (802.11ax), AP power optimizations (AP Power Save mode), CleanAir Pro.

Port sayısı: 4 port
Kablosuz standart: Wi-Fi 6E

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6E standardı
Kullanım: Dış Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
CleanAir Pro
Client steering
Uplink/downlink OFDMA
Uplink/downlink MU-MIMO technology

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	CW9163E-x (x = regülasyon bölgesi), CW9163E-MR

Teknik Özellikler 22 satır

Supported wireless controllers	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)
802.11n Özellikleri	2x2 MIMO with two spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g; 20- and 40-MHz channels; PHY data rates up to 750 Mbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive); 802.11 Dynamic Frequency Selection (DFS); Cyclic Shift Diversity (CSD) support
802.11ac (Wi-Fi 5)	2x2 MIMO with two spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, channels; PHY data rates up to 867Mbps (2x2 80MHz on 5 GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; CSD support; Wi-Fi Protected Access (WPA) 3 support
802.11ax (Wi-Fi 6/6E)	1024-QAM; 2x2 downlink MU-MIMO with two spatial streams (2.4 GHz, 5 GHz, and 6 GHz); Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (6 GHz); 20-, 40-, and 80-MHz, channels (5 GHz); 20-MHz channels (2.4 GHz); PHY data rates up to 3.9 Gbps (2x2 160 MHz on 6 GHz, 2x2 80 MHz on 5 GHz, and 2x2 20 MHz on 2.4 GHz); Packet aggregation: A-MPDU …
Antenler	CW-ANT-O1-NS-00 Omnidirectional Dipole Self-Identifying Antenna with N-Type Connector; 2.4 GHz: Peak gain 4 dBi, omnidirectional in azimuth; 5 GHz: Peak gain 8 dBi, omnidirectional in azimuth; 6 GHz: Peak gain 8 dBi, omnidirectional in azimuth; CW-ANT-D1-NS-00 4-Port Directional Patch Self-Identifying Antenna with N-Type Connectors; 2.4 GHz: Peak gain 8 dBi, directional antenna, (75x30); 5 GHz: …
Arayüzler	1x 100M/1000M/2.5G Multigigabit Ethernet (RJ-45); Management console port (RJ-45); 4x N-Type Wi-Fi antenna connectors; RP-SMA active GPS/GNSS antenna connector
Boyutlar (W x L x H)	Access point (without mounting brackets): 9.64 x 9.64 x 2.5 in. (245 x 245 x 63.5 mm)
Ağırlık	3.3 lb (1.5 kg)
Input power requirements	802.3at Power over Ethernet Plus (PoE+), 802.3af Power over Ethernet (PoE); Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
Ortam Koşulları	Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m); Operating temperature: -40° to 149°F (-40° to 65°C) without solar derating; Operating temperature: -40° to 131°F (-40° to 55°C) with solar derating; Operating humidity: 5% to 95% (noncondensing); Operating altitude test: 40°C (104°F) at 9843 ft (3000 m); …
System memory	2048 MB DRAM; 1024 MB flash
Sertifikalar	Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy (BLE)
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
Radyolar	2.4 GHz 802.11b/g/n/ax client access radio; 5 GHz 802.11a/n/ac/ax client access radio; 6 GHz 802.11ax client access radio; 2.4 GHz, 5 GHz, and 6 GHz tri-band Air Marshal WIDS/WIPS, spectrum analysis, & location analytics radio; 2.4 GHz Bluetooth Low Energy (BLE) radio with Beacon and BLE scanning support Concurrent operation of all five radios
Güç	Power over Ethernet: 42.5 - 57 V (PoE+ and UPoE compliant); Power requirement: Up to 25W (PoE+); Power over Ethernet injector sold separately; Actual power consumption may vary depending on the AP usage
Montaj	Wall and pole (2.5” to 3.9” diameter) mount capable; Compatible with MA-MNT-MR-16 (included) and AIR-MNT-VERT1
Security	Integrated Layer 7 firewall with mobile device policy management; Real-time WIDS/WIPS with alerting and automatic rogue AP containment with Air Marshal; Flexible guest access with device isolation; VLAN tagging (802.1q) and tunneling with IPsec VPN; PCI compliance reporting; WPA2-PSK, WPA2-Enterprise, WPA3 - Personal, WPA3 - Enterprise, WPA3 - Enhanced Open (OWE); EAP Local authentication - …
Quality of Service	Advanced Power Save (U-APSD); WMM Access Categories with DSCP and 802.1p support; Layer 7 application traffic identification and shaping
Mobility	PMK, OKC, & 802.11r for fast Layer 2 roaming; Distributed or centralized layer 3 roaming
Analitik	Embedded location analytics reporting and device tracking; Global L7 traffic analytics reporting per network, per device, & per application
LED Göstergeleri	One power/booting/firmware upgrade status
Reliability	Mean Time Between Failure (MTBF): 468,413 hrs at 77°F (25°C) operating temperature; 128,631 hrs at 149°F (65°C) operating temperature

Sertifikalar ve Uyumluluk 5 satır

IEEE Standards	IEEE 802.3; IEEE 802.3ab; IEEE 802.3af/at; IEEE 802.11a/b/g/n/ac/ax; IEEE 802.11h, 802.11d; IEEE 802.15.1/802.15.4
Safety Approvals	IEC 60950-1 / IEC 60950-22; IEC 62368-1; EN 60950-1 / EN60950-22; EN62368-1; CAN/CSA-C22.2 No. 60950-1 / 60950-22; CAN/CSA-C22.2 No. 62368-1; AS/NZS60950.1 / AS/NZS62368.1
Radio Approvals	EN 300 328 (v2.2.2 2019-7); EN 301 893 (v2.1.1); AS/NZS 4268 (rev. 2017); 47 CFR FCC Part 15C, 15.247, 15.407; RSP-100; RSS-GEN; RSS-247; LP002 (rev 2020); Japan Std. 33a, Std 66 and Std 71; QCVN (54:2020/BTTTT); QCVN (65:2013/BTTTT); For additional country-specific regulatory information, please contact Meraki sales
EMI Approvals (Class B)	FCC Part 15B; ICES-003 (Canada); EN 301 489-1-17; EN 55032; EN 55024 (Europe); CISPR 32 (Australia/NZ) VCCI (Japan)
Exposure Approvals	EN 50385:2017; ARPANSA; AS/NZS 2772.2 (rev. 2016); 47 CFR Part 1.1310 and Part 2.1091; RSS-102 (2015)

Genel bakış

Cisco CW9163E kullanım alanları ve özellikleri.

Cisco CW9163E, Catalyst 9163E serisinden Wi-Fi 6E dış ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst ™ 9163E Wi-Fi 6E access point is designed with a weatherized and robust enclosure, helping ensure uninterrupted wireless access in even the most challenging outdoor environments. As part of the Cisco Catalyst 9160 Series, the 9163E offers the flexibility to choose between on-premises and cloud management with the ability to change at any time, giving you the freedom to network your way.

This next-generation access point is specifically designed to extend your Wi-Fi 6E network outdoors, catering to a wide range of use cases from campus environments and municipal Wi-Fi to stadiums, airport hangars, and everything in between. This access point is not only reliable and secure but also highly flexible and intelligent, adapting to your network requirements seamlessly.

Öne Çıkan Özellikler

Wi-Fi 6E standardı
Kullanım: Dış Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
CleanAir Pro
Client steering
Uplink/downlink OFDMA
Uplink/downlink MU-MIMO technology
BSS coloring
Target Wake Time (TWT)
Intelligent Capture
Application hosting

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6E standardı
Kullanım: Dış Ortam
Wi-Fi 6 and Wi-Fi 6E (802.11ax)
AP power optimizations (AP Power Save mode)
CleanAir Pro
Client steering
Uplink/downlink OFDMA
Uplink/downlink MU-MIMO technology
BSS coloring
Target Wake Time (TWT)
Intelligent Capture
Application hosting
Bluetooth 5.1
Self-identifying antenna
Container support for applications
Choice of management mode

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9163E Datasheet (EN)PDF · CW9163E Catalyst 9163E Datasheet (PDF)PDF · CW9163E Cisco Wireless 9163 Datasheet (EN)PDF · CW9163E

Sık sorulanlar

CW9163E hakkında kısa yanıtlar.

CW9163E fiyatı ne kadar?

CW9163E için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
