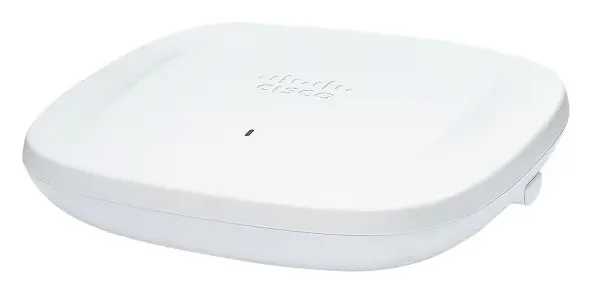

Cisco C9136I Wi-Fi 6E İç Ortam Access Point

ModelC9136I

Cisco C9136I access point: Wi-Fi 6E standardı, Kullanım: İç Ortam, Wi-Fi 6E (802.11ax), Environmental sensors, Dual 5G Multigigabit Ethernet.

Kablosuz standart: Wi-Fi 6E

Fiyat ve stok bilgisi alınAynı gün dönüş

Adet ve proje bilginize göre güncel fiyat, stok ve teslim süresini iletelim.

Ara WhatsApp

Distribütör garantili

81 ile sevkiyat

Teknik destek

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6E (802.11ax)
Environmental sensors
Dual 5G Multigigabit Ethernet
Smart AP
Band steering
Uplink/downlink OFDMA

Teknik özellikler

Üretici veri sayfasından derlenmiştir; proje öncesi güncel datasheet ile teyit edilmesi önerilir.

Sipariş Bilgileri 1 satır

Sipariş Kodları (PID)	C9136I-x (x = regülasyon bölgesi)

Teknik Özellikler 13 satır

802.11n Özellikleri	4x4 MIMO with four spatial streams; Maximal Ratio Combining (MRC); 802.11n and 802.11a/g beamforming; 20- and 40-MHz channels; PHY data rates up to 1.5 Gbps (40 MHz with 5-GHz and 20 MHz with 2.4-GHz); Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive); 802.11 Dynamic Frequency Selection (DFS); …
802.11ac (Wi-Fi 5)	8x8 downlink MU-MIMO with eight spatial streams; MRC; 802.11ac beamforming; 20-, 40-, 80-, and 160-MHz channels; PHY data rates up to 3.4 Gbps (8x8 80 MHz or dual 4x4 80+80 MHz on 5-GHz); Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive); 802.11 DFS; Cyclic Shift Diversity (CSD) support; Wi-Fi Protected Access (WPA) 3 support
802.11ax (Wi-Fi 6/6E)	8x8 uplink/downlink MU-MIMO with eight spatial streams (5-GHz); 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4 and 6-GHz); Uplink/downlink OFDMA; TWT; BSS coloring; MRC; 802.11ax beamforming; 20-, 40-, 80-, and 160-MHz channels (6-GHz); 20-, 40-, 80-, 80+80-MHz (5-GHz); 20-MHz channels (2.4-GHz); PHY data rates up to 10.2 Gbps (4x4 160 MHz on 6 GHz, 8x8 80 MHz on 5-GHz, and 4x4 20 MHz …
Dahili Anten	2.4-GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth; 5-GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth; 6-GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth
Arayüzler	2x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45); Management console port (RJ-45); USB 2.0 at 9W
Boyutlar (W x L x H)	Access point (without mounting brackets): 9.9 x 9.9 x 2.2 in. (25.1 x 25.1 x 5.6 cm)
Ağırlık	Catalyst 9136I; 3.6 lb. (1.65 kg)
Input power requirements	802.3bt Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+); Cisco power injector, AIR-PWRINJ7=; 802.3af PoE (only for configuration staging, all radios off)
Ortam Koşulları	Catalyst 9136I; Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C); Nonoperating (storage) altitude test: 25˚C (77°F) at 15,000 ft (4600 m); Operating temperature: 32° to 122°F (0° to 50°C); Operating humidity: 10% to 90% (noncondensing); Operating altitude test: 40˚C (104°F) at 9843 ft (3000 m); Note: When the ambient operating temperature exceeds 40°C (104°F), the access point …
System memory	2048 MB DRAM; 1024 MB flash
Sertifikalar	Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security; Bluetooth SIG: Bluetooth Low Energy
Desteklenen Kablosuz Kontrolcüler	Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual); Cisco Catalyst 9k switches with Embedded Wireless Controller in SDA mode
Indicators	Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Genel bakış

Cisco C9136I kullanım alanları ve özellikleri.

Cisco C9136I, Catalyst 9136 serisinden Wi-Fi 6E iç ortam kullanım için tasarlanmış kurumsal access point cihazıdır.

The Cisco Catalyst ™ 9136 Series Access Points are the next generation of enterprise access points supporting the new 6-GHz band for Wi-Fi. They are resilient, secure, and intelligent.

The Wi-Fi 6E-compliant Catalyst 9136 Series takes advantage of the 6-GHz band expansion to produce a network that is more reliable and secure, with higher throughput, more capacity, and less device interference. The access points come with two 4x4 radios and one 8x8 radio and provide a host of features.

Öne Çıkan Özellikler

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6E (802.11ax)
Environmental sensors
Dual 5G Multigigabit Ethernet
Smart AP
Band steering
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture

Nerelerde kullanılır?

Ofis, otel, okul ve mağazalarda kesintisiz kablosuz kapsama ve dolaşım (roaming) için tavan veya duvar montajıyla kullanılır.

Tüm özellikler

Wi-Fi 6E standardı
Kullanım: İç Ortam
Wi-Fi 6E (802.11ax)
Environmental sensors
Dual 5G Multigigabit Ethernet
Smart AP
Band steering
Uplink/downlink OFDMA
Uplink/downlink MU‑MIMO technology
BSS coloring
Target Wake Time
Intelligent Capture
Application hosting
Bluetooth 5
Container support for applications

Dokümanlar

Veri sayfası ve kullanım kılavuzları.

Catalyst 9136 Datasheet (EN)PDF · C9136I Catalyst 9136 Datasheet (PDF)PDF · C9136I

Sık sorulanlar

C9136I hakkında kısa yanıtlar.

C9136I fiyatı ne kadar?

C9136I için fiyat; adet, proje kapsamı ve güncel kura göre değiştiğinden teklif usulüyle verilir. Ürünü teklif listenize ekleyerek veya telefon/WhatsApp hattımızdan ulaşarak aynı iş günü içinde fiyat ve stok bilgisi alabilirsiniz.
